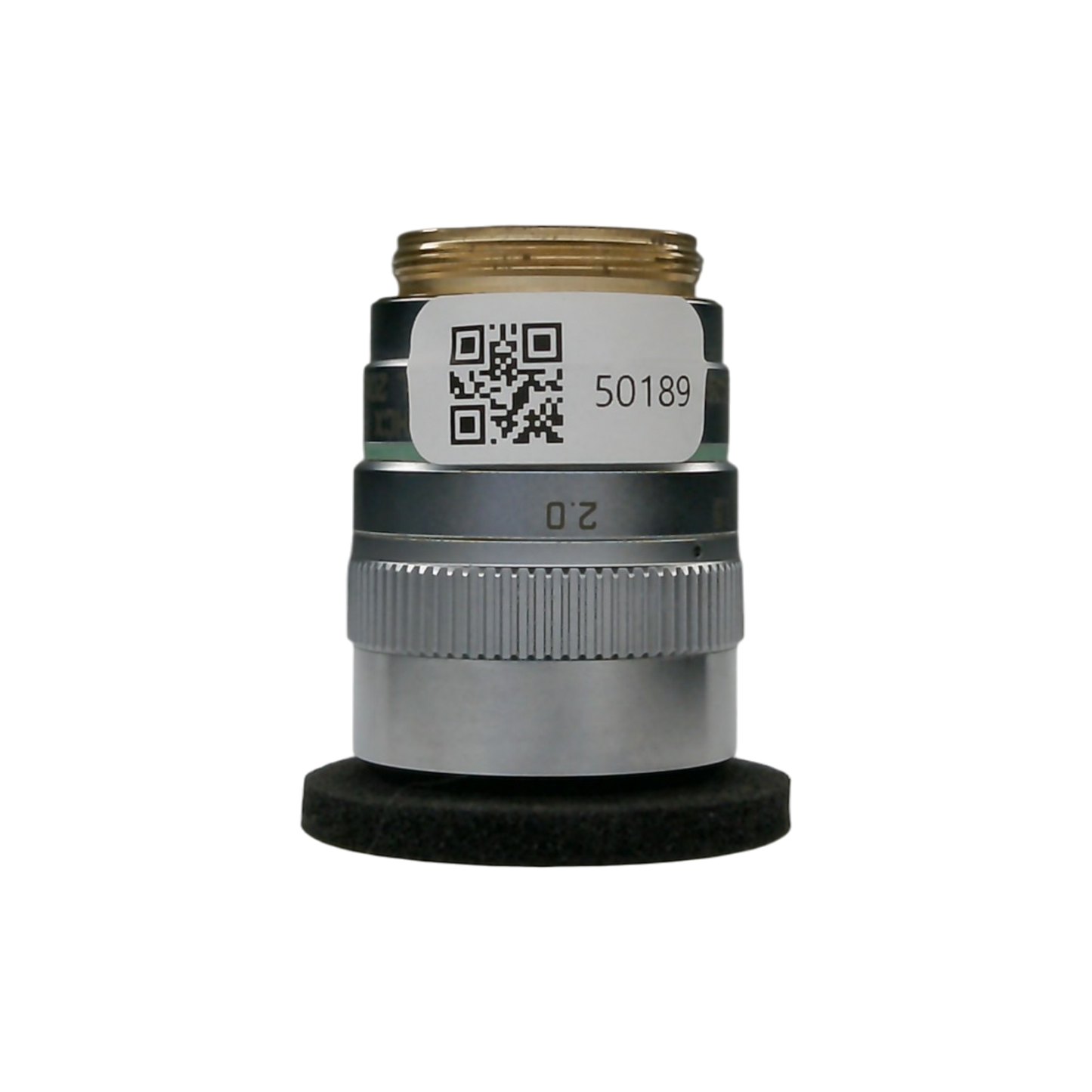

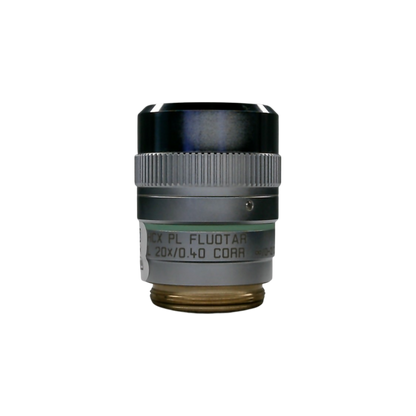

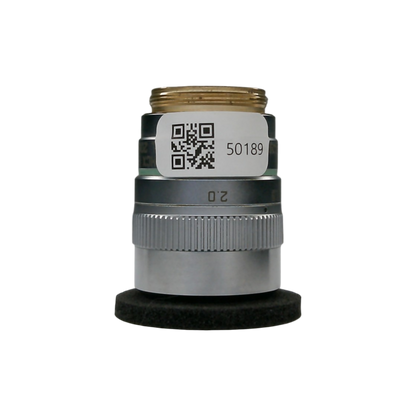

Leica HC PL FLUOTAR L 20x/0.40 CORR M25 Thread Size Microscope Objective

Leica HC PL FLUOTAR L 20x/0.40 CORR M25 Thread Size Microscope Objective

$1,500.00 USD
$1,500.00 USD
Sale Sold out
Shipping calculated at checkout.

Leica HC PL FLUOTAR L 20x/0.40 CORR Objective – Catalog #506242

The Leica HC PL FLUOTAR L 20x/0.40 CORR is a high-performance objective designed for precise imaging applications. With its 20x magnification, 0.40 numerical aperture, and correction collar, this plan fluorite objective ensures superior contrast and resolution. Ideal for both fixed and live specimens, it features an M25 thread for compatibility with Leica upright microscopes.

Condition

Refurbished/Used
This product has been inspected and verified to meet manufacturer specifications.

Key Features

  • 20x magnification with high-resolution imaging
  • 0.40 numerical aperture for enhanced light collection
  • Correction collar for adjustable cover glass thickness
  • Plan Fluorite (FLUOTAR) design for high contrast and flat field of view
  • Standard Leica M25 thread size

Applications

  • Brightfield microscopy
  • Differential Interference Contrast (DIC)
  • Live-cell imaging
  • Routine and advanced biological observation

Specifications

Specification Details
Manufacturer Leica
Model HC PL FLUOTAR L
Catalog Number 506242
Magnification 20x
Numerical Aperture (NA) 0.40
Optical Design Plan Fluorite (FLUOTAR)
Correction Collar Yes
Immersion Medium Air
Thread Size M25
Cover Glass Thickness Adjustable (via correction collar)
Microscope Compatibility Leica upright microscopes (M25)

Additional Details

  • Manufacturer: Leica
  • Model: HC PL FLUOTAR L 20x/0.40 CORR M25 Thread Size
  • Catalog Number: 50189
  • Serial Number: N/A
  • Condition: Seller Refurbished
