SKU: PRODUCT ID:OBJ-000-628

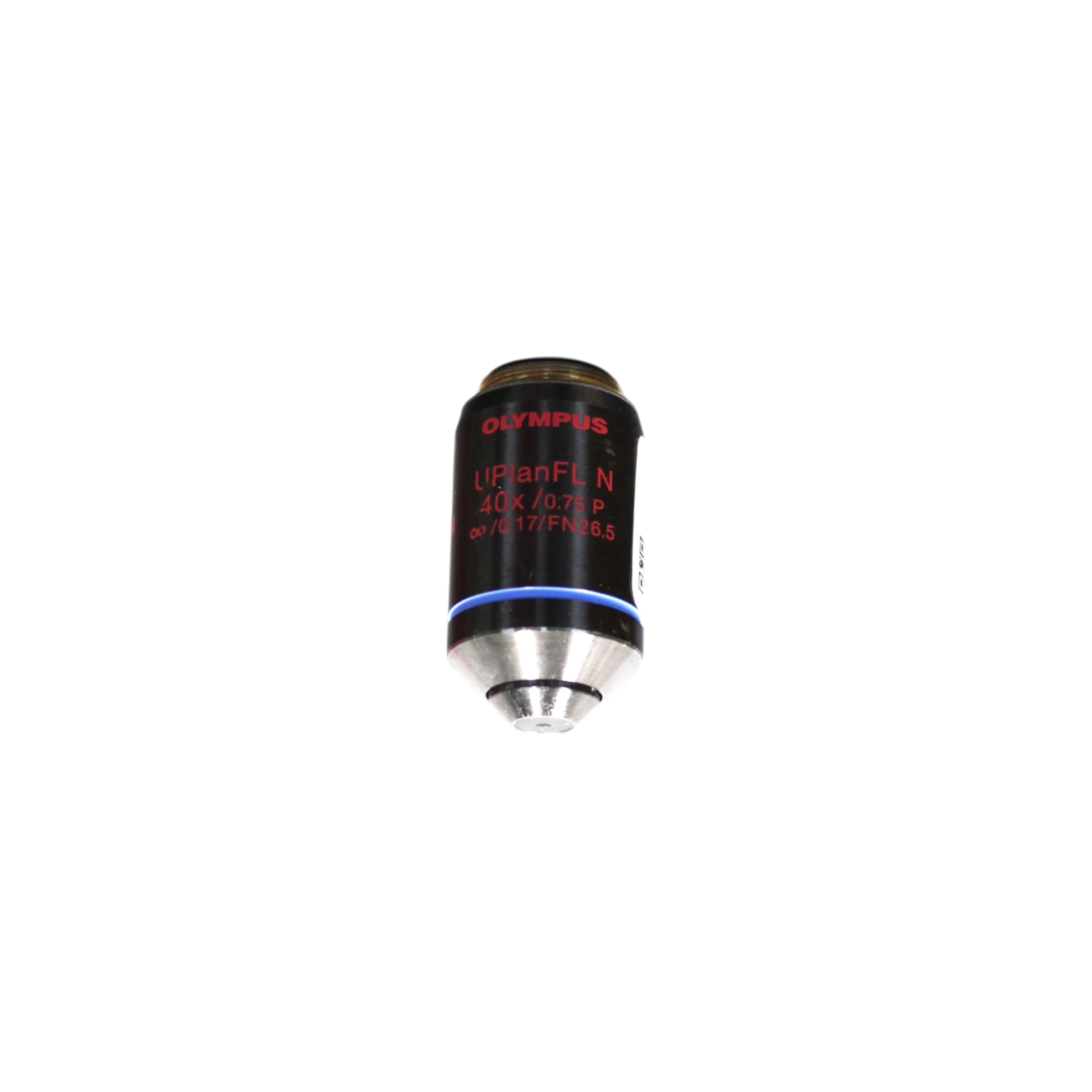

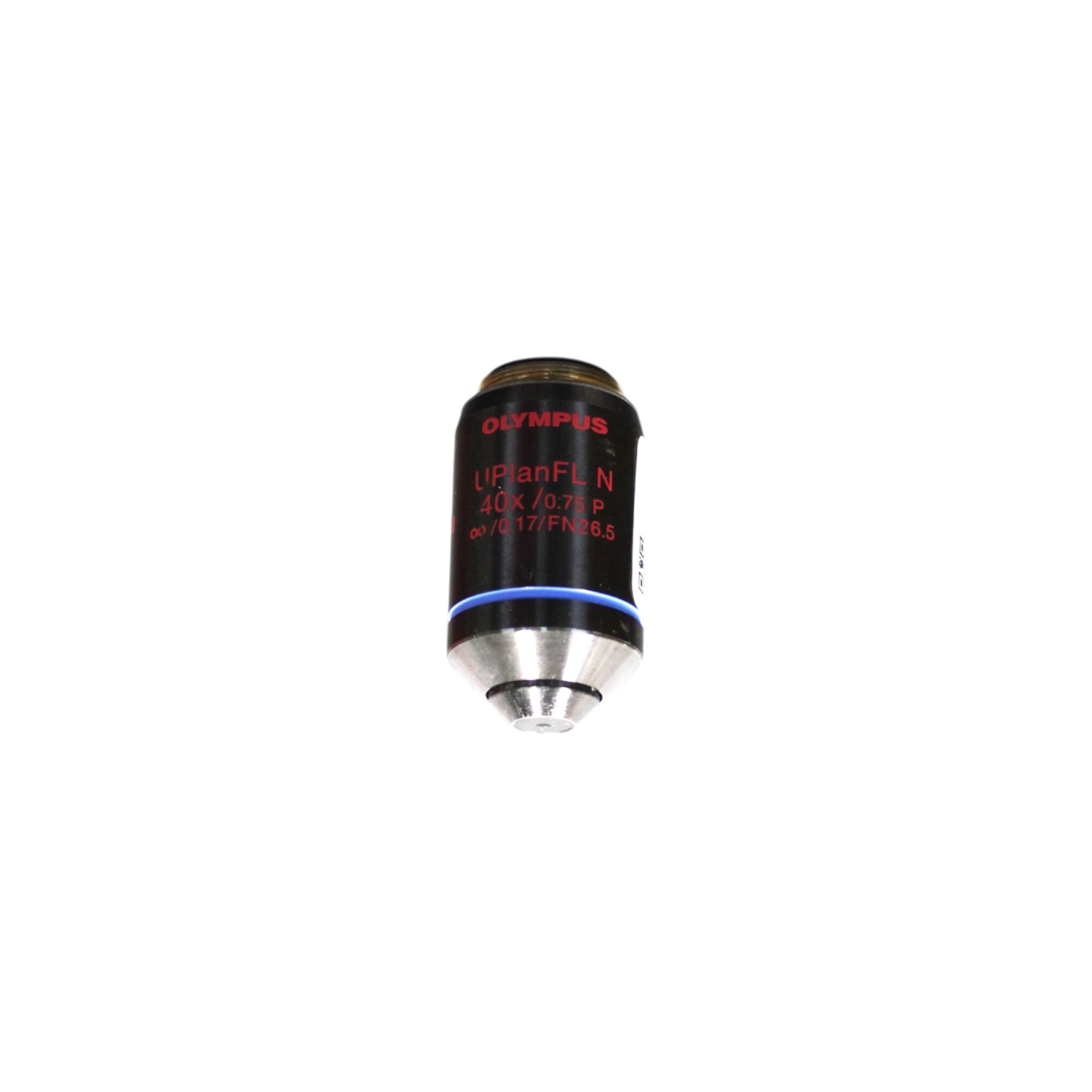

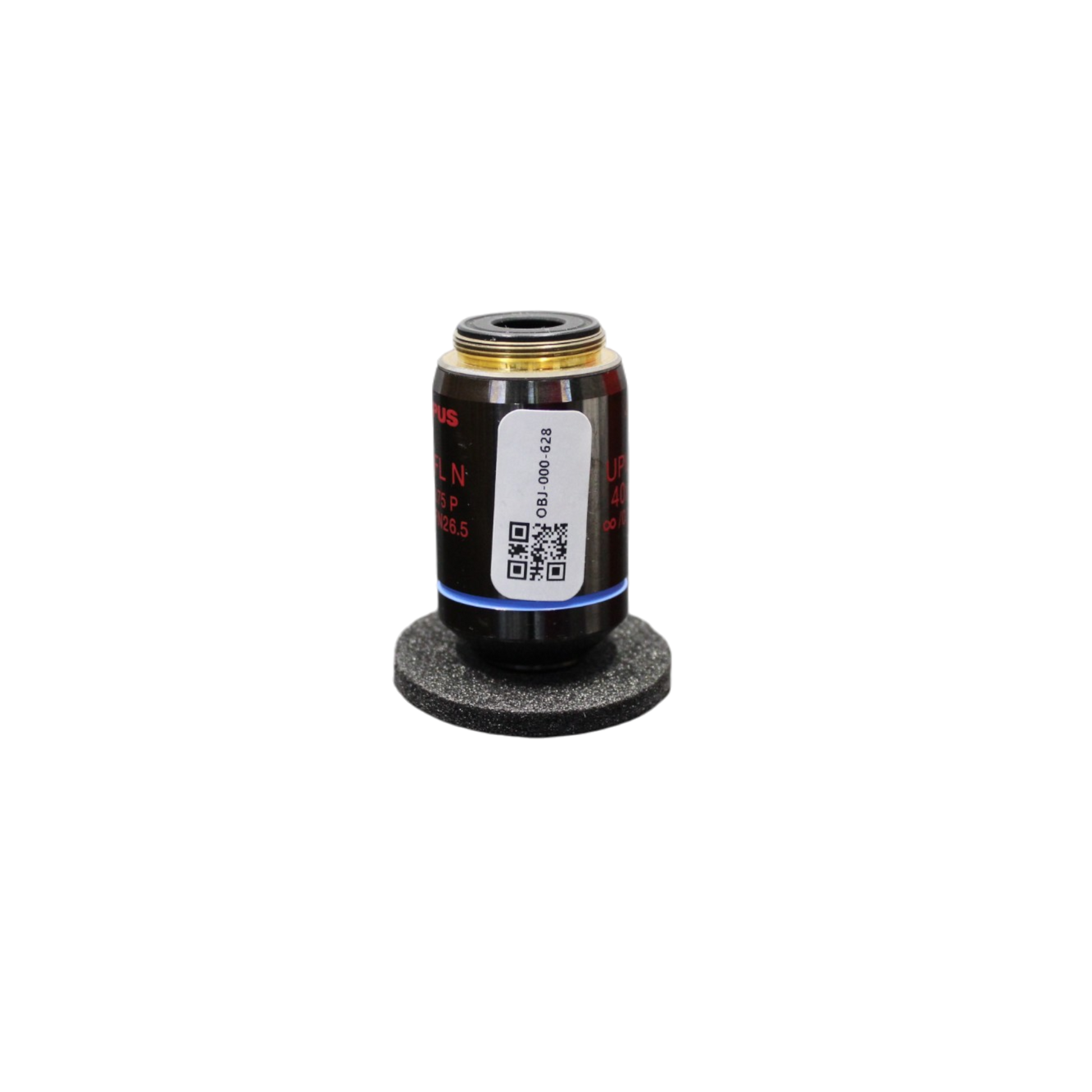

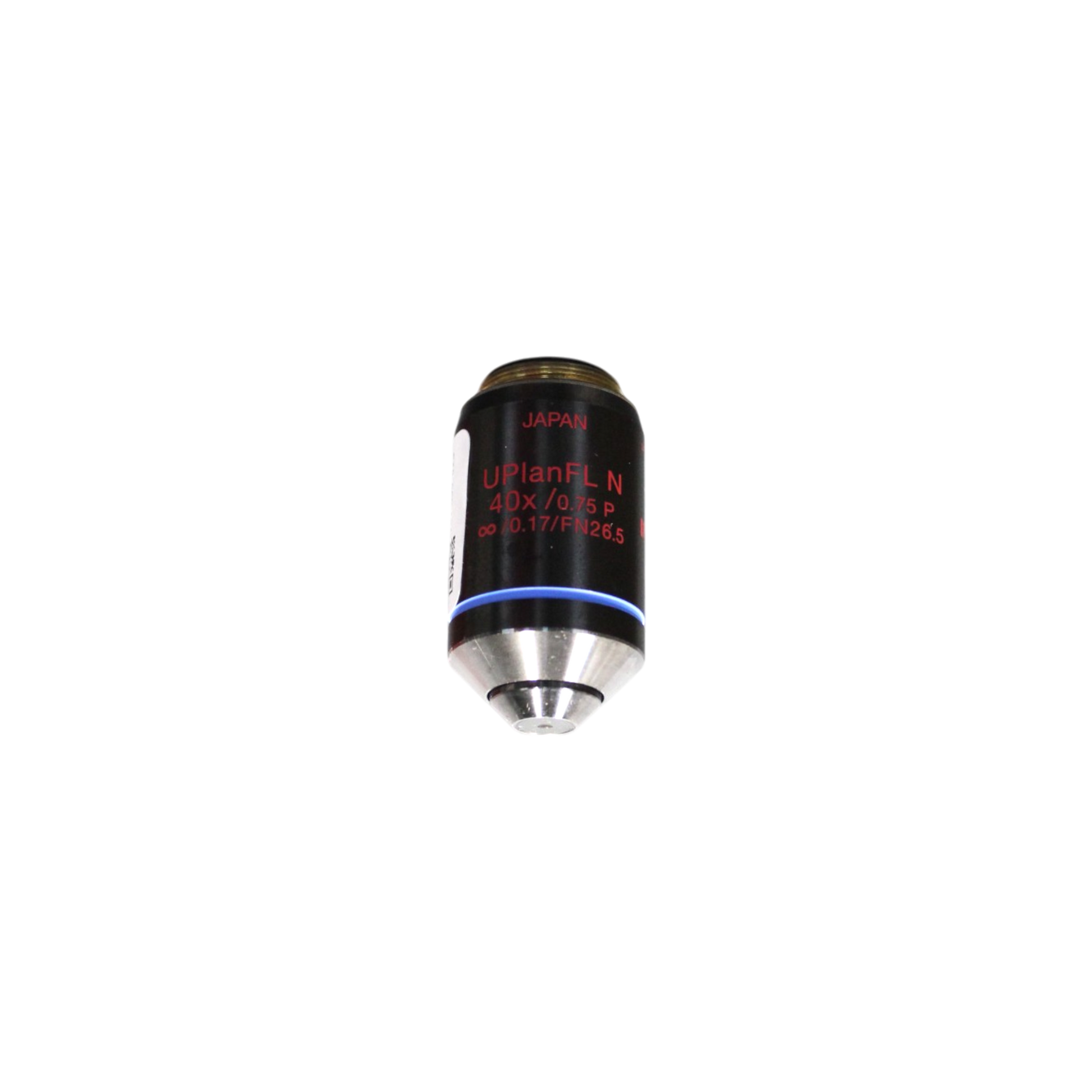

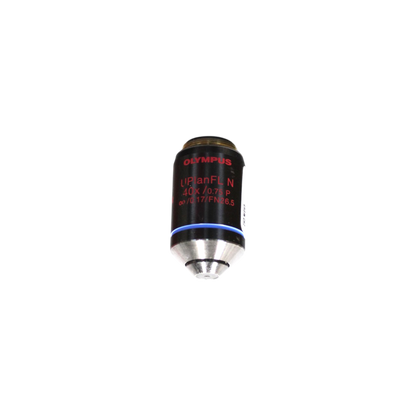

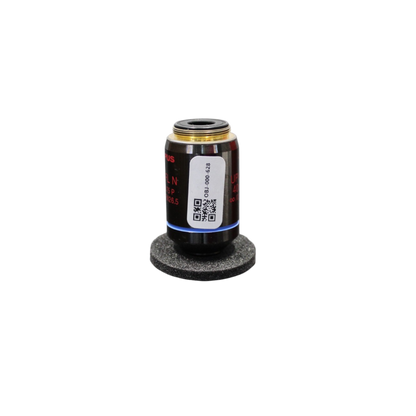

Olympus UPlanFL N 40x/0.75 P RMS Thread Size UPLFLN40XP Microscope Objective

Olympus UPlanFL N 40x/0.75 P RMS Thread Size UPLFLN40XP Microscope Objective

Olympus UPlanFL N 40x/0.75 P RMS Thread Size - UPLFLN40XP (Used)

The Olympus UPlanFL N 40x/0.75 P is a high-performance objective designed for brightfield and fluorescence applications. Featuring a 0.75 numerical aperture (NA), it delivers excellent resolution and contrast, making it ideal for research and clinical microscopy. This plan fluorite objective provides a flat field of view across the entire image and is suitable for use with standard RMS thread microscopes.

Condition

Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)

Included Items

  • Olympus UPlanFL N 40x/0.75 P Objective

Key Features

  • 40x magnification for detailed imaging
  • Plan fluorite optics for superior resolution and contrast
  • Numerical aperture (NA) of 0.75 for excellent light-gathering capability
  • RMS thread size for compatibility with Olympus and other standard microscopes
  • Designed for fluorescence microscopy and other advanced applications
  • Flat field correction ensures sharp images across the field of view

Applications

  • Fluorescence microscopy
  • Brightfield microscopy
  • Live-cell imaging
  • Pathology and histology
  • Clinical and research applications

Specifications

Specification Details
Magnification 40x
Numerical Aperture (NA) 0.75
Working Distance 0.51 mm
Immersion Medium Air (Dry)
Cover Glass Thickness 0.17 mm
Optical Correction Plan Fluorite (Flat Field, High Contrast)
Thread Size RMS (0.8" / 20.32mm diameter, 0.706mm pitch)
Parfocal Distance 45 mm
Compatible Microscopes Olympus BX, IX, and other RMS-compatible models
Special Features High transmission coatings for fluorescence

Additional Details

  • Manufacturer: Olympus
  • Model: UPlanFL N 40x/0.75 P RMS Thread Size
  • Catalog Number: UPLFLN40XP
  • Serial Number: N/A
  • Condition: Used
