Olympus UPlanFL N 4x/0.13 PhL RMS Thread Size Microscope Objective.

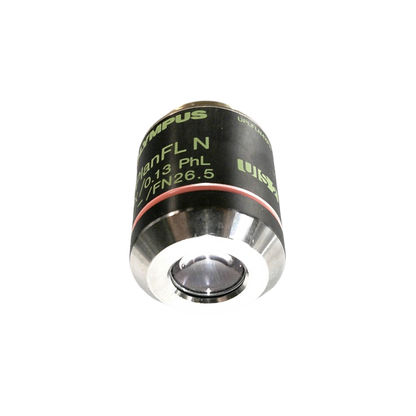

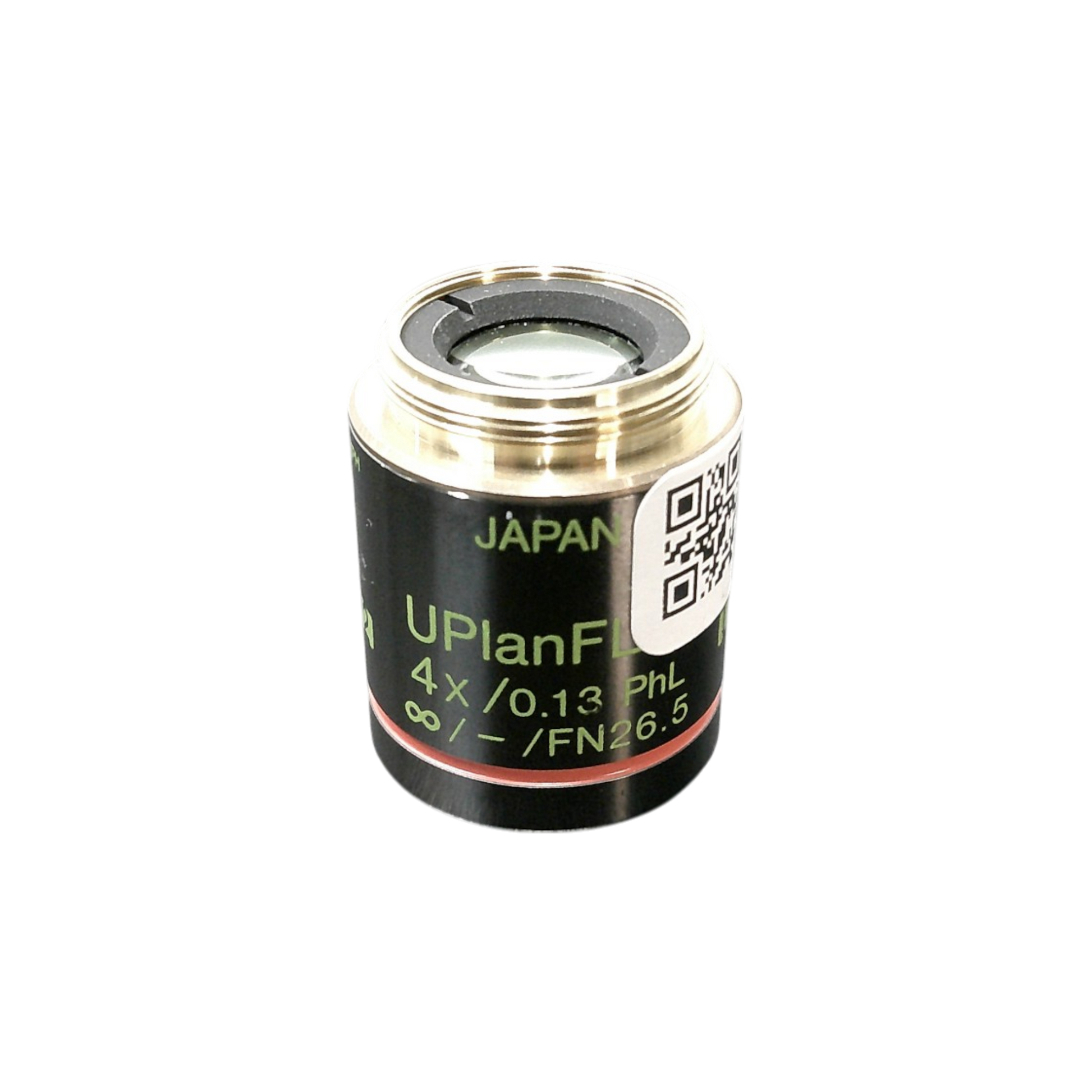

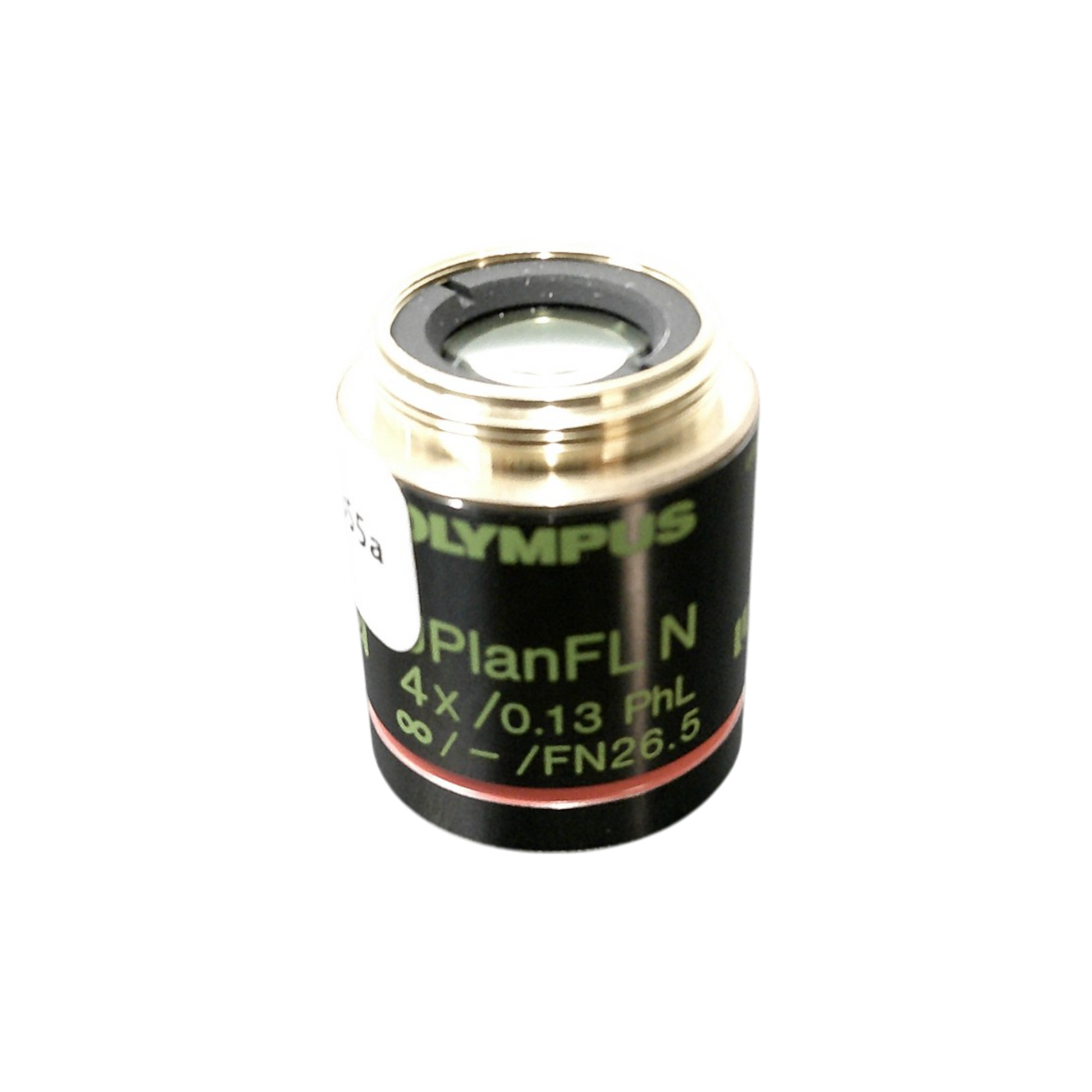

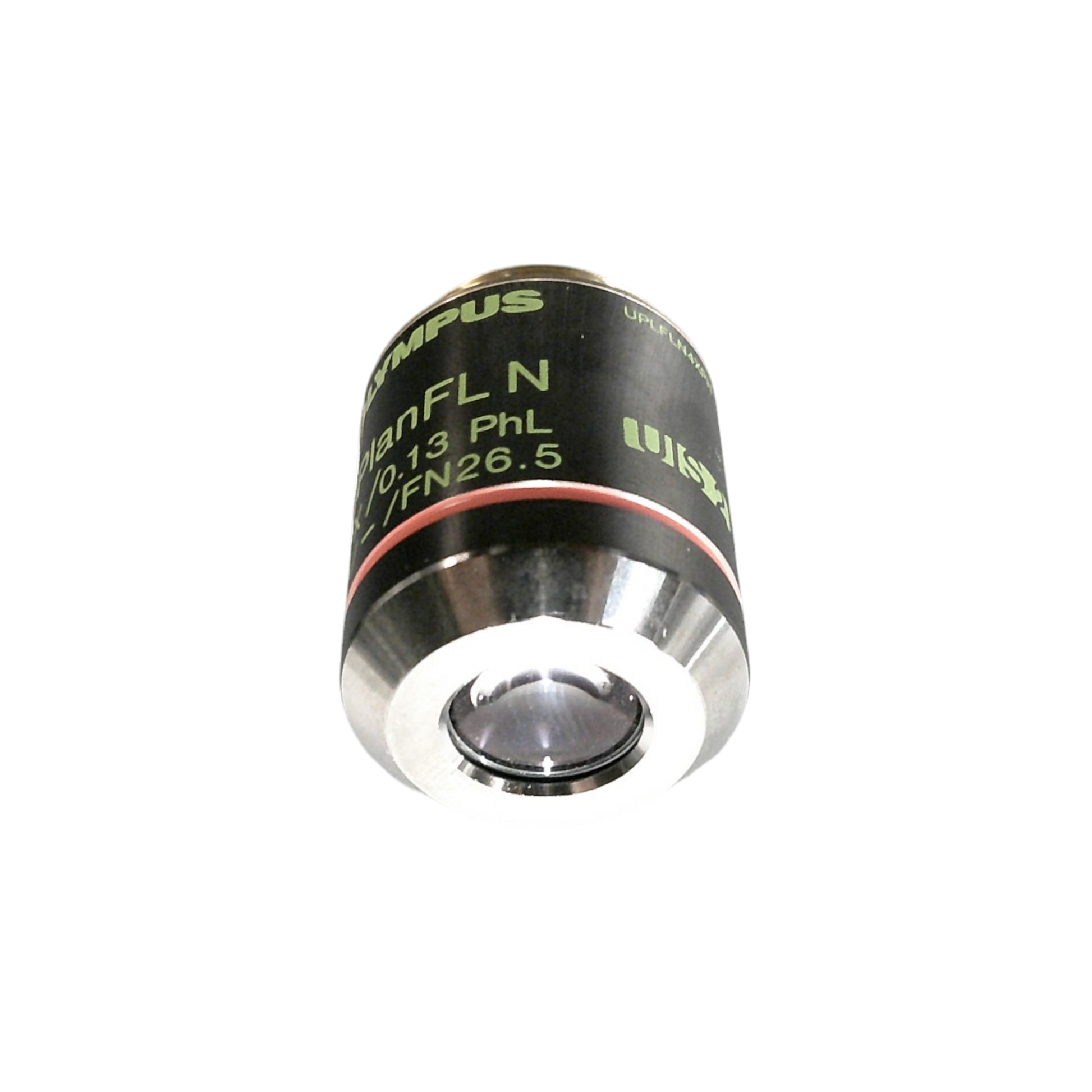

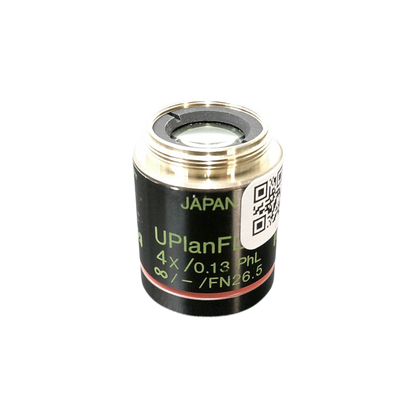

Olympus UPlanFL N 4x/0.13 PhL Objective, RMS Thread

The Olympus UPlanFL N 4x/0.13 PhL is a wide-field, low magnification objective featuring excellent flatness and semi-apochromatic correction. Designed for phase contrast microscopy using the PhL ring, it provides bright, uniform images ideal for scanning large specimen areas. Its RMS thread ensures compatibility with most Olympus upright microscope stands and configurations.

Condition

Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)

Key Features

• Magnification: 4x
• Numerical Aperture (NA): 0.13
• Objective Type: UPlanFL N (Universal Plan Fluorite, Semi-Apochromat)
• Contrast Technique: Phase Contrast (PhL ring)
• Thread Size: RMS
• Immersion: Dry
• Field Correction: Plan – excellent image flatness across the field
• Working Distance: Long – suitable for thick samples or slides with coverslips

Applications

• Initial slide scanning and sample localization
• Low magnification phase contrast imaging
• Histology and tissue section analysis
• Teaching and multi-specimen overviews

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
