Tucsen Dhyana 400D 4.2MP Monochrome SCMOS Microscope Camera

Tucsen Dhyana 400D 4MP Monochrome Cooled sCMOS Camera

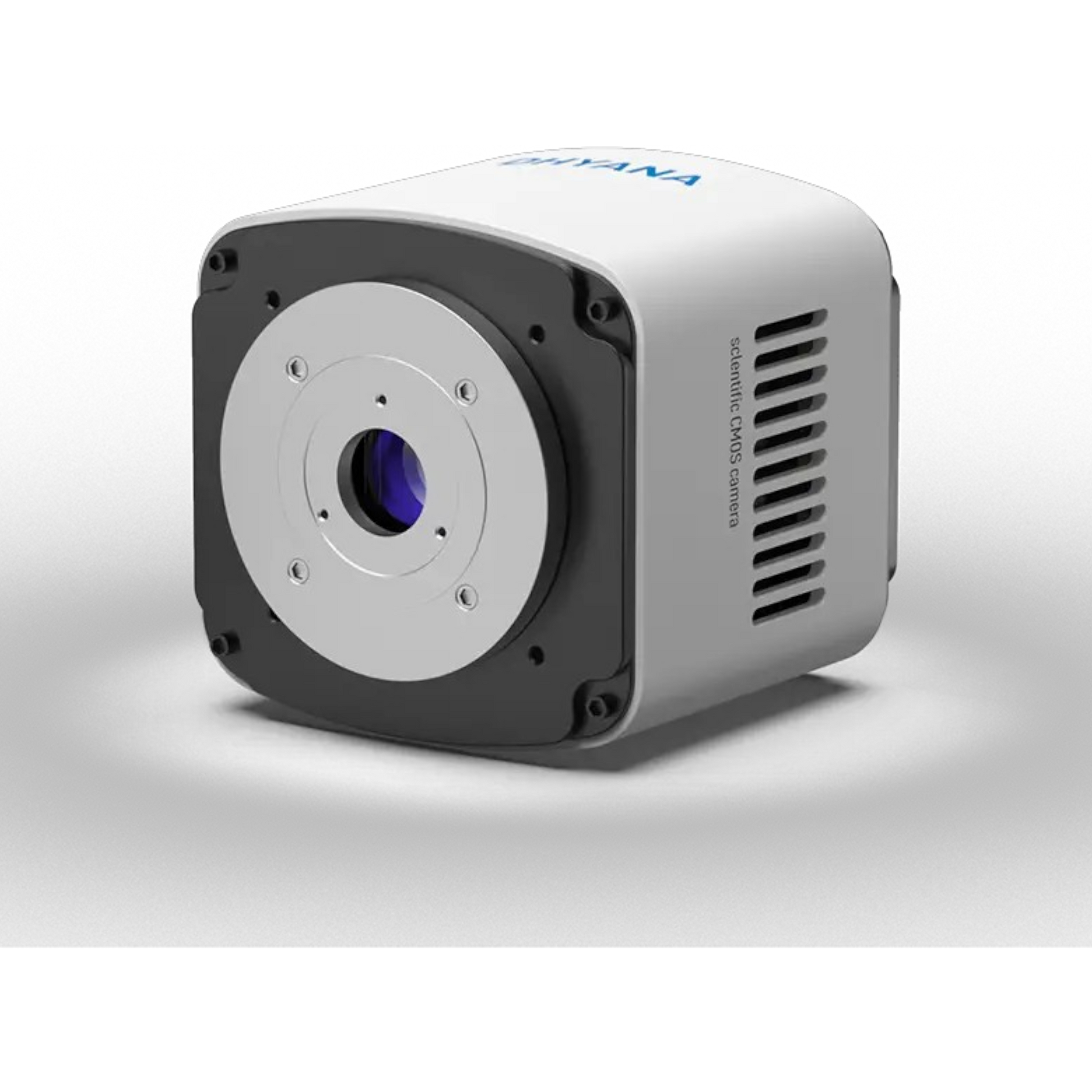

The Tucsen Dhyana 400D is a high-performance 4-megapixel monochrome cooled sCMOS camera, meticulously engineered for applications requiring exceptional sensitivity and speed. Its front-illuminated sensor technology, coupled with advanced cooling mechanisms, ensures superior image quality, making it ideal for low-light imaging scenarios.

Condition:

New with Manufacturer Warranty

Key Features:

• High Quantum Efficiency: Achieves a peak quantum efficiency (QE) of 72% at 595 nm, enhancing light sensitivity for low-light imaging applications.
• Optimized Pixel Size: Features 6.5 µm × 6.5 µm pixels, perfectly matching high numerical aperture (NA) microscope objectives (40x, 60x, 100x), ensuring optimal spatial sampling and sensitivity.
• Advanced Cooling Technology: Operates at temperatures 35°C below ambient, significantly reducing dark current and hot pixels, resulting in purer fluorescent background images.
• High Dynamic Range: Offers a dynamic range of approximately 86.6 dB, capturing both faint and bright details within the same image.
• Fast Frame Rate: Supports up to 35 frames per second (fps) at 16-bit depth, facilitating real-time imaging and analysis.

Applications:

• Fluorescence Imaging
• Bioluminescence
• Chemiluminescence
• Live Cell Imaging
• Digital Pathology
• High-Content Screening

Specifications:

Included Items:

• Tucsen Dhyana 400D 4MP Monochrome Cooled sCMOS Camera
• USB 3.0 Data Cable
• Power Supply
• User Manual
• Software Installation CD

Please verify the included items upon purchase, as they may vary.

Disclaimer:

Specifications are subject to change without notice. Please consult the manufacturer's documentation for the most current information.
