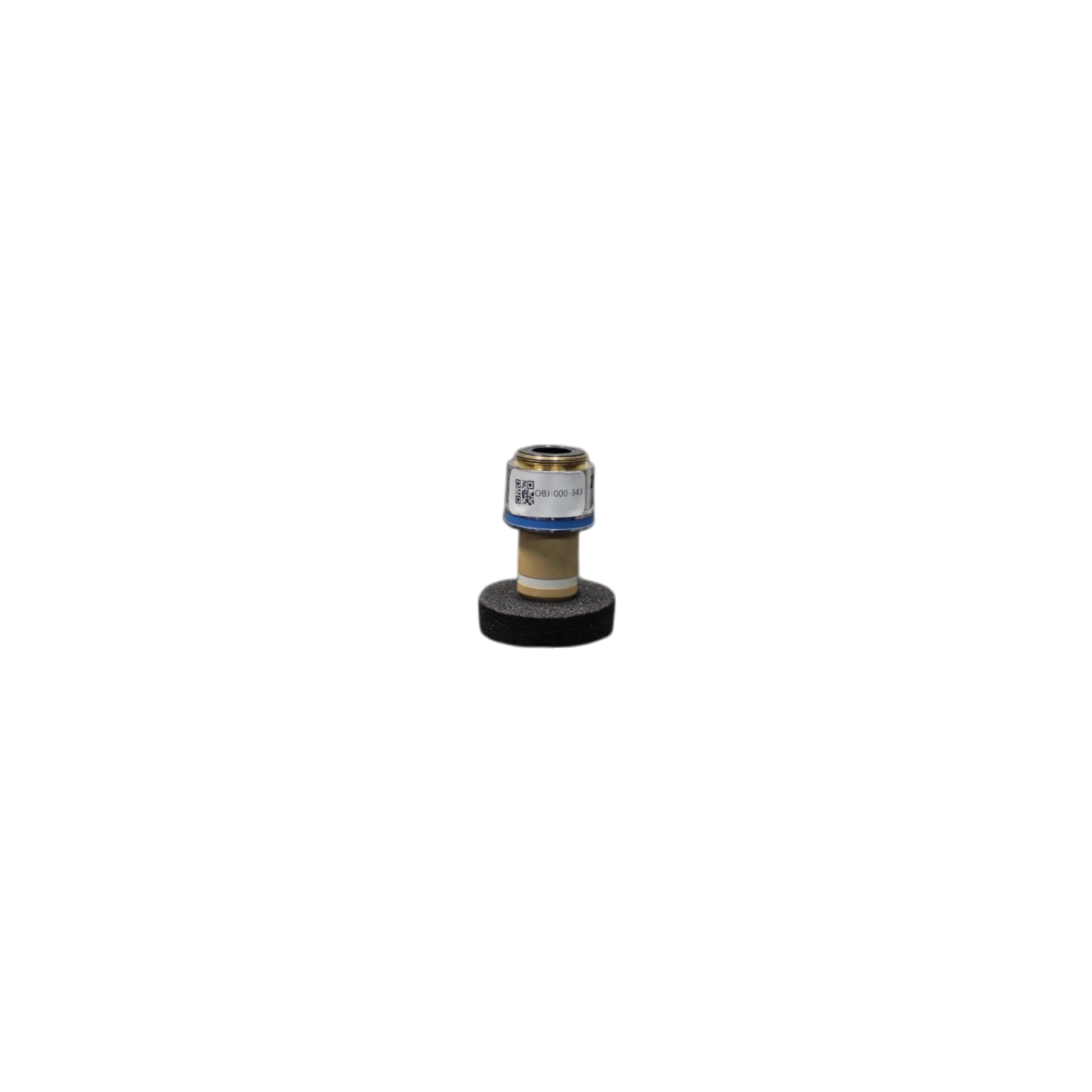

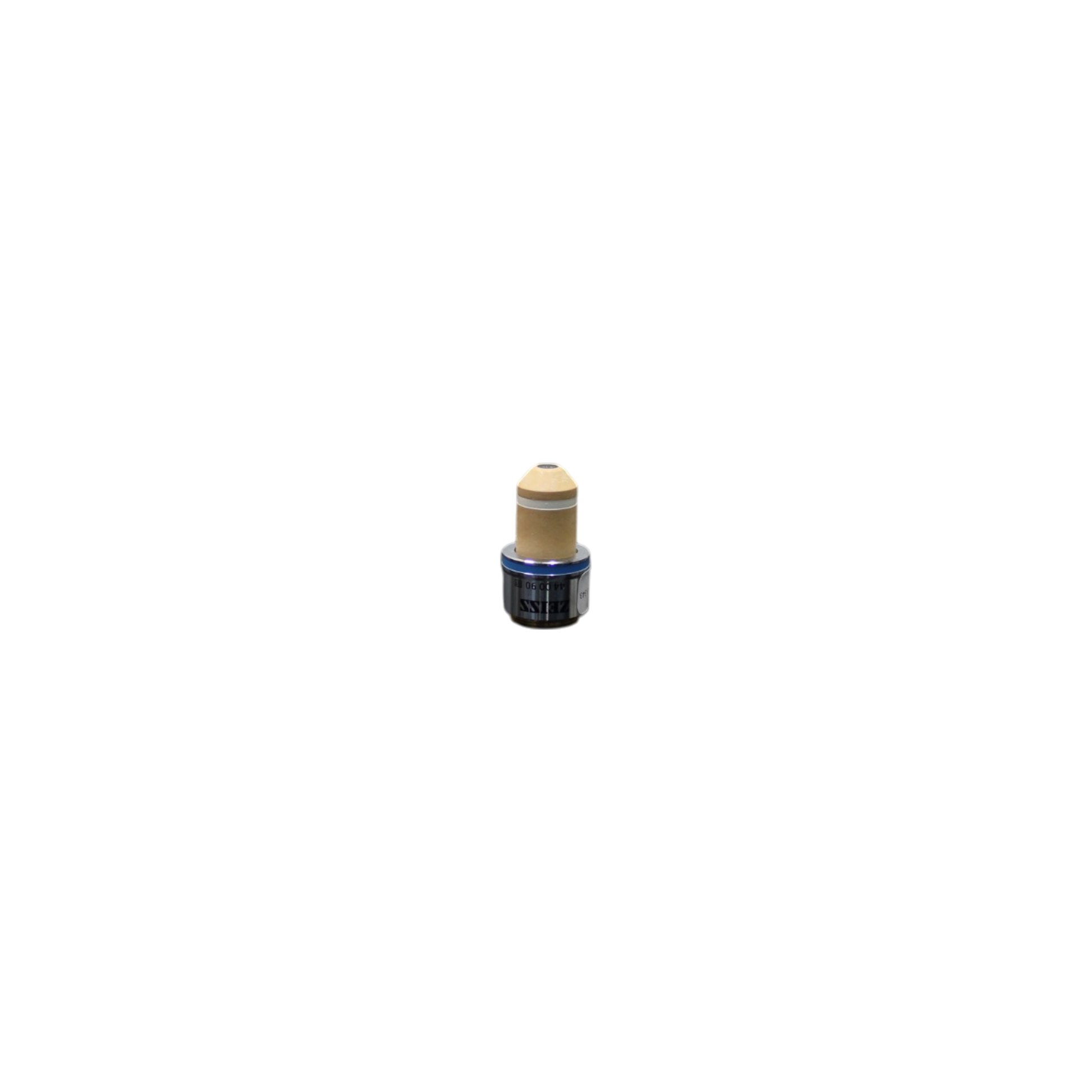

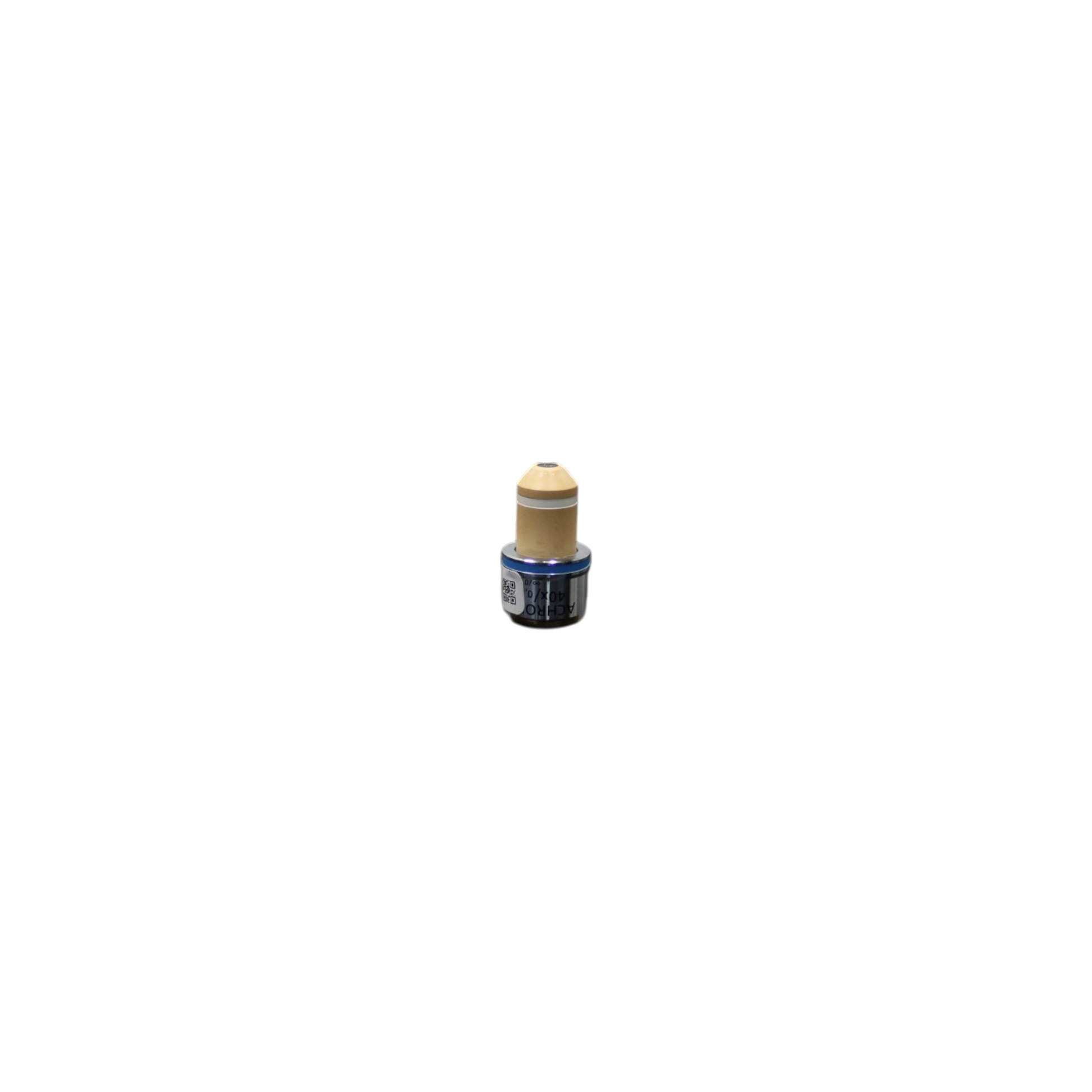

The Zeiss Achroplan 40x/0.8 is a high-performance **water immersion objective** designed for brightfield and fluorescence microscopy. With a **numerical aperture (NA) of 0.8**, this objective provides excellent resolution and contrast while minimizing spherical aberration. The **RMS thread size** ensures compatibility with Zeiss and other standard research-grade microscopes.
Condition
Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications.)
Included Items
Zeiss Achroplan 40x/0.8 Water Objective
Key Features
40x magnification for detailed imaging
Achromat optics for color-corrected, high-contrast images
Numerical aperture (NA) of 0.8 for enhanced light-gathering ability
Water immersion design for improved resolution and reduced aberrations
RMS thread size for compatibility with Zeiss and other standard microscopes
Flat field correction for sharp images across the entire field of view
Applications
Fluorescence microscopy
Brightfield microscopy
Live-cell imaging
Neuroscience and biological research
Pathology and histology
Specifications
Specification
Details
Magnification
40x
Numerical Aperture (NA)
0.8
Working Distance
0.58 mm
Immersion Medium
Water
Cover Glass Thickness
0.17 mm
Optical Correction
Achromat (Flat Field, Color-Corrected)
Thread Size
RMS (0.8" / 20.32mm diameter, 0.706mm pitch)
Parfocal Distance
45 mm
Compatible Microscopes
Zeiss Axioscope, Standard, and other RMS-compatible models
Special Features
Water immersion for high-resolution imaging with minimal aberrations
We offer Up to 1-Year Parts & Labor Warranty (with extended contract offerings), Quality Control & Assurance Documentation and Expert Technology & Application Advice.
