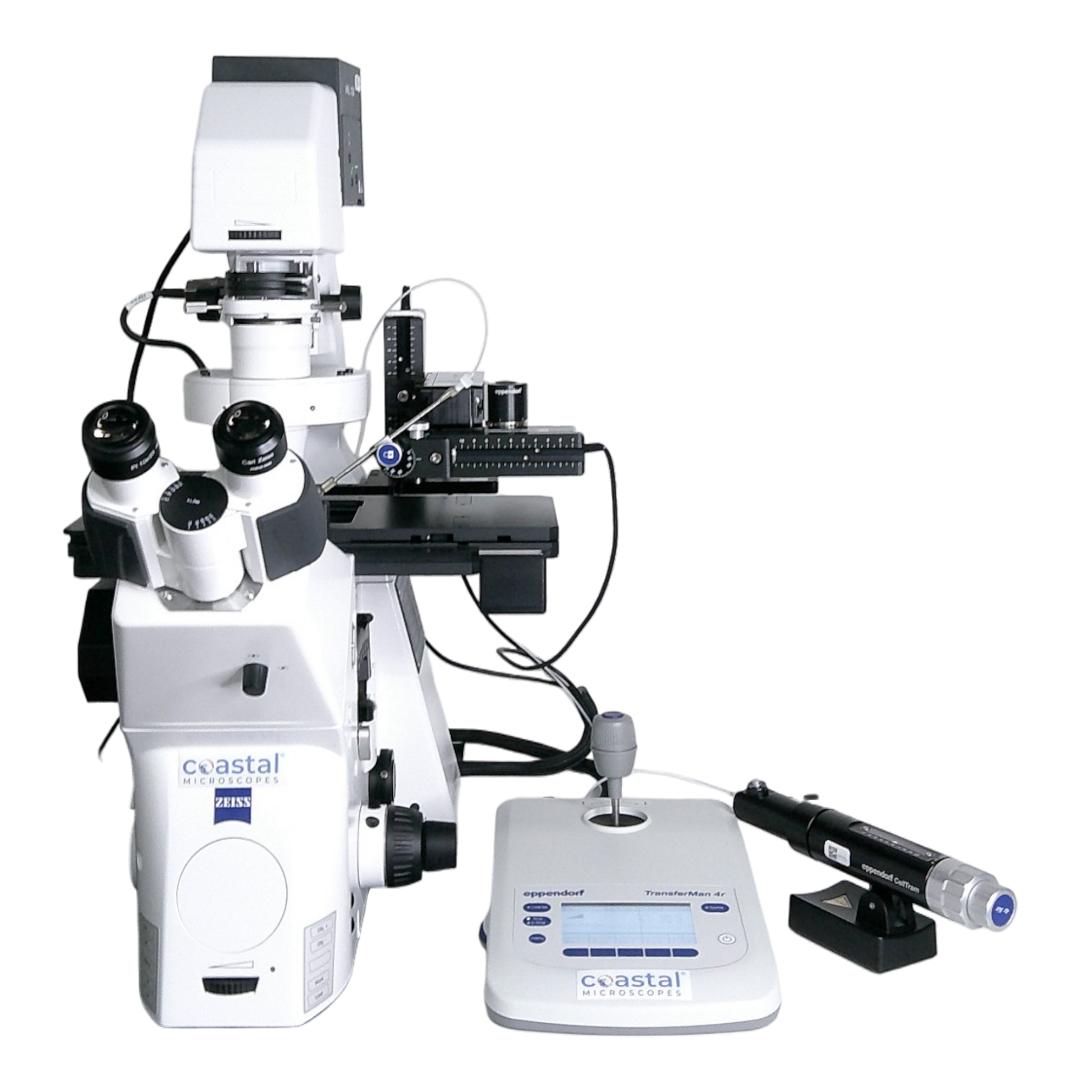

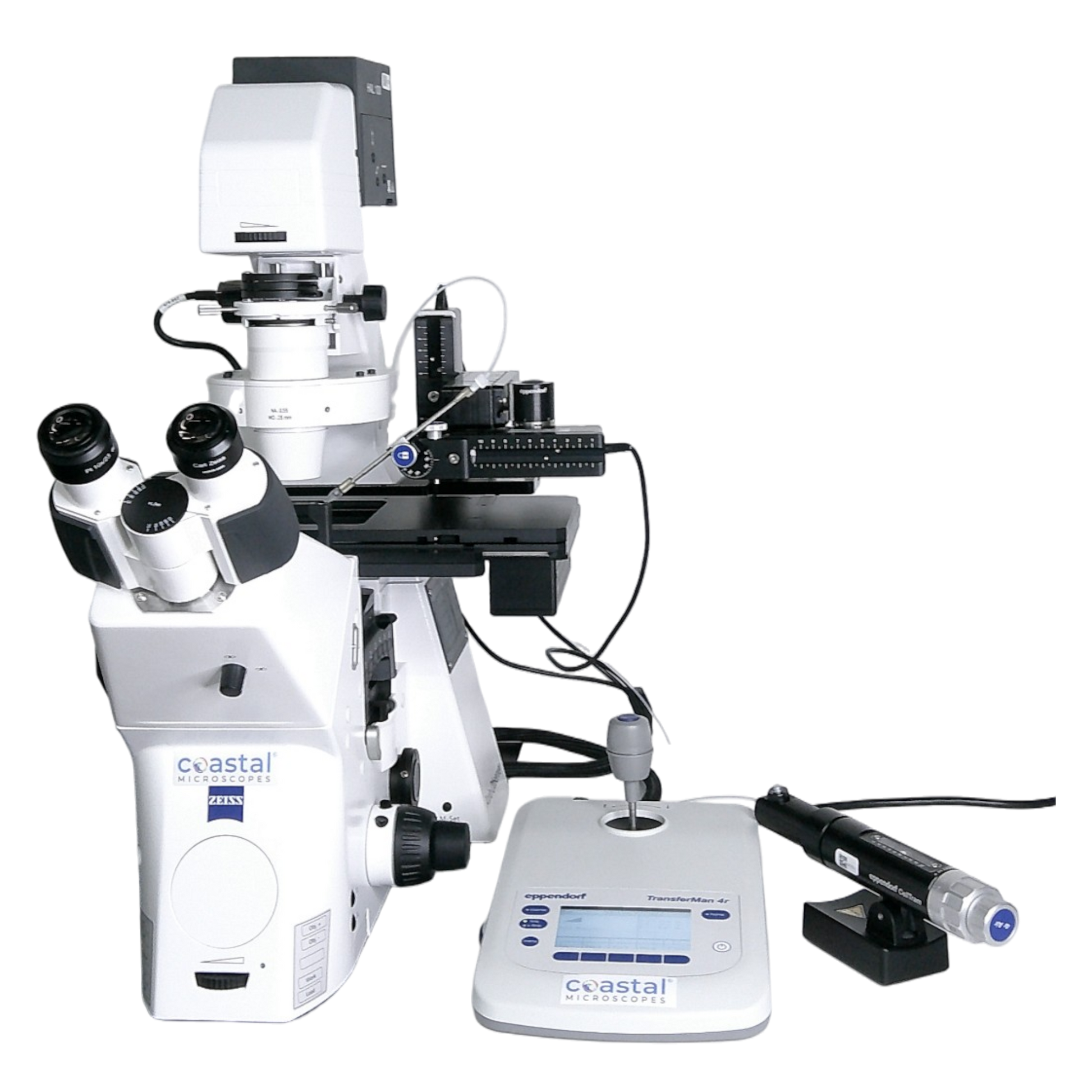

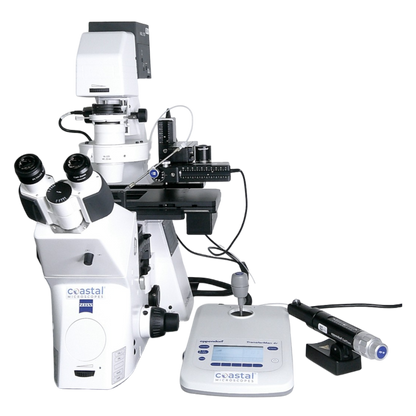

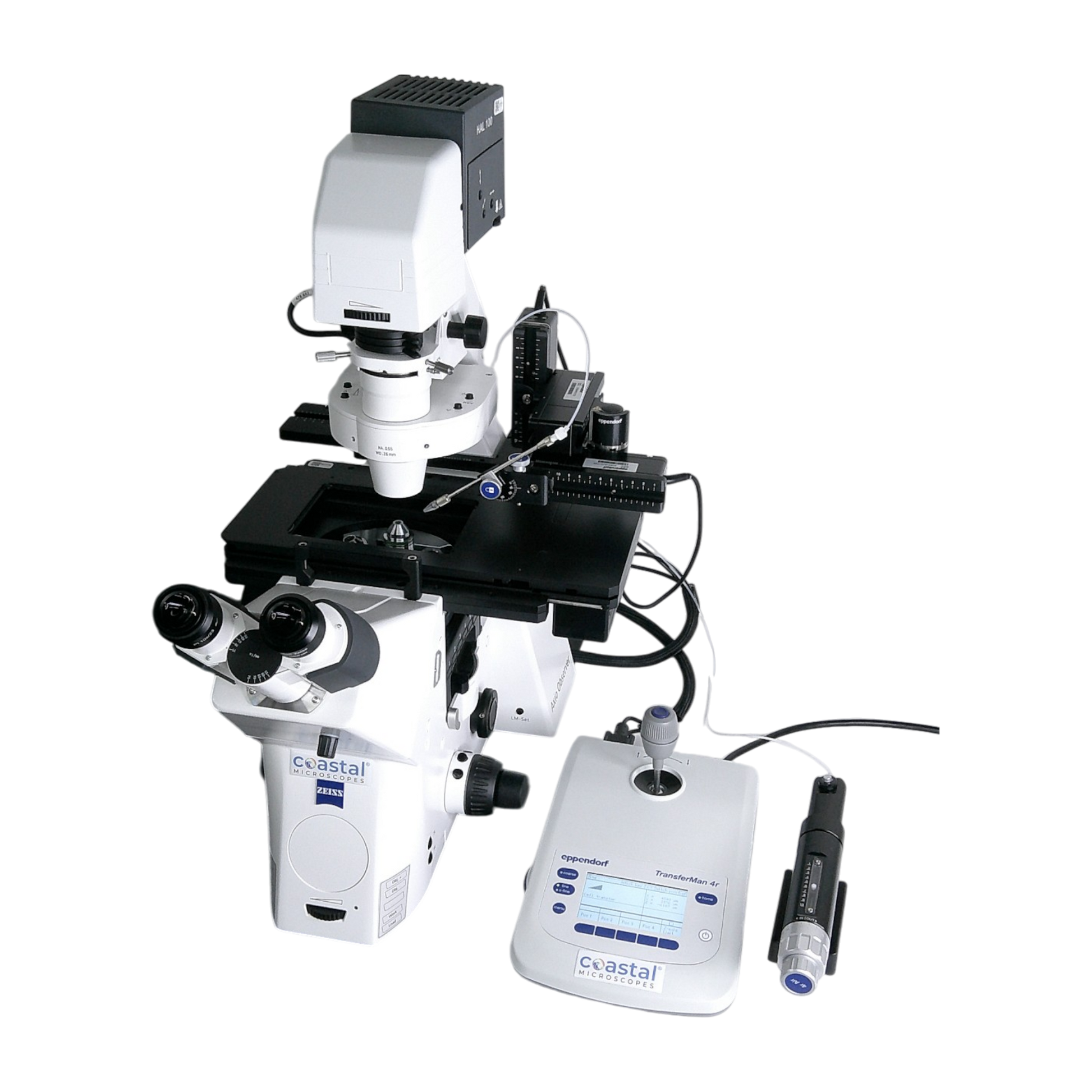

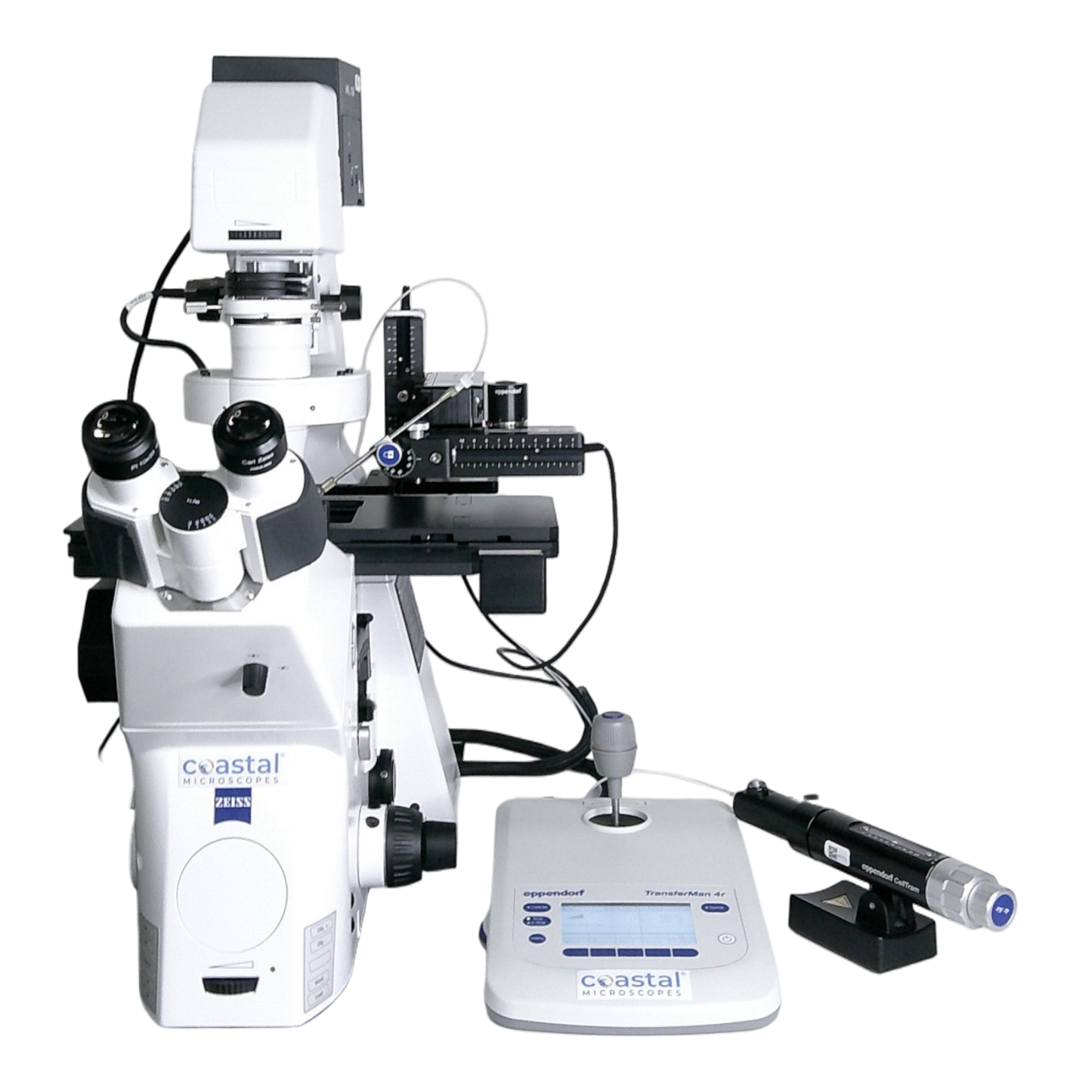

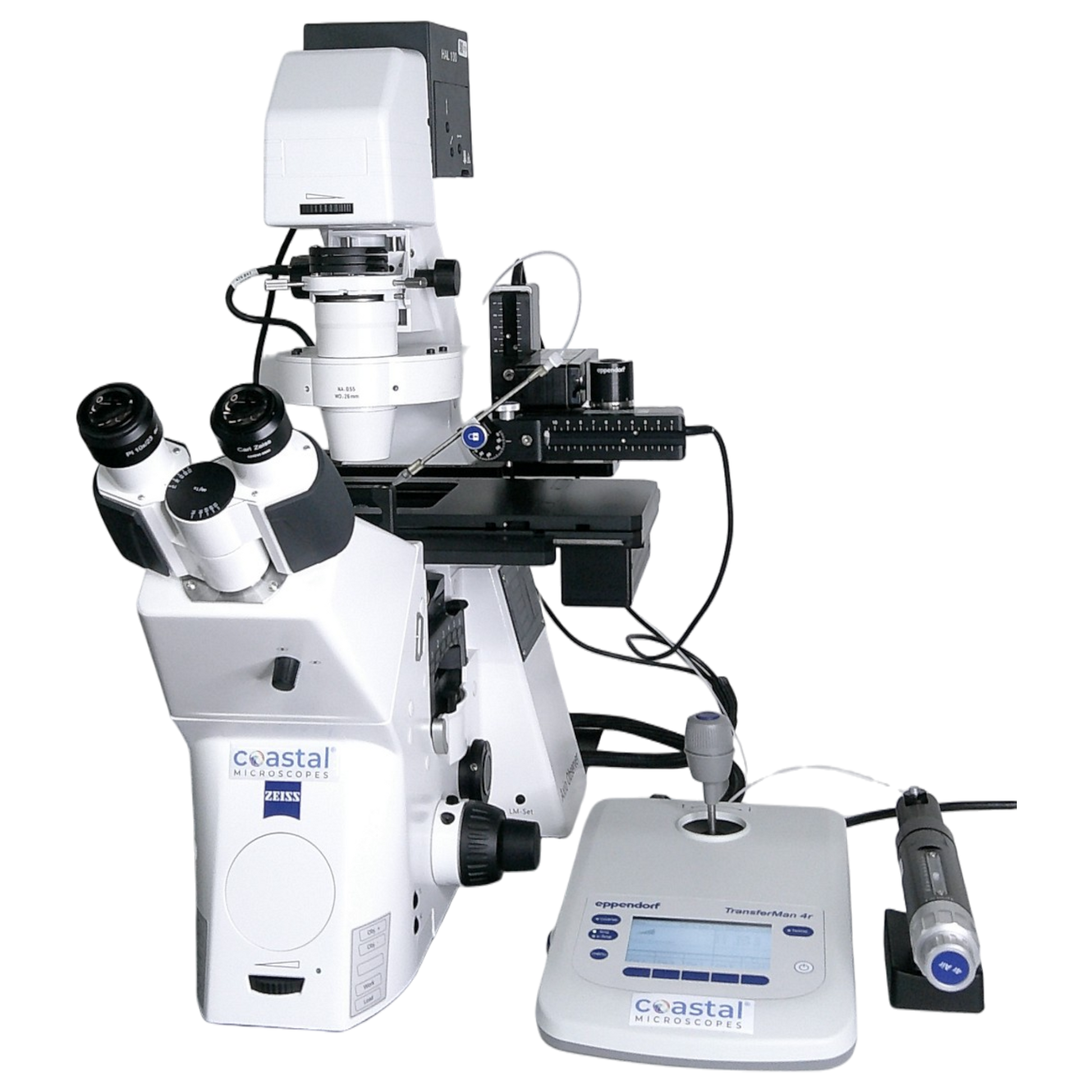

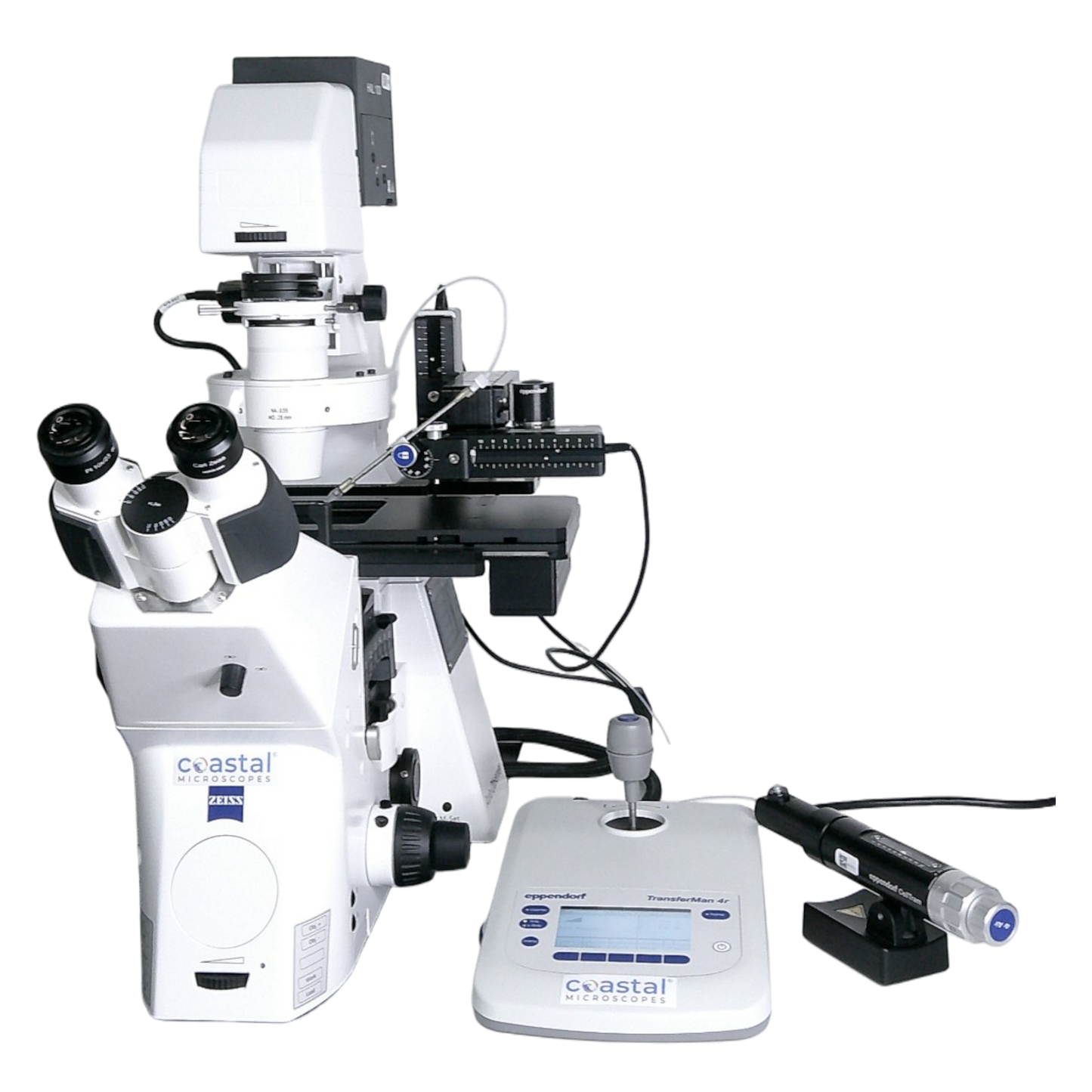

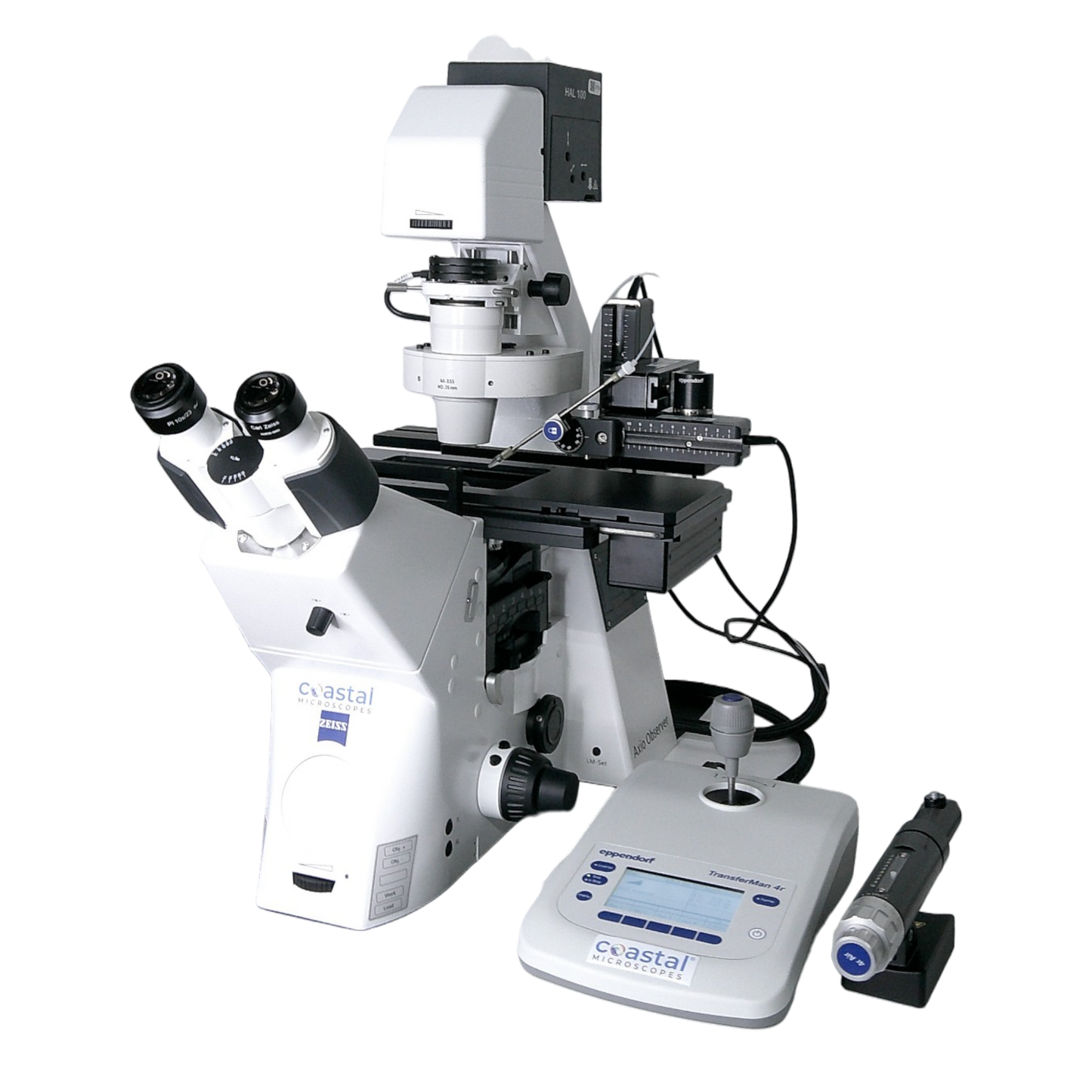

Zeiss Axio Observer 7 Inverted Phase Contrast Fluorescence Motorized w/ Eppendorf Robotic Micropositioner, TransferMan, and CellTram Microscope.

Zeiss Axio Observer 7 Inverted Phase Contrast Motorized Fluorescence Microscope with Eppendorf Micromanipulation System (Model 431007-9904-000)

The Zeiss Axio Observer 7 is a fully motorized, high-end inverted fluorescence microscope engineered for advanced research applications, including live-cell imaging, fluorescence microscopy, micromanipulation, IVF, and microinjection. Featuring a precision motorized stage, phase contrast optics, fluorescence filter turret, and automation-ready architecture, the Observer 7 provides exceptional imaging flexibility and reliability for research and clinical applications.

This setup also integrates a complete Eppendorf micromanipulation platform, including the Robotic Micropositioner, TransferMan, and CellTram, making it a fully equipped solution for IVF, ICSI, microinjection, and single-cell analysis workflows. The binocular viewing head supports real-time digital imaging and documentation using a variety of supported cameras.

Condition

Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications.)

Included Items

• Zeiss Axio Observer 7 Inverted Microscope Body (Model 431007-9904-000)
• Binocular Viewing Head
• Widefield Eyepieces – High eye-point optics for comfortable extended viewing.
• Motorized Fluorescence Filter Cube Turret – Includes 3 filter cubes of your choice (additional cubes available).
• Motorized Z-Focus & Fine Adjustment – Precision control for Z-stack imaging and focus reproducibility.
• Motorized Nosepiece – Typically 6-position, compatible with a wide range of Zeiss objectives.
• Motorized Light Path Selector – Automatically switches between fluorescence and transmitted light paths.
• Phase Contrast Condenser & Optics – Enhances visibility of live, unstained samples.
• Manual Condenser Included – With optional motorized condenser upgrade available.
• Transmitted Light Arm, Lamphouse, and Power Supply
• Left-Side Camera Port – Zeiss-standard C-mount for camera integration.
• Computer System – Pre-configured with Micro-Manager software; includes monitor, keyboard, and mouse.
• Eppendorf Robotic Micropositioner – For precise positioning of injection pipettes.
• Eppendorf TransferMan – High-precision mechanical micromanipulator.
• Eppendorf CellTram – Manual microinjector for delicate fluid handling and single-cell work.

Objectives

(Please discuss your application or preferred configuration with our team. We have a full suite of options available.)

Fluorescence Illumination Options

Illuminator (Choose One):

• 100w Mercury with Power Supply
• Upgrade to: Used Metal Halide
• Upgrade to: New X-Cite 110LED System (Includes Adapter, speedDIAL Remote, 3mm x 1500mm Liquid Light Guide)
• Upgrade to: New X-Cite mini+ System (Includes LED Head, miniCUBE Controller, speedDIAL Remote, and Microscope Coupling Flange)
• Upgrade to: New X-Cite XYLIS II XT730S (Includes XT720S, speedDIAL Remote, 3mm x 1500mm Liquid Light Guide)

(3) Filter Cubes of Your Choice

(Additional filter cubes available for purchase.)

Key Features

• Fully Motorized Inverted Research Microscope Platform
• Phase Contrast Optics for Enhanced Live-Cell Imaging
• Manual Condenser Included – Optional motorized condenser upgrade available
• Eppendorf Robotic Micropositioner, TransferMan, and CellTram System
• Motorized Filter Cube Turret and Nosepiece
• High-Speed Motorized Z-Focus and XY Stage
• Fluorescence Illumination Options for Multimodal Imaging
• Digital Camera Compatibility via Binocular Head and Side Port
• Micro-Manager Software (Pre-installed)
• Optional Definite Focus Autofocus System (Models 1, 2, or 3 available)

Applications

• Live Cell Imaging and Time-Lapse Microscopy
• In Vitro Fertilization (IVF) and Intracytoplasmic Sperm Injection (ICSI)
• Microinjection and Single-Cell Manipulation
• Molecular and Cellular Biology
• Protein Labeling and Fluorescence Imaging
• Drug Discovery and Functional Genomics

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
