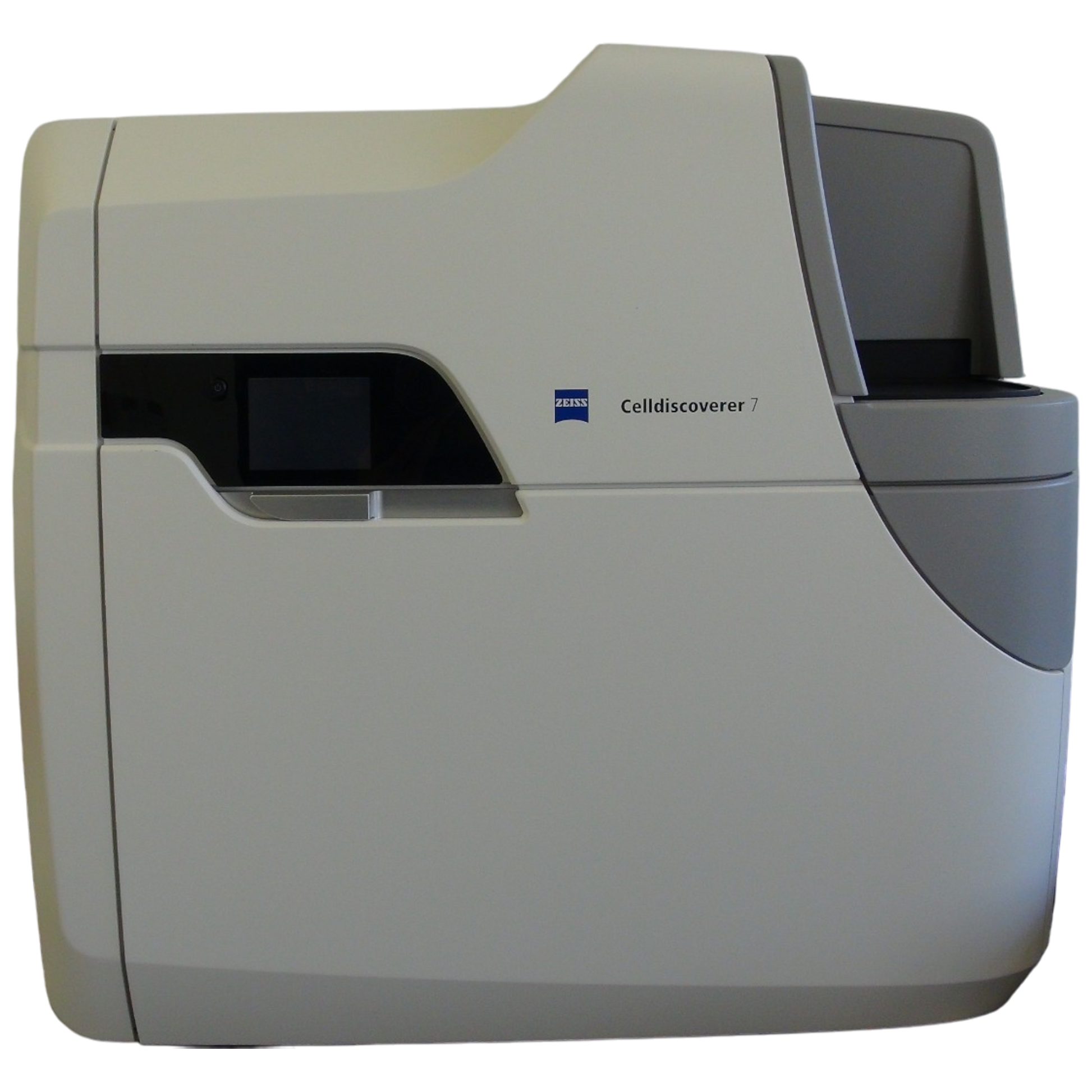

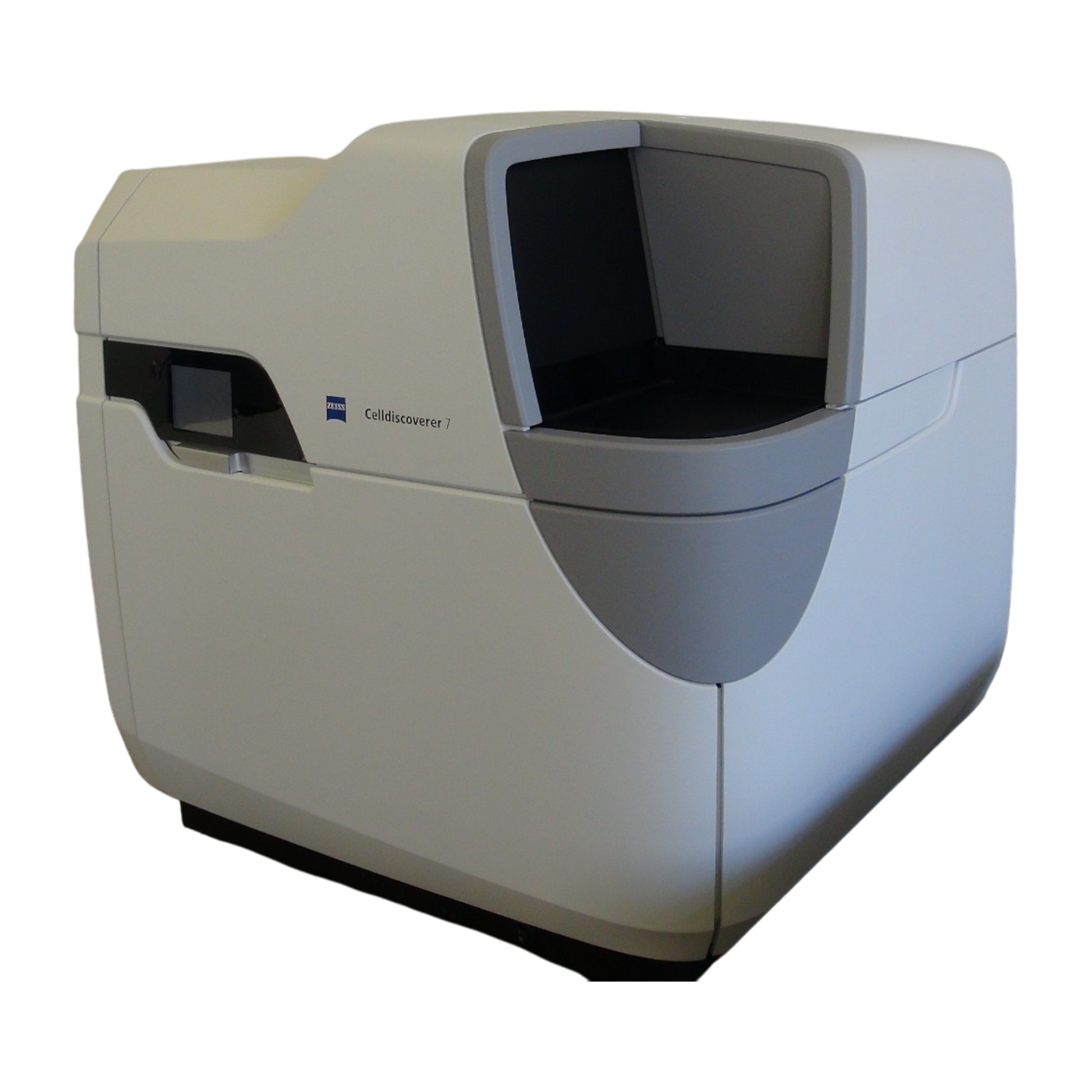

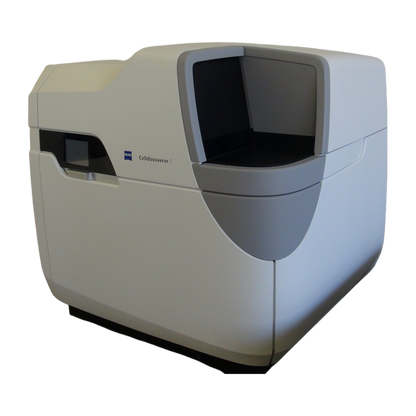

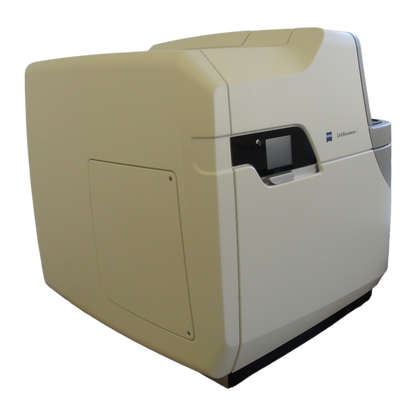

Zeiss Celldiscoverer 7 (CD7) High Content Inverted Phase Contrast Fluorescence Motorized Microscope

Zeiss Celldiscoverer 7 High-Content Inverted Phase Contrast Fluorescence Motorized Imaging System (Used) – 494919-9880-010

The Zeiss Celldiscoverer 7 is a fully integrated, high-end inverted imaging platform engineered for automated live-cell and fixed-sample high-content screening. With motorized hardware, built-in darkroom, autofocus and focus stabilization, barcode scanning, and multi-channel LED fluorescence, this system supports automated workflows including Z-stack, time-lapse, and multi-position plate scanning. Ideal for drug discovery, systems biology, and advanced imaging labs, the Celldiscoverer 7 delivers exceptional imaging quality with streamlined operation.

Condition

Condition: Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)

Included Items

Microscope System

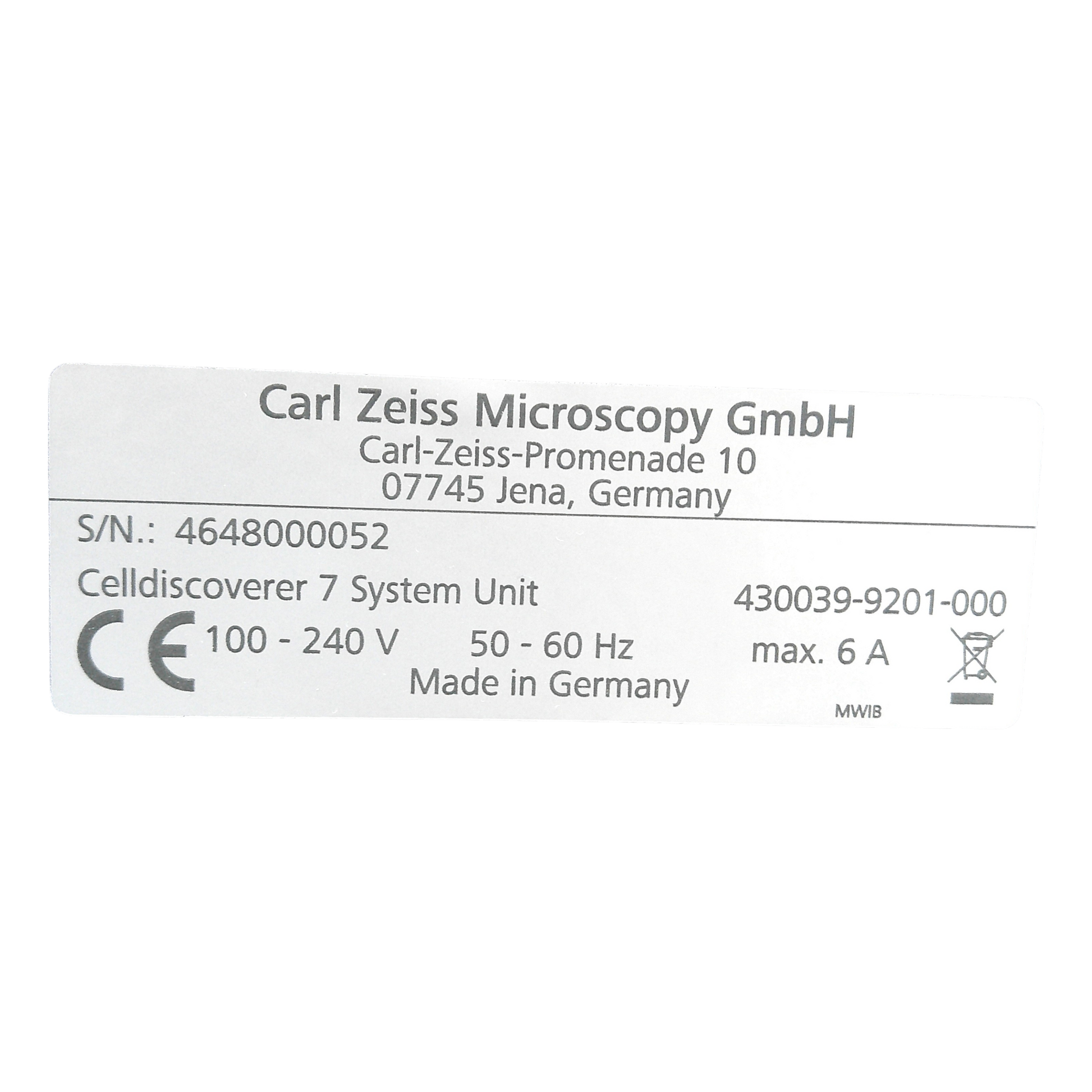

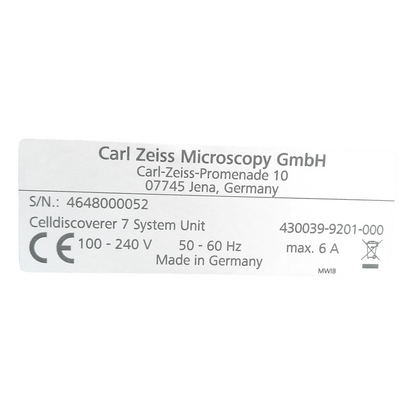

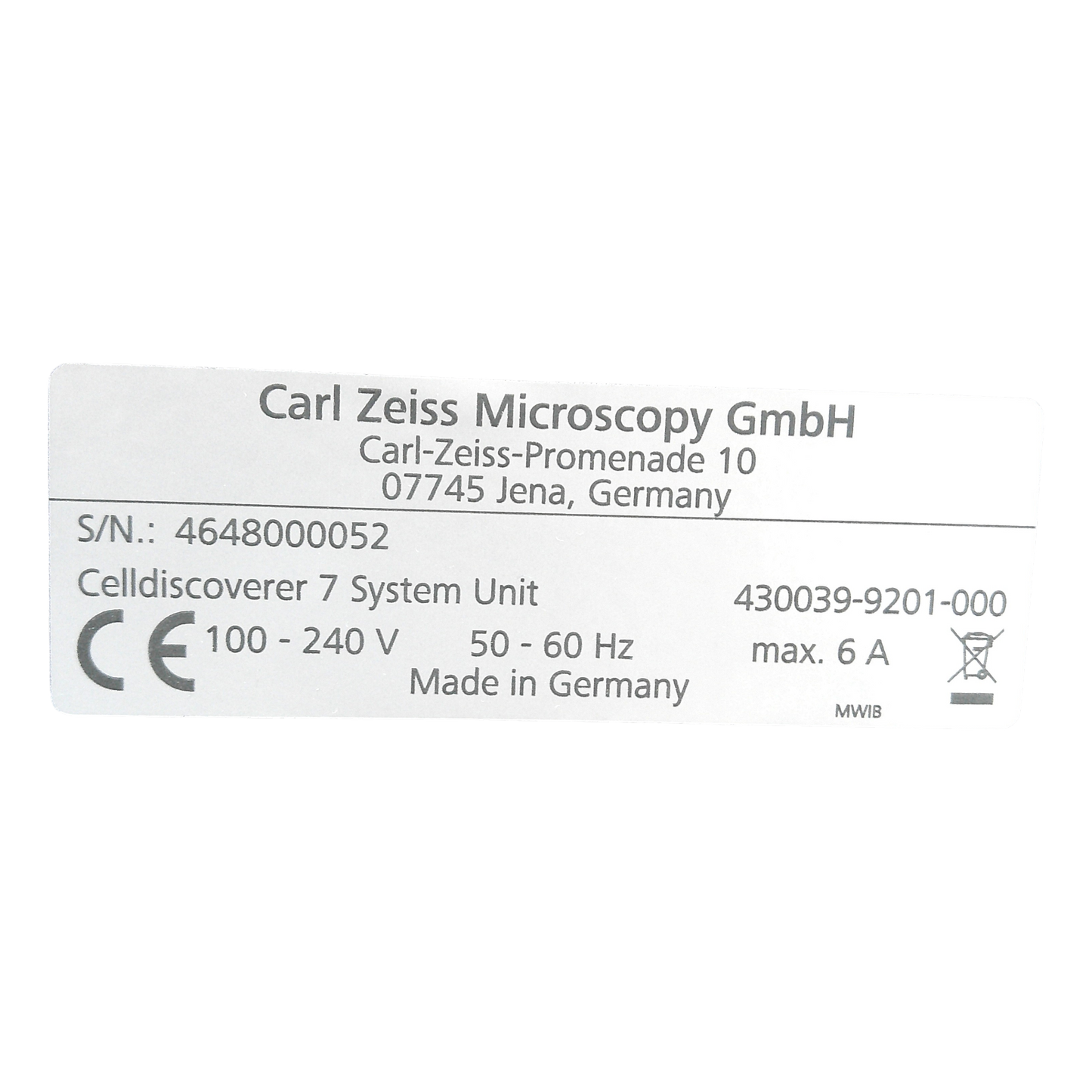

• Zeiss Celldiscoverer 7 System Unit (Part #: 430039-9201-000)
• Fully automated inverted microscope with integrated darkroom
• Automatic sample carrier recognition and barcode scanning
• Hardware-based autofocus and focus stabilization
• Adaptive illumination field stop
• Apochromatic transmitted light optics with IR-LED illumination
• Phase Gradient Contrast for label-free imaging
• Motorized scanning stage (300mm x 140mm)
• UV disinfection unit
• External camera port (60N)
• Integrated pipetting access
• Power Supply: 100–240V, 50–60Hz, max 6A

Objectives

• Plan-Apochromat 5x/0.35
• Plan-Apochromat 50x/1.2 W AutoCorr with AutoImmersion (Part #: 430039-9050-000)
• Provides 25x, 50x, and 100x magnifications via internal magnification changer

Fluorescence Illumination

• LED Set 01 (Part #: 423057-9001-000) – 385nm, 470nm, 567nm, 625nm
• LED Set 02 (Part #: 423057-9010-000) – 420nm, 520nm, 590nm
• Fluorescence LED Expansion Unit (Part #: 423056-9010-000)

Filter Sets

• Filter Set 90 HE (Part #: 489090-9030-000) – 4-band: 385nm, 470nm, 555nm, 625nm
• Filter Set 91 HE (Part #: 489091-9030-000) – 3-band: 420nm, 520nm, 590nm

Camera & Imaging

• Zeiss Axiocam 712 Mono High-Performance Camera (Part #: 426560-9090-000)
• 12 Megapixel CMOS sensor with global shutter
• Live frame rate: 23 FPS (full resolution), up to 431 FPS (ROI mode)

Software & Workstation

• ZEN 3.1 Celldiscoverer Software (Part #: 410135-1024-310)
• Includes licensed modules:
  • Tiles & Positions
  • Autofocus
  • Fast Acquisition
  • Experiment Designer
  • Image Analysis
  • Advanced Processing
  • Measurement
  • Multi-Channel Imaging
  • Z-Stack Imaging
  • Time Lapse Imaging
  • Extended Focus
  • Manual Extended Focus
  • Dual Camera Support
  • Movie Recorder
  • DCV (Standard)
  • Optional: Colocalization & Dynamics (for LSM)

Key Features

• Fully integrated high-content imaging platform
• Motorized control of stage, objectives, filters, and autofocus
• Phase contrast, brightfield, and fluorescence imaging support
• Compatible with 6-, 24-, 96-, and 384-well plates
• Hardware autofocus and precision Z-drive for time-lapse and Z-stack
• External ZEN software required for image acquisition and analysis

Applications

• High-Content Screening and Cell-Based Assays
• Kinetic Fluorescence Imaging of Live Cells
• Drug Discovery and Compound Profiling
• Z-Stack and 3D Reconstruction Imaging
• Quantitative Image Analysis in Multiwell Formats

Specifications

Feature	Specification
Microscope Type	Inverted – High-Content Fluorescence / Phase Contrast
Model Number	494919-9880-010
Stage	Motorized XY – 300mm x 140mm travel range
Autofocus	Hardware autofocus and focus stabilization
Objectives	Plan-Apochromat 5x/0.35 and 50x/1.2 W AutoCorr
Camera	Zeiss Axiocam 712 Mono – 12 MP CMOS
Fluorescence Channels	LED Sets 01 & 02 with 4- and 3-band filter sets
Phase Contrast	Integrated Phase Gradient Contrast
Software	ZEN 3.1 Celldiscoverer with licensed modules
Environmental Features	UV disinfection, pipetting access, incubation-ready
Power	100–240V, 50–60Hz, max 6A
Warranty	Guaranteed Installable

⚠️ Configuration shown is for demonstration purposes. Contact us to confirm included modules, software licensing, and available upgrades. We’ll help tailor a quote to your lab’s exact imaging needs.
