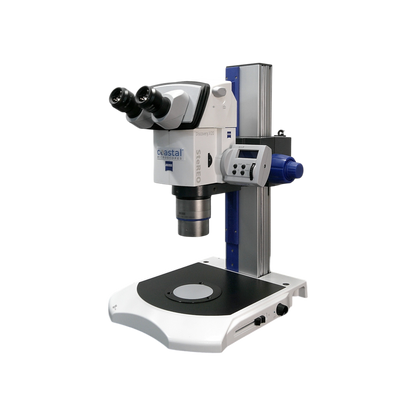

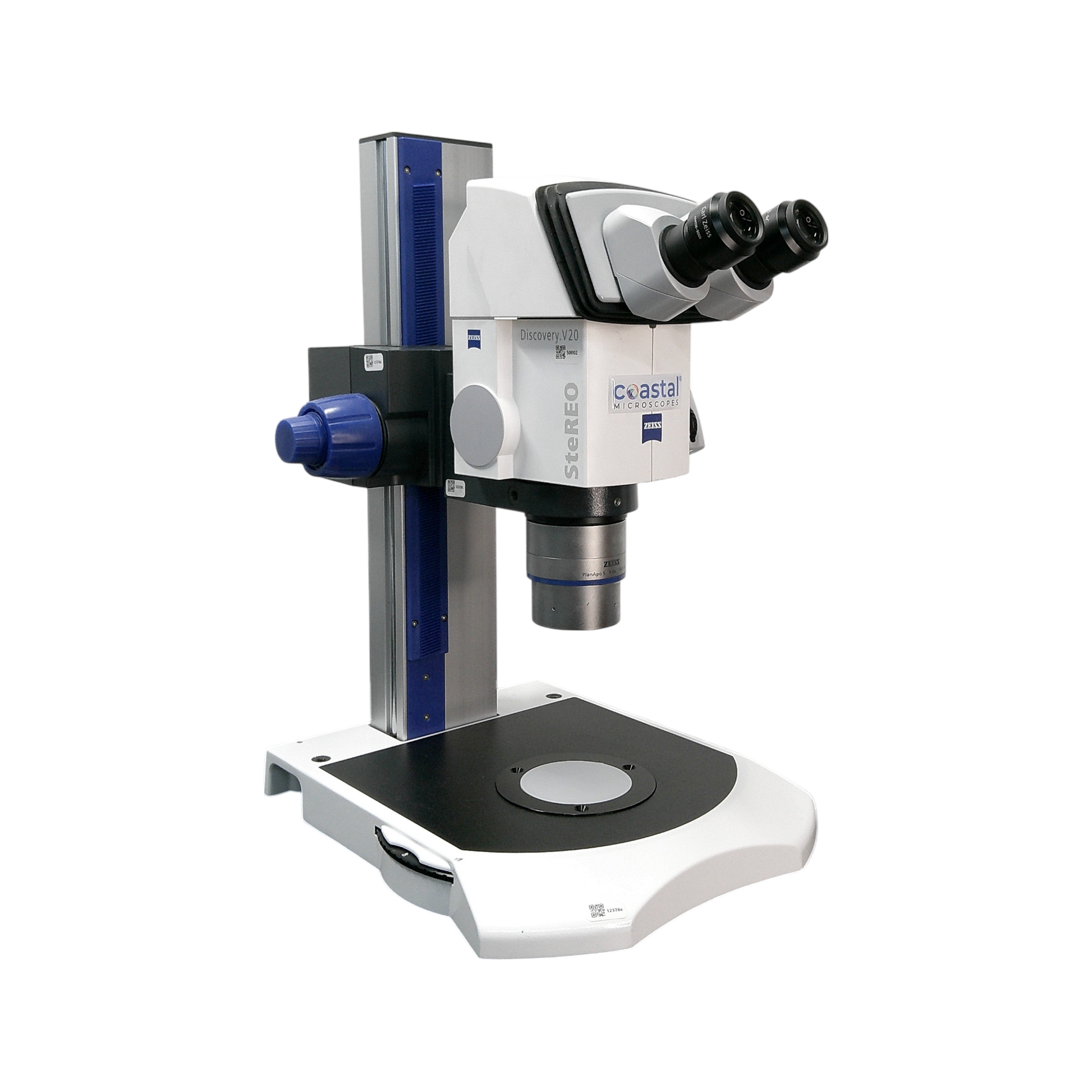

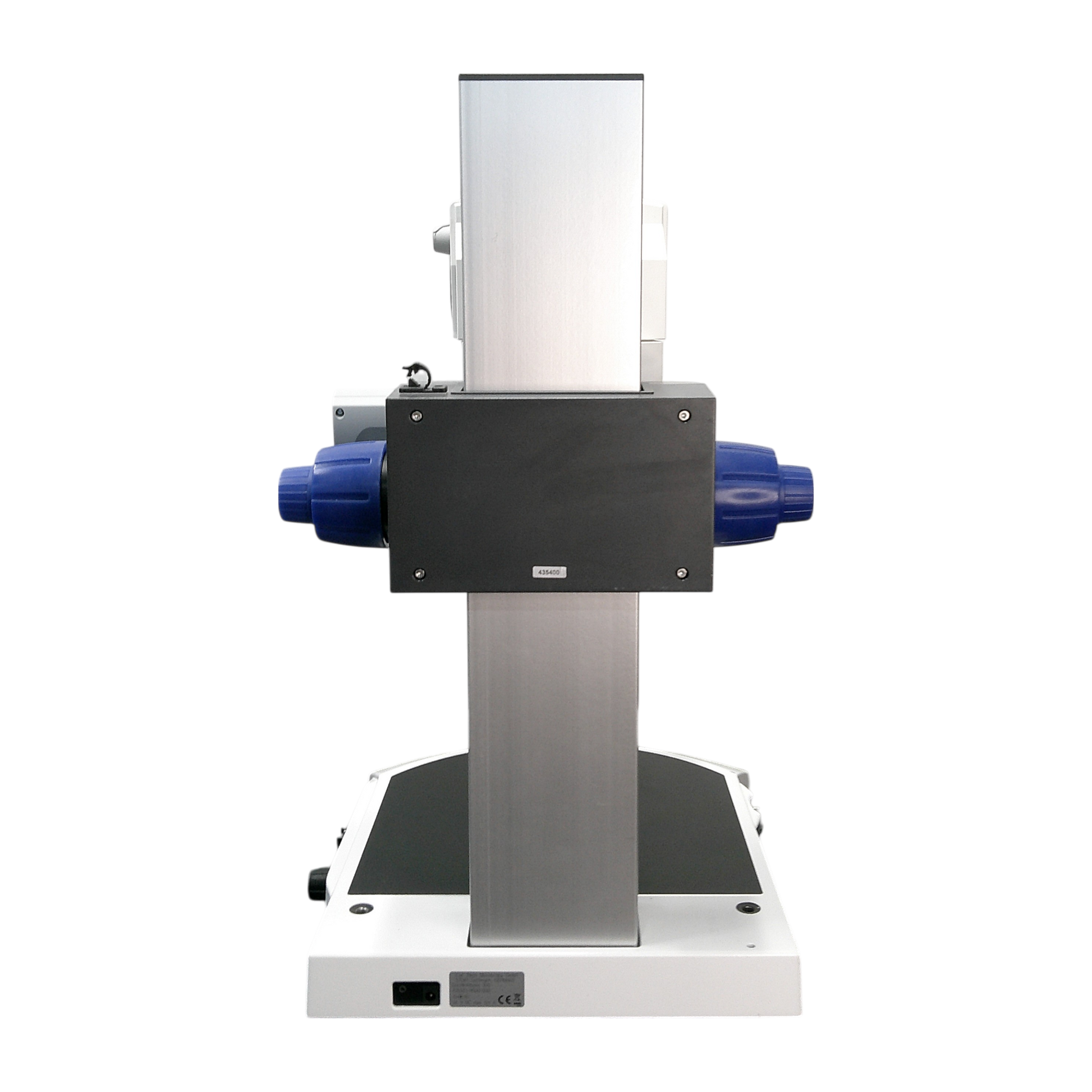

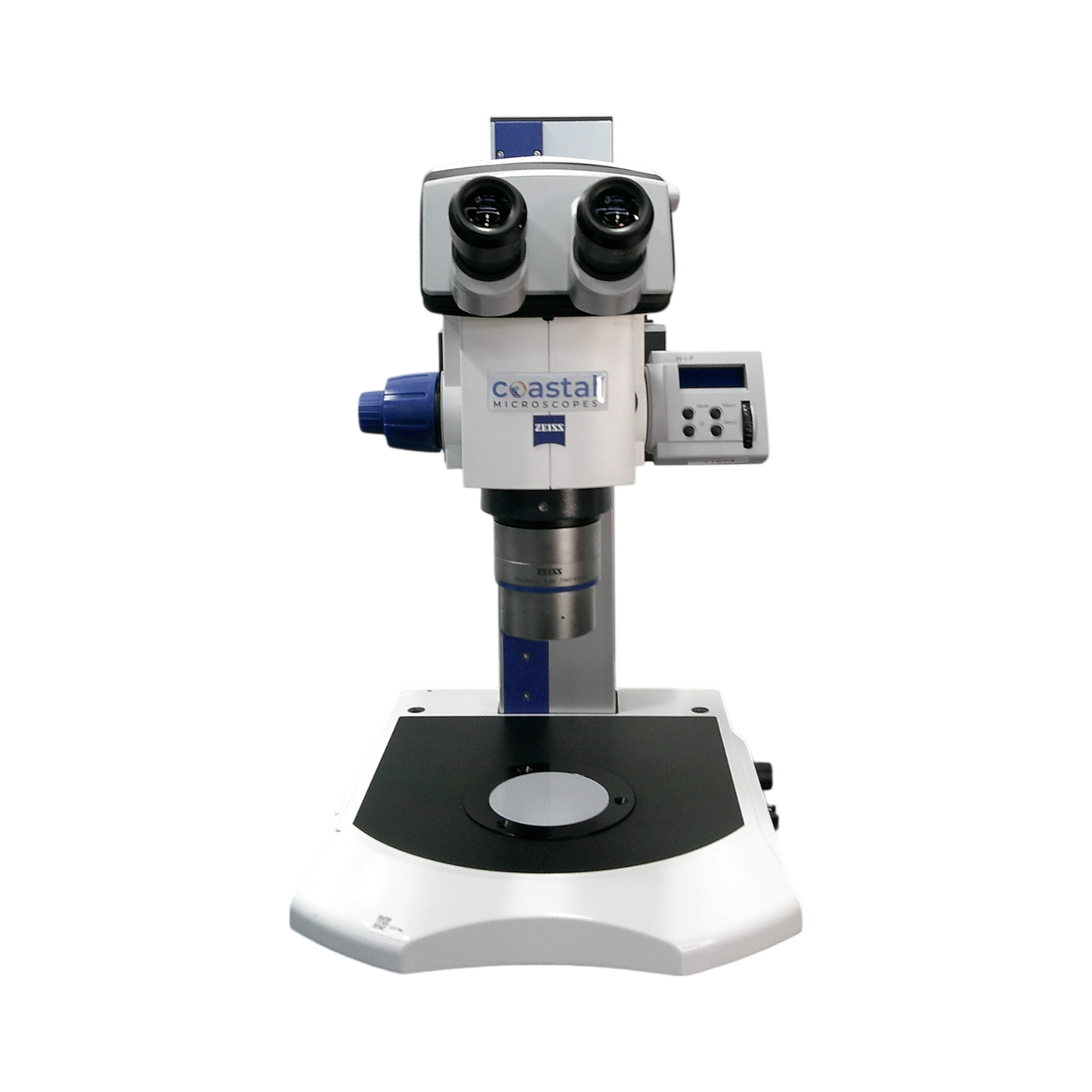

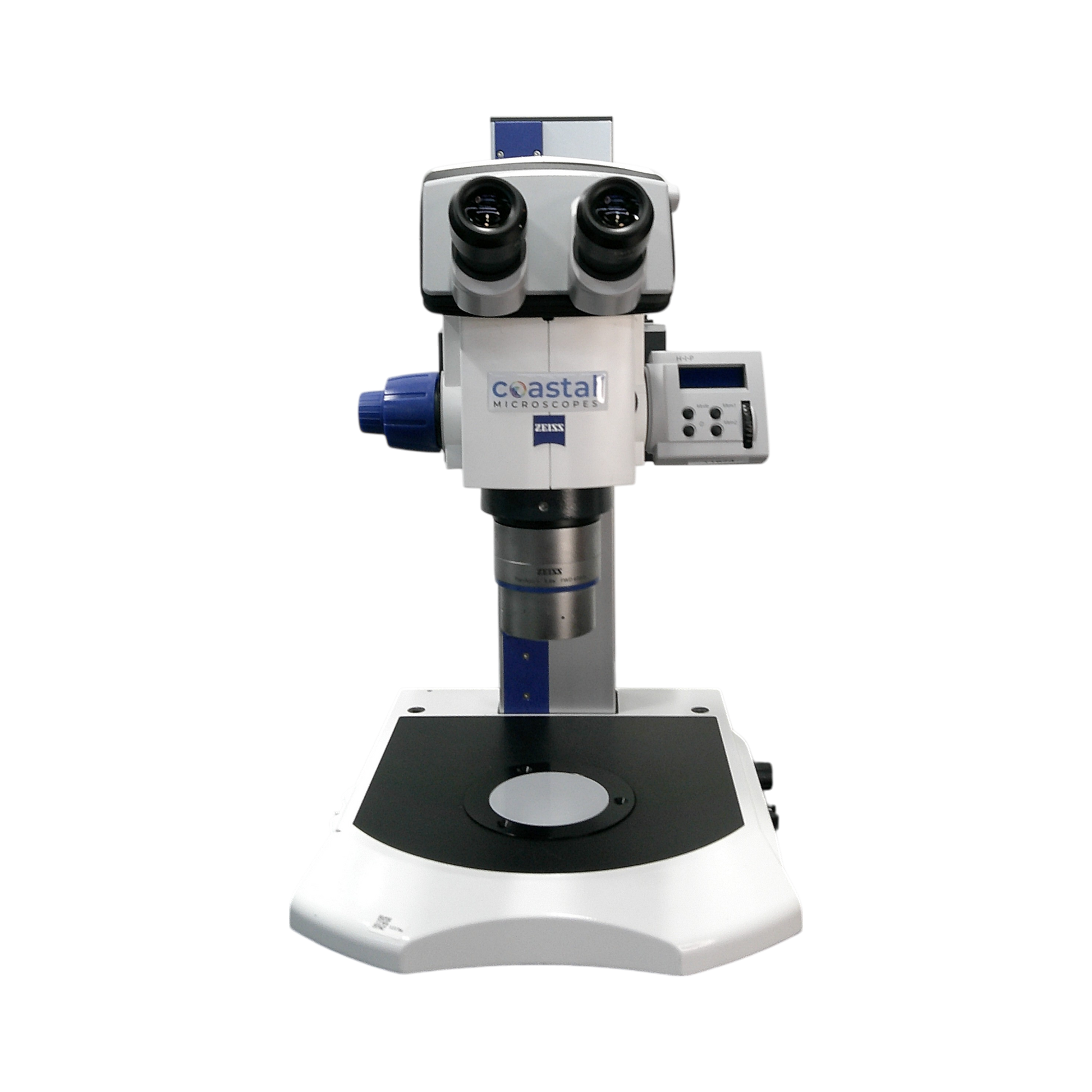

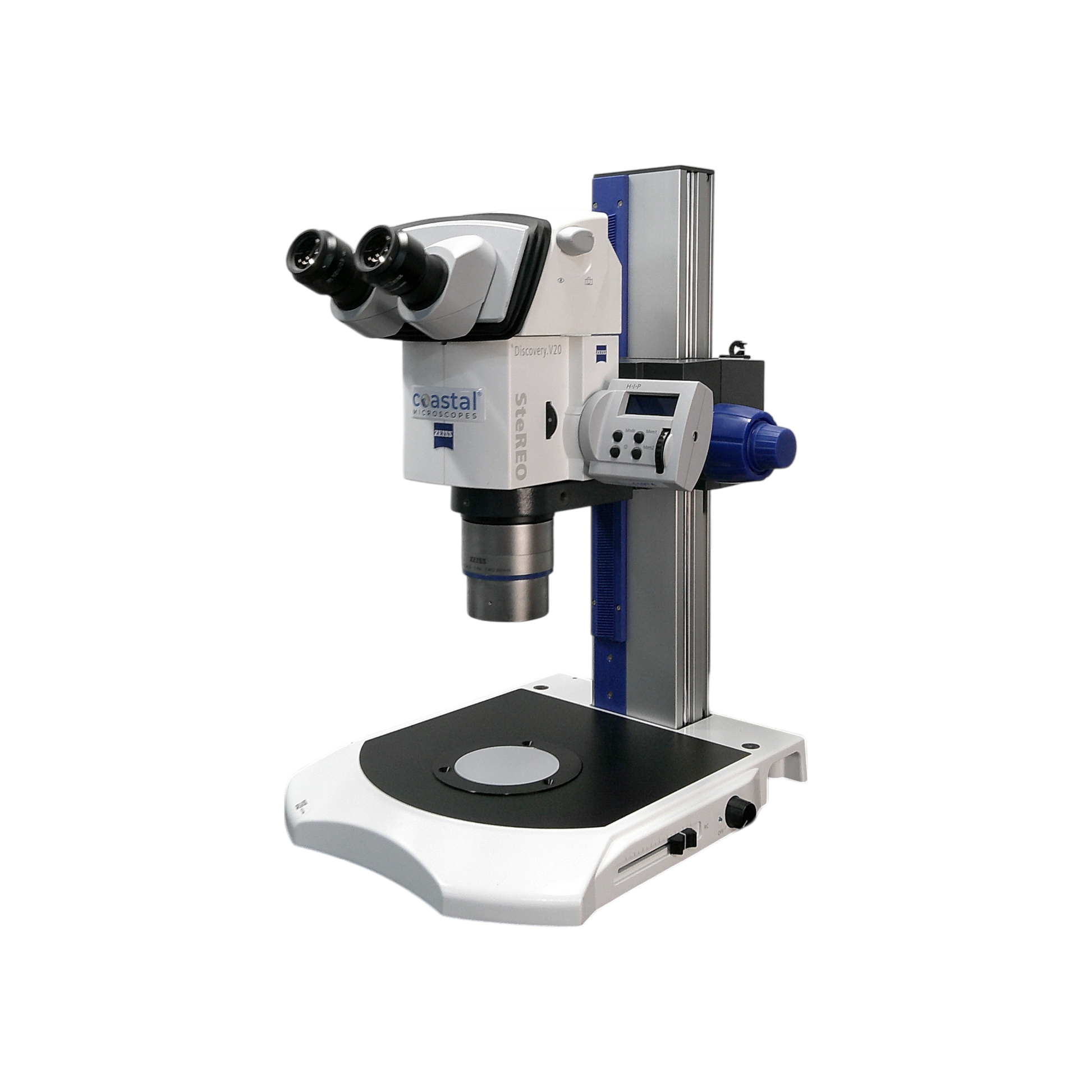

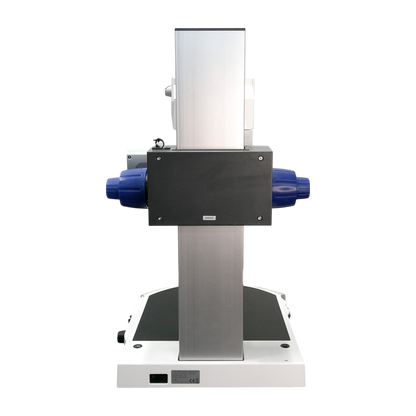

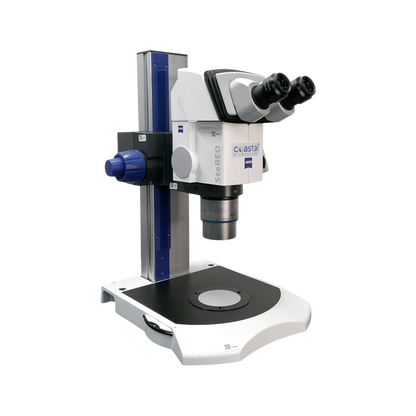

Zeiss Discovery V20 Stereo Trinocular Microscope on Manual Stand Microscope

Zeiss Discovery V20 Stereo Trinocular Microscope on Manual Stand (Used) - 435003-9901

The Zeiss Discovery V20 is a high-performance stereo trinocular microscope designed for precision imaging in research and industrial applications. With a modular design and outstanding optical quality, the Discovery V20 delivers high-contrast, sharp images with excellent depth perception. Equipped with a manual stand and the advanced Transillumination Base 300, this system offers multiple contrast techniques and versatile lighting control for complex imaging tasks.

Condition

Refurbished/Used – This product has been inspected and verified to meet manufacturer specifications.

Included Items

• Zeiss Plan-Apochromat S 1x FWD 60mm (Catalog No: 435203)
• Zeiss Coarse/Fine Drive (Catalog No: 435400)
• Zeiss Mount S with 76mm Support Diameter (Catalog No: 435402)
• Zeiss Transillumination Base 300 (Catalog No: 435533-9500-000)
• Zeiss Binocular Ergo Phototube S 5-45° (Catalog No: 435100-0000-000)

Key Features

• High-Resolution Stereo Imaging – Offers exceptional image clarity with superior depth perception.
• Plan-Apochromat Optics – Delivers high-contrast, color-accurate imaging with minimal distortion.
• Ergonomic Binocular Viewing – Adjustable 5-45° angle for optimal comfort during extended use.
• Coarse and Fine Focus Control – Precision focusing for detailed examination of specimens.
• Manual Stand with Advanced Transillumination Base – Integrates brightfield, darkfield, oblique, and polarization contrast options.
• Trinocular Viewing – Allows integration with a camera for documentation and digital analysis.

Transillumination Base 300 Features

• Integrated transmitted light base with 90 white-light LEDs
• Lighting modes: brightfield, brightfield plus, darkfield, variable oblique contrast, and polarization contrast (polarizer not included)
• Includes triple turret and oblique light diaphragm for fast contrast switching
• Interfaces:
  • D120 mm – for object plates and stages
  • D84 mm – for transmitted light polarizer
• 2x M8 internal threads for attaching holding arms
• Foot switch socket for hands-free illumination control (optional accessory)
• Dedicated brightness control knob for precise adjustment
• Includes 120 mm diameter glass plate

Applications

• Biological and Life Science Research
• Materials Science and Inspection
• Quality Control and Industrial Applications
• Forensic and Geological Studies
• Microdissection and Micromanipulation

Specifications

Note: Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
