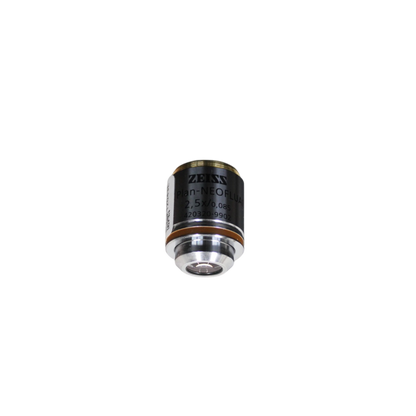

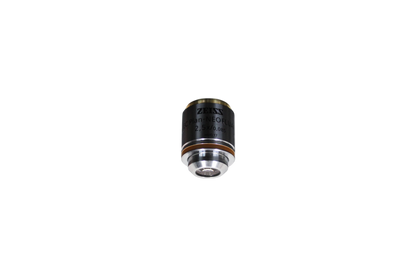

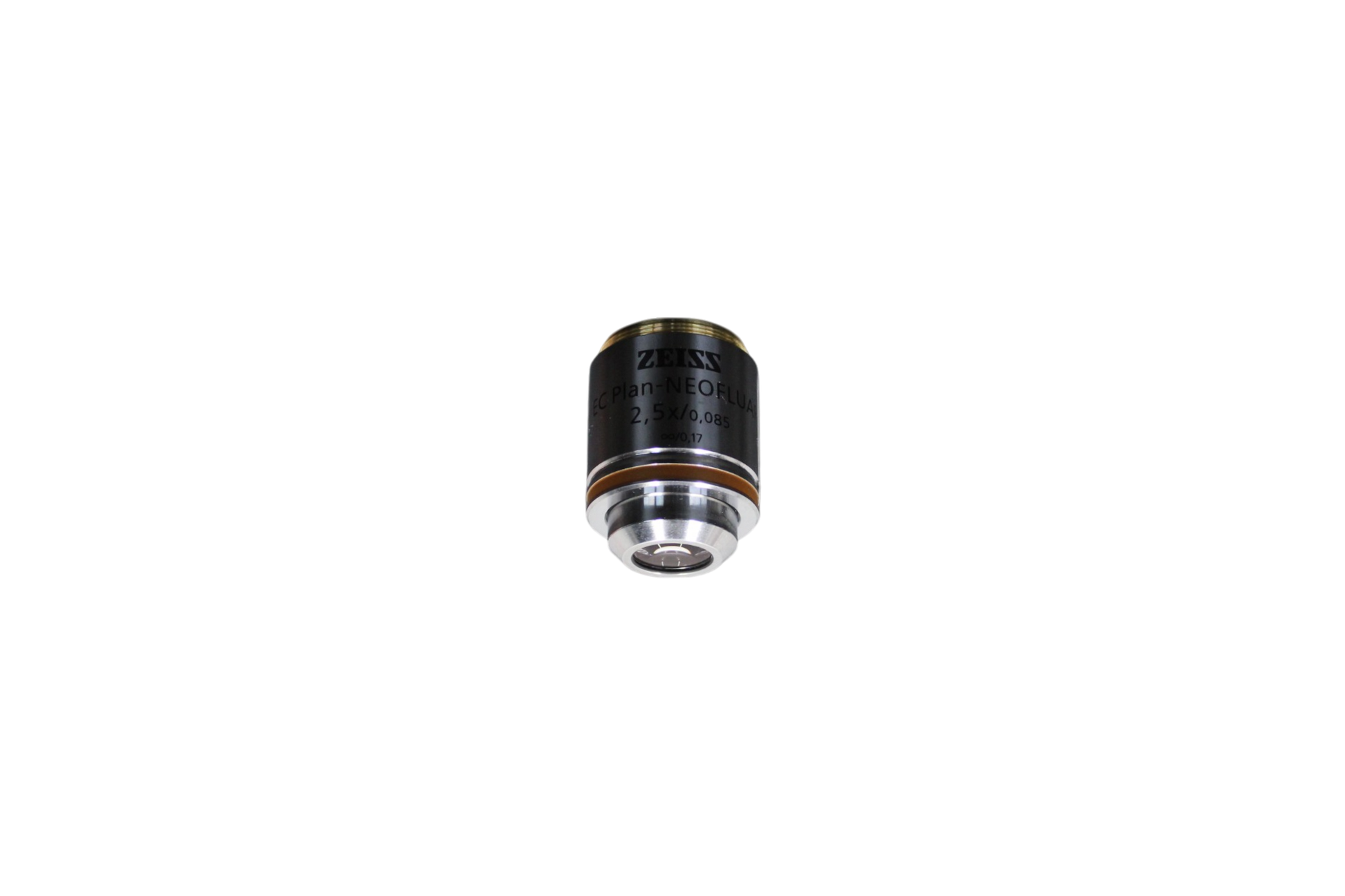

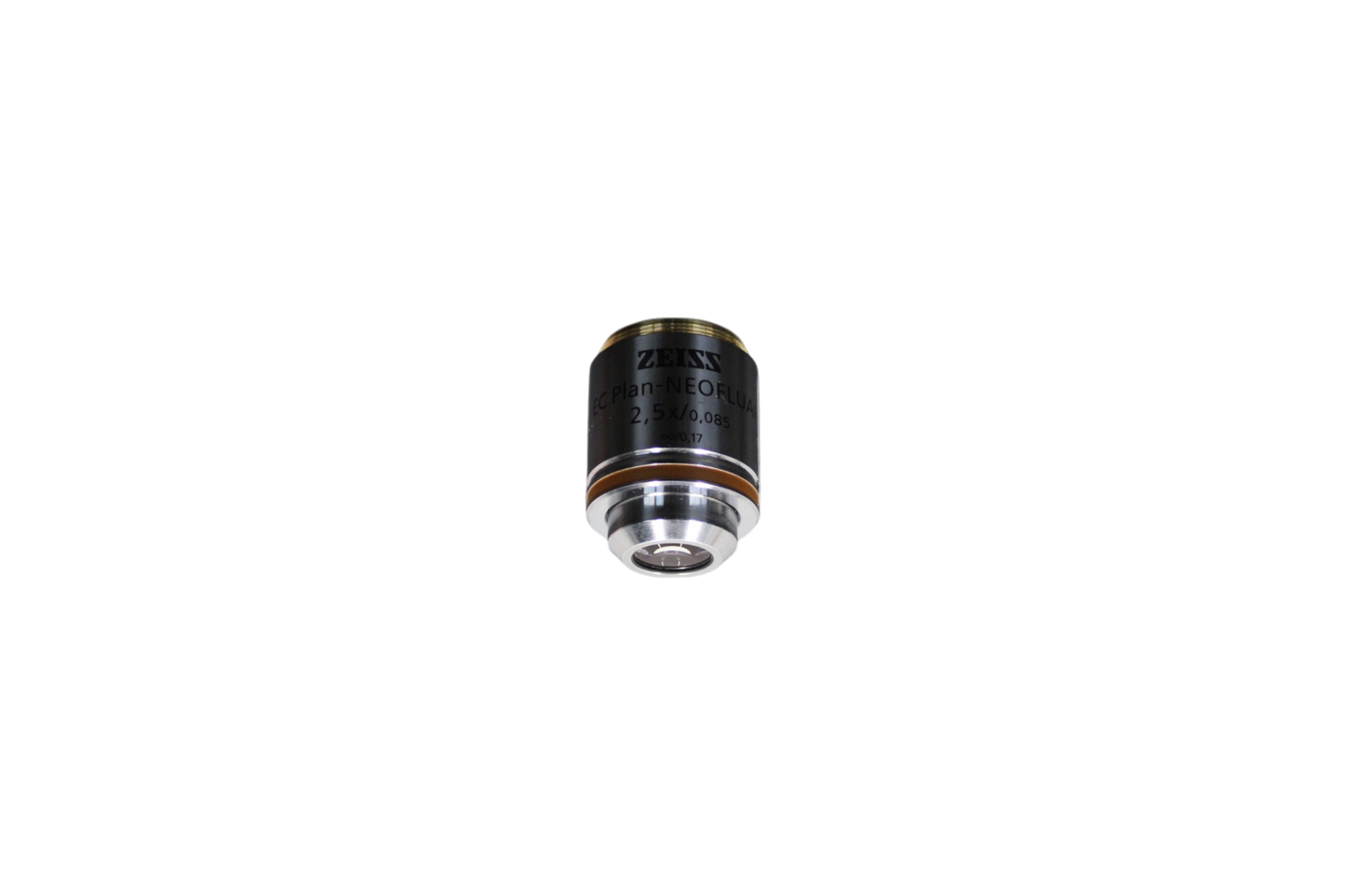

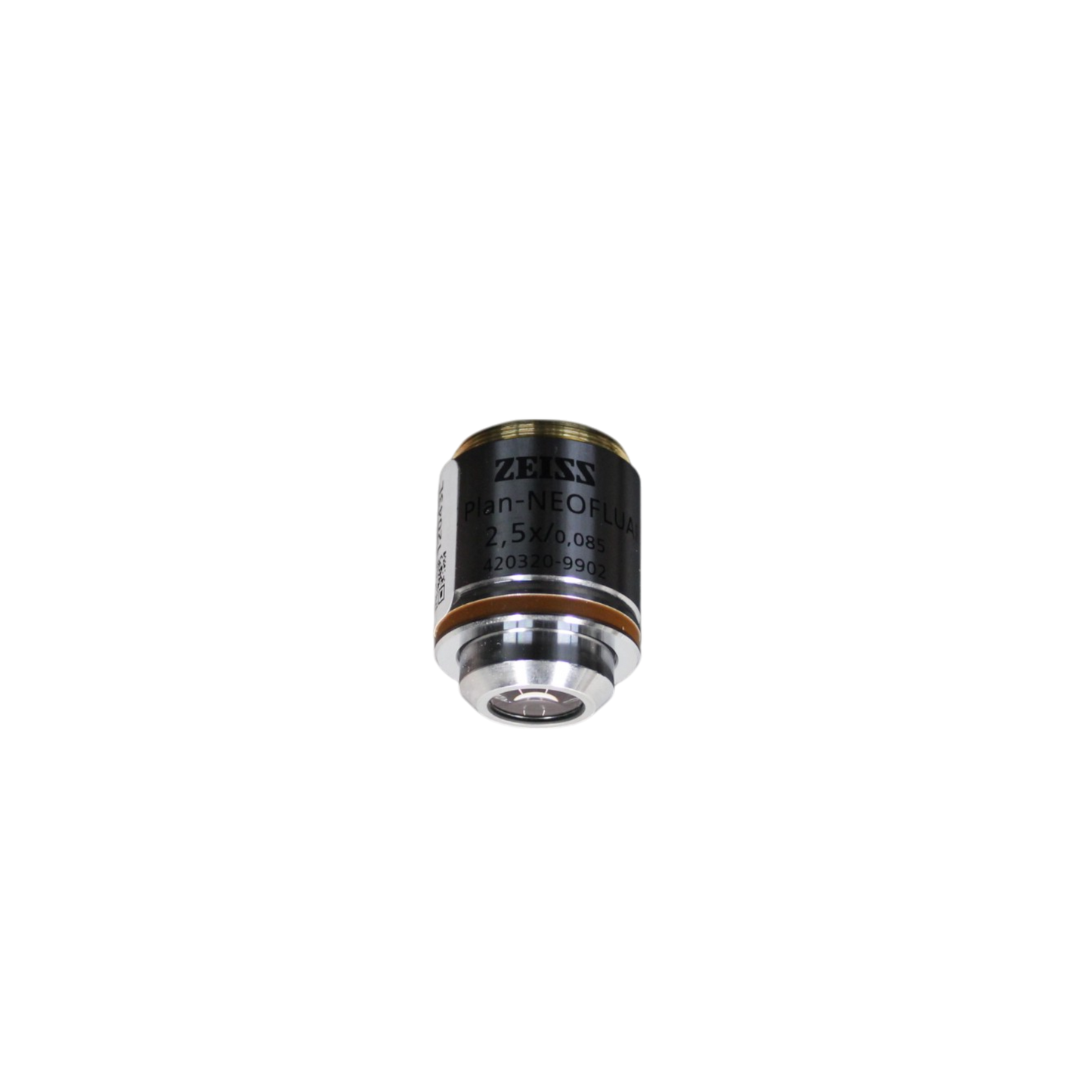

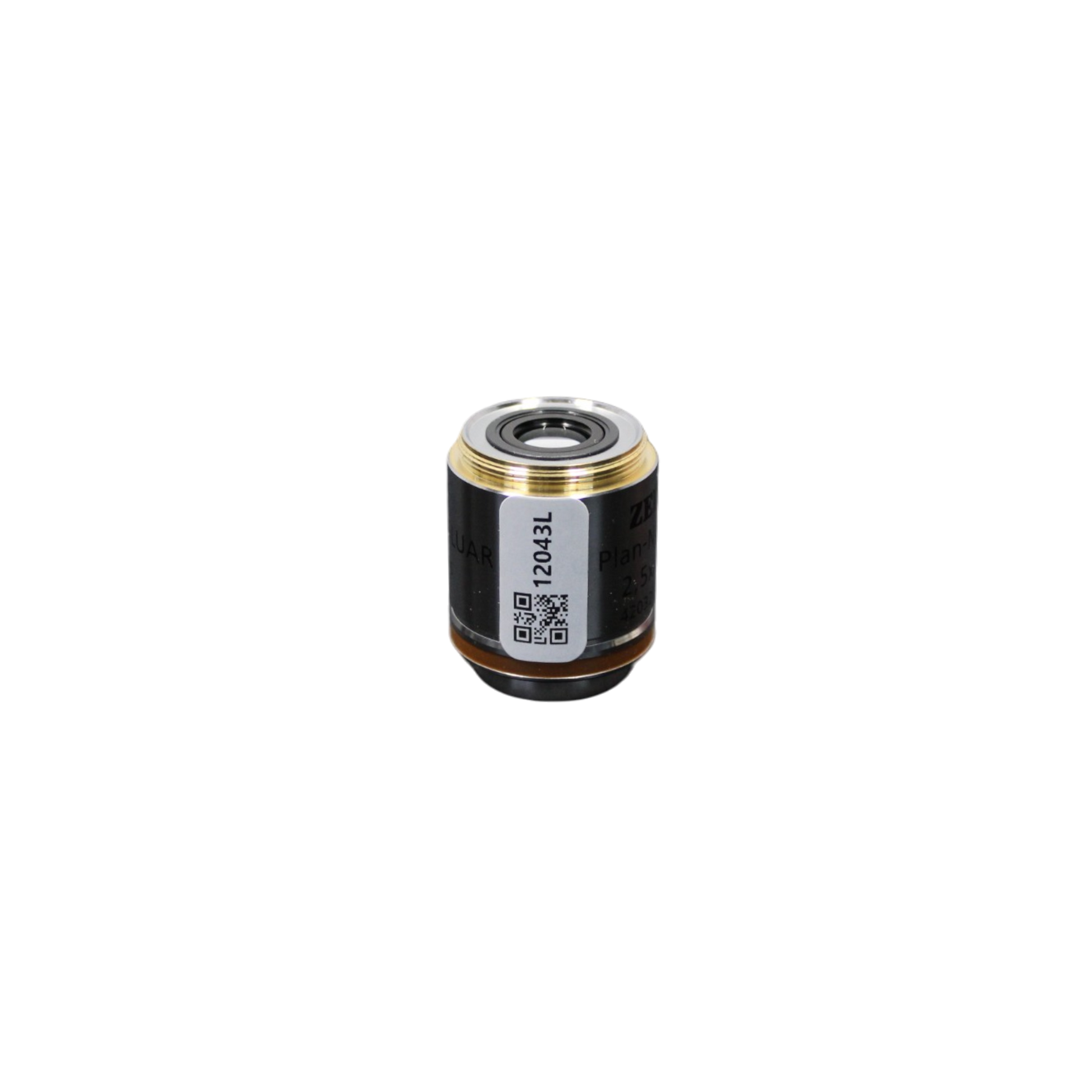

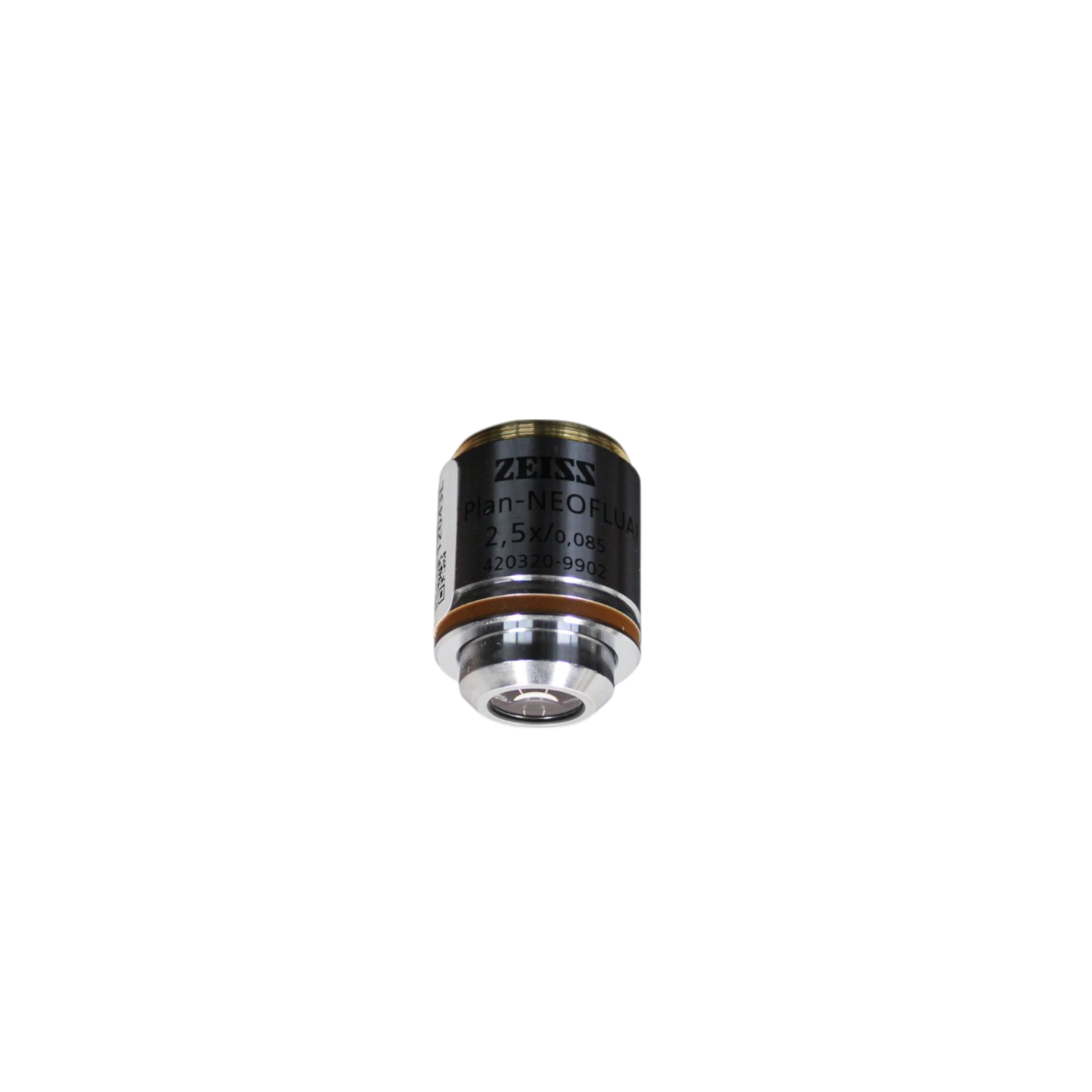

The Zeiss EC Plan-Neofluar 2.5x/0.085 is a high-quality **plan semi-apochromatic low-magnification objective** designed for **brightfield and fluorescence microscopy**. With a **numerical aperture (NA) of 0.085**, this objective provides excellent contrast, flat-field correction, and enhanced chromatic aberration correction. The **M27 thread size** ensures compatibility with Zeiss Axio series and other M27-compatible microscopes.
Condition
Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications.)
Included Items
Zeiss EC Plan-Neofluar 2.5x/0.085 Objective
Key Features
2.5x magnification for wide-field, low-magnification imaging
EC Plan-Neofluar optics for superior color correction and contrast
Numerical aperture (NA) of 0.085 for enhanced light transmission
M27 thread size for compatibility with Zeiss Axio series microscopes
Flat field correction for sharp, edge-to-edge imaging
Optimized for fluorescence microscopy with high transmission coatings
Applications
Brightfield microscopy
Fluorescence microscopy
Whole-slide imaging
Low-magnification tissue and pathology imaging
Live-cell imaging
Specifications
Specification
Details
Magnification
2.5x
Numerical Aperture (NA)
0.085
Working Distance
~8.5 mm
Immersion Medium
Air (Dry)
Cover Glass Thickness
0.17 mm
Optical Correction
EC Plan-Neofluar (Flat Field, High Contrast, Semi-Apochromatic)
Thread Size
M27 (27mm thread diameter)
Parfocal Distance
45 mm
Compatible Microscopes
Zeiss Axio series and other M27-compatible models
Special Features
Low-magnification, apochromatic design for high-precision imaging in brightfield and fluorescence applications
We offer Up to 1-Year Parts & Labor Warranty (with extended contract offerings), Quality Control & Assurance Documentation and Expert Technology & Application Advice.
