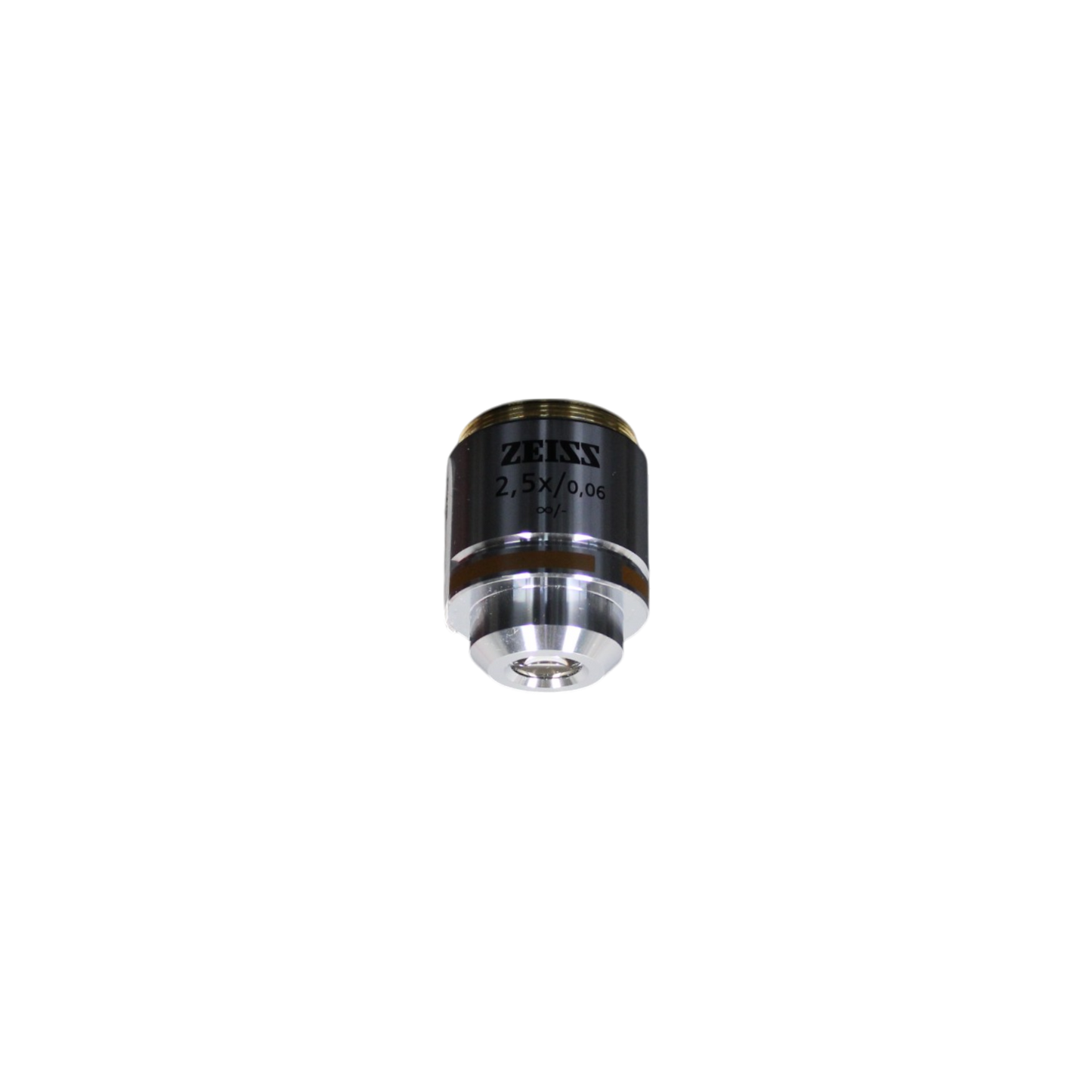

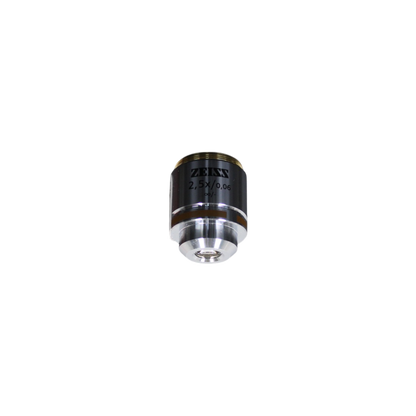

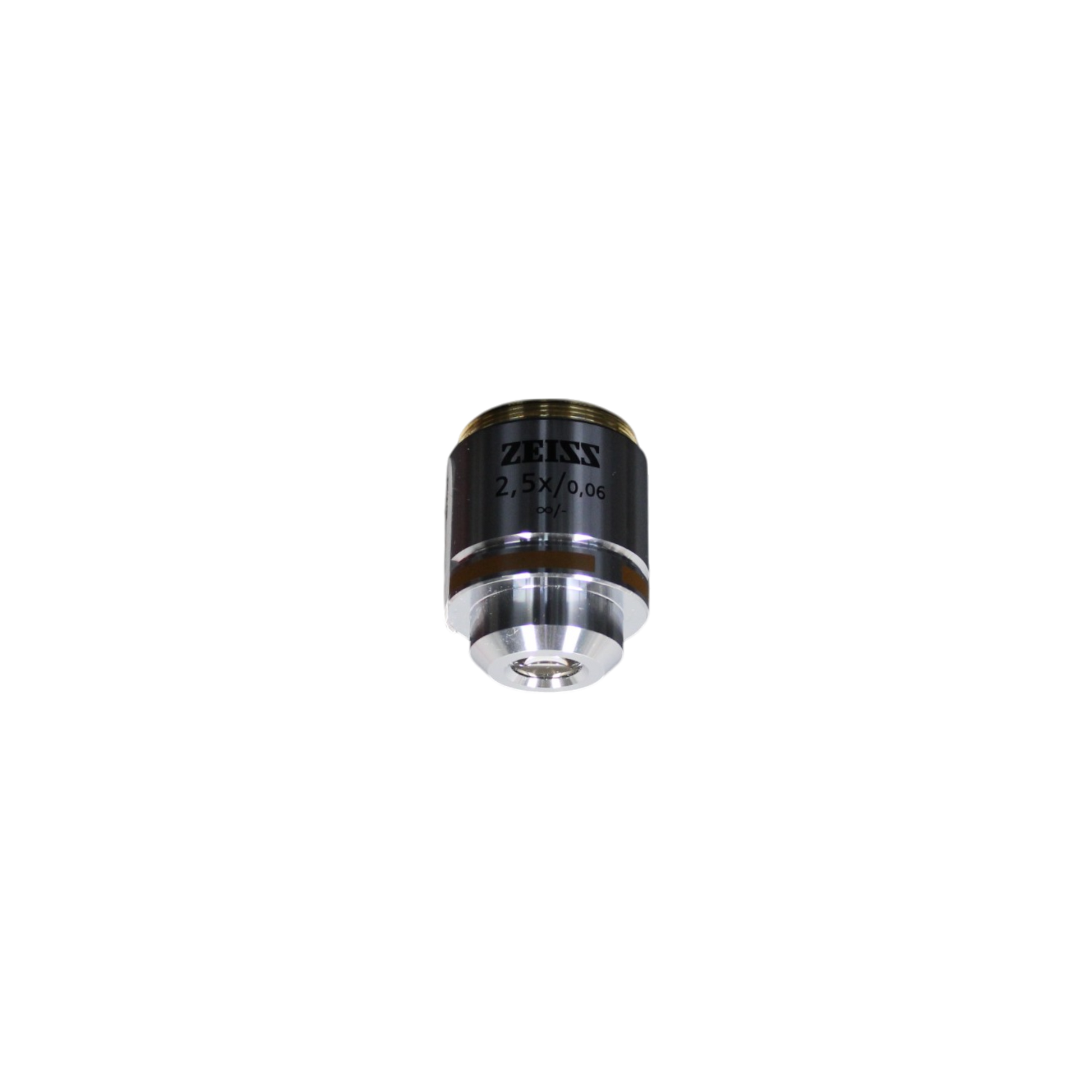

The Zeiss A-Plan 2.5x/0.06 is a high-quality **achromatic objective** designed for **low-magnification brightfield microscopy**. With a **numerical aperture (NA) of 0.06**, this objective delivers excellent contrast and field flatness, making it ideal for **whole-slide imaging, pathology, and general microscopy applications**. The **M27 thread size** ensures compatibility with Zeiss Axio series and other M27-compatible microscopes.
Condition
Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications.)
Included Items
Zeiss A-Plan 2.5x/0.06 Objective
Key Features
2.5x magnification for low-magnification imaging
A-Plan achromatic optics for color correction and sharp contrast
Numerical aperture (NA) of 0.06 for uniform illumination
M27 thread size for compatibility with Zeiss Axio series microscopes
Flat field correction for sharp images across the entire field of view
Applications
Brightfield microscopy
Whole-slide imaging
Low-magnification tissue and pathology imaging
Routine biological and clinical research
Specifications
Specification
Details
Magnification
2.5x
Numerical Aperture (NA)
0.06
Working Distance
~8.9 mm
Immersion Medium
Air (Dry)
Cover Glass Thickness
0.17 mm
Optical Correction
A-Plan (Achromatic, Flat Field, High Contrast)
Thread Size
M27 (27mm thread diameter)
Parfocal Distance
45 mm
Compatible Microscopes
Zeiss Axio series and other M27-compatible models
Special Features
Low-magnification objective with excellent field flatness for large sample imaging
We offer Up to 1-Year Parts & Labor Warranty (with extended contract offerings), Quality Control & Assurance Documentation and Expert Technology & Application Advice.
