PRODUCT ID:OBJ-000-329

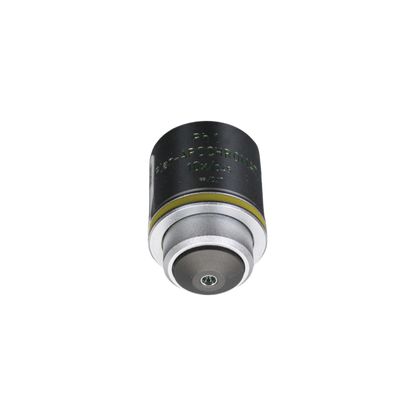

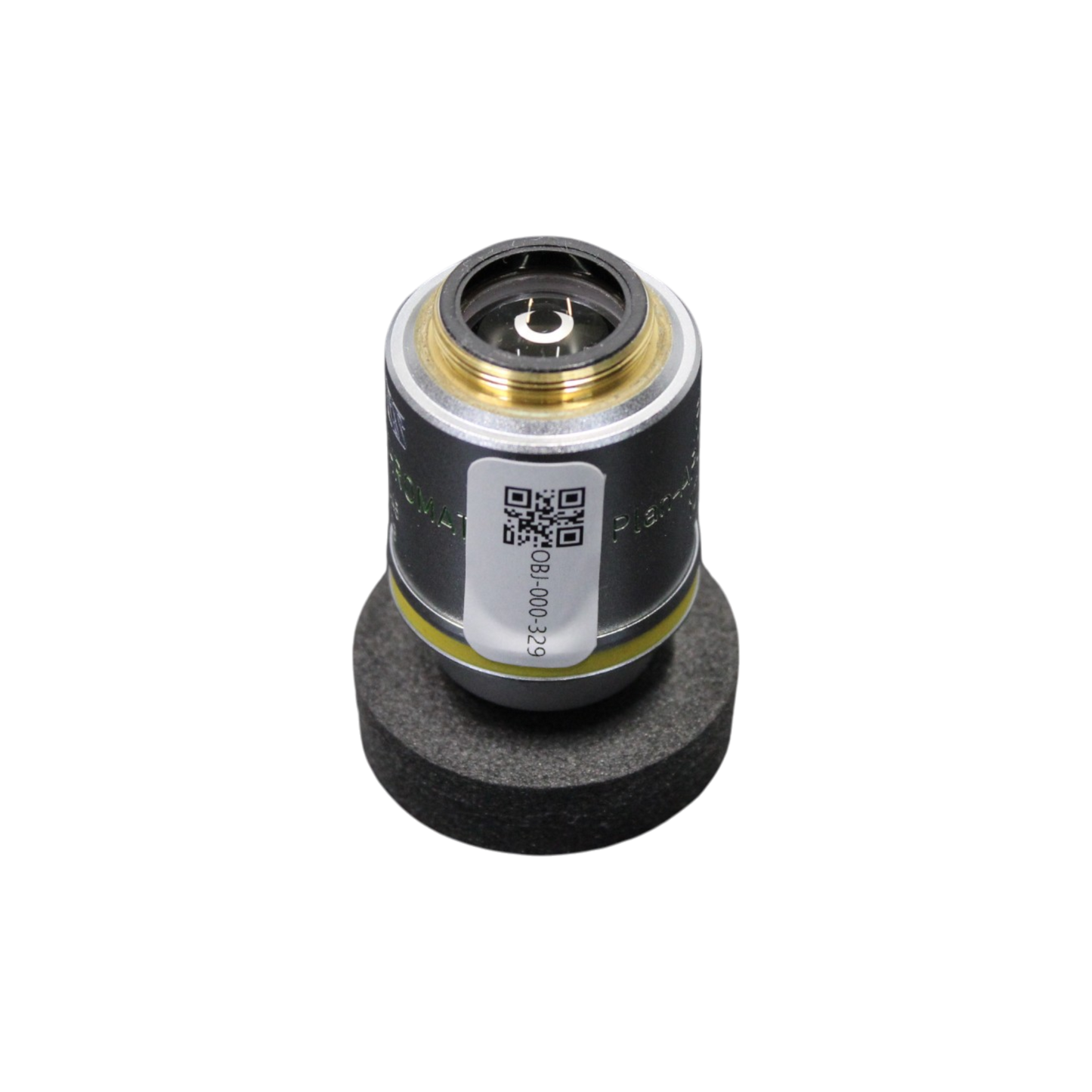

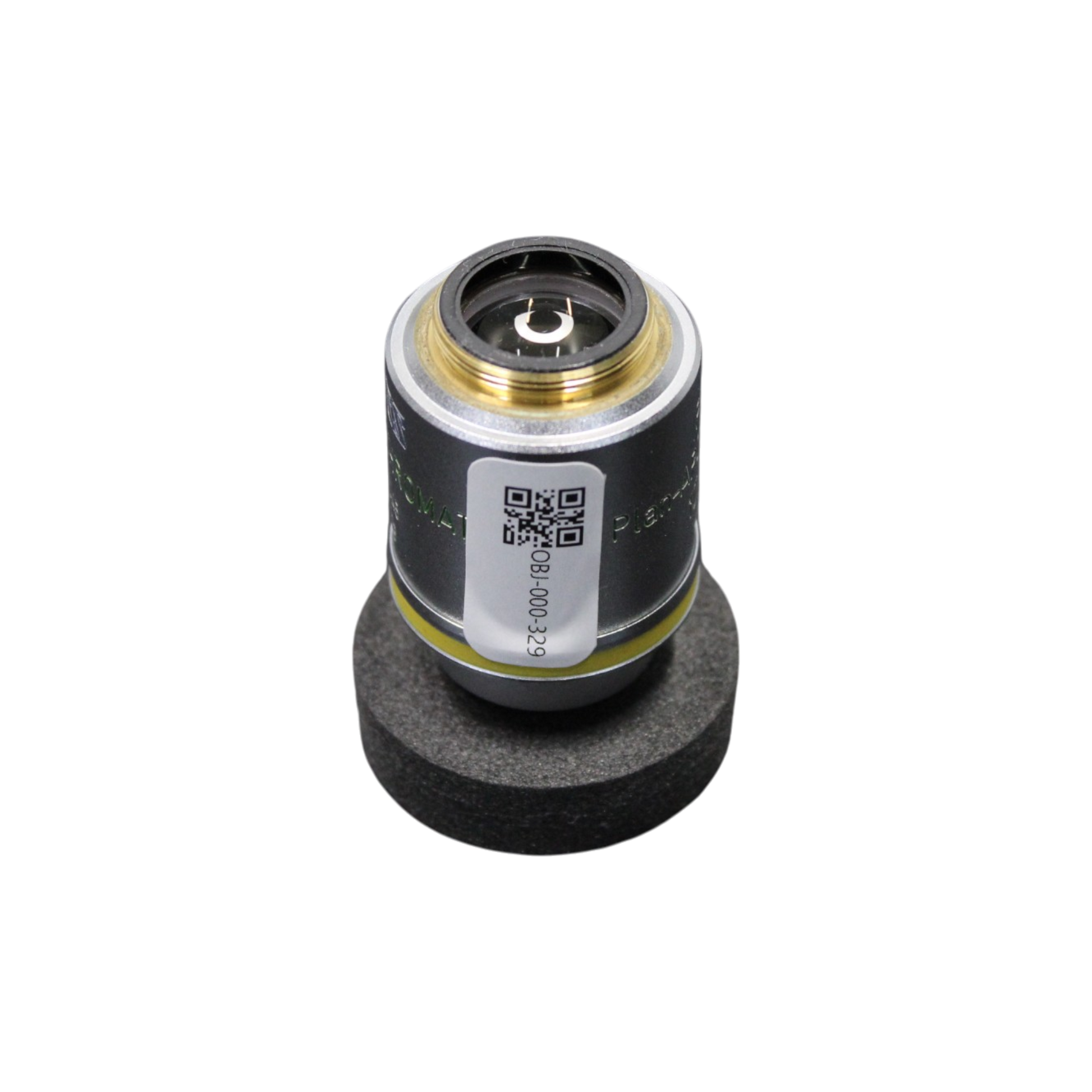

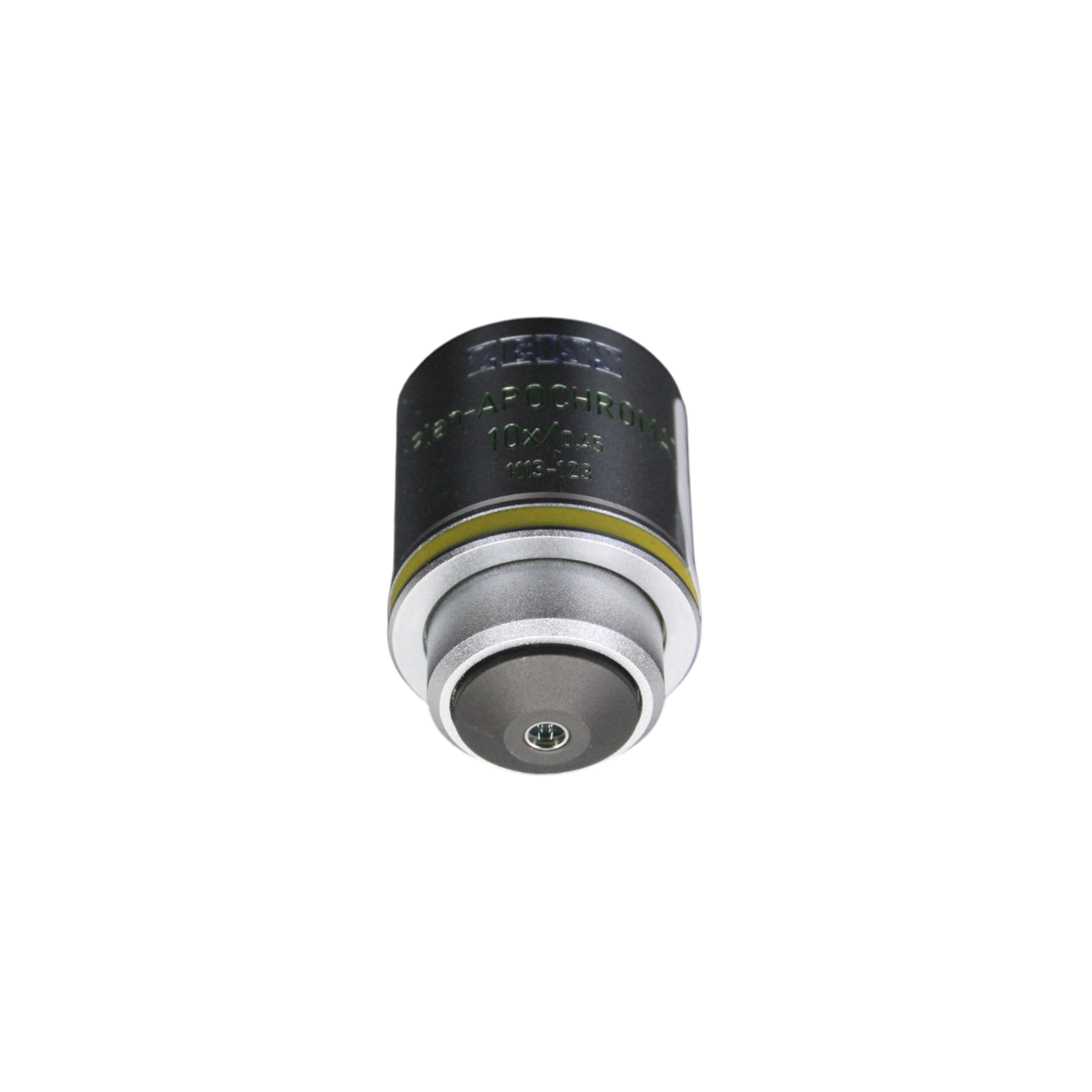

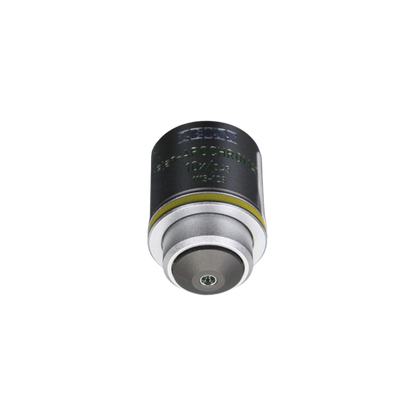

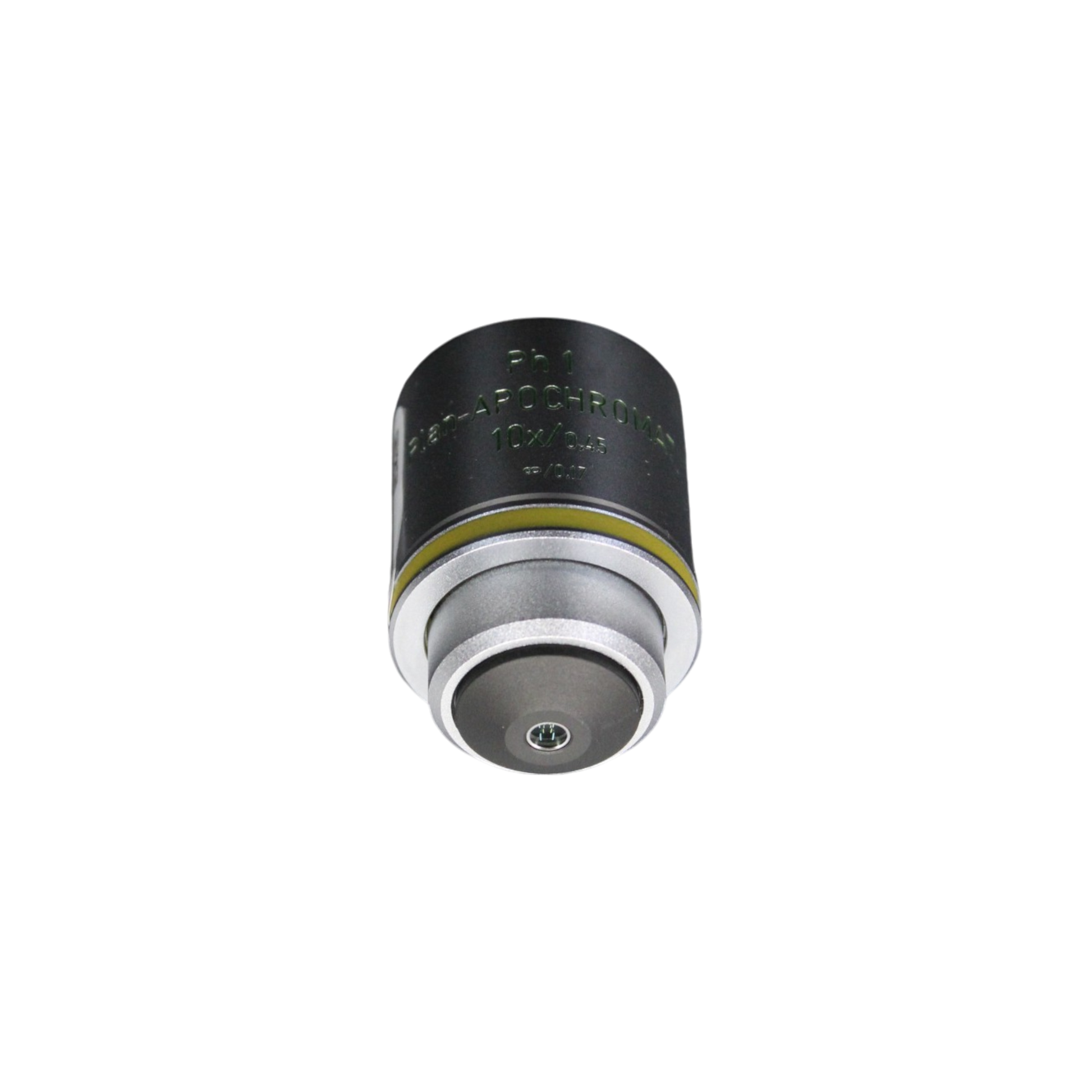

Zeiss Plan-Apochromat Ph1 10x/0.45 RMS Thread Size 1113-123 Microscope Objective

Zeiss Plan-Apochromat Ph1 10x/0.45 RMS Thread Size 1113-123 Microscope Objective

Zeiss Plan-Apochromat Ph1 10x/0.45 RMS Thread Size Objective – 1113-123 (Used/Refurbished)

The Zeiss Plan-Apochromat Ph1 10x/0.45 RMS is a high-performance objective lens designed for advanced microscopy applications. With a numerical aperture (NA) of 0.45 and a free working distance of 2.0 mm, it provides exceptional resolution and clarity for brightfield, phase contrast, and fluorescence microscopy.

Condition

  • Used / Refurbished
  • (This product has been inspected and verified to meet manufacturer specifications.)

Key Features

  • Magnification: 10x
  • Numerical Aperture (NA): 0.45
  • Free Working Distance: 2.0 mm
  • Cover Glass Thickness: 0.17 mm
  • Thread Type: RMS (W0.8x1/36")
  • Dry Objective (No Immersion Required)
  • Apochromatic (APO) Correction: Provides superior color correction and image flatness
  • Infinity Color Corrected System (ICS): Ensures compatibility with modern microscope systems

Applications

  • Brightfield microscopy
  • Phase contrast microscopy
  • Fluorescence microscopy
  • Biomedical research
  • Material science

Specifications

Feature Details
Manufacturer Zeiss
Model Plan-Apochromat Ph1 10x/0.45 RMS
Catalog Number 1113-123
Magnification 10x
Numerical Aperture (NA) 0.45
Free Working Distance 2.0 mm
Cover Glass Thickness 0.17 mm
Thread Size RMS (W0.8x1/36")
Immersion Medium None (Dry)
Field of View 25 mm
Parfocal Length 45.06 mm
Optical System Infinity Color Corrected System (ICS)
Color Correction Apochromatic (APO)
Application Brightfield, Phase Contrast, Fluorescence Microscopy, Biomedical Research, Material Science

Additional Details

  • Manufacturer: Zeiss
  • Model: Plan-Apochromat Ph1 10x/0.45 RMS Thread Size
  • Catalog Number: 1113-123
  • Serial Number: N/A
  • Condition: Used
View full details
