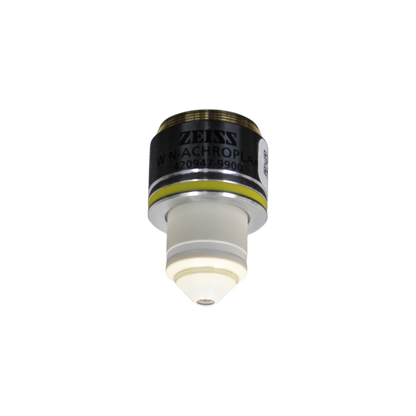

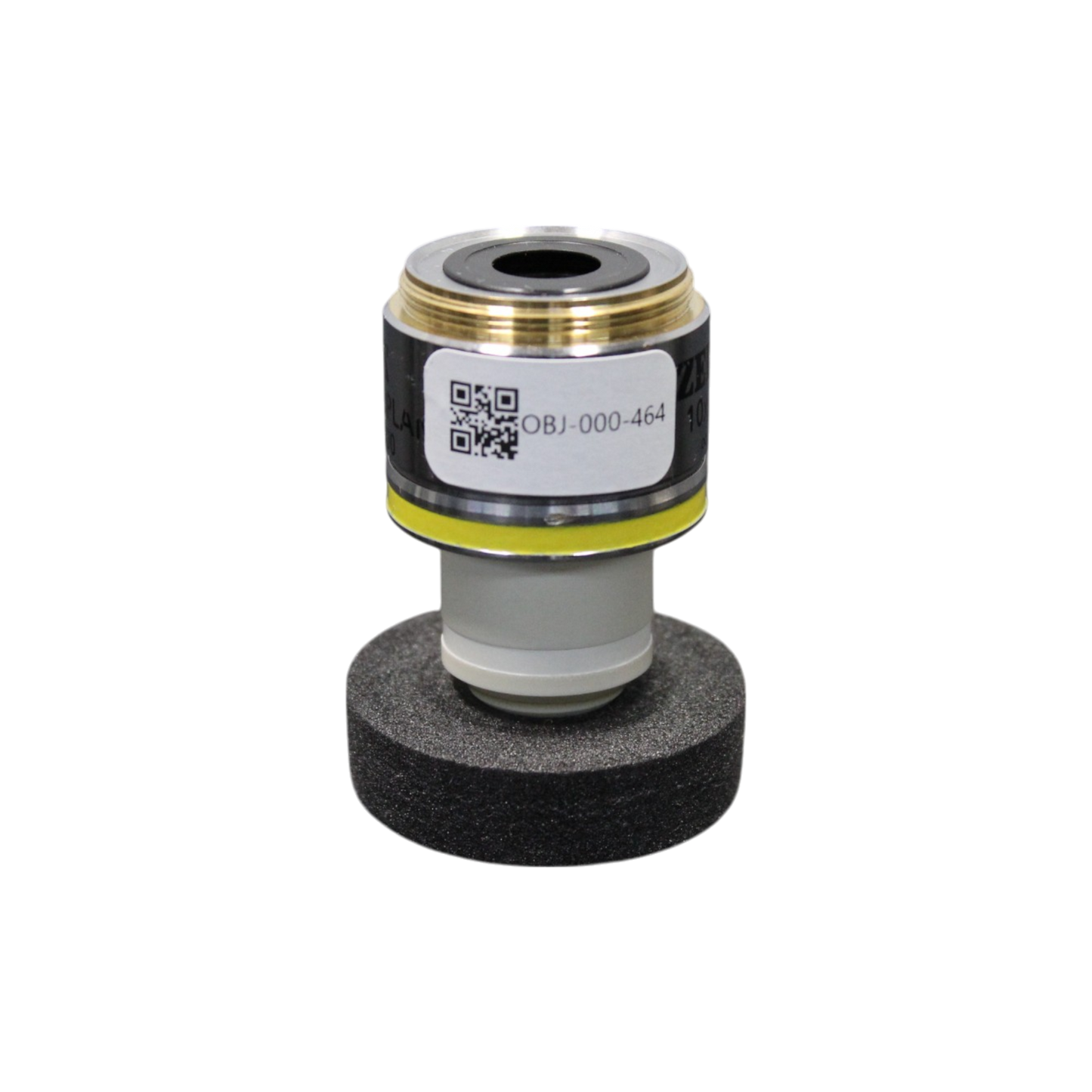

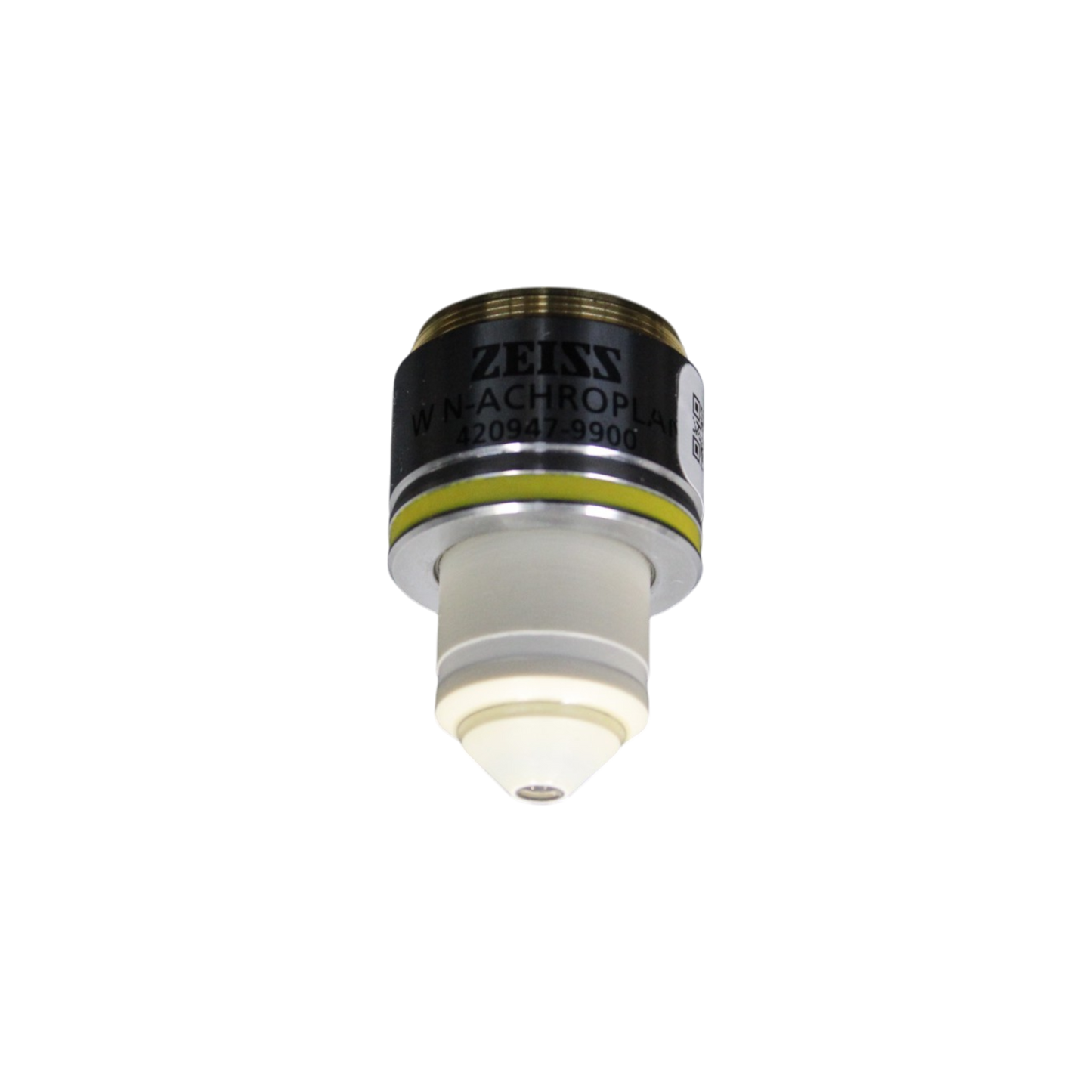

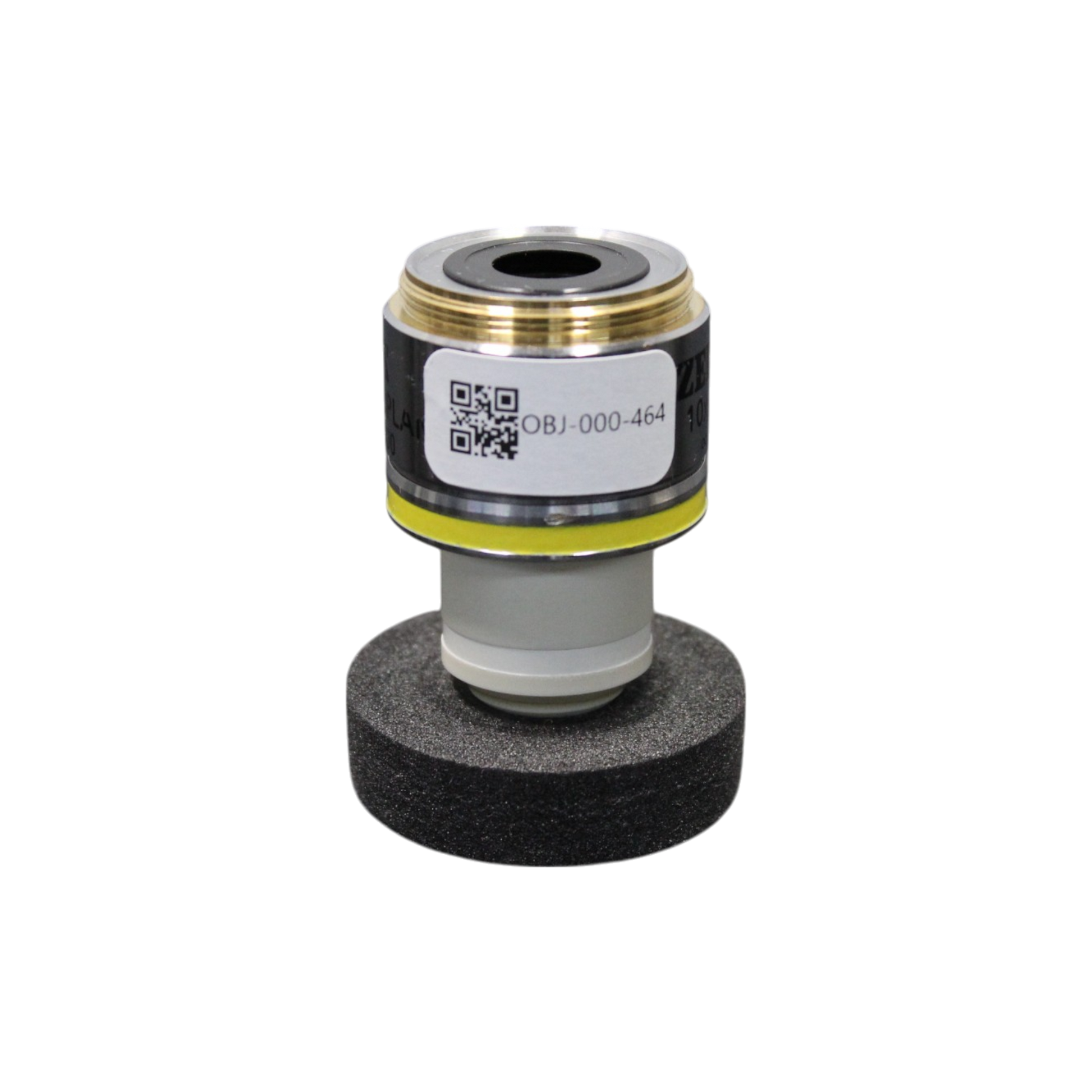

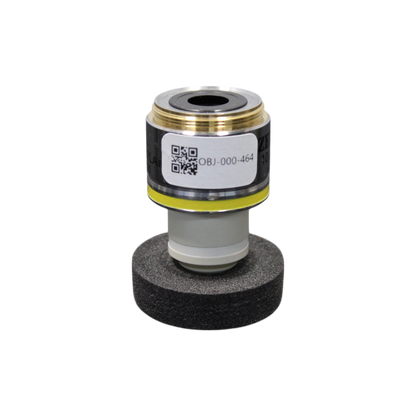

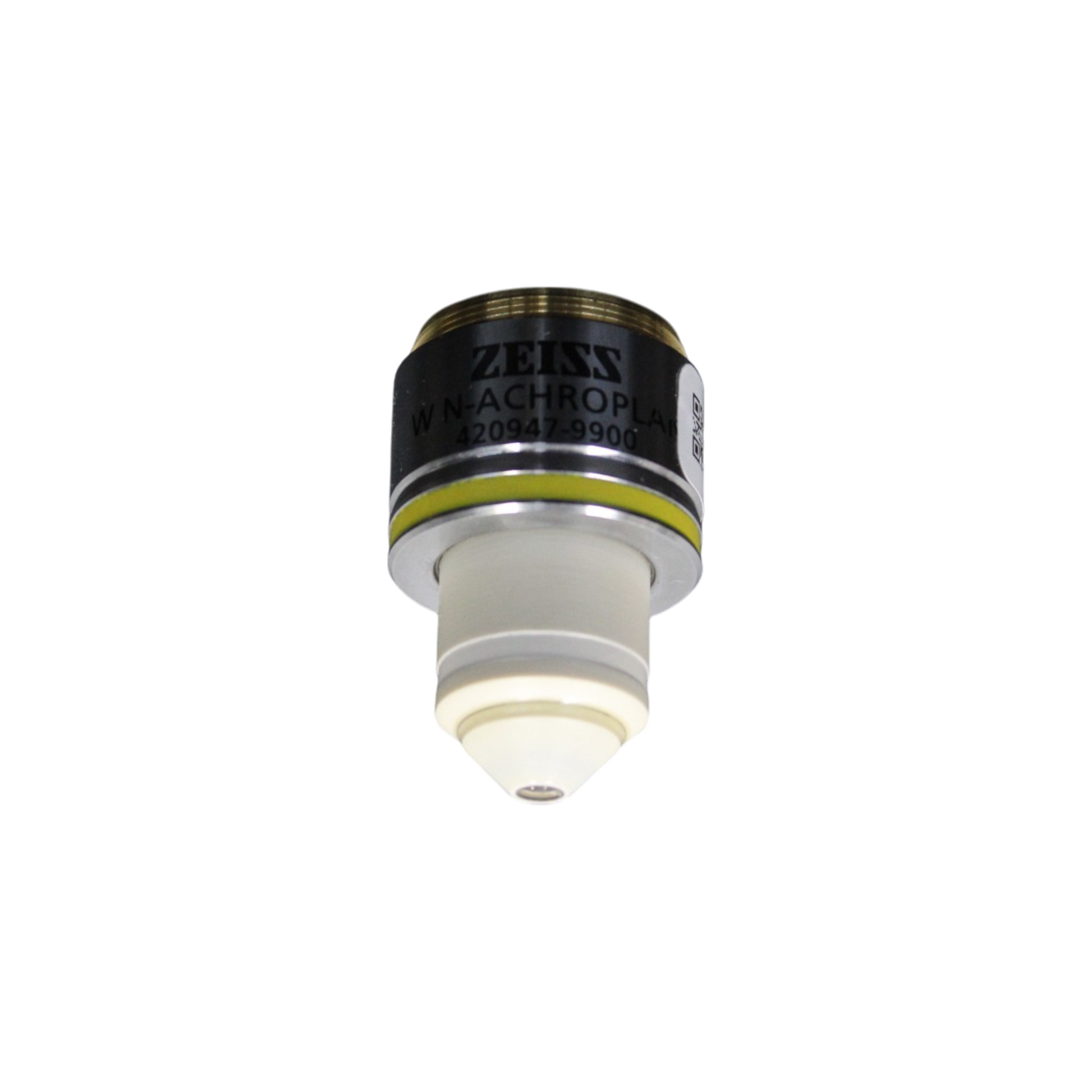

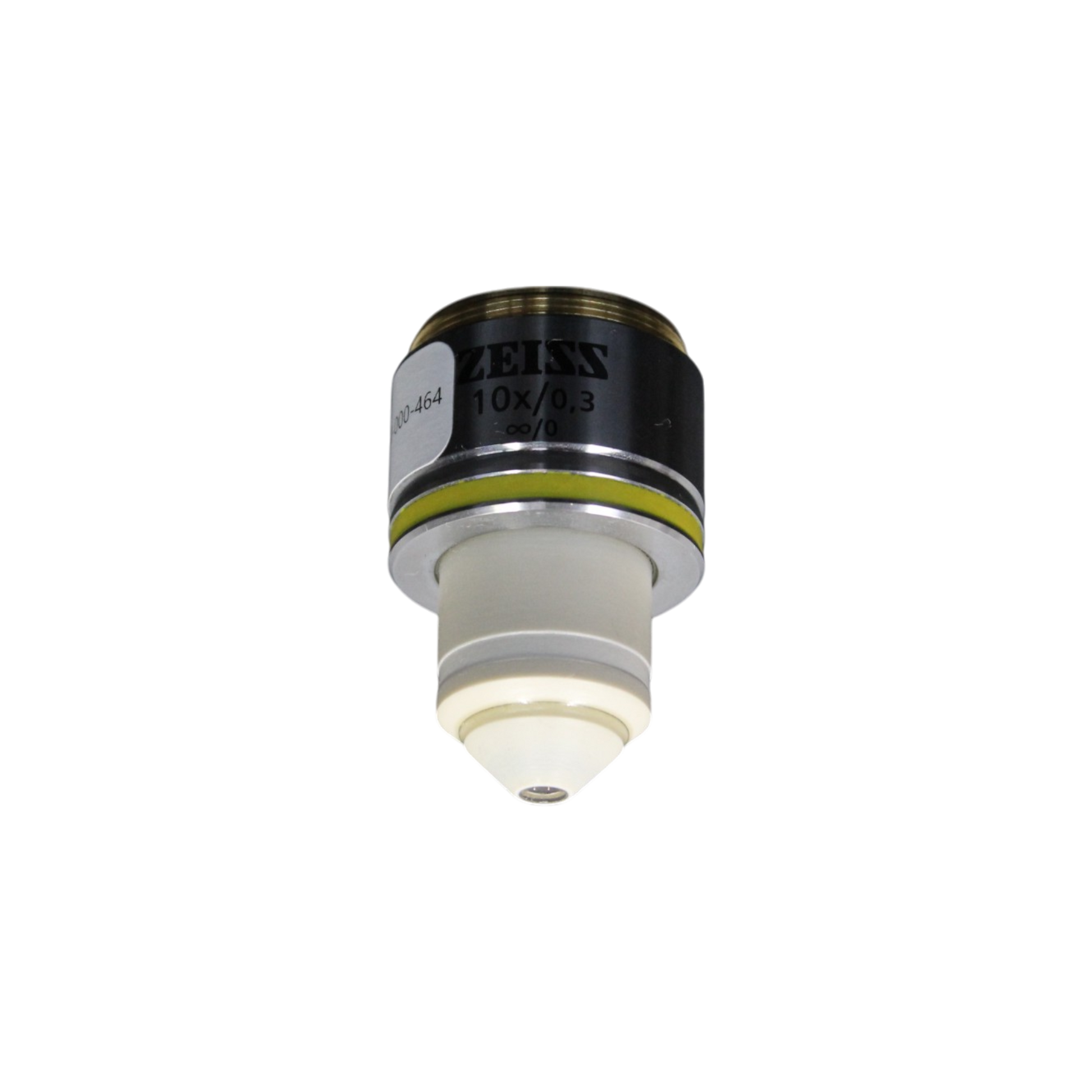

Zeiss W N-Achroplan 10x/0.3 M27 Thread Size - 420947-9900 (Used)
The Zeiss W N-Achroplan 10x/0.3 is a high-quality **water immersion achromatic objective** designed for **brightfield, fluorescence, and live-cell imaging applications**. With a **numerical aperture (NA) of 0.3**, this objective provides excellent contrast, resolution, and flat-field correction, making it ideal for **biological research, pathology, and water-based imaging techniques**. The **M27 thread size** ensures compatibility with Zeiss Axio series and other M27-compatible microscopes.
Condition
Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications.)
Included Items
Zeiss W N-Achroplan 10x/0.3 Objective
Key Features
10x magnification for high-resolution imaging
Water immersion (W) optimized for live-cell and deep-tissue imaging
Plan Achromat (N-Achroplan) optics for enhanced contrast and chromatic correction
Numerical aperture (NA) of 0.3 for improved light transmission
M27 thread size for compatibility with Zeiss Axio series and other standard microscopes
Flat field correction for sharp, edge-to-edge imaging
Optimized for fluorescence, brightfield, and water-based imaging techniques with high transmission coatings
Applications
Water immersion microscopy
Brightfield microscopy
Fluorescence microscopy
Live-cell imaging
Confocal and multiphoton microscopy
Neuroscience and deep-tissue imaging
Pathology and histology
Specifications
Specification
Details
Magnification
10x
Numerical Aperture (NA)
0.3
Working Distance
~7.0 mm
Immersion Medium
Water
Cover Glass Thickness
0.17 mm
Optical Correction
Plan Achromatic (Flat Field, High Contrast, Water Immersion Optimized)
Thread Size
M27 (27mm thread diameter)
Parfocal Distance
60 mm
Compatible Microscopes
Zeiss Axio series and other M27-compatible models
Special Features
High transmission coatings for fluorescence, optimized for live-cell and deep-tissue imaging
We offer Up to 1-Year Parts & Labor Warranty (with extended contract offerings), Quality Control & Assurance Documentation and Expert Technology & Application Advice.
