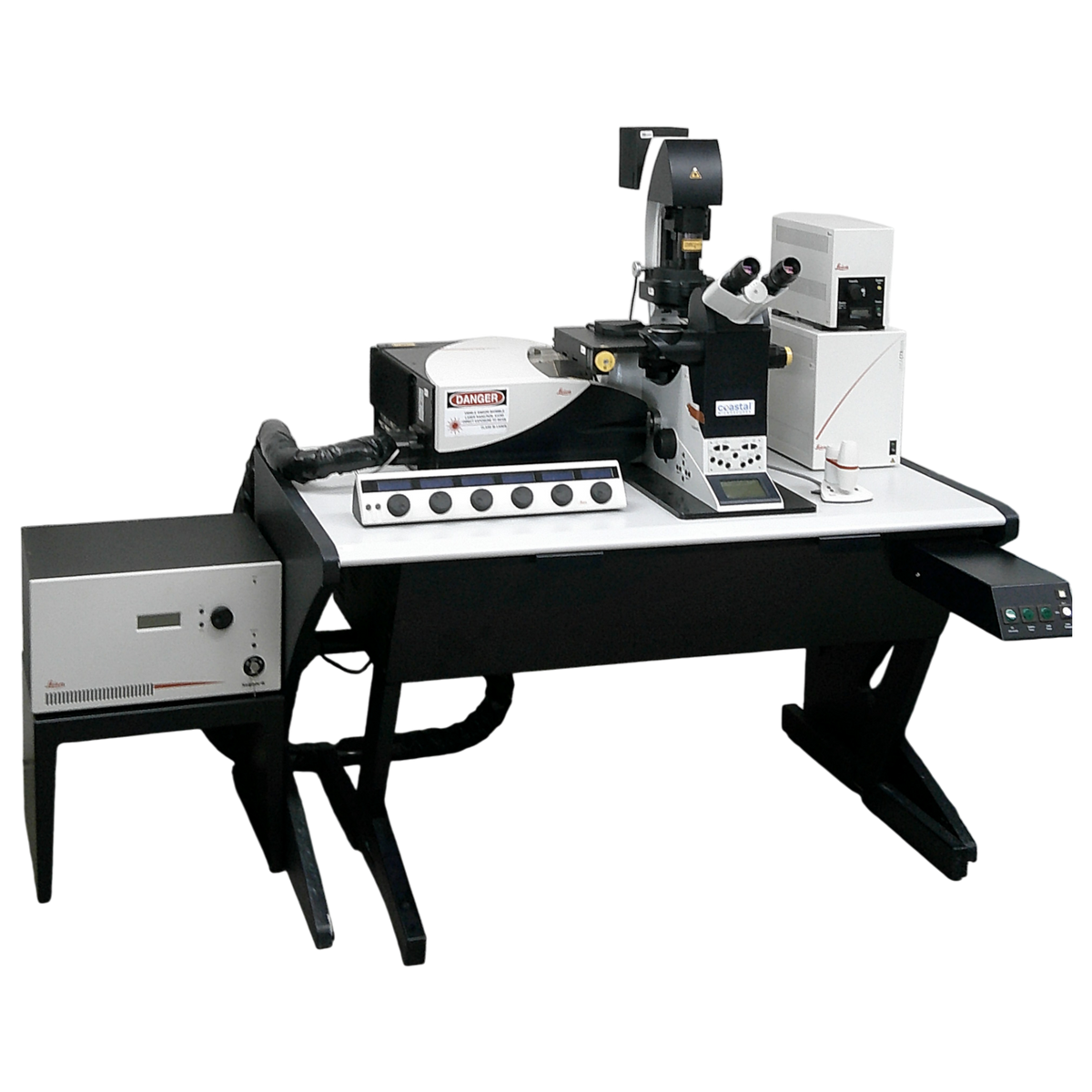

Leica TCS SP8 X White Light Laser Scanning Confocal w/ DMI6000B Inverted Phase Contrast Fluorescence Confocal

Leica TCS SP8 X White Light Laser Confocal Microscope w/ DMI6000B Inverted Fluorescence Microscope

The Leica TCS SP8 X is a high-performance confocal system built around a tunable White Light Laser (WLL), offering flexible excitation from 470 to 670 nm. Integrated with the DMI6000B motorized inverted fluorescence microscope, this configuration is engineered for demanding applications such as live-cell imaging, multiplexed fluorescence, and spectral unmixing.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Included Items

• Leica TCS SP8 X Confocal System
• (2) PMT Detectors
• (3) HyD Hybrid Detectors, high sensitivity for exceptional signal-to-noise performance
• NKT EXTREME Super-Continuum WLL Laser Source, 470–670nm, 1nm tunable steps
• 405nm and Argon Laser Modules
• Leica DMI6000B Motorized Inverted Fluorescence Microscope
• Leica CTR6500 Control Module
• Motorized Polarizer (Cat# 11522120)
• S1/S28 Motorized/Fixed Dichroic Control (Cat# 11522106)
• Nosepiece: 6-Position Motorized Coded Nosepiece
• (3) Filter Cubes of your choice (Additional Cubes Available for purchase)
• Workstation with Leica LAS X Software and License
• Monitor

Available Options

• Objectives (Please discuss your application or preferred configuration with our team. We have a full suite of options available.)
• Stage: Motorized and Manual options available, including Leica Motorized Scanning Stage (Cat# 11522100) with SmartMove Controller (Cat# 11505180)
• Leica Adaptive Focus Control (AFC) Autofocus System
• Environmental Incubation System
• Optical Table: New and Refurbished options available

Illuminator (Choose One):

• 100w Mercury w/ Power Supply
• Upgrade to: Used Metal Halide
• Upgrade to: New X-Cite 110LED System with Adapter. Includes: X-Cite 110LED, speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Upgrade to: New X-Cite mini+ System. Includes: LED head, miniCUBE controller, speedDIAL remote, Microscope Coupling Flange
• Upgrade to: New X-Cite XYLIS II, XT730S w/1.5m LLG. Includes: X-Cite XYLIS (XT720S), speedDIAL remote, 3mm x 1500mm Liquid Light Guide

Key Features

• White Light Laser with tunable 470–670 nm excitation range
• Acousto-Optical Tunable Filter (AOTF) for precise and flexible wavelength control
• Spectral detection system with user-defined bandwidths
• (3) high-sensitivity HyD detectors and (2) PMTs
• Motorized DMI6000B inverted stand with motorized Z-focus
• Integrated motorized polarizer and dichroic mirror control (S1/S28)
• Optional motorized scanning stage with SmartMove remote for automated multi-position workflows
• Optional Adaptive Focus Control (AFC) for drift-free time-lapse imaging
• Leica LAS X software suite with license, workstation and monitor included

Applications

• Live-cell fluorescence imaging
• Spectral imaging and unmixing
• Multiplexed fluorescence labeling
• Z-stack and 4D time-lapse imaging
• Confocal optical sectioning
• Colocalization studies
• Fluorescence correlation and dynamics studies (with appropriate modules)

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
