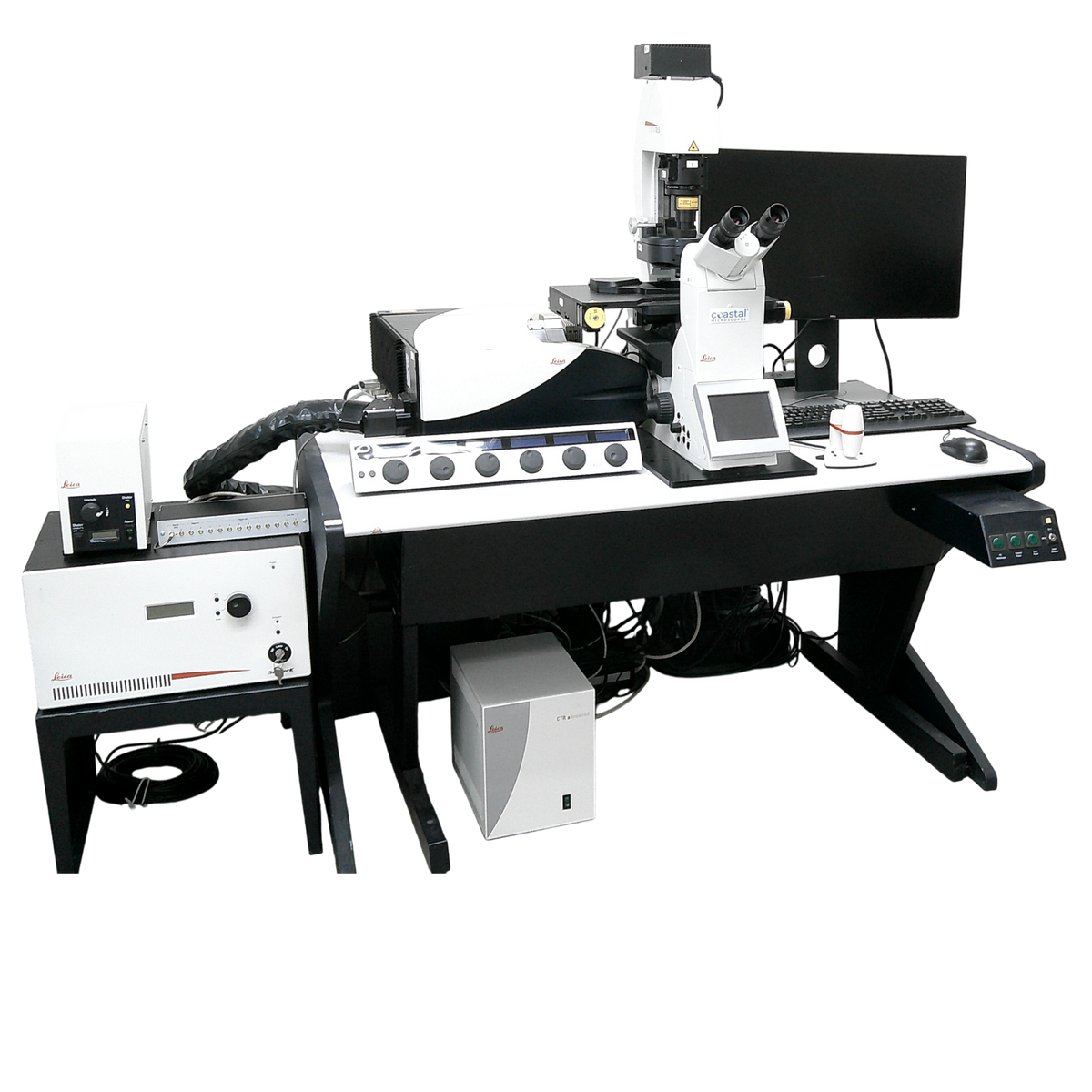

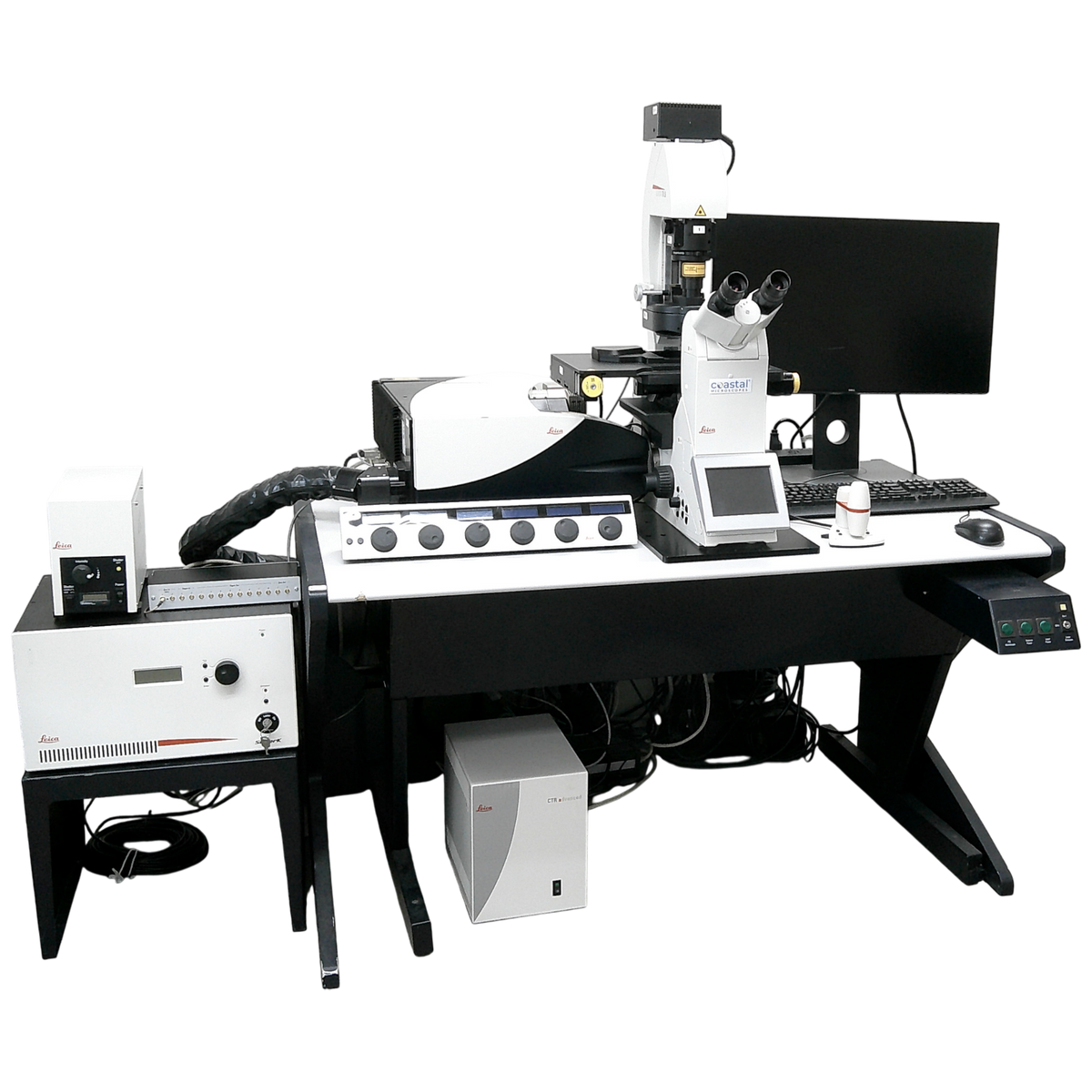

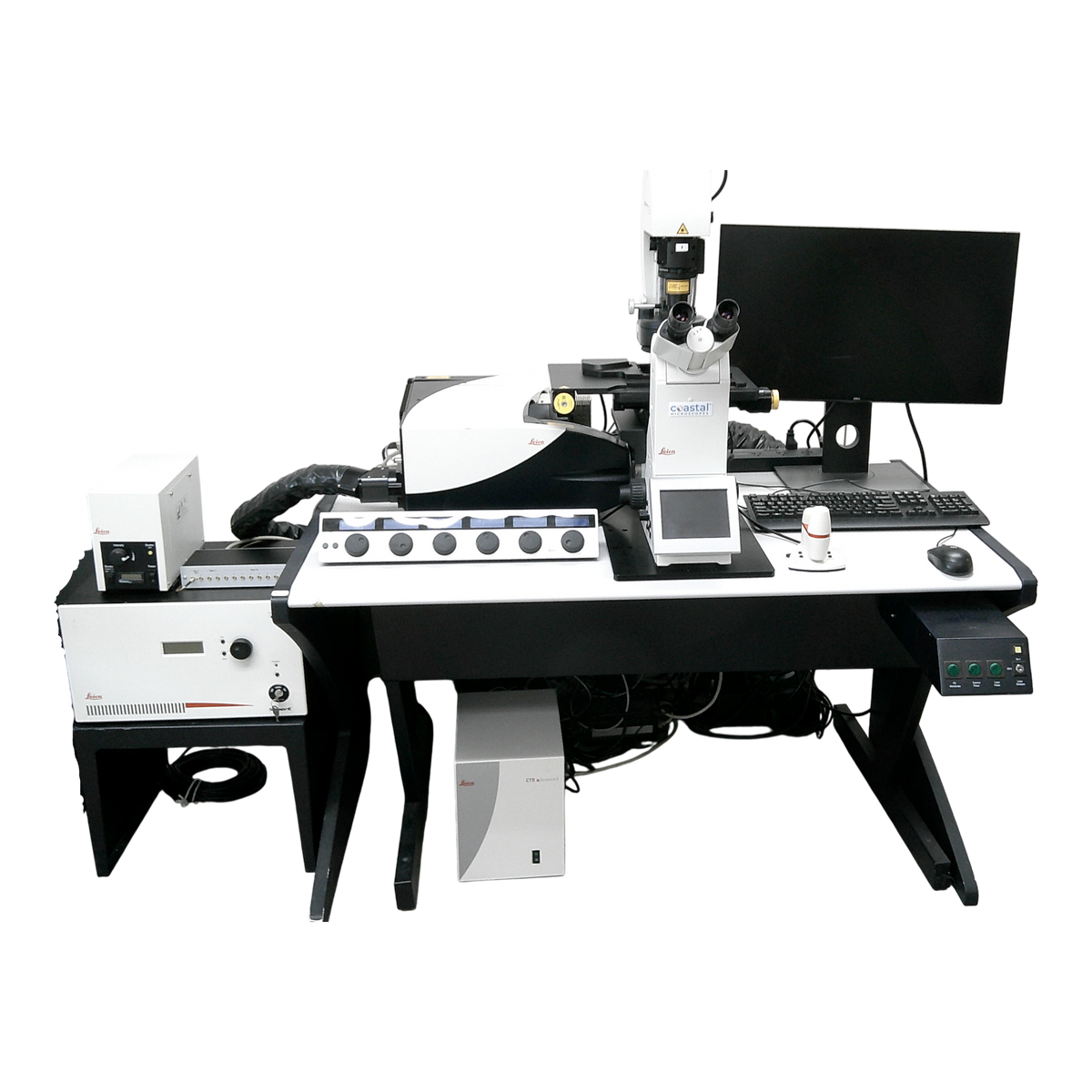

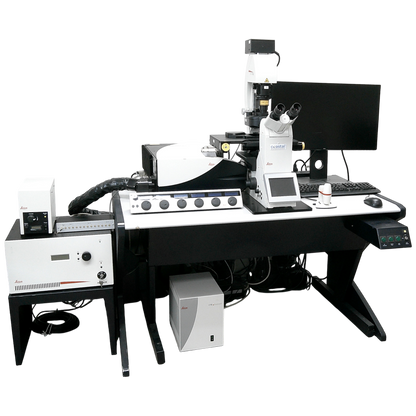

Leica TCS SP8 X White Light Laser Scanning Confocal w/ DMI8 Inverted Phase Contrast Fluorescence with AFC Confocal

Leica TCS SP8 X White Light Laser Confocal Microscope with DMi8 Inverted Phase Contrast Fluorescence and AFC | Refurbished

The Leica TCS SP8 X is a white light laser (WLL) confocal microscope system designed for advanced fluorescence imaging, including live-cell imaging, super-resolution microscopy, and spectral unmixing. This configuration features the Leica SP8 X confocal scan head, a motorized DMi8 inverted microscope with Adaptive Focus Control (AFC), and an NKT EXTREME Super-Continuum Laser delivering 470–670nm excitation tunable in 1nm steps.

Paired with 405nm and Argon lasers and HyD hybrid detectors, this system is optimized for flexible multi-wavelength imaging, high-speed optical sectioning, and advanced quantitative analysis.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Included Items

Confocal System & Optical Components

• Leica SP8 X Confocal Scan Head
• (3) PMT Detectors
• (2) HyD Hybrid Detectors, high sensitivity for exceptional signal-to-noise performance
• NKT EXTREME Super-Continuum WLL Laser Source, 470–670nm, 1nm tunable steps
• 405nm and Argon Laser Modules

Microscope & Illumination

• Leica DMi8 Automated Inverted Microscope with DLS and Adaptive Focus Control (AFC)
• Leica EL6000 Fluorescence Light Source
• Nosepiece: 6-Position Motorized Coded Nosepiece
• (3) Filter Cubes of your choice (Additional Cubes Available for purchase)

Computer & Software

• Workstation
• Monitor
• Base (10000), Acquisition (10010)
• Dye Finder (10050), FRET (10070), FRAP (10080)
• HyVolution (10084), Mosaic (10094)
• 3D Basic (10280), 3D Advanced Full (10290)
• Deconvolution Basic (10817), Advanced (10818)
• Image Processing (10819)

Available Options

• Objectives (Please discuss your application or preferred configuration with our team. We have a full suite of options available.)
• Stage: Motorized and Manual options available, including Motorized Scanning Stage (Universal) with Leica SmartMove Joystick
• Environmental Incubation System:
  • PeCon Universal Stage Insert
  • Okolab H301-EC-LG-BL Stage Incubation Chamber
  • Okolab OKO-Touch Hand Switch
  • Okolab OKO-AP-BL Air Pump
  • Leica CTR Advanced Controller (11525207)
  • Okolab Bold Line H301 T UNIT-BL Temperature Controller
  • Okolab Bold Line CO2-UNIT-BL CO₂ Controller
• Optical Table: New and Refurbished options available

Illuminator Upgrades (Optional):

• Upgrade to: New X-Cite 110LED System with Adapter. Includes: X-Cite 110LED, speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Upgrade to: New X-Cite mini+ System. Includes: LED head, miniCUBE controller, speedDIAL remote, Microscope Coupling Flange
• Upgrade to: New X-Cite XYLIS II, XT730S w/1.5m LLG. Includes: X-Cite XYLIS (XT720S), speedDIAL remote, 3mm x 1500mm Liquid Light Guide

Key Features

• White Light Laser: 470–670nm excitation with 1nm precision
• 405nm and Argon laser modules included
• (2) HyD hybrid detectors + (3) PMTs for flexible, high-sensitivity detection
• Motorized DMi8 inverted microscope with Adaptive Focus Control (AFC) for drift-free time-lapse imaging
• DLS light sheet ready
• HyVolution super-resolution imaging
• Full Leica software suite with deconvolution, FRAP/FRET, Mosaic, and 3D analysis
• Workstation and monitor included
• Optional environmental control, optical table, motorized stage, and objectives

Applications

• Live-cell imaging
• Super-resolution microscopy (HyVolution)
• Spectral imaging and unmixing
• FRAP / FRET
• 3D/4D imaging
• Time-lapse imaging
• Multiplexed fluorescence studies
• Tile scanning and mosaic imaging

Specifications

Confocal Scan Head	Leica TCS SP8 X
Detectors	3x PMT, 2x HyD Hybrid Detectors
Excitation Source	NKT EXTREME WLL (470–670nm, 1nm tunable)
Additional Lasers	405nm and Argon laser lines
Microscope Body	Leica DMi8, Motorized Inverted with AFC & DLS
Contrast Methods	Fluorescence, Phase Contrast
Fluorescence Illuminator	Leica EL6000 (X-Cite LED upgrades available)
Autofocus	Leica Adaptive Focus Control (AFC)
Nosepiece	6-Position Motorized Coded
Filter Cubes	(3) Filter Cubes of your choice (Additional Cubes Available for purchase)
Stage	Optional, Motorized and Manual options available
Objectives	Optional, configured to application
Environmental Control	Optional, Okolab/PeCon incubation
Optical Table	Optional, New and Refurbished options available
Software Modules	Acquisition, Dye Finder, FRAP, FRET, HyVolution, Mosaic, 3D Advanced, Deconvolution, Image Processing
Workstation	Workstation with Monitor

Video Demonstration

• Video 1
• Video 2

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
