Nikon C2 Laser Scanning Confocal w/Eclipse NI-E Upright Fluorescence Motorized Confocal

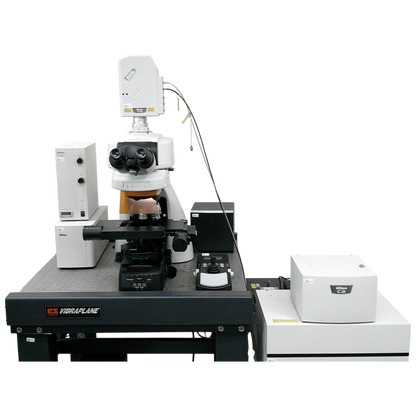

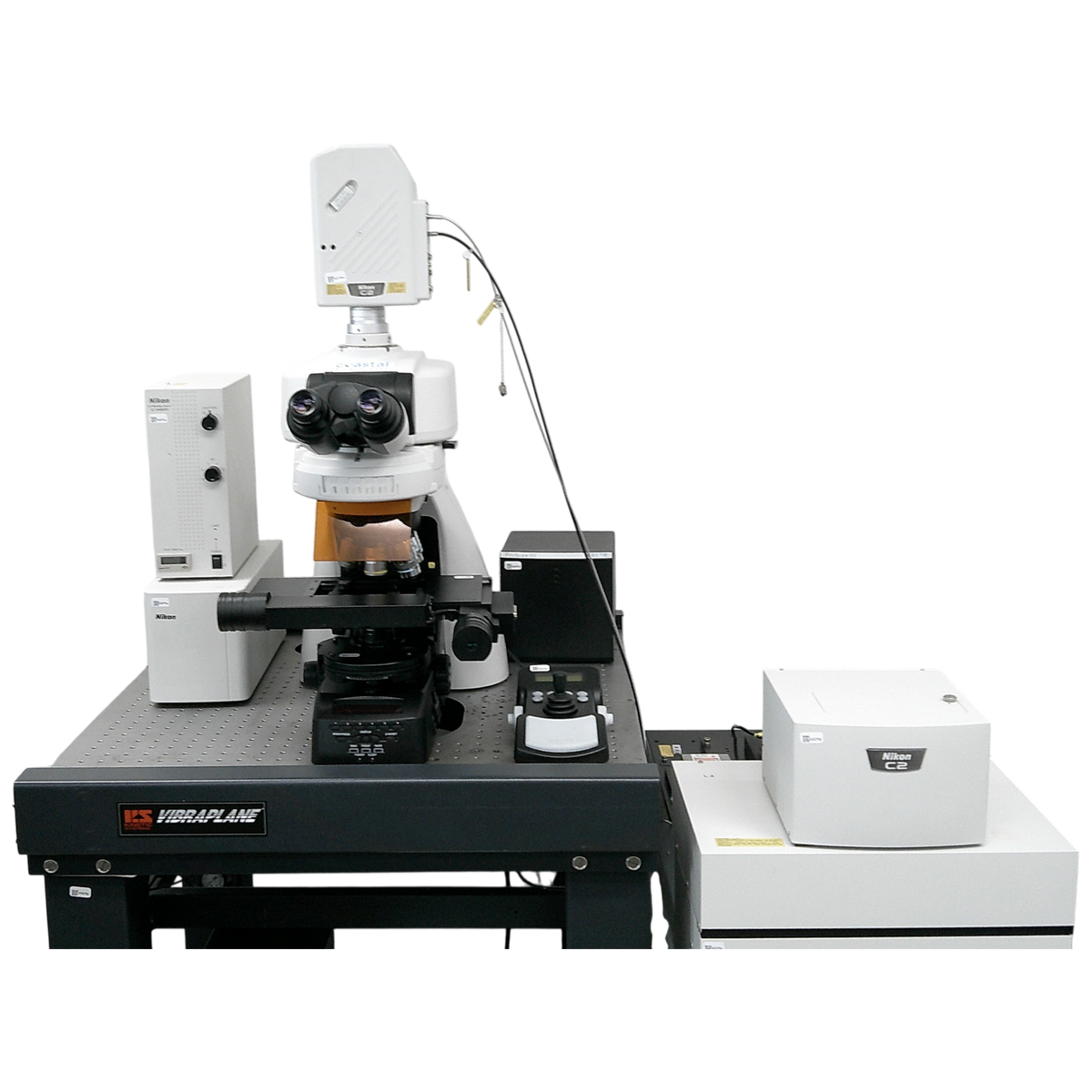

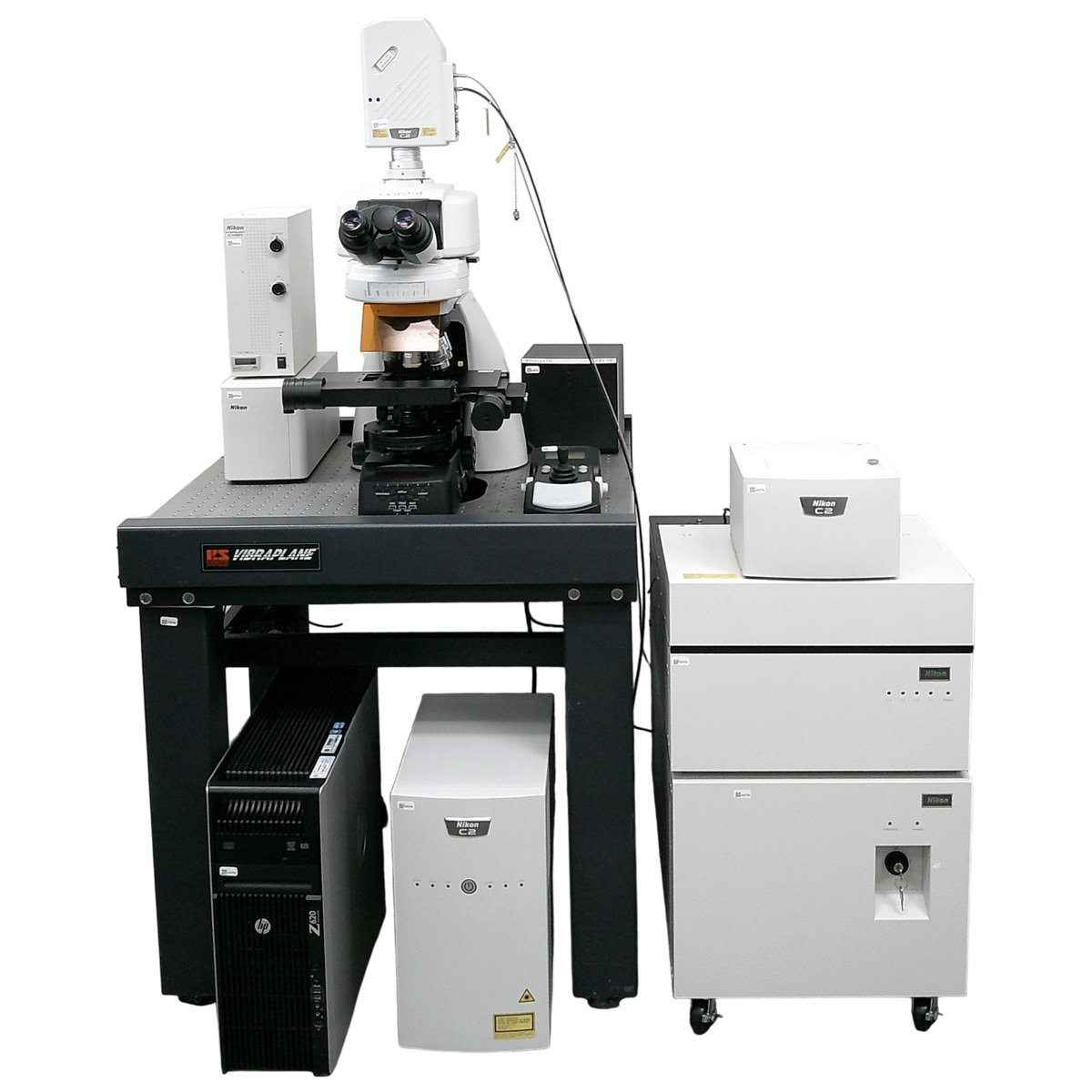

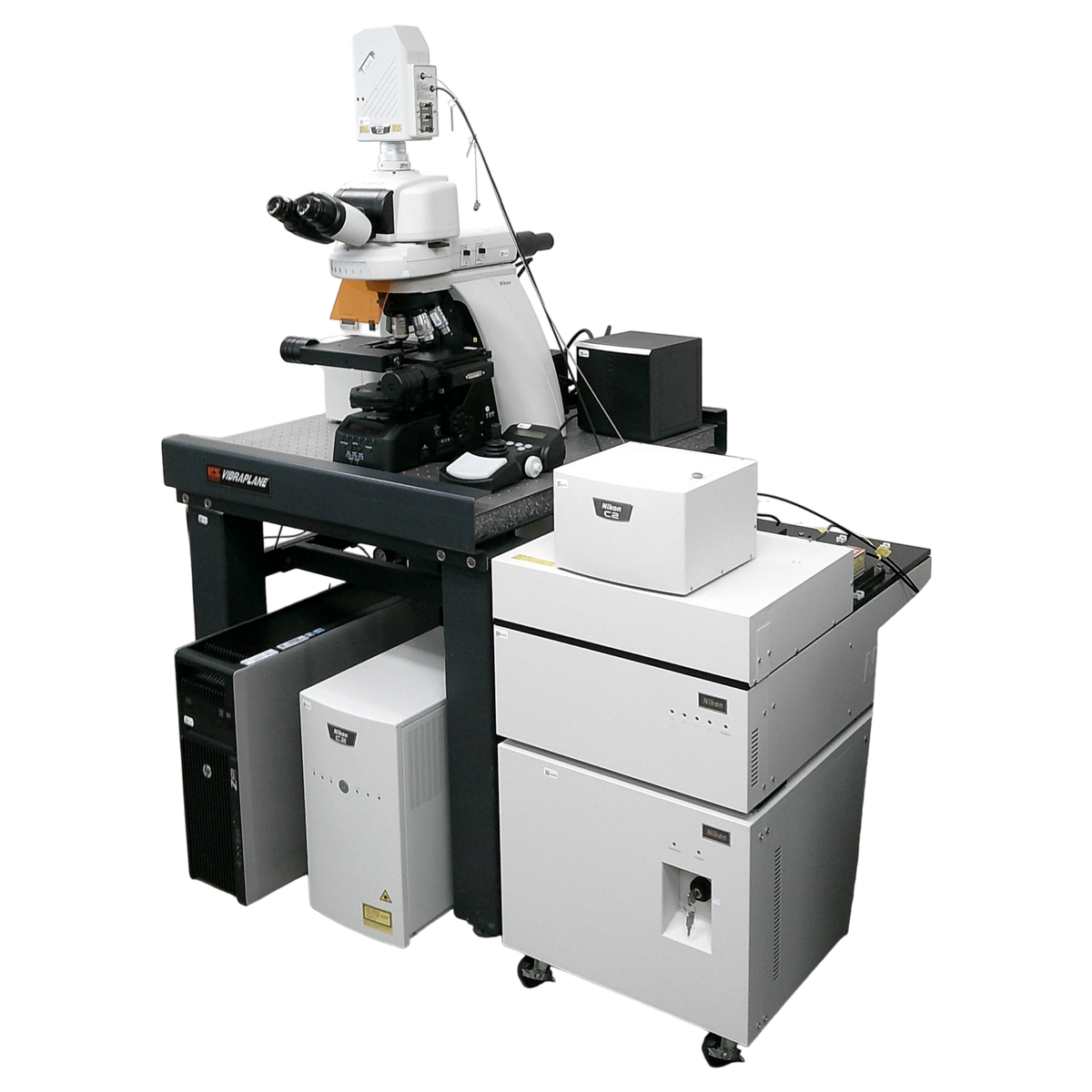

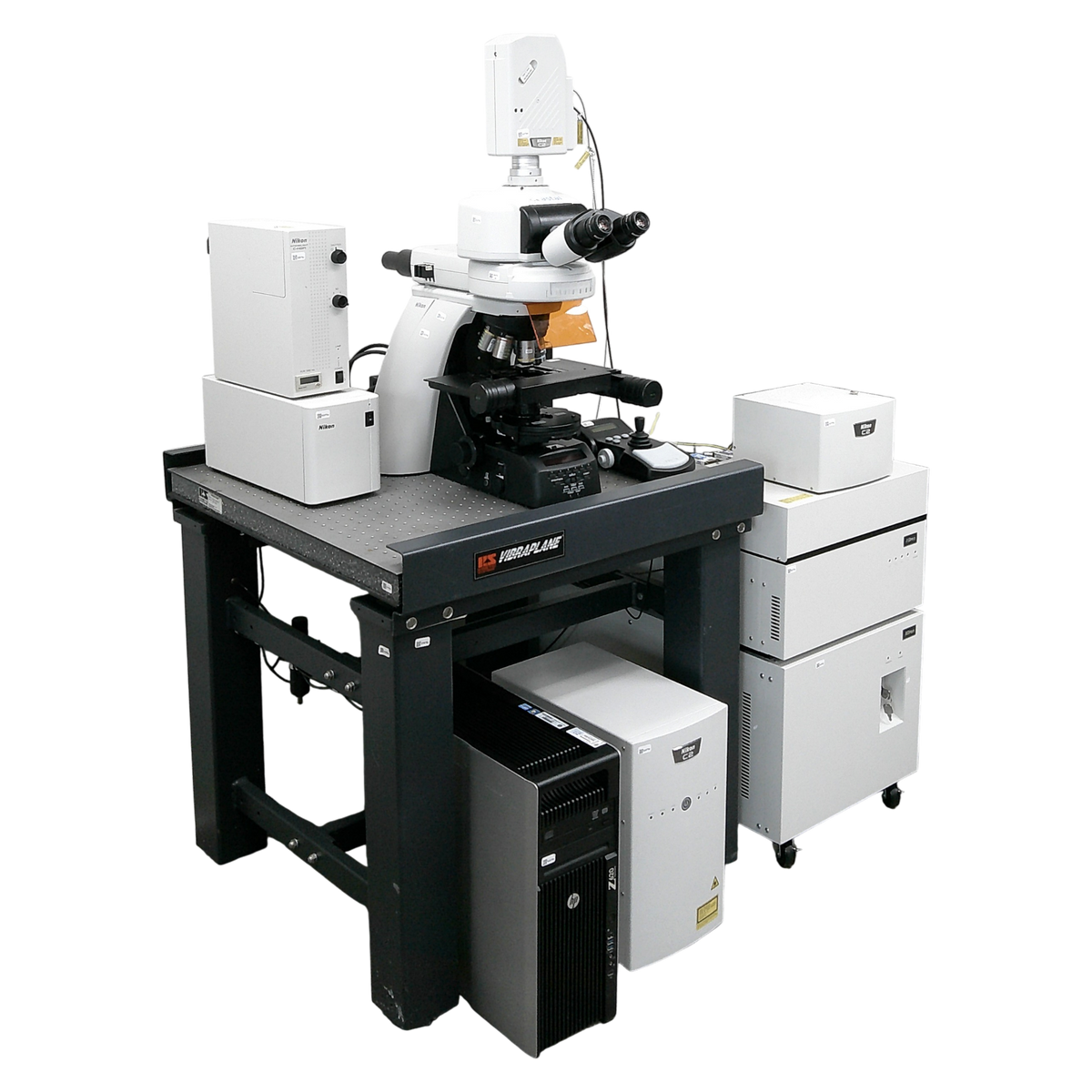

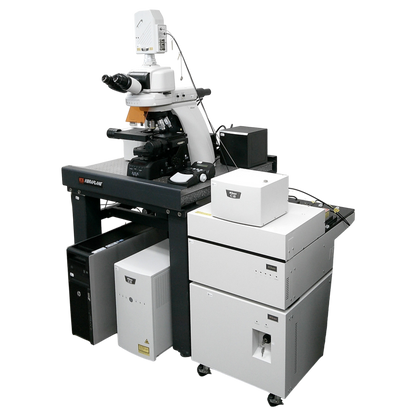

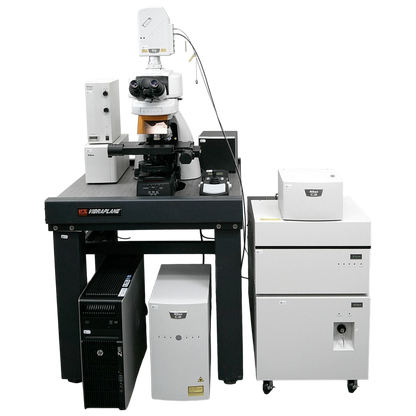

Nikon Eclipse Ni-E Upright Fluorescence Microscope with C2 Laser Scanning Confocal System (Used)

The Nikon Eclipse Ni-E with C2 Laser Scanning Confocal System combines Nikon's fully motorized upright research microscope platform with a point-scanning confocal imaging system for advanced fluorescence microscopy, optical sectioning, Z-stack acquisition, and 3D imaging. The Ni-E provides motorized control of focus, objective selection, and fluorescence components, while the Nikon C2 adds four-line Coherent laser excitation (405, 488, 561, and 640 nm), confocal scanning, and 3-channel PMT detection for high-contrast fluorescence imaging. The system is well suited for neuroscience, developmental biology, cell biology, tissue imaging, immunofluorescence, and other demanding research applications.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Included Items

• Nikon Eclipse Ni-E Motorized Upright Microscope Stand
• Nikon C2 Laser Scanning Confocal Scan Head
• Nikon C2-DU3 3-Channel PMT Detector Unit

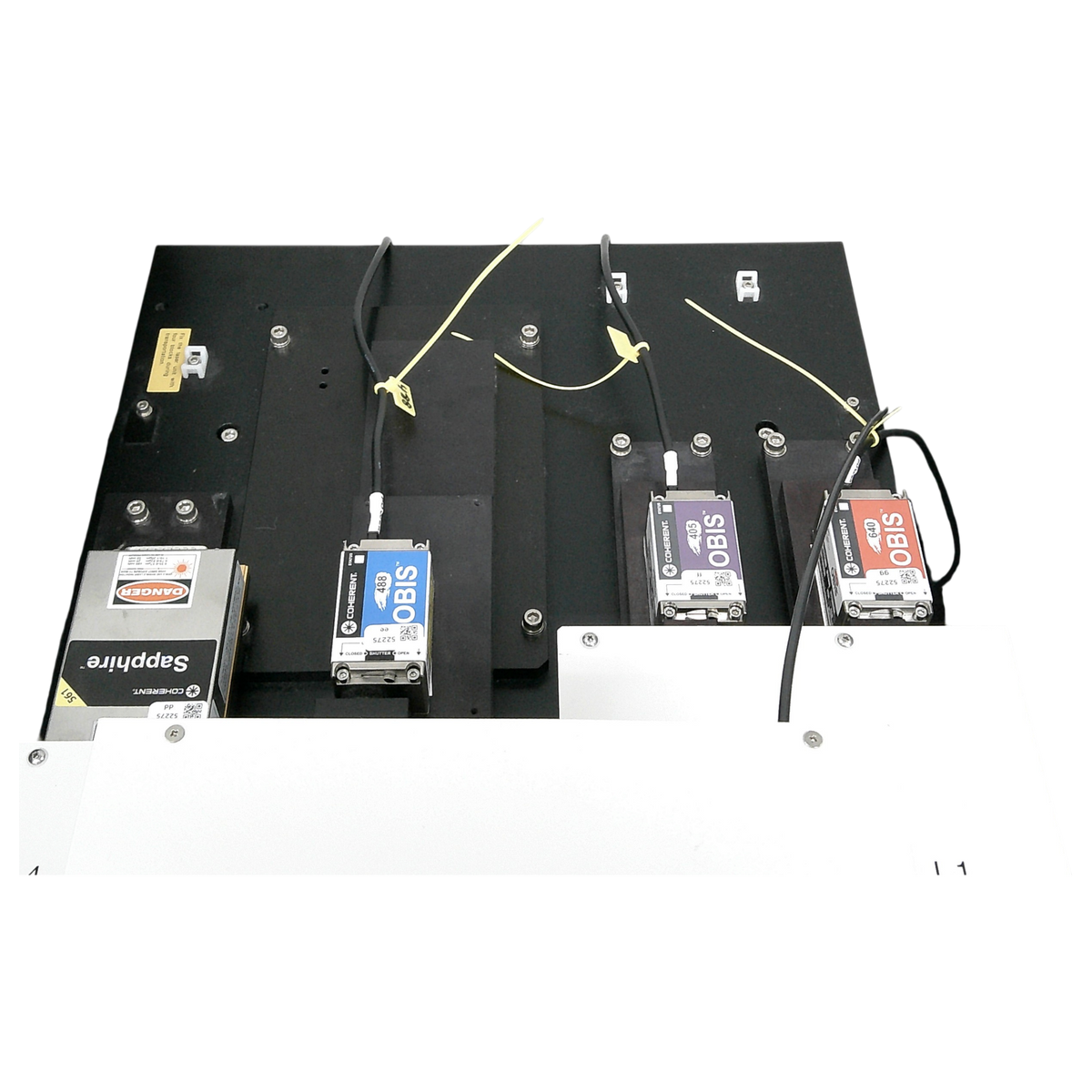

• Nikon LU4A Laser Unit (LU-LR) with Lasers:
  • Coherent OBIS 405 nm
  • Coherent OBIS 488 nm
  • Coherent Sapphire 561 nm
  • Coherent OBIS 640 nm
• Trinocular Viewing Head
• Motorized Focus Drive
• Nosepiece: 6-Position Motorized Nosepiece
• Motorized Fluorescence Filter Cube Turret with Integrated Shutter
• Standard Condenser
• (3) Filter Cubes of your choice (Additional Cubes Available for purchase)
• Power Supplies and Cabling
• HP Z620 Workstation with Nikon NIS-Elements Software
• Monitor

Available Options

• Objectives (Please discuss your application or preferred configuration with our team. We have a full suite of options available.)
• Stage: Motorized and Manual options available
• Condenser: Phase contrast and DIC condenser configurations available
• Environmental Incubation System
• Optical Table: New and Refurbished options available
• Confocal Detection:
  • Transmitted light detector configurations available
  • C2si / C2si+ spectral detector configurations may be available
• Software: Additional NIS-Elements configurations available for multidimensional acquisition, analysis, and 3D visualization

Illuminator (Choose One):

• 100w Mercury w/ Power Supply
• Upgrade to: Used Metal Halide
• Upgrade to: New X-Cite 110LED System with Adapter. Includes: X-Cite 110LED, speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Upgrade to: New X-Cite mini+ System. Includes: LED head, miniCUBE controller, speedDIAL remote, Microscope Coupling Flange
• Upgrade to: New X-Cite XYLIS II, XT730S w/1.5m LLG. Includes: X-Cite XYLIS (XT720S), speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Upgrade to: New or Used Nikon Illuminator

Key Features

• Integrated Nikon Ni-E motorized upright microscope and C2 laser scanning confocal platform
• Point-scanning confocal imaging for optical sectioning and high-contrast fluorescence acquisition
• Four-line Coherent laser excitation in the Nikon LU4A laser unit: OBIS 405, 488, and 640 nm plus Sapphire 561 nm
• C2-DU3 3-channel PMT detector for simultaneous multichannel fluorescence detection
• Motorized focus for precise, repeatable Z-axis positioning
• Motorized 6-position nosepiece and fluorescence turret with integrated shutter
• Nikon CFI60 infinity-corrected optical system
• Confocal image acquisition up to 2048 × 2048 pixels
• Z-stack, 3D reconstruction, time-lapse, and multidimensional acquisition
• Optional motorized XY stage and incubation
• Nikon NIS-Elements v4.20 software, HP Z620 workstation, and monitor included

Applications

• Laser scanning confocal microscopy
• Multicolor fluorescence imaging (DAPI, GFP, RFP/mCherry, Cy5)
• Optical sectioning and Z-stack acquisition
• 3D fluorescence imaging and reconstruction
• Live-cell and fixed-cell imaging
• Immunofluorescence
• Neuroscience
• Developmental biology
• Cancer research
• Cell biology
• Tissue imaging
• Colocalization studies
• Time-lapse microscopy
• Quantitative fluorescence microscopy

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
