Zeiss LSM 780 Laser Scanning Confocal System w/ Axio Observer Z1 Inverted Phase Contrast Fluorescence Confocal

Zeiss LSM 780 Laser Scanning Confocal System w/ Axio Observer Z1 Inverted Phase Contrast Fluorescence Confocal (Used)

The Zeiss LSM 780 is a high-performance laser scanning confocal microscope system designed for advanced imaging applications, built on the Zeiss Axio Observer Z1 inverted microscope for fluorescence and phase contrast imaging. With high sensitivity GaAsP detection, 34-channel spectral flexibility, and multi-line laser excitation, this system is ideal for multi-channel fluorescence imaging, live-cell imaging, and quantitative analysis.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Included Items

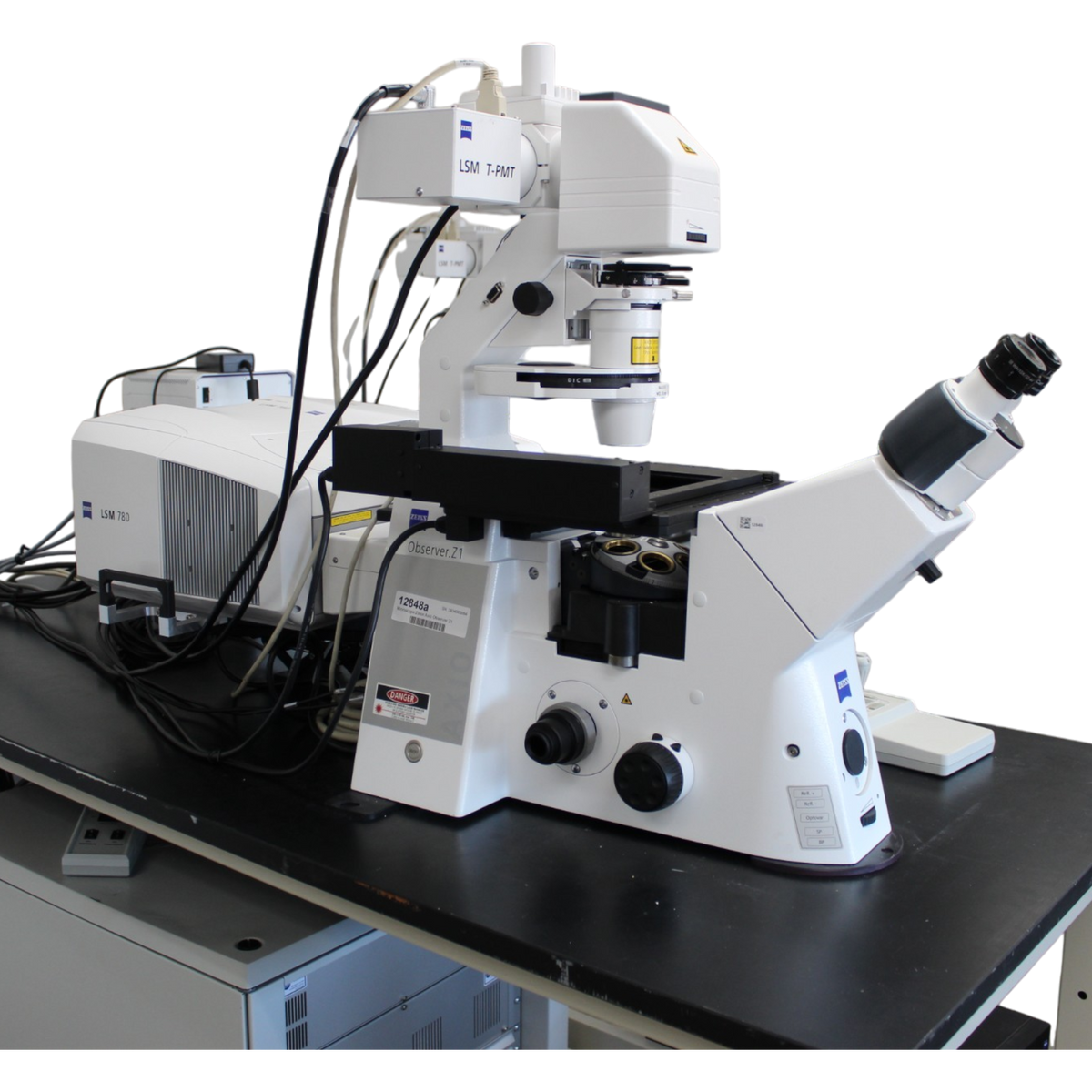

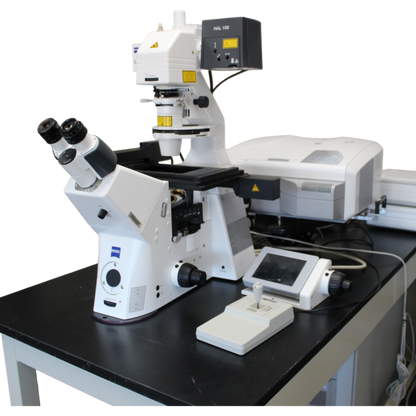

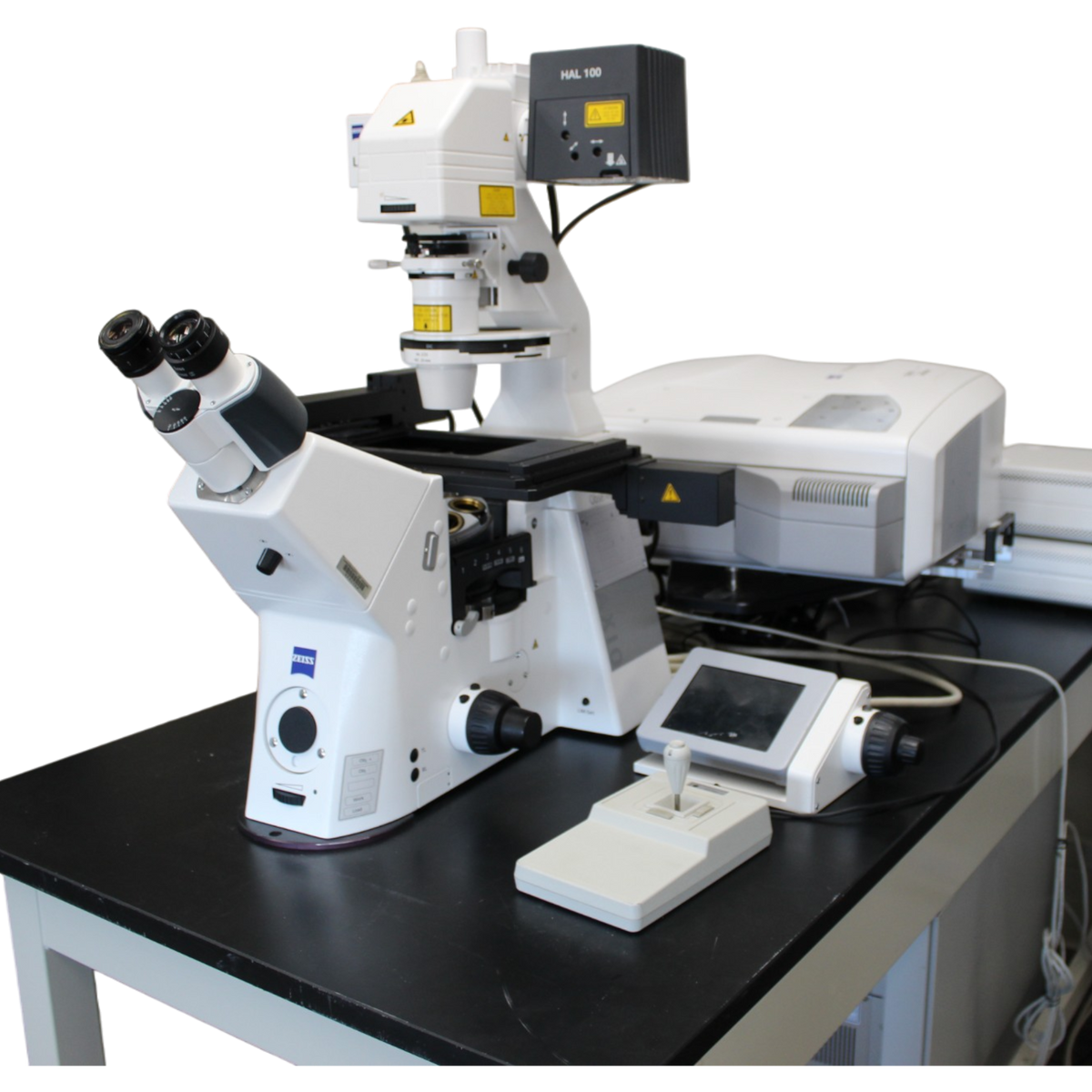

• Zeiss Axio Observer Z1 Motorized Inverted Microscope, with Interlocks

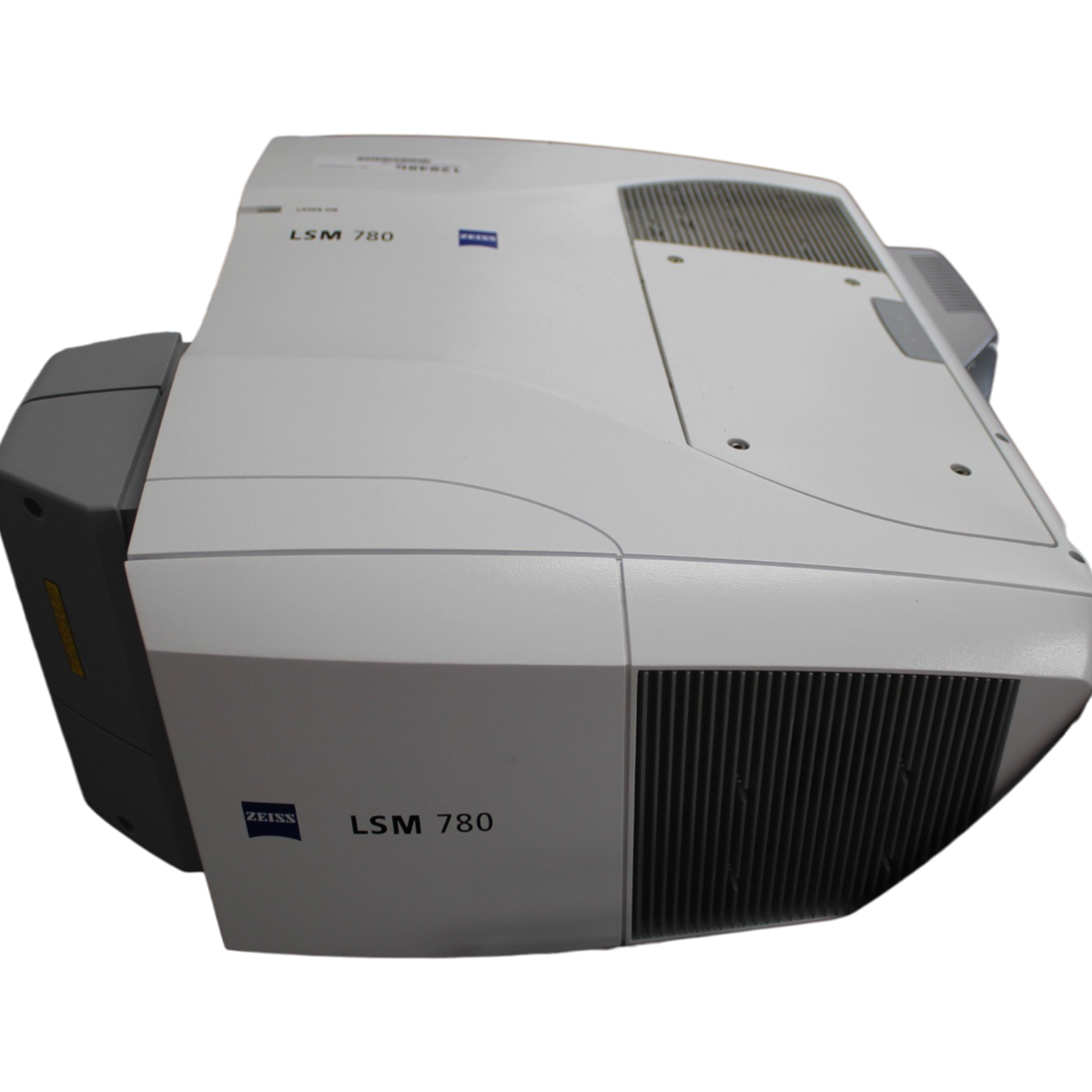

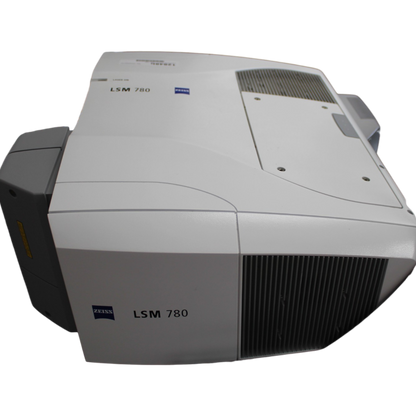

• Zeiss LSM 780 Confocal Scanning Unit

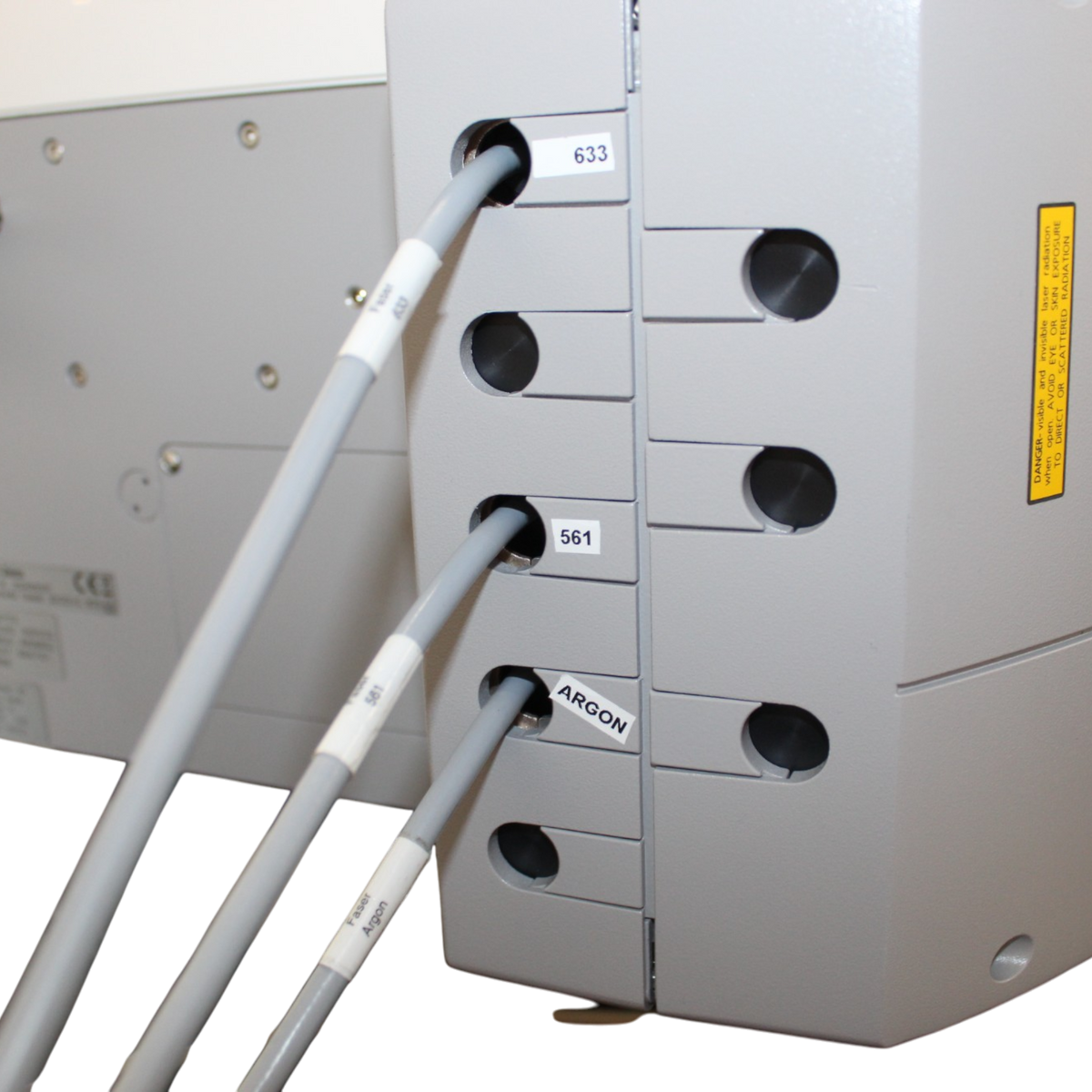

• Laser Launch and Power Supply Unit, with Laser Lines:
  • Argon Laser (458, 488, 514 nm), 25 mW or 35 mW
  • DPSS Laser (561 nm), 20 mW
  • HeNe Laser (633 nm), 5 mW
• Computer Workstation with Zeiss ZEN Black Software
• Nosepiece: 6-Position Motorized Coded Nosepiece
• (3) Filter Cubes of your choice (Additional Cubes Available for purchase)

Available Options

• Objectives (Please discuss your application or preferred configuration with our team. We have a full suite of options available.)
• Stage: Motorized and Manual options available
• Zeiss Definite Focus Autofocus System
• Environmental Incubation System
• Optical Table: New and Refurbished options available
• Installation and Service Contracts (Contact us for details)

Illuminator (Choose One):

• 100w Mercury w/ Power Supply
• Upgrade to: Used Metal Halide
• Upgrade to: New X-Cite 110LED System with Adapter. Includes: X-Cite 110LED, speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Upgrade to: New X-Cite mini+ System. Includes: LED head, miniCUBE controller, speedDIAL remote, Microscope Coupling Flange
• Upgrade to: New X-Cite XYLIS II, XT730S w/1.5m LLG. Includes: X-Cite XYLIS (XT720S), speedDIAL remote, 3mm x 1500mm Liquid Light Guide

Key Features

• High-sensitivity GaAsP detector for low-light fluorescence imaging
• 34-channel spectral detector for flexible emission detection and spectral unmixing
• Multi-line laser excitation: 458, 488, 514, 561, and 633 nm
• Motorized Axio Observer Z1 stand with motorized Z focus
• Optional Definite Focus for drift-free, long-term time-lapse imaging
• Live-cell imaging support with optional environmental incubation
• Fast, high-resolution scanning for detailed cellular and molecular imaging
• FRAP and ROI-guided photobleaching and photostimulation
• Multi-photon upgrade compatible for deep tissue imaging

Applications

• Live-cell fluorescence imaging
• Multi-channel fluorescence imaging
• Spectral imaging and unmixing
• Neuroscience and cell biology studies
• Time-lapse imaging
• Photobleaching and photostimulation experiments
• Colocalization studies
• 3D and Z-stack imaging

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
