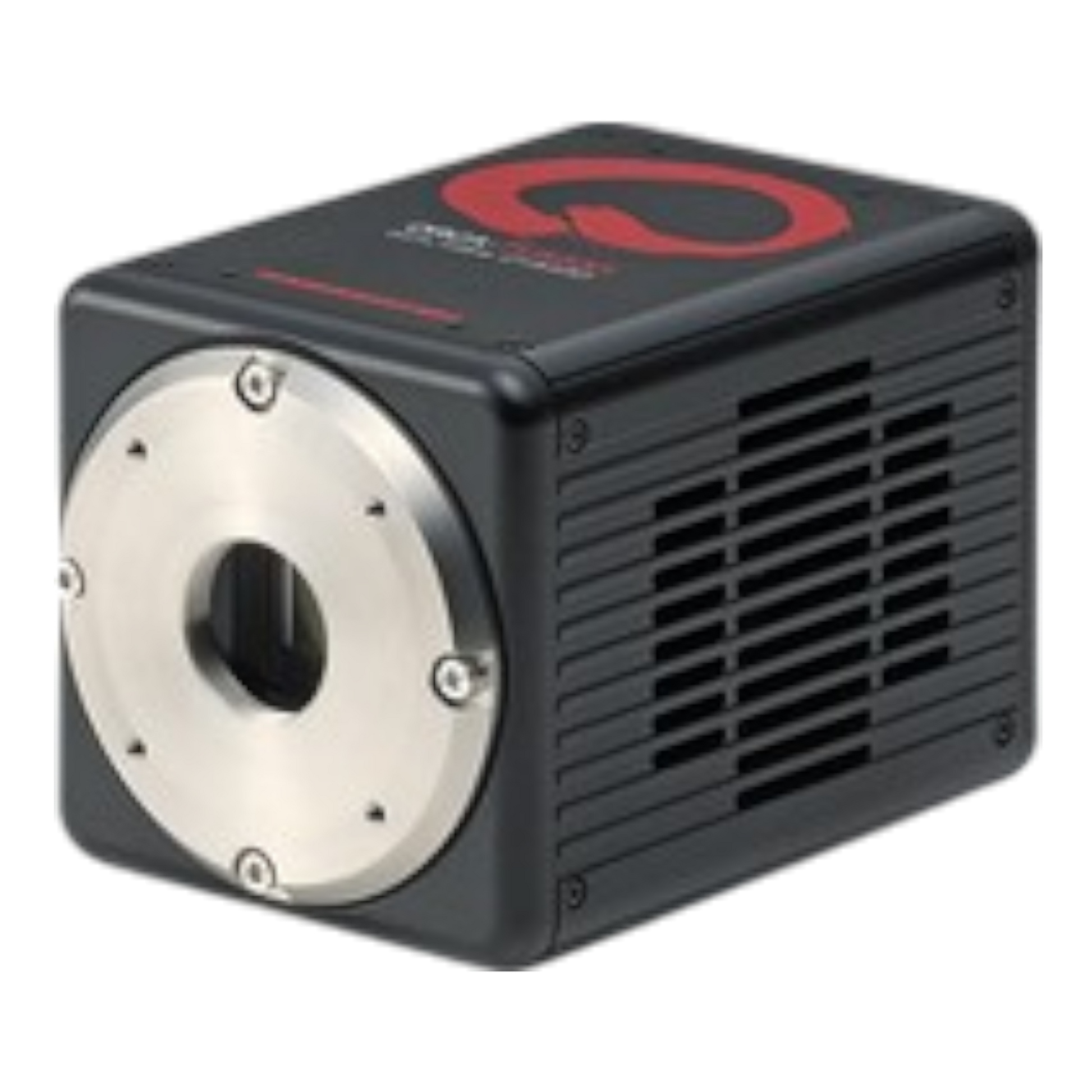

Hamamatsu ORCA-Fusion 5.3MP Monochrome sCMOS Microscope Camera

The ORCA-Fusion, built from the sensor up, balances the complex nuances of camera features to provide beautiful images and robust data at all lights levels, but especially in tough low-light conditions. The exceptionally low and highly uniform read noise of the ORCA-Fusion means that when the sample emits even just a handful of photons, either by default or by experimental design, they are not lost in the noise, but detected and reliably quantified. After all, when you want to hear a whisper it’s best to be in a quiet place.

Features:

• High resolution: 2304 x 2304 (5.3 Megapixels)
• High speed: 100 frames/s (at 2304 X 2048 ROI)
• Dynamic range: 21,400:1
• Pixel size: 6.5 μm X 6.5 μm
• Read noise: 0.7 electrons, rms (Ultra Quiet Scan)
• Prnu: 0.06 % rms (@ 7500 electrons)
• DSNU: 0.3 electrons rms
• Peak QE: 80 %
• Patented Tools for Advanced Imaging: Lightsheet Readout Mode

Specifications:

• Type number: C14440-20UP
• Imaging device: sCMOS
• Effective no. of pixels: 2304(H)×2304(V)
• Cell size: 6.5 μm×6.5 μm
• Effective area: 14.976 mm (H)×14.976 mm (V)
• Full well capacity: 15 000 electrons（typ.）
• Readout speed
• Fast scan: 89 frames/s with CoaXPress or 31.6 fps with USB3.0 (2304 x 2304)
• Fast scan: 100 frames/s with CoaXPress (2304 x 2048)
• Standard scan: 23.2 frames/s with CoaXPress or USB3.0 (2304 x 2304)
• Ultra quiet scan: 5.4 frames/s with CoaXPress or USB3.0 (2304 x 2304)
• Readout noise
• Fast scan：1.4 electrons rms
• Standard scan：1.0 electrons rms
• Ultra quiet scan：0.7 electrons rms
• Cooling method: Peltier cooling
• Cooling temperature:
• Forced air (Ambient at +25 ℃): -5 ℃
• Water (+25 ℃): -5 ℃
• Water (+15 ℃): -15 ℃
• Dark current
• 0.5 electrons/pixel/s（-5 ℃）（typ.）
• 0.5 electrons/pixel/s（-5 ℃）（typ.）
• 0.2 electrons/pixel/s（-15 ℃）（typ.）
• Dynamic range: 21 400 : 1（typ.）
• External trigger mode: Edge, Level, Sync readout, Start, Global reset edge, Global reset level, programmable
• External trigger signal routing: SMA x1
• Trigger delay function: Yes
• Trigger output: Global exposure timing, trigger ready, low, high
• External signal output routing: SMA x 3
• Interface: CoaXPress (6.25Gbpsx2 lane) and USB3.0 Super Speed
• A/D converter: 16 bit / 12 bit / 8 bit
• Lens mount: C-mount
