Leica Stellaris 5 Laser Scanner Confocal w/ DMI8 Inverted Phase Contrast Fluorescence with AFC Microscope.

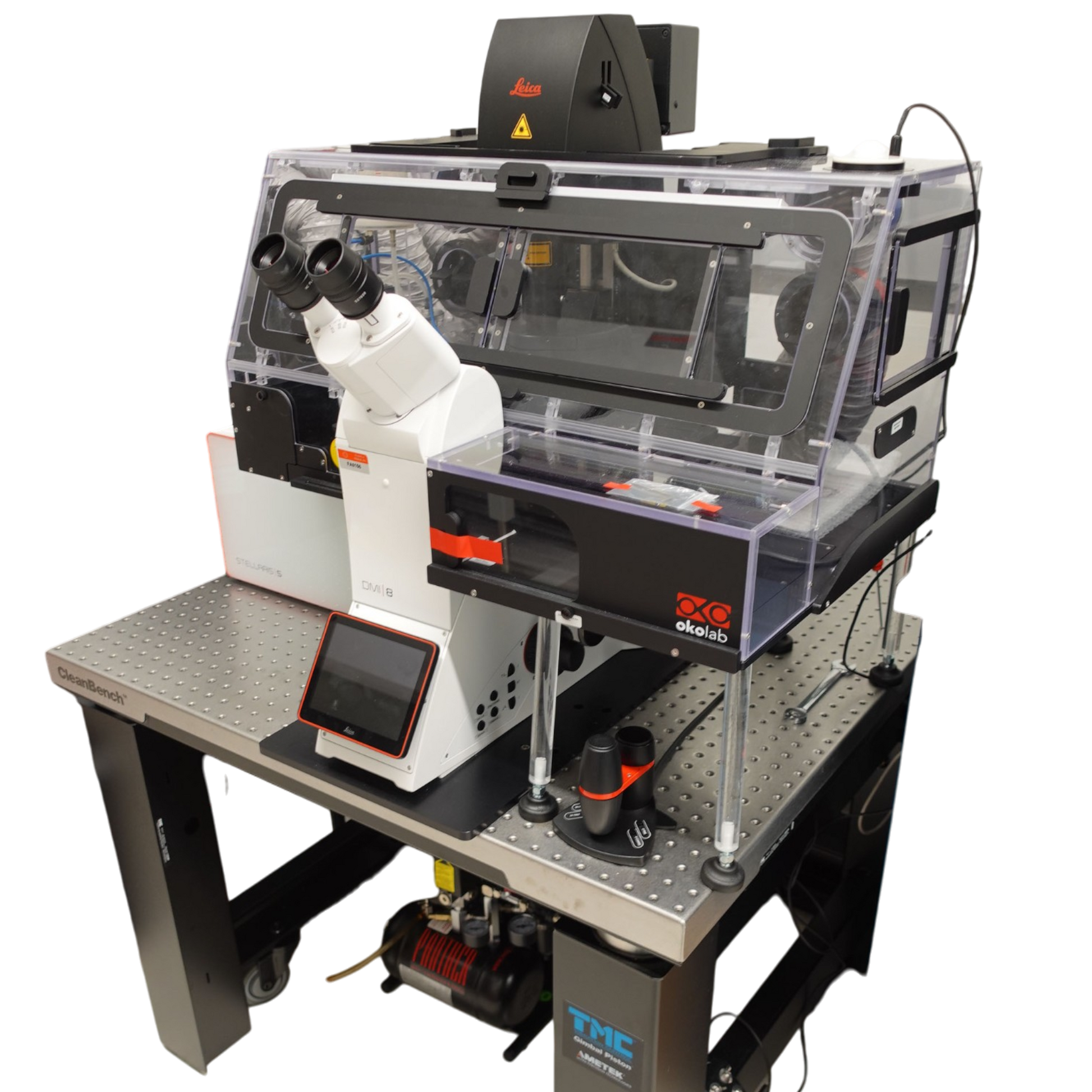

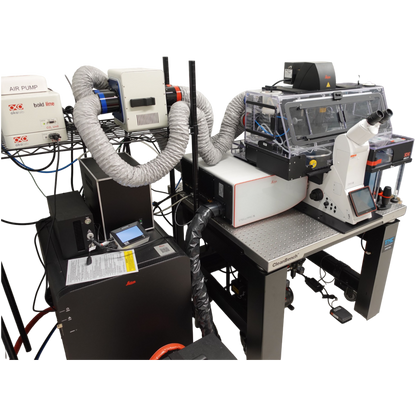

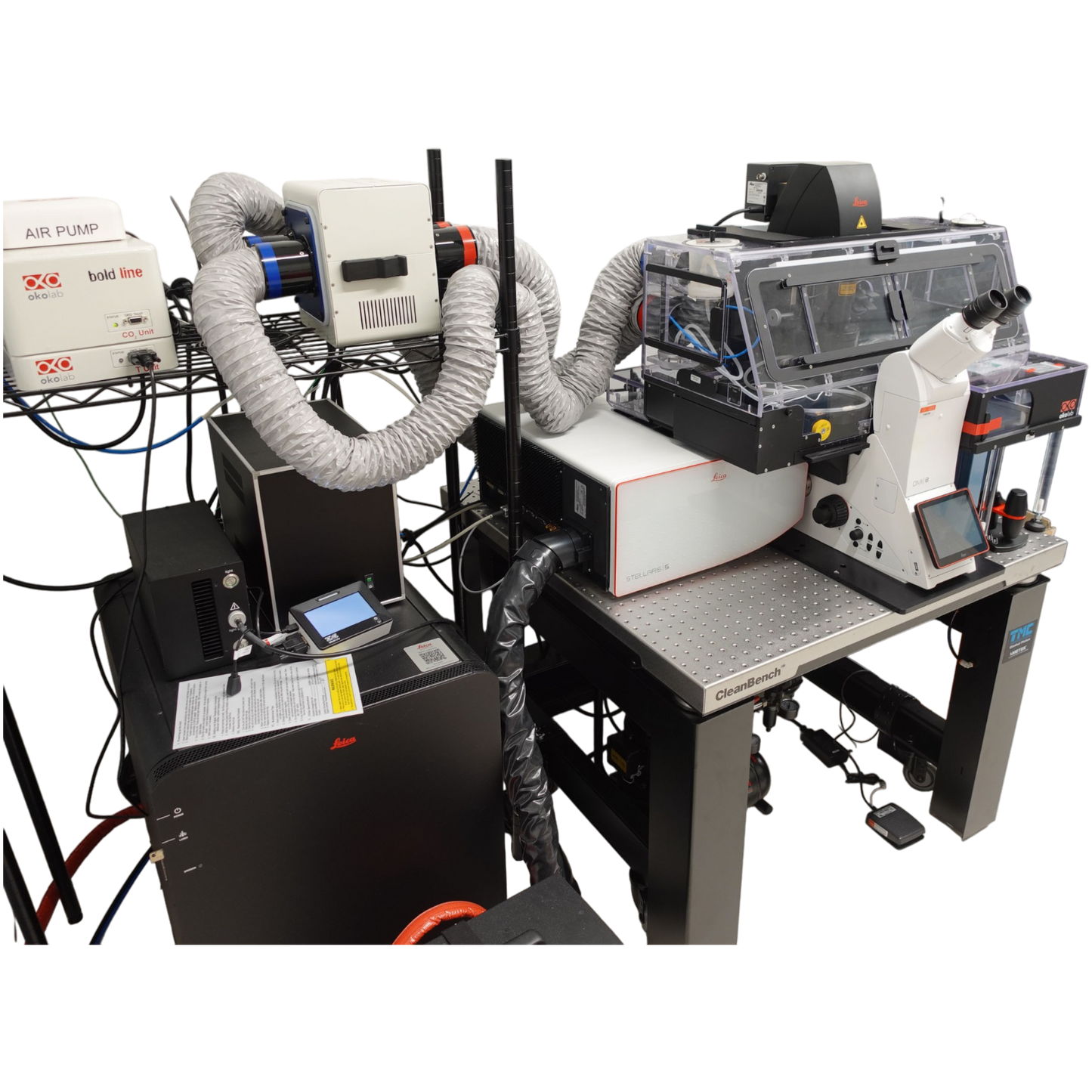

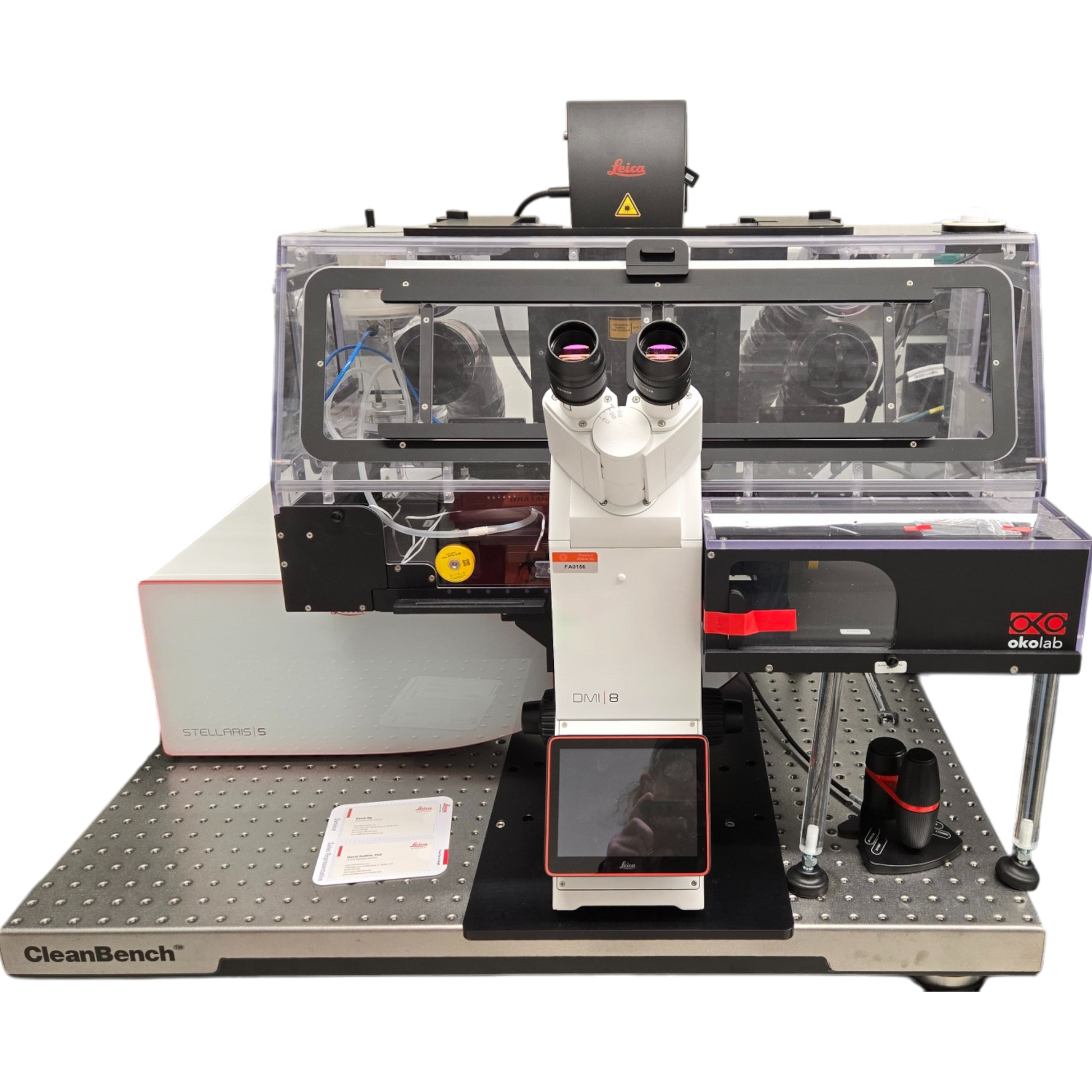

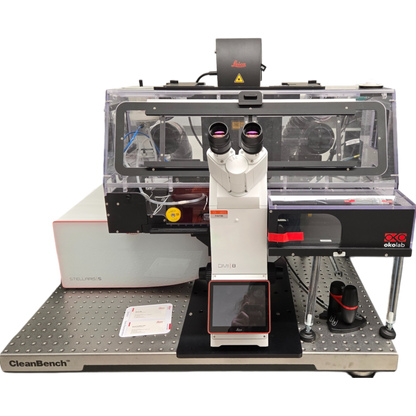

Leica Stellaris 5 Confocal with DMI8 Inverted Phase Contrast Fluorescence Trinocular with AFC (Used)

The Leica Stellaris 5 Confocal system, paired with the DMi8 Inverted Phase Contrast Fluorescence Microscope, delivers high-performance imaging for advanced research applications. Featuring high-sensitivity hybrid detectors, an AFC autofocus system, and a comprehensive set of laser lines, this system is optimized for live-cell imaging, fluorescence microscopy, and confocal applications.

Condition

Refurbished/Used

This system was recently decommissioned, professionally serviced, and received preventative maintenance from Leica. It is currently crated and ready for shipment. Installation by Leica will be required at the destination site, at which point the system will be eligible for a new Leica service contract.

Included Items

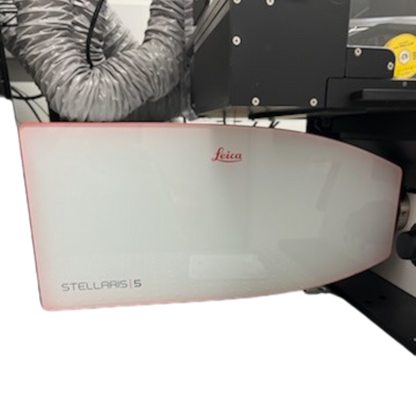

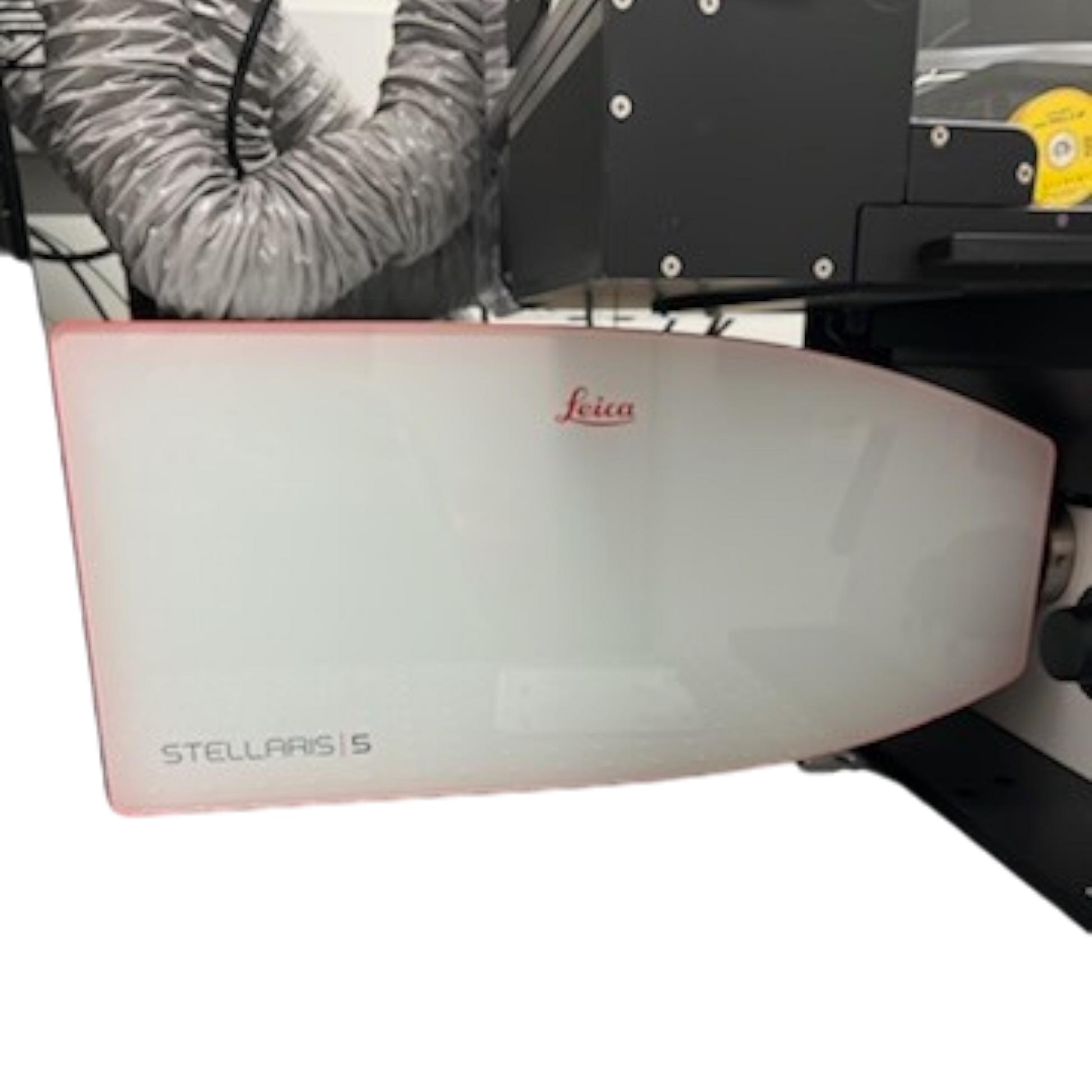

• Leica Stellaris 5 LIAchroic System (Part #: 158101101)
• FOV Scanner for Stellaris 5 (Part #: 158101130)
• RGB LIAchroic Dichroic Filters (Part #: 158209433)
• Fluorifier Disc Basis with Analyzer (Part #: 158204510)
• Notch Filter Set for Visible Spectrum (Part #: 158204511)
• Scan Optics HIVISR for DMi8 (Part #: 158101121)
• Power HyD S 2-Channel SP Core Unit (Part #: 158101312)
• SP Light Traps (3x) (Part #: 158201310)
• Stellaris 5 DMi8 Adapter (Part #: 158101140)
• Laser Lines:
  • 405nm (UV) (Part #: 158202140)
  • 488nm (Blue) (Part #: 158202112)
  • 561nm (Green) (Part #: 158202114)
  • 638nm (Red) (Part #: 158202115)

OKO Incubation System

• Okolab Transparent Box Incubator for DMi8 (Part #: 158206046)
• Okolab Sample Chamber (K-Frame) (Part #: 158206038)
• Okolab CO₂ and Humidity Control (Passive) (Part #: 158206039)

Computer & Software

• High-Brilliance Monitor (Part #: 158003150)
• Workstation Select for Imaging Processing (Part #: 158203111)
• LAS X Stellaris Control Software (Part #: 158203200)
• LAS X 3D Visualization (Part #: 158203202)
• LAS X Dye Finder (Part #: 158203206)
• LAS X Assay Editor (Part #: 158203211)

Key Features

• Confocal Imaging: High-resolution confocal microscopy with Leica’s STELLARIS 5 system for clear, detailed images.
• Advanced Autofocus System (AFC): Ensures sharp imaging over extended periods, crucial for live-cell studies.
• Hybrid Detector (HyD) Technology: Delivers superior sensitivity and low noise for high-contrast fluorescence imaging.
• Broad Laser Spectrum: Includes 405nm, 488nm, 561nm, and 638nm for multi-channel fluorescence applications.
• Fluorescence & Phase Contrast: Combines confocal fluorescence with phase contrast for enhanced cellular visualization.
• Inverted Microscope Design: Ideal for live-cell imaging and long-term time-lapse studies.
• Fully Integrated Workstation: Comes with LAS X Stellaris Software for data analysis, 3D visualization, and dye detection.
• Motorized Scanning Stage: Offers precision movement for tile scanning and multi-position imaging.
• Actively Damped Optical Table: Reduces vibrations for ultra-stable imaging.

Applications

• Live-cell imaging & time-lapse studies
• Multi-channel fluorescence imaging
• Super-resolution microscopy
• 3D visualization & volumetric imaging
• Colocalization & FRET analysis
• Z-stack imaging & deconvolution
• High-content screening
• Fluorescence lifetime imaging (FLIM)
• Drug discovery & cell signaling research

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
