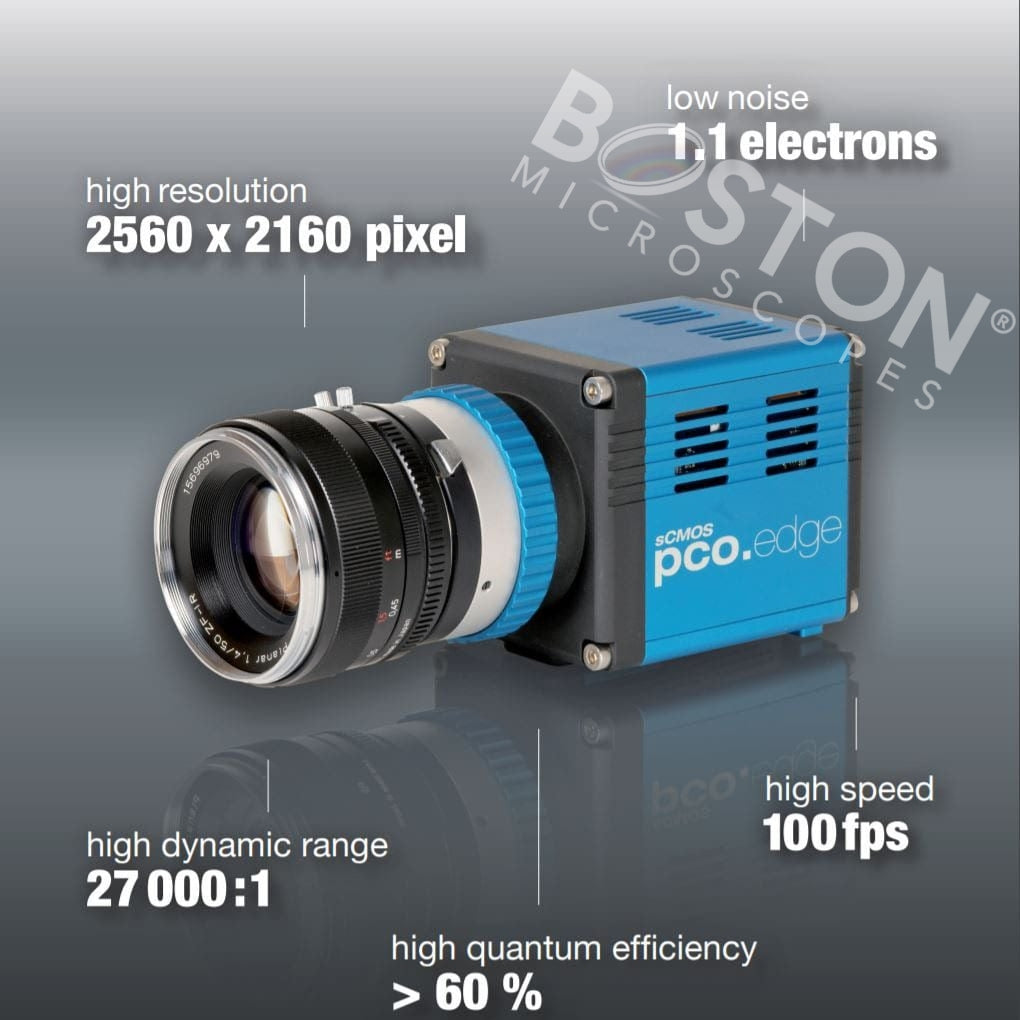

PCO Tech pco.edge 5.5 M-USB-PCO Microscope Camera

2560x2160 pixel, mono, air & water cooled, USB3 / Camera head, power supply, USB 3 PCIe board, C & F mount lens adapters, and 3m USB cable

The pco.edge 5.5 is equipped with an innovative scientific CMOS sensor providing crisp images and precise measurements. It can be optionally upgraded with a water cooling system.

The pco.edge 5.5 camera system is designed for users who require high resolution, high frame rates, best 16 bit dynamic range, selectable shutter variants and optionally a color sensor.

Camera Link HS guarantees uncompressed and secure data transfer. The latest standard of high-performance data interfaces enables the bridging of long distances via fiber optic cable.

Key Features:

• Thermal stabilization at 0°C / +5 °C / +7 °C
• extreme low readout noise of 1.0 e- med
• high resolution of 2560 x 2160 pixel
• dynamic range of 30 000 : 1 (CLHS, USB) / 27 000 : 1 (CL)
• quantum efficiency up to 60%
• exposure times from 500 µs to 2s (RS)
• maximum frame rate 100 fps
• rolling shutter or global shutter / global reset functionality
• lightsheet mode
• Camera Link HS, Camera Link full or USB 3.0 interface
• monochrome or color sensor
• small form factor: 102 x 79 x 70 mm
• optional: water cooling system

Specifications:

• Resolution (hor x ver) pixel: 2560 x 2160
• Pixel Size (hor x ver) µm: 6.5 x 6.5
• Peak Quantum Efficiency % @ 590: nm typ. > 60
• Dynamic Range A/D bit: 16
• Readout Noise e- med:
• USB: 1.0
• CL: 1.1
• Frame Rate fps:
• @ full frame (USB): 30
• @ full frame (CL): 100
• Exposure Time Range s:
• @ Rolling Shutter (CL): 500 µs – 2 s
• @ Global Shutter (CL): 10 µs – 100 ms
• @ Global Reset (CL): 10 µs – 2 s
• @ Rolling Shutter (USB): 30 µs – 2 s
• @ Global Shutter (USB): 20 µs – 100 ms
• @ Global Reset (USB): 30 µs – 2 s
• Region of Interest (ROI): selectable
• Optical Input: Nikon F-mount,C-mount
• Data Interface: Camera Link HS, Camera Link (full, 10tap), or USB 3.0
