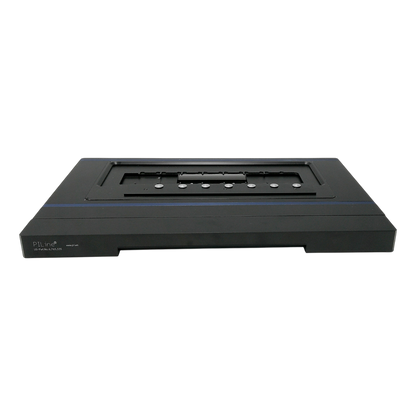

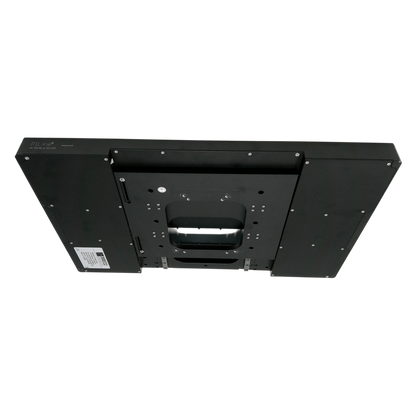

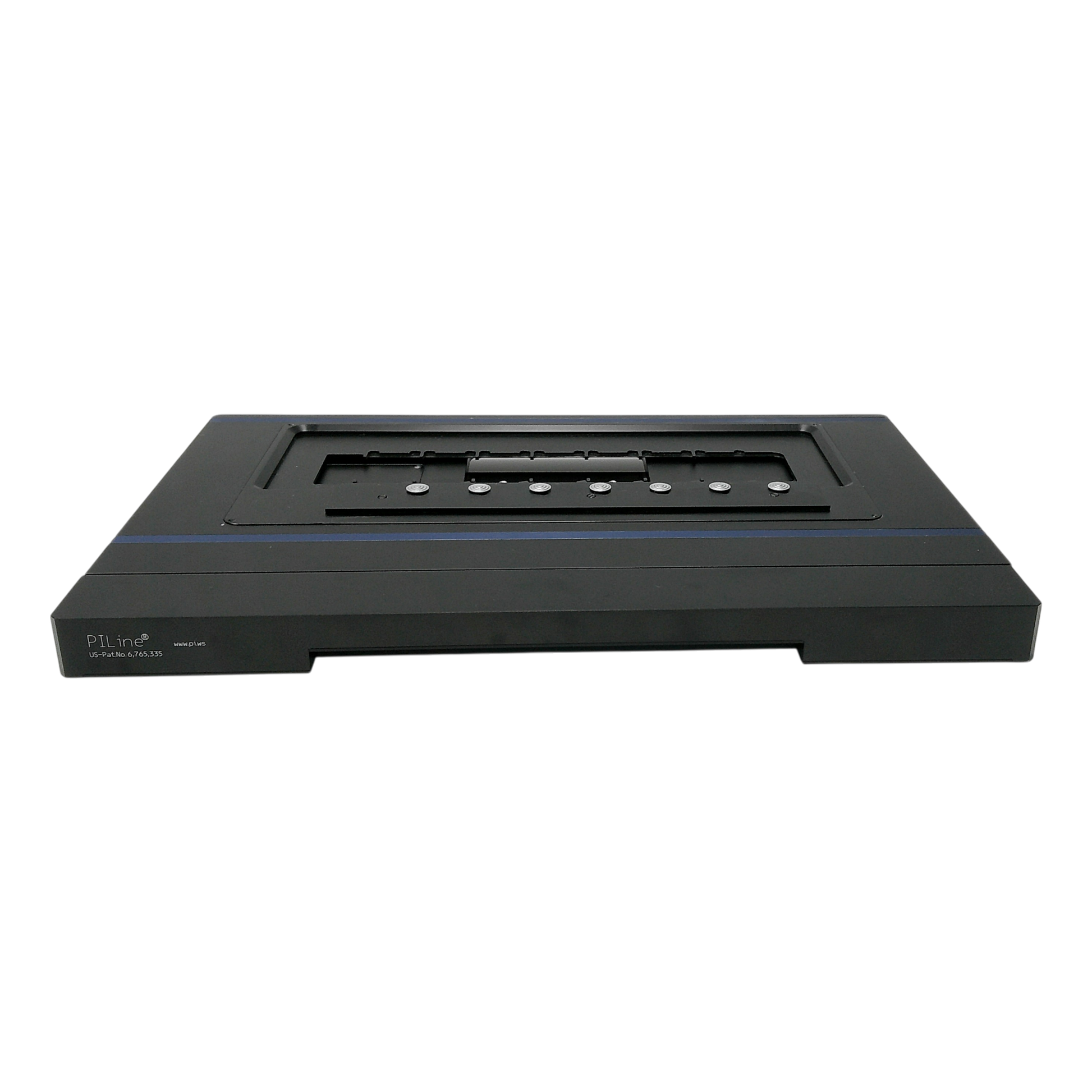

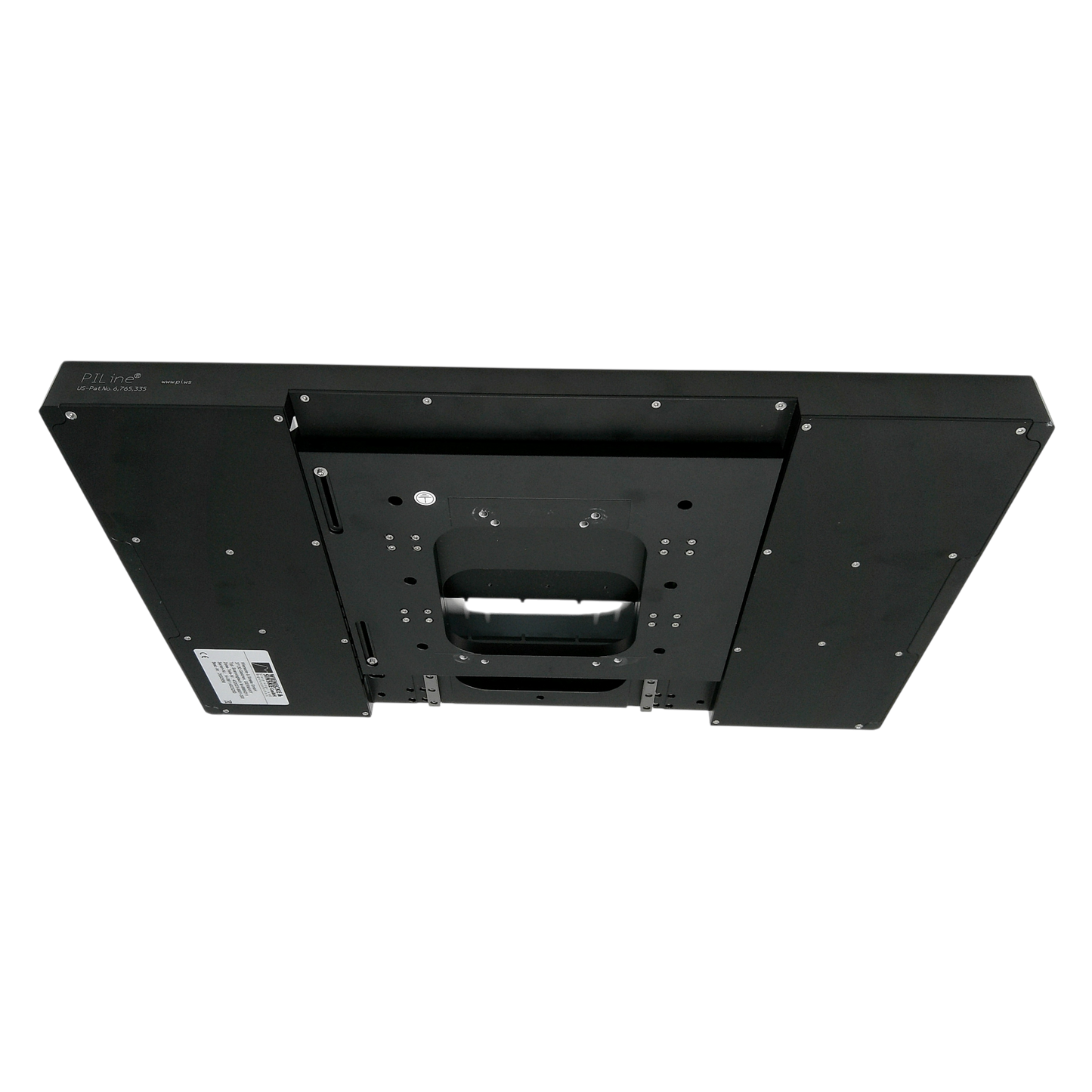

Physik Instrumente Scanning Stage 130 × 85 mm (PIEZO-Driven) M-686K011 Microscope Stage

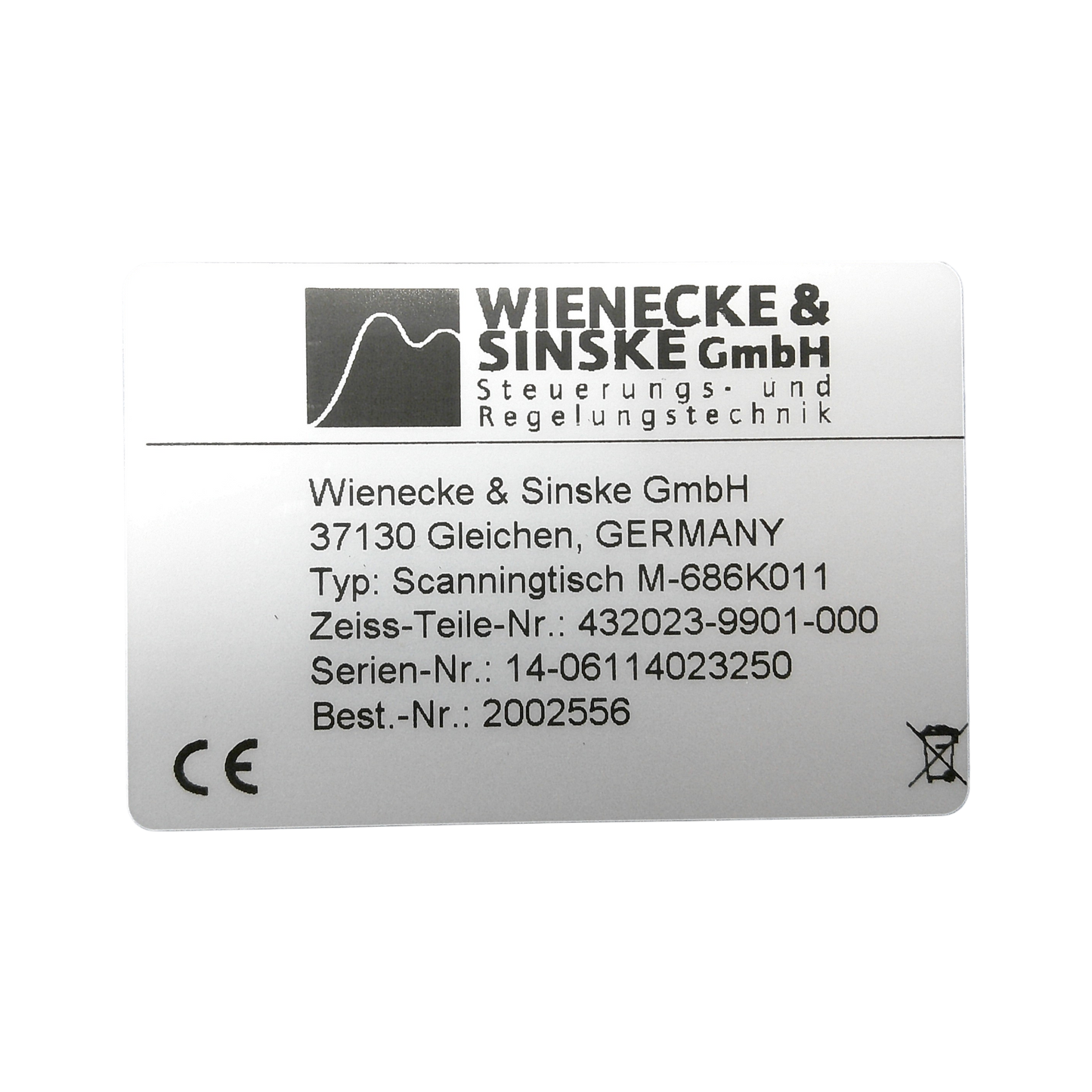

Physik Instrumente M-686K011 Scanning Stage (Piezo-Driven) | 432023-9901-000

The Physik Instrumente (PI) M-686K011 is a high-precision, piezo-driven scanning stage designed for demanding microscopy and imaging applications requiring nanometer-level accuracy. With a travel range of 130 × 85 mm, this motorized XY stage offers fast, smooth, and repeatable positioning across large sample areas. Engineered for integration with inverted or upright microscope systems, the M-686K011 is ideal for high-resolution tile scanning, automated screening, and super-resolution microscopy workflows.

Condition

Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)

Key Features

• Large travel range: 130 × 85 mm XY motion
• Piezo-driven for sub-micron to nanometer positioning accuracy
• High-speed scanning with low mechanical backlash
• Designed for integration with precision microscopy platforms
• Closed-loop control for precise repeatability and stability
• Compatible with PI stage controllers and automation software

Applications

• High-resolution tile and mosaic imaging
• Live-cell and time-lapse microscopy
• Automated screening and high-content imaging
• Super-resolution microscopy (SIM, STED, PALM/STORM)
• Micro-manipulation and nanolithography

Specifications
