Zeiss LSM 510 Laser Scanning Confocal w/ Axio Observer Z1 Inverted Phase Contrast Fluorescence Motorized w/ Optional Definite Focus (1, 2, or 3) Confocal

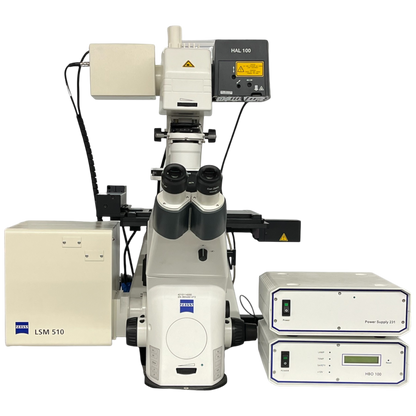

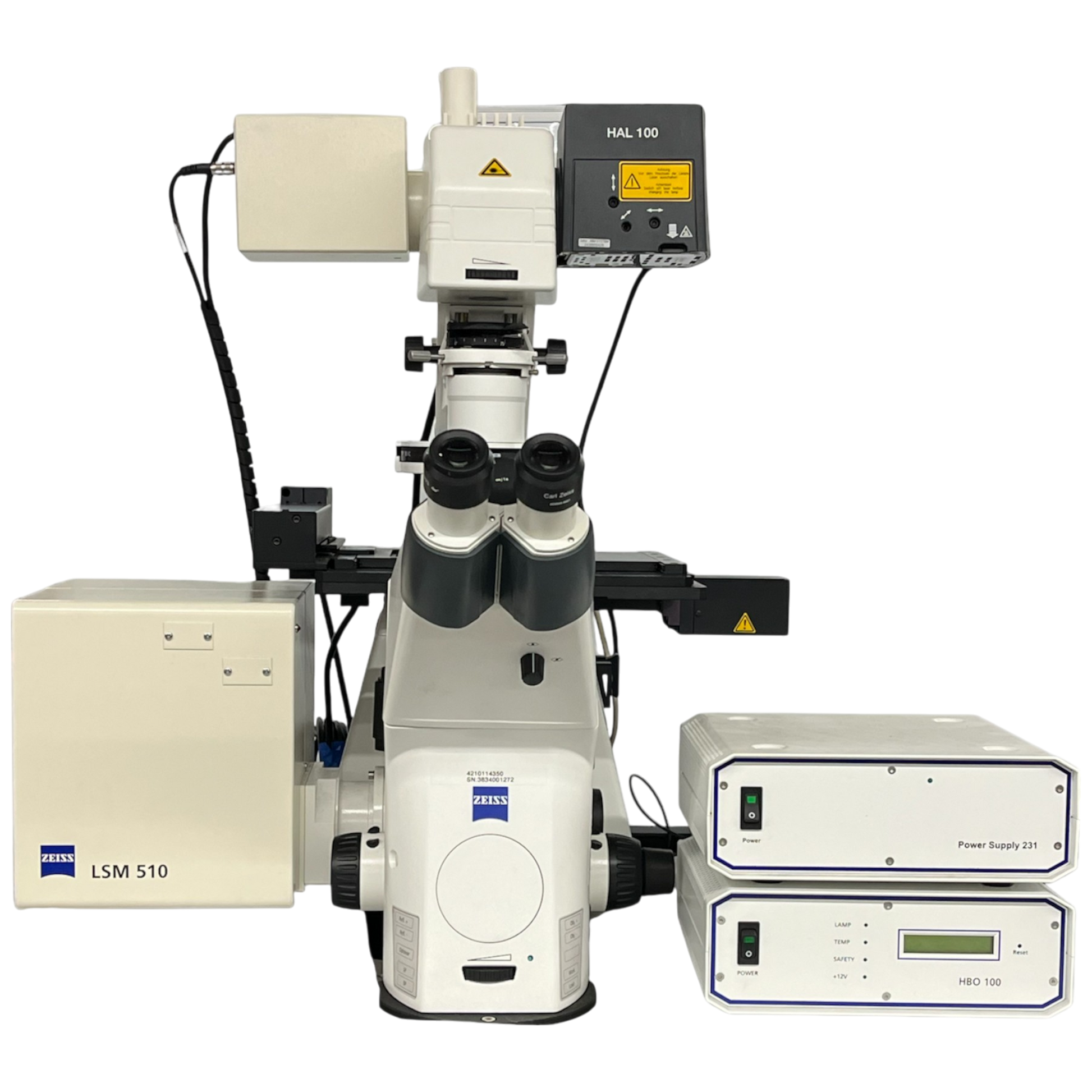

Zeiss LSM 510 Laser Scanning Confocal Microscope with Axio Observer Z1 & Definite Focus (Refurbished)

The Zeiss LSM 510 laser scanning confocal microscope, now offered with the Axio Observer Z1 inverted research platform and Definite Focus technology, provides advanced fluorescence imaging capabilities for 3D optical sectioning, live-cell imaging, and time-lapse microscopy. This system features multi-laser excitation, high-sensitivity PMT detectors, and automated Z-stacking, enabling high-resolution, reproducible confocal imaging across a wide range of biological applications.

The Axio Observer Z1 base offers fully motorized control, exceptional optical stability, and modular expandability, while Definite Focus maintains precise focal alignment over long imaging sessions — making this system ideal for live-cell and 4D imaging workflows.

Condition

Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications.)

Included Items

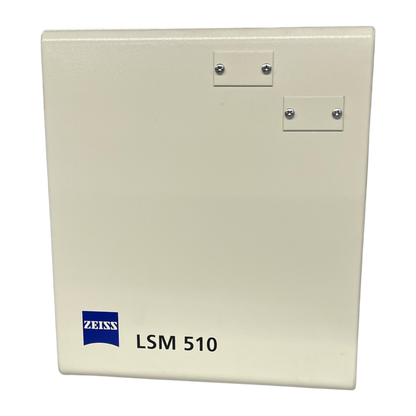

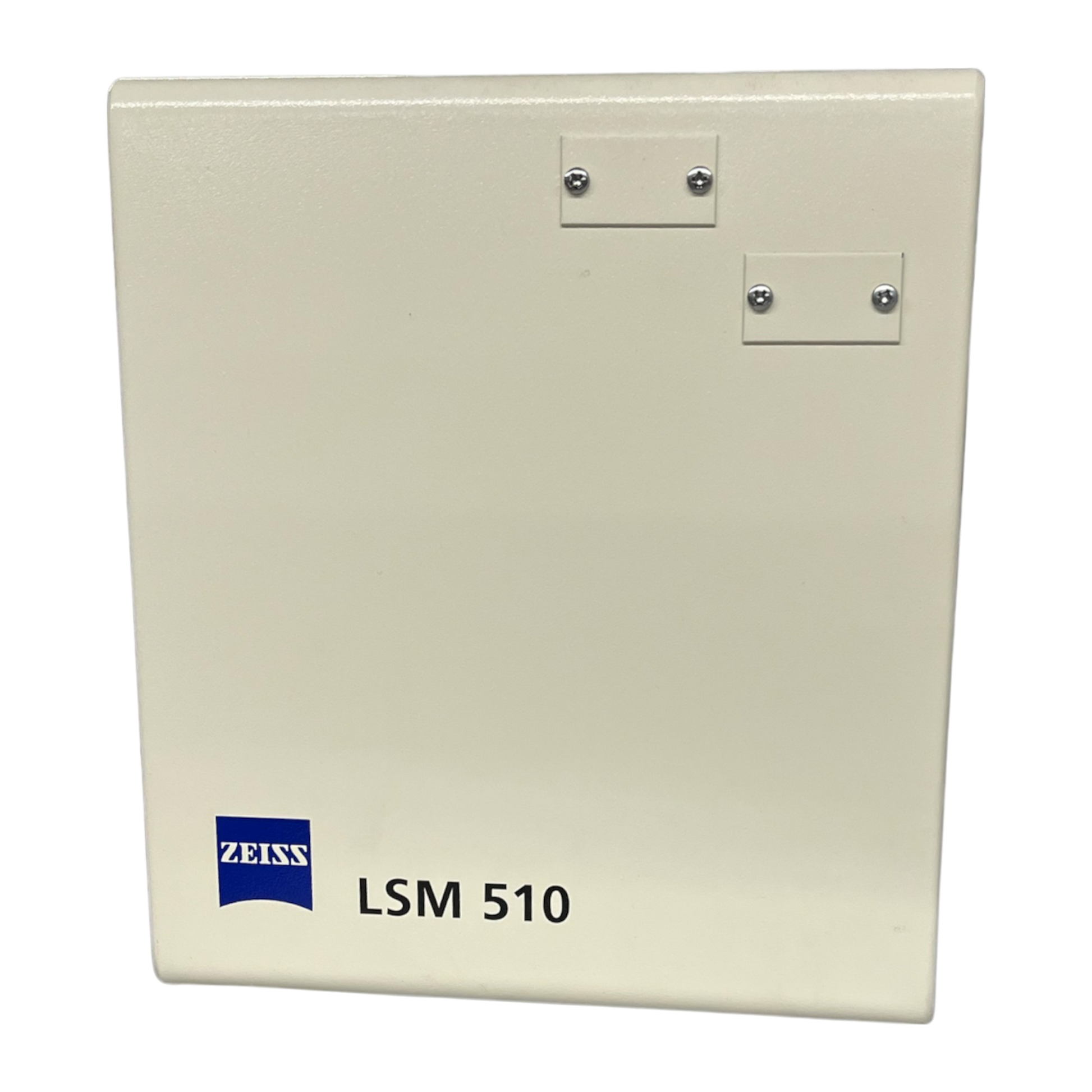

• Zeiss LSM 510 Confocal Scanning Module
• Zeiss Axio Observer Z1 Microscope Base (Model: 431007-9902-000)
• Optional Definite Focus System – Maintains image stability during long-term time-lapse imaging
• Multi-Wavelength Laser Module – Enables multi-channel fluorescence imaging
• High-Sensitivity PMT Detectors – Optimized for low-light conditions
• Motorized Filter Cube Turret – Accommodates multiple filter sets
• Motorized Optical Path Selection and Z-Control
• USB & External Trigger Connectivity
• Compatible Software Suite – Zeiss Zen Imaging & third-party analysis software

Key Features

• High-Resolution Confocal Imaging with 3D optical sectioning
• Definite Focus – Real-time compensation for focal drift during extended imaging
• Multi-Laser Excitation – Supports broad fluorescence applications
• Motorized or Manual Stage Options – For precise sample positioning
• Advanced Fluorescence Detection – Configurable filter cube turret
• Automated Z-Stacking & Time-Lapse – Ideal for live-cell & developmental studies
• Multiple Detector Options – Compatible with PMT and GaAsP detectors
• LED, Mercury, or Halogen Illumination Options
• Modular System Design – Expandable for multi-user labs or evolving research needs

Applications

• Live Cell Imaging & Long-Term Time-Lapse
• High-Resolution 3D Optical Sectioning
• Multi-Color Fluorescence Imaging
• Super-Resolution & Single-Molecule Detection
• Neuroscience, Developmental Biology, Oncology Research
• Drug Discovery & Pharmaceutical Screening
• Virology & Microbiology

Technical Specifications

Standard Microscope Configuration

• Illuminator (Choose One):
  • 100w Mercury w/ Power Supply
  • Upgrade to: Used Metal Halide
  • Upgrade to: New X-Cite 110LED System with Adapter
    – X-Cite 110LED, speedDIAL remote, 3mm x 1500mm Liquid Light Guide
  • Upgrade to: New X-Cite mini+ System
    – LED head, miniCUBE controller, speedDIAL remote, Microscope Coupling Flange
  • Upgrade to: New X-Cite XYLIS II, XT730S
    – XYLIS XT730S, speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Objectives: Please discuss your application or preferred configuration with our team. We have a full suite of options available.
• Stage: Motorized and Manual options available.
• Nosepiece: Motorized or manual; specify type and number of objective positions
• Filter Cubes: (3) Filter Cubes of your choice included (Additional Available)

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
