SKU: PRODUCT ID:89N-25043

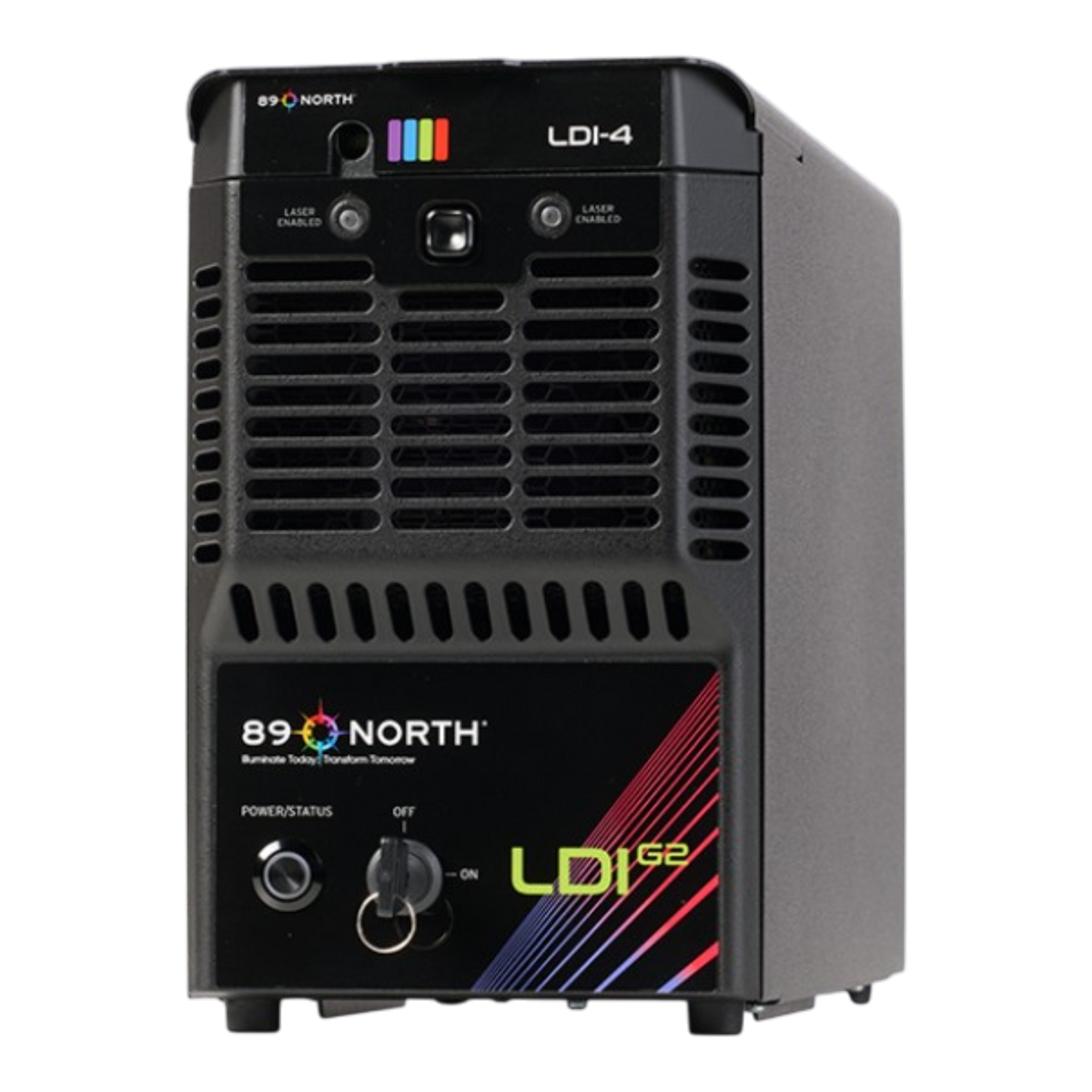

89 North Gen2 LDI-4 Laser Diode Illuminator 405/470/555/640 Microscope Illuminator
89 North Gen2 LDI-4 Laser Diode Illuminator 405/470/555/640 Microscope Illuminator
Couldn't load pickup availability
- ✓ New, with the full manufacturer warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
89 North Gen2 LDI-4 Laser Diode Illuminator 405/470/555/640 nm | 25043
The 89 North Gen2 LDI-4 (LDI-G2) is a 4-line laser diode illuminator (405 nm, 470 nm, 555 nm, 640 nm) for widefield, spinning disk and super-resolution fluorescence microscopy. The second-generation LDI delivers all lines through a single 400 µm fiber output for higher power density, with an upgraded active feedback system for 99.8% illumination stability.
Condition
New with Manufacturer Warranty (2 years)
Included Items
- Laser diode illuminator
- External power supply and power cord
- USB cable
- LDI control software
Output fiber is not included; see Optional Accessories below.
Key Features
- Laser lines and power at the fiber: 405 nm (300 mW), 470 nm (1000 mW), 555 nm (700 mW), 640 nm (500 mW)
- Single 400 µm fiber output: concentrates optical power into a smaller area for higher power density and uniform illumination
- 99.8% illumination stability: upgraded active feedback, continuous wave stability under 0.2% (QUAREP-LiMi method)
- Fine intensity control: laser power adjustable in 0.1% increments
- Fast switching: rise time under 5 µs and on/off frequency above 1 kHz on diode lines (555 and 577 nm: under 2 ms, 100 Hz)
- Control: TTL (>2.3 V), analog (0 to 5 V) and USB-DSP (virtual COM port, SDK available on request)
- Safety: interlocked housing, safety interlock and key interlock; IEC 60825 compliant
Applications
- Widefield multicolor fluorescence imaging
- Spinning disk confocal microscopy
- Live-cell and time-lapse imaging
- FRAP, photoactivation and photoconversion
- TIRF, structured illumination and PALM/STORM
- Optogenetics and calcium imaging
Optional Accessories (Not Included in Price)
- Output fiber: 400 µm, 0.39 NA SMA905 fiber (1 m or 2 m) and bifurcated, trifurcated or quadfurcated fiber bundles
- LLG Adapter Assembly (03-3619) for liquid light guide output
- LDI Breakout Box for external analog intensity and TTL shutter control
- Fiber bend control box for metal-clad fibers
- Microscope coupling optics and integration with your stand
- Installation and training (quoted separately)
Specifications
| Manufacturer | 89 North (Oxxius) |
| Model | Gen2 LDI-4 |
| Part number | 25043 |
| Source type | Laser diodes |
| Laser lines | 405 nm, 470 nm, 555 nm, 640 nm |
| Power at fiber (mW) | 405: 300, 470: 1000, 555: 700, 640: 500 |
| Output | Single optical fiber; recommended 400 um, 0.39 NA |
| Stability | Continuous wave stability under 0.2% |
| Intensity control | 0.1% increments |
| Control | TTL (>2.3 V), analog (0 to 5 V), USB-DSP |
| Safety | Interlocked housing, safety interlock, key interlock, IEC 60825 |
| Dimensions | 318 x 234 x 146 mm (12.5 x 9.2 x 5.75 in) |
| Weight | approx. 9 lb |
| Operating temperature | 15 to 30 C |
| Voltage | 90 to 220 V AC, 50 to 60 Hz |
| Laser class | Class 4 |
| Warranty | 2 years (manufacturer) |
Additional discounts may apply. Contact us for a quote.
Additional Details
Additional Details
- Manufacturer: 89 North
- Model:
- Catalog Number: 89N-25043
- Serial Number:
- Condition: New
