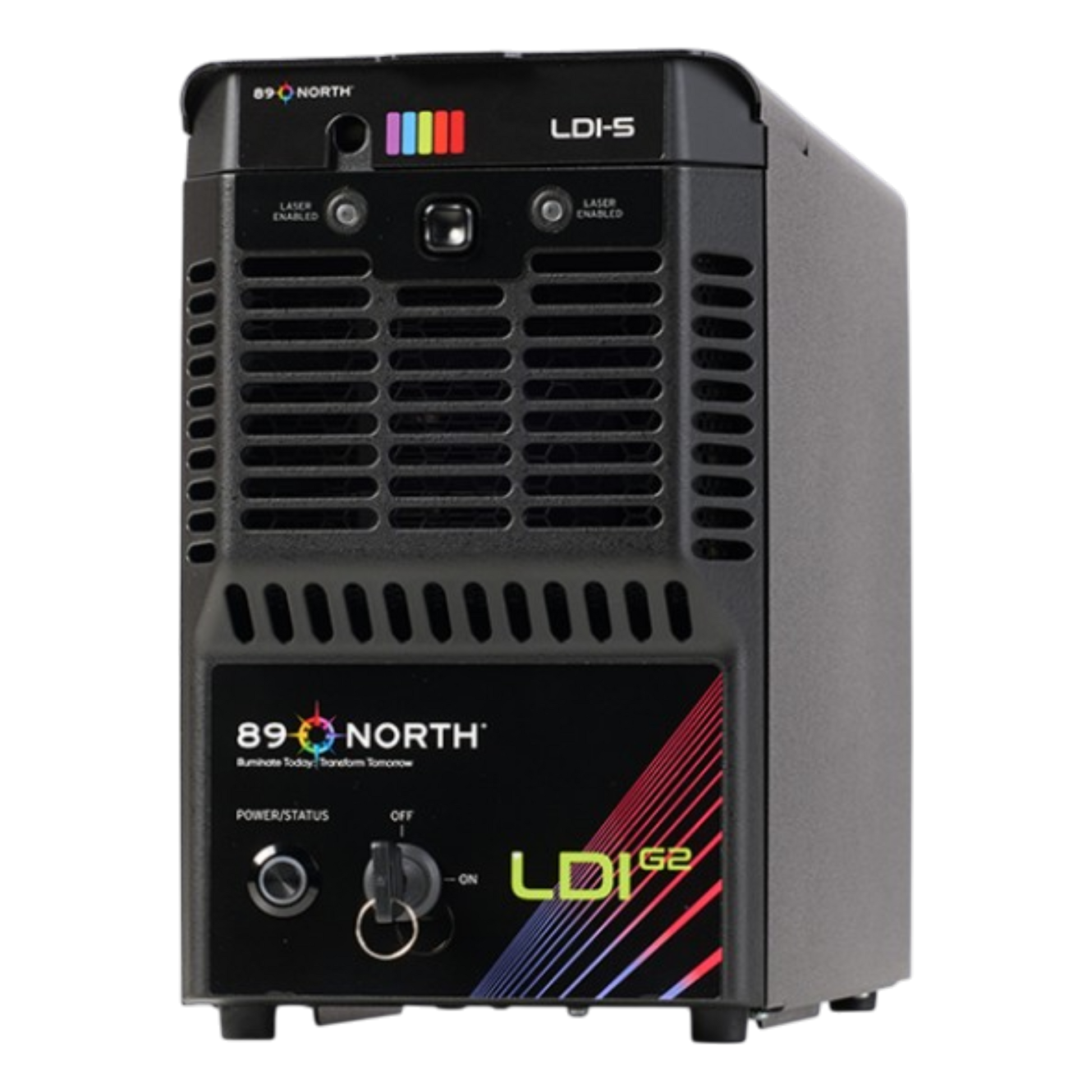

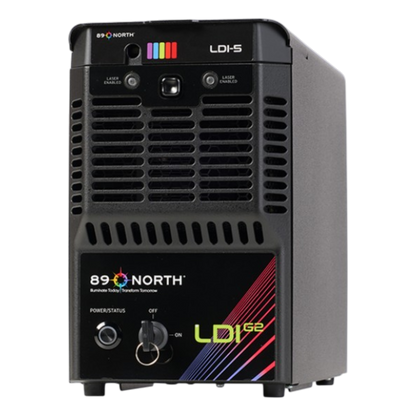

89 North Gen2 LDI-5 Laser Diode Illuminator 405/470/555/640/730 Microscope Illuminator

89 North Gen2 LDI-5 Laser Diode Illuminator 405/470/555/640/730 Microscope Illuminator

Regular price $35,500.00 USD
Regular price Sale price $35,500.00 USD
Sale Sold out
Shipping calculated at checkout.
  • ✓ New, with the full manufacturer warranty
  • ✓ Typical delivery in 1 to 3 weeks, depending on parts
  • ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
  • ✓ Installation, training and service available from our engineers (quoted separately)
  • ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
  • ✓ Leasing and finance companies available

Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

89 North Gen2 LDI-5 Laser Diode Illuminator 405/470/555/640/730 nm | 25053

The 89 North Gen2 LDI-5 (LDI-G2) is a 5-line laser diode illuminator (405 nm, 470 nm, 555 nm, 640 nm, 730 nm) for widefield, spinning disk and super-resolution fluorescence microscopy. The second-generation LDI delivers all lines through a single 400 µm fiber output for higher power density, with an upgraded active feedback system for 99.8% illumination stability.

Condition

New with Manufacturer Warranty (2 years)

Included Items

  • Laser diode illuminator
  • External power supply and power cord
  • USB cable
  • LDI control software

Output fiber is not included; see Optional Accessories below.

Key Features

  • Laser lines and power at the fiber: 405 nm (450 mW), 470 nm (1000 mW), 555 nm (700 mW), 640 nm (1000 mW), 730 nm (750 mW)
  • Single 400 µm fiber output: concentrates optical power into a smaller area for higher power density and uniform illumination
  • 99.8% illumination stability: upgraded active feedback, continuous wave stability under 0.2% (QUAREP-LiMi method)
  • Fine intensity control: laser power adjustable in 0.1% increments
  • Fast switching: rise time under 5 µs and on/off frequency above 1 kHz on diode lines (555 and 577 nm: under 2 ms, 100 Hz)
  • Control: TTL (>2.3 V), analog (0 to 5 V) and USB-DSP (virtual COM port, SDK available on request)
  • Safety: interlocked housing, safety interlock and key interlock; IEC 60825 compliant

Applications

  • Widefield multicolor fluorescence imaging
  • Spinning disk confocal microscopy
  • Live-cell and time-lapse imaging
  • FRAP, photoactivation and photoconversion
  • TIRF, structured illumination and PALM/STORM
  • Optogenetics and calcium imaging

Optional Accessories (Not Included in Price)

  • Output fiber: 400 µm, 0.39 NA SMA905 fiber (1 m or 2 m) and bifurcated, trifurcated or quadfurcated fiber bundles
  • LLG Adapter Assembly (03-3619) for liquid light guide output
  • LDI Breakout Box for external analog intensity and TTL shutter control
  • Fiber bend control box for metal-clad fibers
  • Microscope coupling optics and integration with your stand
  • Installation and training (quoted separately)

Specifications

Manufacturer 89 North (Oxxius)
Model Gen2 LDI-5
Part number 25053
Source type Laser diodes
Laser lines 405 nm, 470 nm, 555 nm, 640 nm, 730 nm
Power at fiber (mW) 405: 450, 470: 1000, 555: 700, 640: 1000, 730: 750
Output Single optical fiber; recommended 400 um, 0.39 NA
Stability Continuous wave stability under 0.2%
Intensity control 0.1% increments
Control TTL (>2.3 V), analog (0 to 5 V), USB-DSP
Safety Interlocked housing, safety interlock, key interlock, IEC 60825
Dimensions 318 x 234 x 146 mm (12.5 x 9.2 x 5.75 in)
Weight approx. 9 lb
Operating temperature 15 to 30 C
Voltage 90 to 220 V AC, 50 to 60 Hz
Laser class Class 4
Warranty 2 years (manufacturer)

Additional discounts may apply. Contact us for a quote.

Additional Details

  • Manufacturer: 89 North
  • Model:
  • Catalog Number: 89N-25053
  • Serial Number:
  • Condition: New
