PRODUCT ID:89N-25000-07

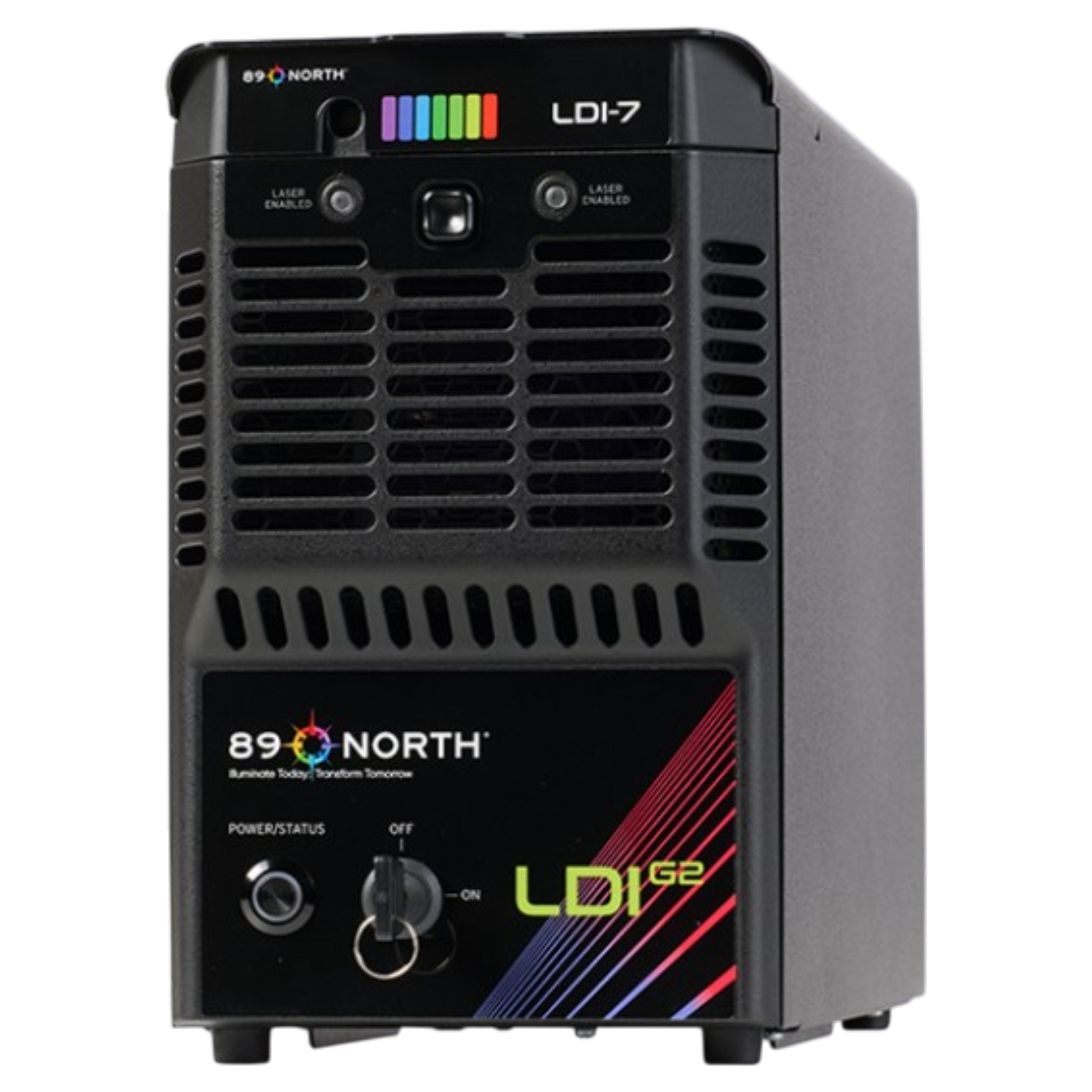

89 North Gen2 LDI-7 Laser Diode Illuminator - 405/445/470/520/530/555/640 Microscope Illuminator

89 North Gen2 LDI-7 Laser Diode Illuminator - 405/445/470/520/530/555/640 Microscope Illuminator

$29,054.00 USD
$29,054.00 USD
Sale Sold out
Shipping calculated at checkout.

89 North Gen2 LDI‑7 Laser Diode Illuminator – 405/445/470/520/530/555/640 | Catalog #25000‑07

The 89 North Gen2 LDI‑7 Laser Diode Illuminator is a sophisticated seven‑line laser engine offering wavelengths at 405 nm, 445 nm, 470 nm, 520 nm, 530 nm, 555 nm, and 640 nm for broad multi‐color fluorescence microscopy applications. With high power output, exceptional stability, and fast modulation, it is designed for demanding imaging workflows including spinning disk confocal, structured illumination, FRAP, and super‐resolution techniques. :contentReference[oaicite:1]{index=1}

Condition

New with Manufacturer Warranty

Included Items

  • Gen2 LDI‑7 Laser Diode Illuminator (405/445/470/520/530/555/640 nm configuration)
  • Integrated power supply and control interface
  • Laser safety interlock and key switch
  • Output fiber and collimator (microscope coupling hardware)
  • Mounting bracket and hardware
  • User manual and full documentation

Key Features

  • Seven‑Line Configuration: 405, 445, 470, 520, 530, 555, and 640 nm covering a wide span of fluorescence probes. :contentReference[oaicite:2]{index=2}
  • High Output Power: Up to ~1000 mW per laser line in many configurations for intense, uniform excitation. :contentReference[oaicite:3]{index=3}
  • Outstanding Stability: Closed‐loop feedback yields <2 % variation in continuous‐wave operation for quantitative fluorescence imaging. :contentReference[oaicite:4]{index=4}
  • Fast Modulation: Rise times less than ~10 µs enable high‐speed synchronization with imaging systems. :contentReference[oaicite:5]{index=5}
  • Fiber‑Coupled Output: Simplified alignment and integration via multi‐mode fiber output—recommended 400 µm core, 0.39 NA. :contentReference[oaicite:6]{index=6}
  • Quantitative & Repeatable: Up to 100:1 linear dynamic range supports power reduction while maintaining stability for quantitative assays. :contentReference[oaicite:7]{index=7}

Applications

  • Spinning disk and laser‑scanning confocal microscopy
  • Structured Illumination Microscopy (SIM) and other super‑resolution techniques
  • Fluorescence Recovery After Photobleaching (FRAP), photoactivation, photoconversion
  • Live‑cell time‑lapse imaging and multi‑wavelength workflows
  • High‑throughput and quantitative imaging assays requiring stable illumination

Specifications

Parameter Details
Model Gen2 LDI‑7
Catalog Number 25000‑07
Laser Lines 405 nm, 445 nm, 470 nm, 520 nm, 530 nm, 555 nm, 640 nm
Max Output Power Up to ~1000 mW per laser line (configuration‐dependent) :contentReference[oaicite:8]{index=8}
Continuous‑Wave Stability < 2 % variation :contentReference[oaicite:9]{index=9}
Modulation Rise Time < 10 µs (typical) :contentReference[oaicite:10]{index=10}
Control Interfaces TTL, Analog (0–5 V), USB DSP :contentReference[oaicite:11]{index=11}
Output Coupling Recommended 400 µm fiber, 0.39 NA :contentReference[oaicite:12]{index=12}
Dimensions (W×D×H) 12.5″ × 9.2″ × 5.75″ (318 mm × 234 mm × 146 mm) :contentReference[oaicite:13]{index=13}
Weight ~9 lbs (~4.1 kg) :contentReference[oaicite:14]{index=14}
Operating Temperature 15‑30 °C :contentReference[oaicite:15]{index=15}
Input Voltage 90‑220 V AC, 50‑60 Hz :contentReference[oaicite:16]{index=16}
Warranty 2 years (Manufacturer) :contentReference[oaicite:17]{index=17}

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.

Additional Details

  • Manufacturer: 89 North
  • Model:
  • Catalog Number: 89N-25000-07
  • Serial Number:
  • Condition: New
