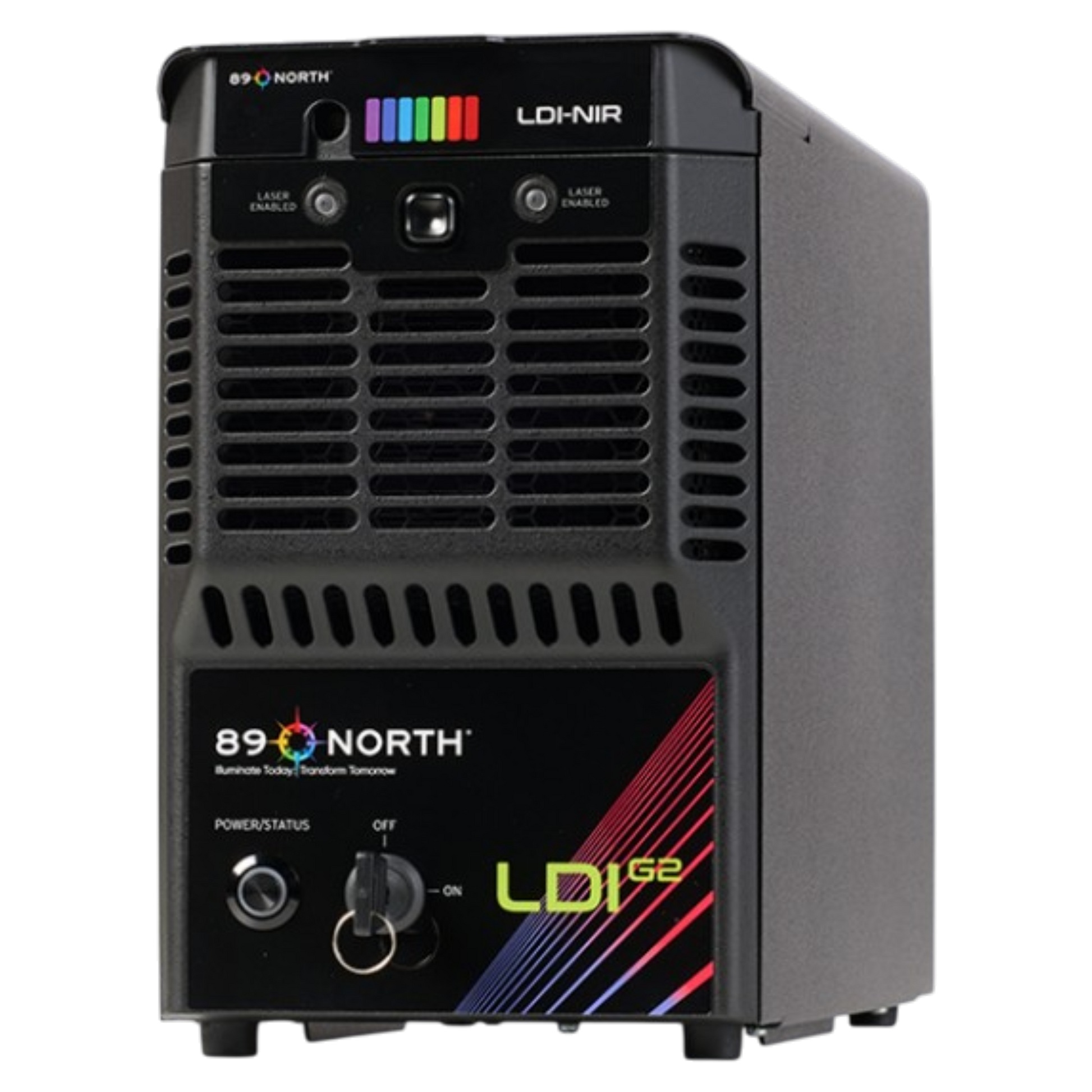

89 North Gen2 LDI-NIR Laser Diode Illuminator – 405/445/470/520/555/640/730 | Catalog #25030

The Gen2 LDI-NIR from 89 North delivers seven laser excitation lines (405, 445, 470, 520, 555, 640, 730 nm) for comprehensive fluorescence imaging, including deep-tissue and near-infrared workflows. With precise control, high power, and sub-10 µs modulation, it supports even the most demanding imaging applications.

Condition

New with Manufacturer Warranty

Included Items

• Gen2 LDI-NIR Laser Diode Illuminator (405/445/470/520/555/640/730 nm configuration)
• Integrated power supply and control interface
• Laser safety interlock and key switch
• Output fiber and collimator
• Mounting hardware and bracket
• User manual and full documentation

Key Features

• Seven-Laser Configuration: 405, 445, 470, 520, 555, 640, 730 nm
• Near-IR Ready: 730 nm line supports far-red dyes and deep-tissue imaging
• High Output Power: Up to ~1000 mW per laser line (depending on configuration)
• Stable Output: <2% continuous-wave stability for consistent imaging
• Fast Modulation: Rise times <10 µs for high-speed triggering
• Control Interfaces: TTL, Analog (0–5 V), USB DSP
• Fiber-Coupled Output: Simplified alignment for microscope integration

Applications

• Multicolor widefield and confocal microscopy
• Live-cell imaging and long-term time-lapse
• Super-resolution techniques (PALM, STORM, SIM)
• Optogenetics, FRAP, photoactivation
• Cleared-tissue and near-IR fluorescence imaging
• High-throughput and quantitative imaging assays

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
