89 North LDI-5-488-577 Laser Diode Illuminator 405/488/577/640/730 Microscope Illuminator

89 North LDI-5-488-577 Laser Diode Illuminator – 405/488/577/640/730 nm – Catalog #15056

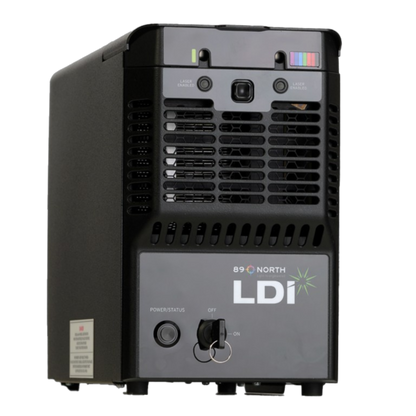

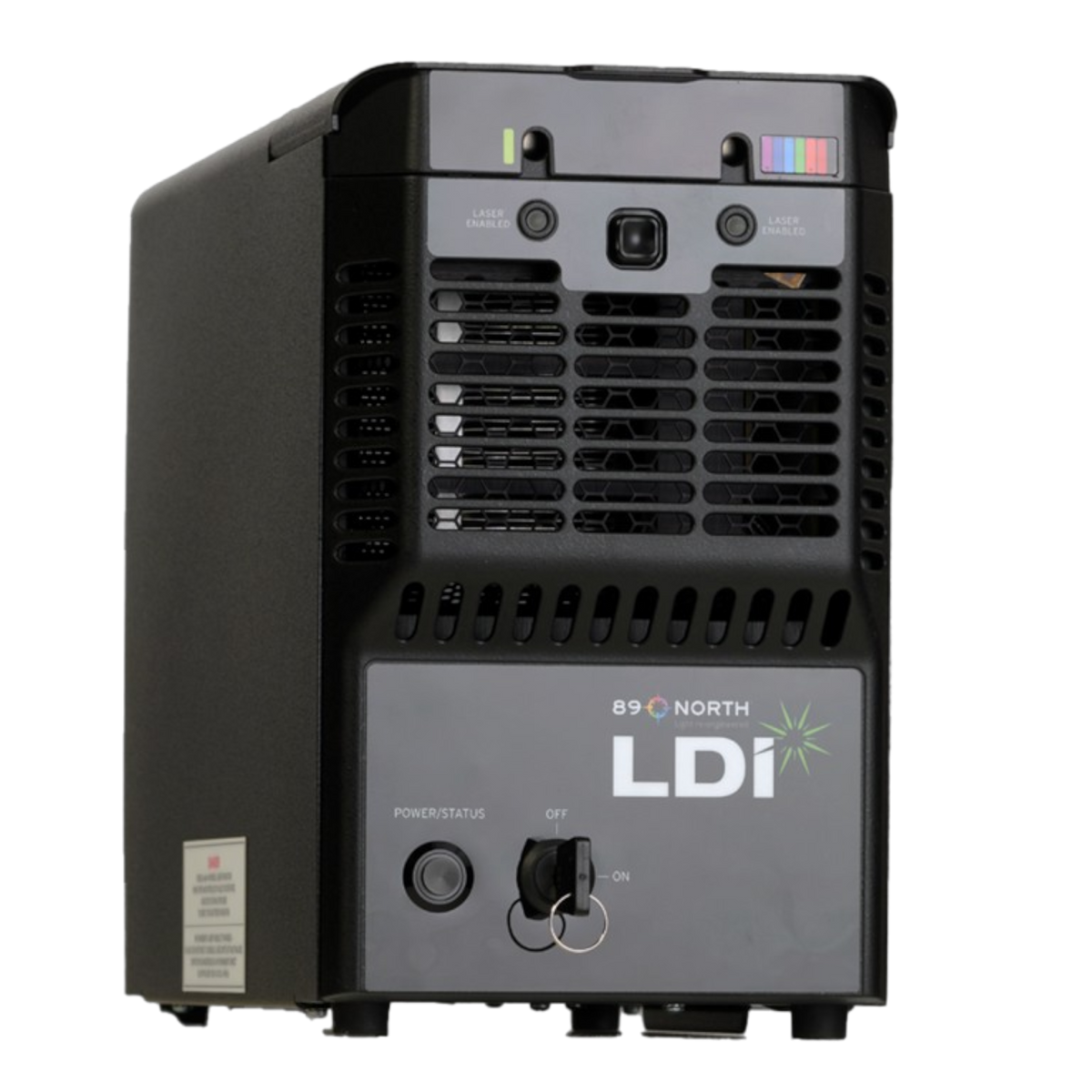

The 89 North LDI-5-488-577 is a compact, high-intensity multiline laser diode illuminator designed for advanced fluorescence microscopy. Equipped with five laser lines—405, 488, 577, 640, and 730 nm—this model offers flexible excitation for a wide range of common and far-red fluorophores. Ideal for applications requiring precise and repeatable illumination, the LDI-5 is engineered for performance, stability, and seamless integration with modern imaging platforms.

Condition

New with Manufacturer Warranty

Key Features

• Laser Lines: 405 nm, 488 nm, 577 nm, 640 nm, 730 nm
• Output Power: Up to 1000 mW per laser line, suitable for high-speed and high-resolution imaging
• Output Stability: Feedback-controlled laser output with <2% variation for quantitative consistency
• Fast Modulation: <10 μs rise time ensures rapid switching for time-sensitive applications

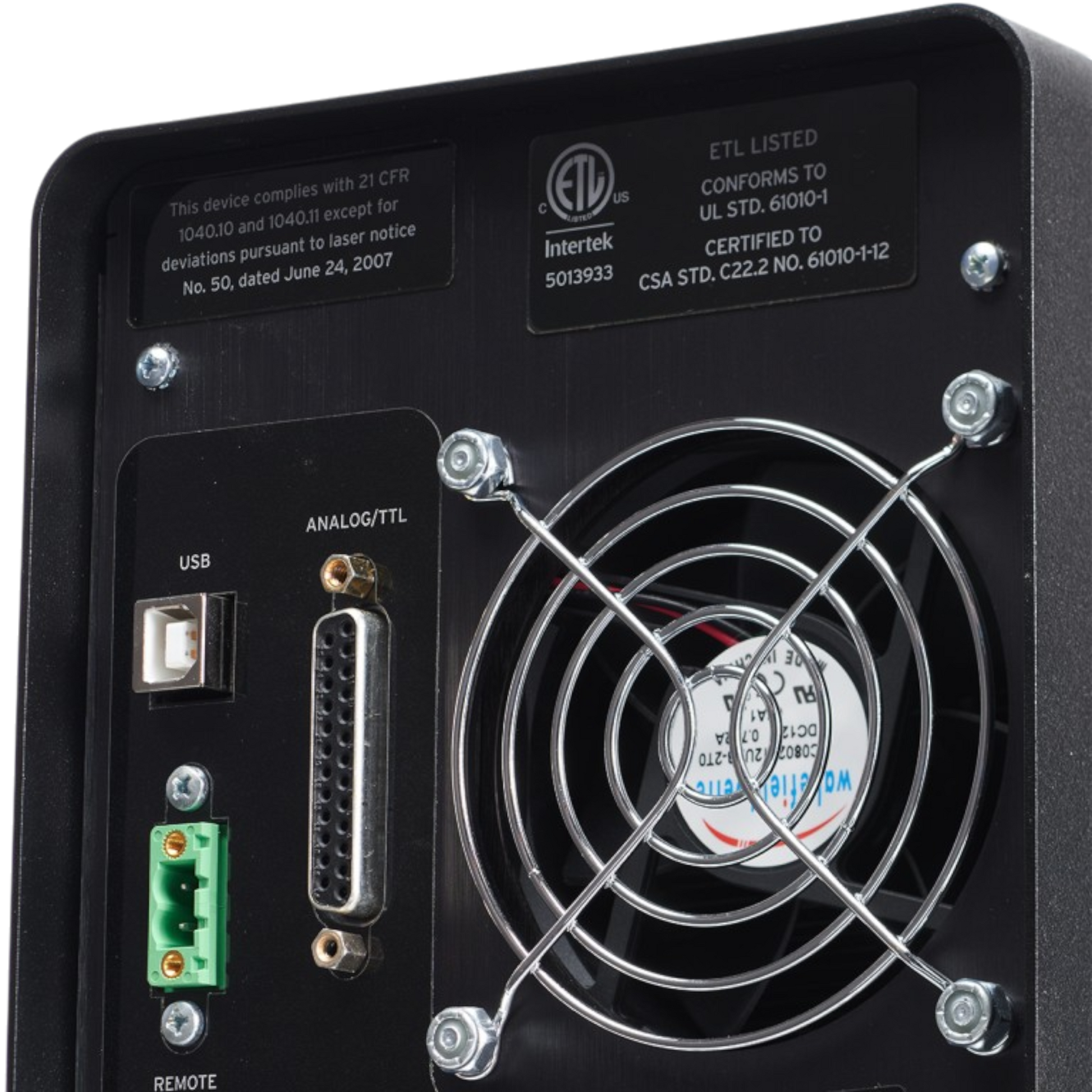

• System Control: TTL, analog (0–5 V), and USB control interfaces for flexible integration
• Design: Compact, air-cooled chassis for efficient operation and easy system integration

Applications

• Spinning Disk Confocal Microscopy
• FRAP and Photobleaching Studies
• Photoactivation and Photoconversion
• Widefield Fluorescence Microscopy
• Super-Resolution Imaging (STORM, PALM, etc.)

Specifications
