89 North LDI-5-577 Laser Diode Illuminator 405/470/577/640/730 Microscope Illuminator

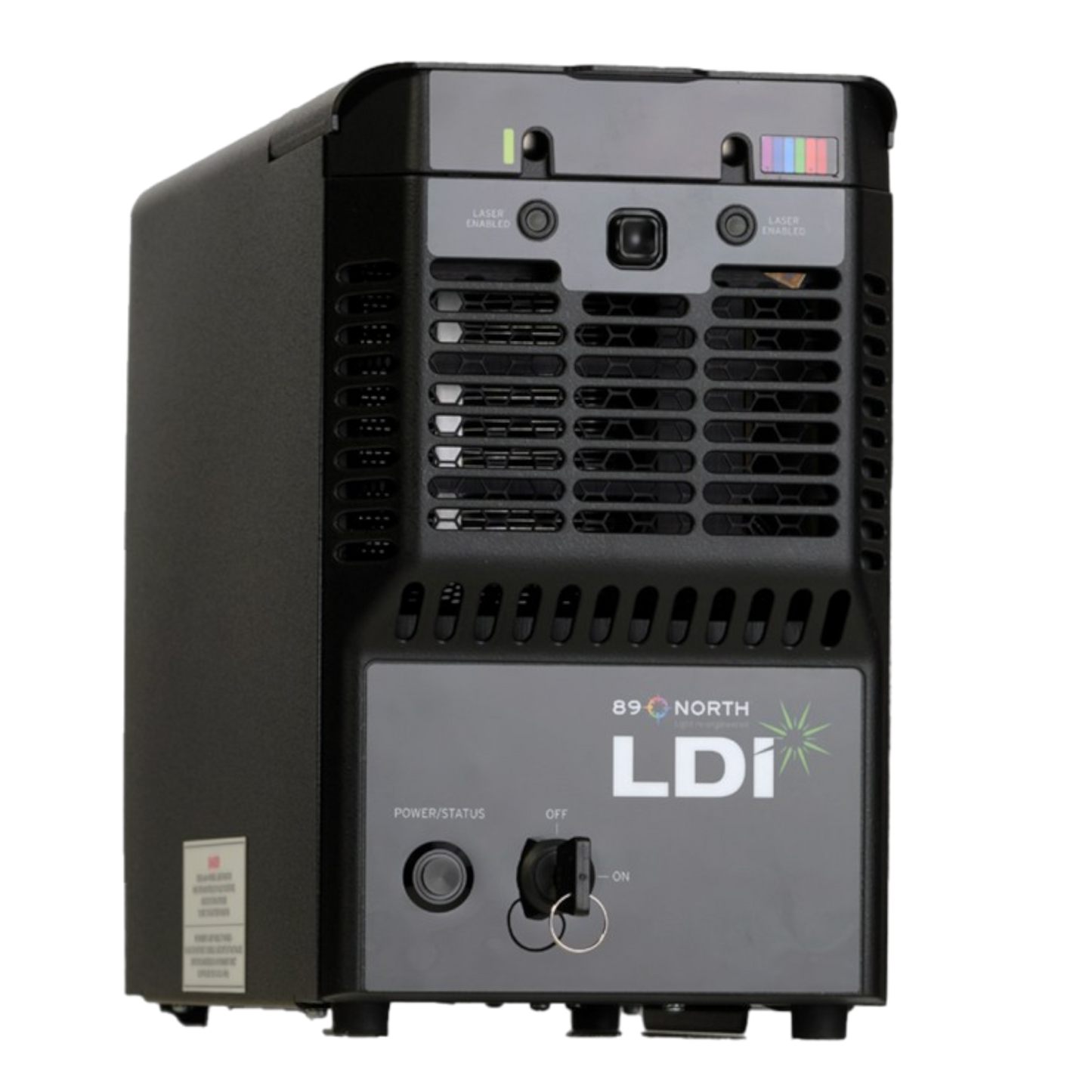

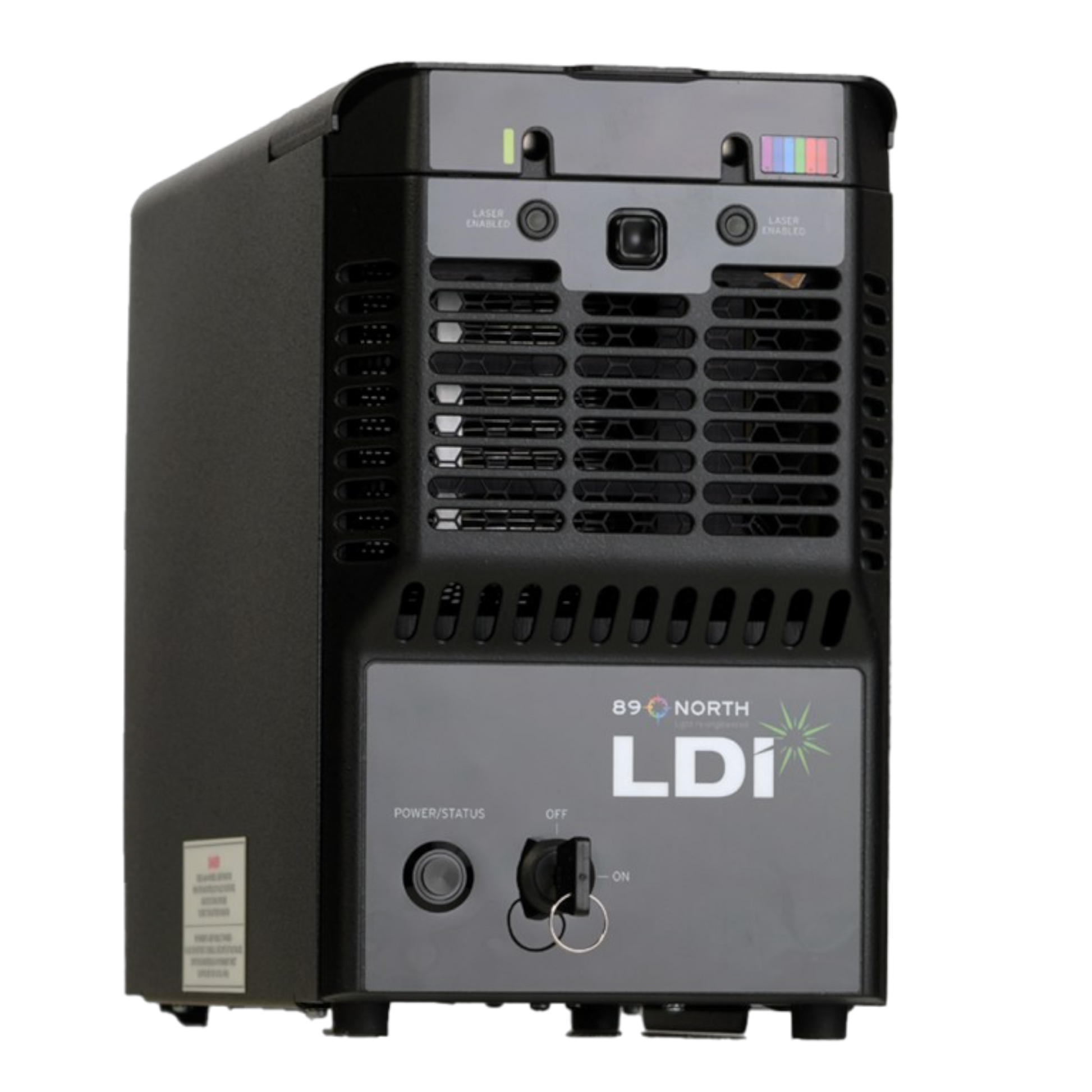

89 North LDI-5-577 Laser Diode Illuminator – 405/470/577/640/730 nm – Catalog #15055

The 89 North LDI-5-577 is a versatile five-wavelength laser diode illuminator designed for high-speed, high-precision fluorescence microscopy. Featuring laser lines at 405, 470, 577, 640, and 730 nm, this illuminator supports a wide range of common and far-red fluorophores. Its compact, air-cooled design and advanced modulation capabilities make it ideal for time-resolved and quantitative imaging across diverse applications.

Condition

New with Manufacturer Warranty

Key Features

• Laser Lines: 405 nm, 470 nm, 577 nm, 640 nm, 730 nm
• High Output Power: Up to 1000 mW per laser line for strong and stable fluorescence excitation
• Precision Modulation: Sub-10 μs rise time enables fast switching for dynamic imaging
• Output Stability: Feedback-controlled output with <2% variation, ensuring quantitative consistency

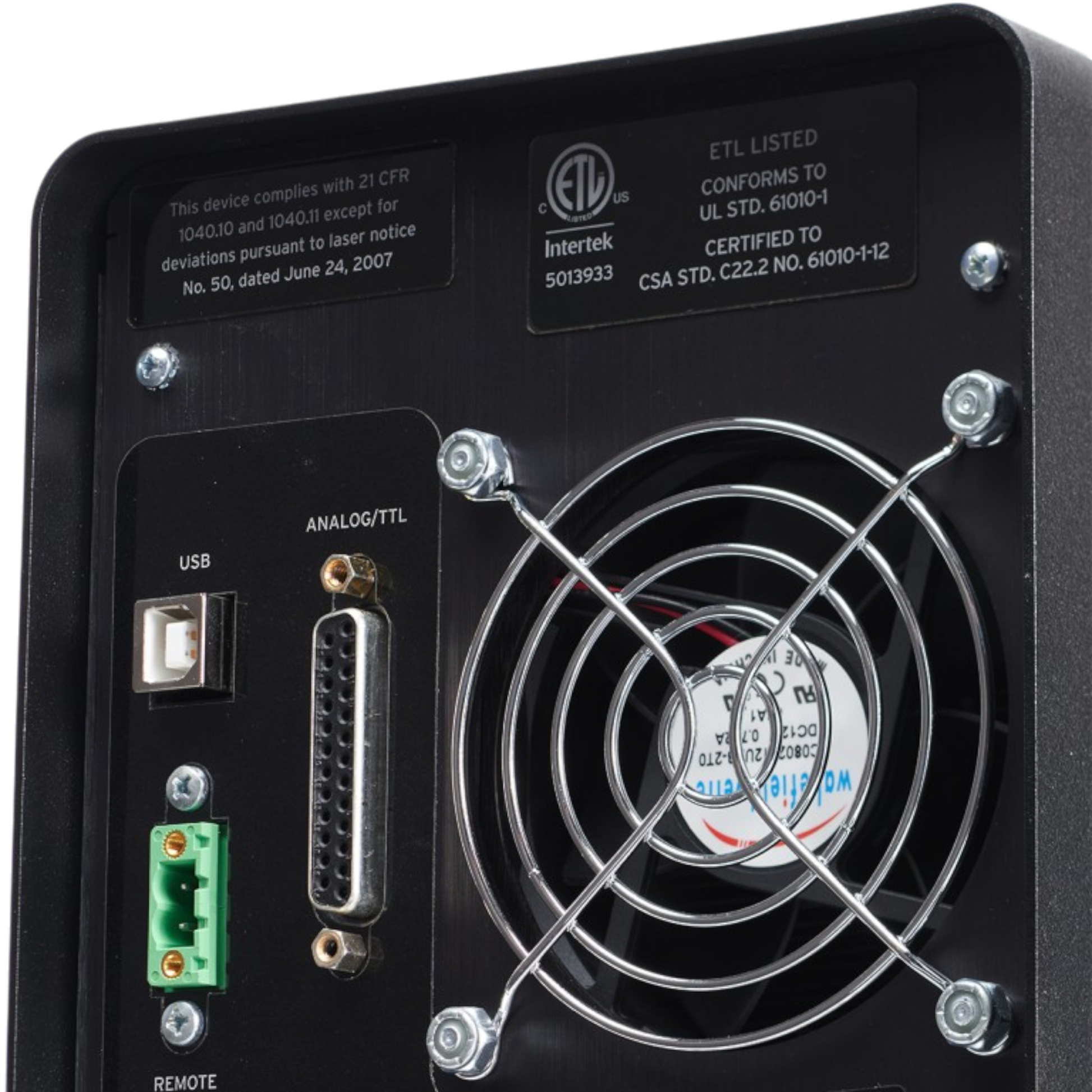

• Control Interfaces: TTL, analog (0–5 V), and USB for flexible system integration
• Cooling: Active air-cooled system for reliable thermal performance

Applications

• Spinning Disk Confocal Microscopy
• Widefield Fluorescence Imaging
• FRAP, FLIP, and Photobleaching
• Photoactivation / Photoconversion
• Live-cell and time-lapse imaging

Specifications
