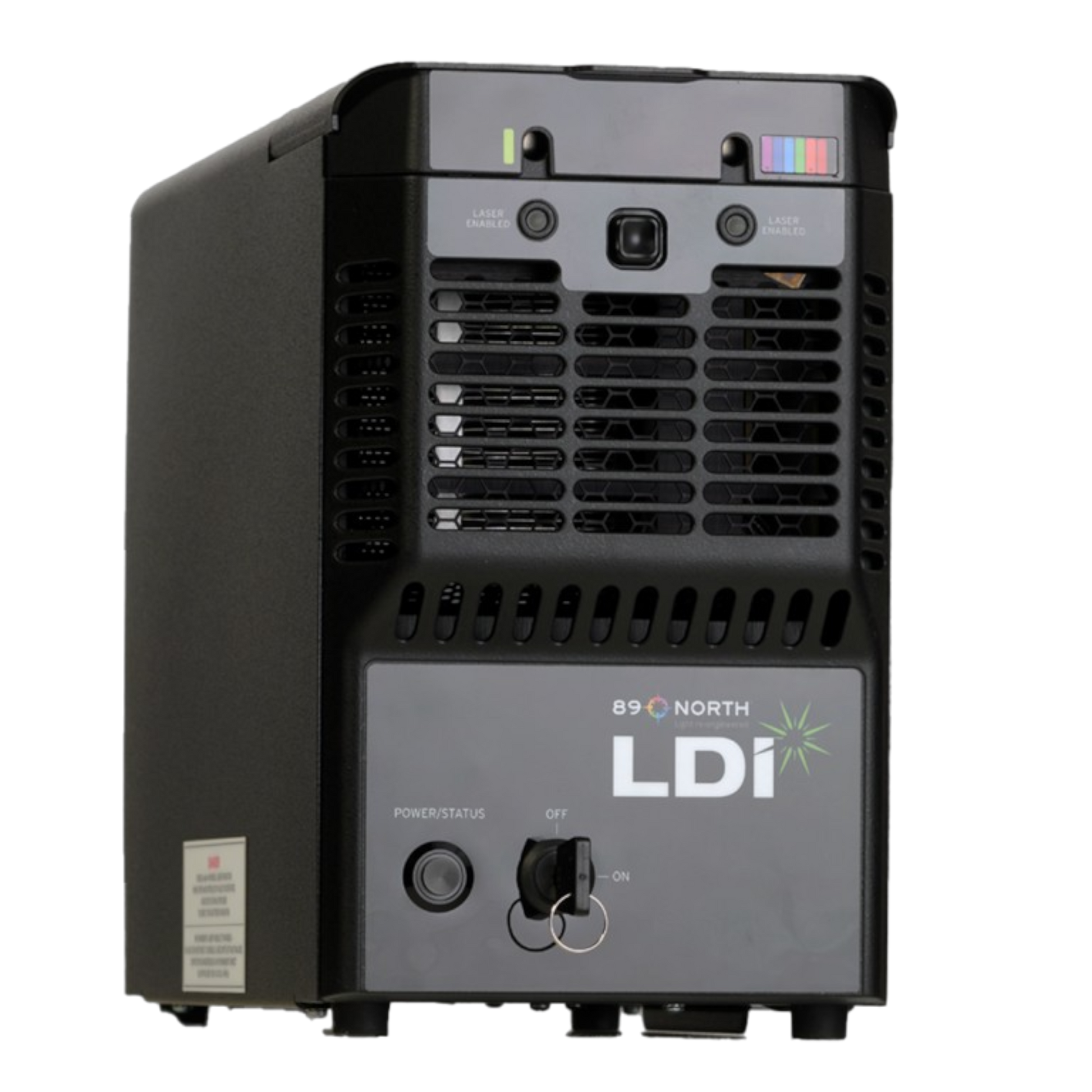

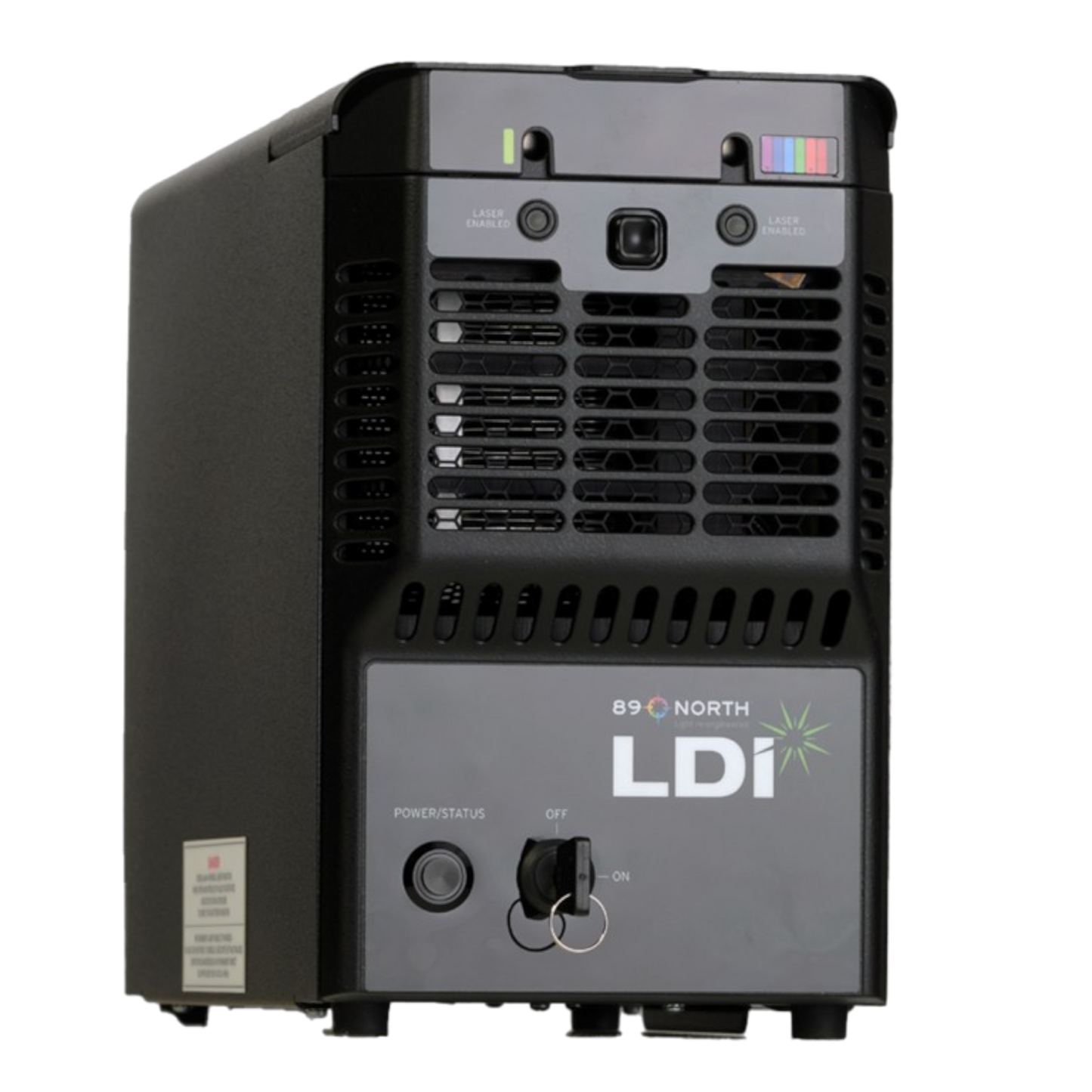

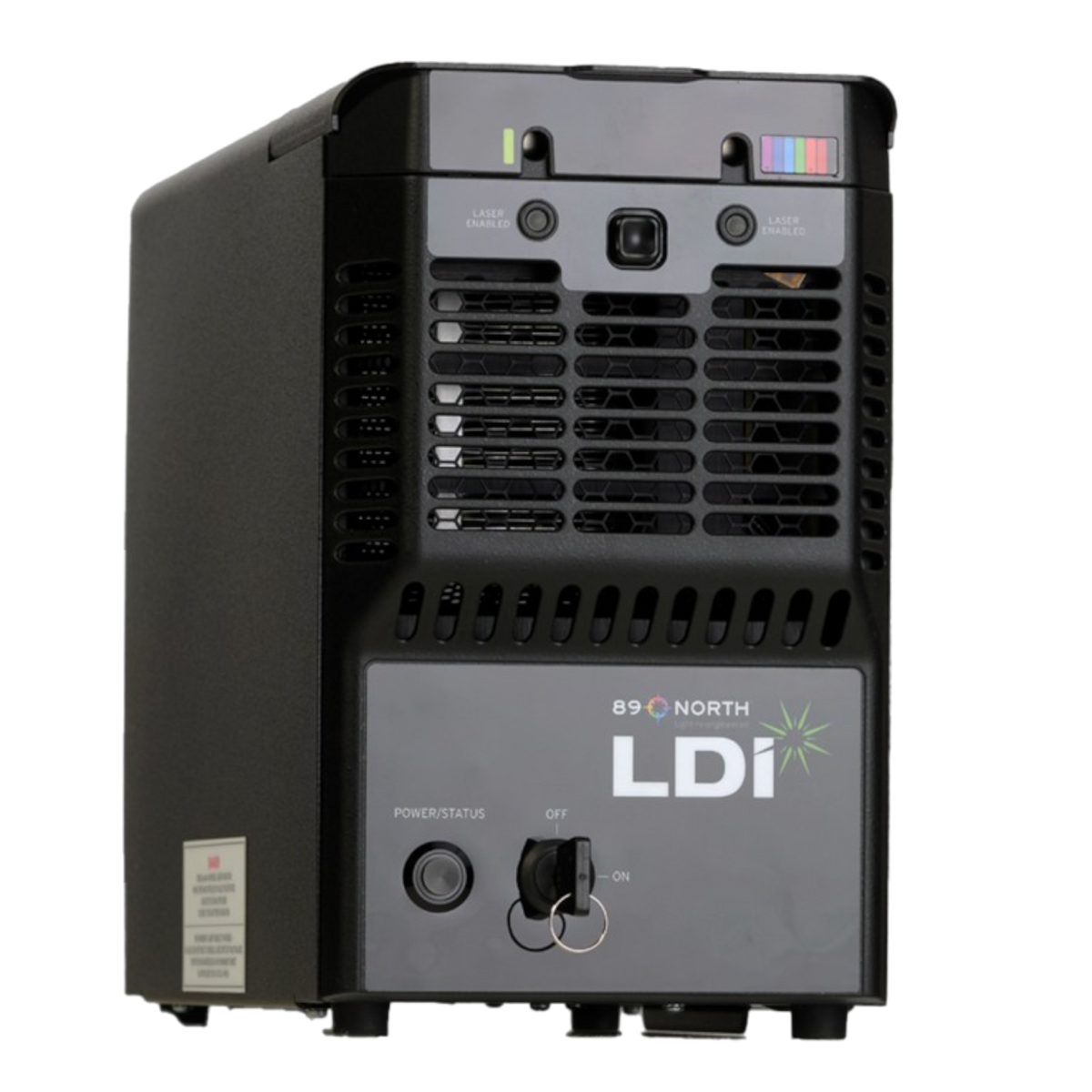

89 North LDI-5 Laser Diode Illuminator 405/470/555/640/730 Microscope Illuminator

89 North LDI-5 Laser Diode Illuminator – 405/470/555/640/730 nm – Catalog #15053

The 89 North LDI-5 is a robust, five-wavelength laser diode illuminator designed for fast, stable, and high-resolution fluorescence imaging. This model includes laser lines at 405, 470, 555, 640, and 730 nm—making it an excellent choice for multicolor applications spanning from violet to near-infrared. With high power output, fast modulation, and precision control, the LDI-5 is engineered for demanding microscopy environments, including live-cell and high-throughput imaging systems.

Condition

New with Manufacturer Warranty

Key Features

• Laser Lines: 405 nm, 470 nm, 555 nm, 640 nm, 730 nm
• Output Power: Up to 1000 mW per line for bright, consistent fluorescence excitation
• Output Stability: <2% variation with active feedback control
• Fast Modulation: Sub-10 μs rise time for rapid imaging and synchronization

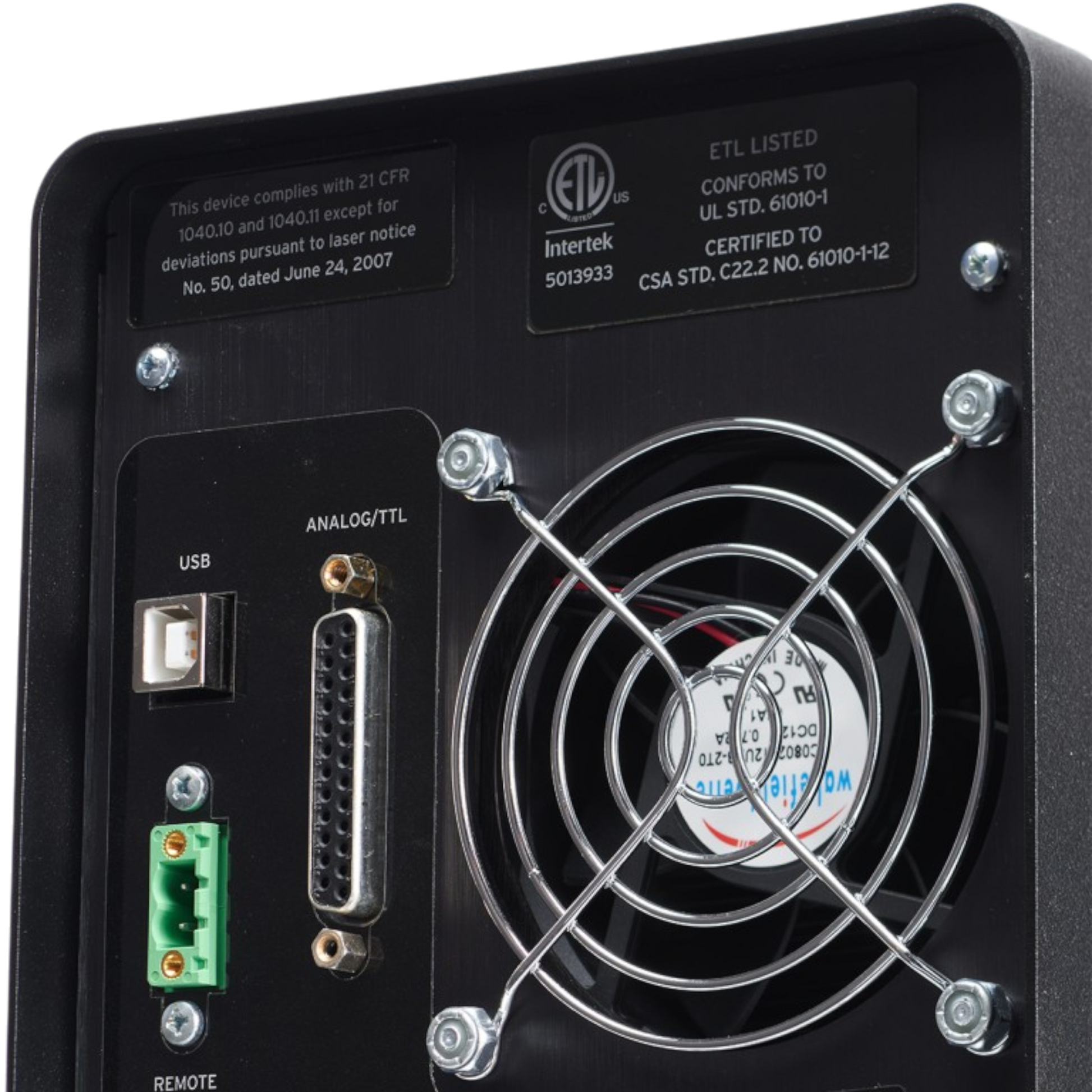

• Control Interfaces: TTL, analog (0–5 V), and USB for integration with acquisition software
• Compact Design: Space-efficient and air-cooled, built for minimal thermal interference

Applications

• Spinning Disk Confocal Microscopy
• Widefield Fluorescence Imaging
• Live-Cell and Time-Lapse Experiments
• FRAP, FLIP, and Photobleaching Studies
• Super-Resolution and Multispectral Imaging

Specifications
