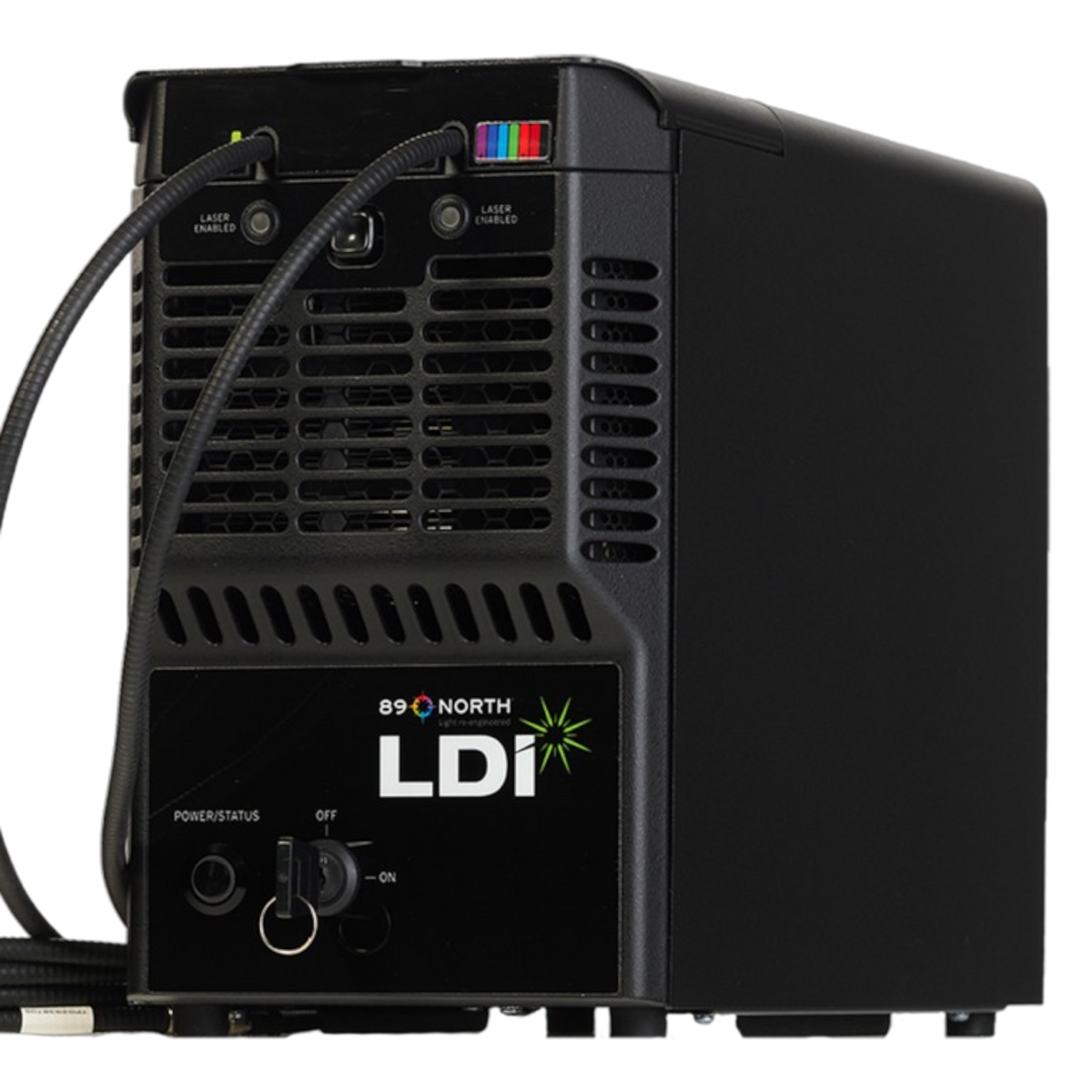

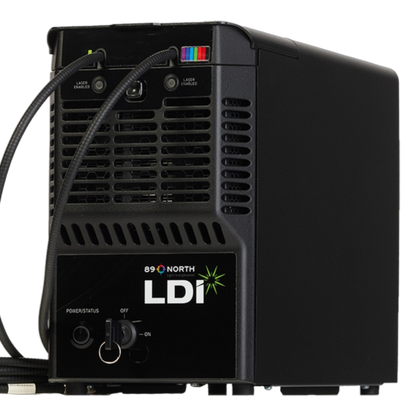

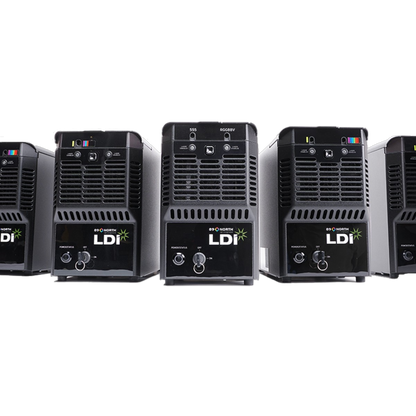

89 North LDI-NIR Laser Diode Illuminator 405/445/470/520/555/640/730 Microscope Illuminator

89 North LDI-NIR Laser Diode Illuminator 405/445/470/520/555/640/730 Microscope Illuminator

Regular price $37,422.00 USD
Regular price Sale price $37,422.00 USD
Sale Sold out
Shipping calculated at checkout.
  • ✓ New, with the full manufacturer warranty
  • ✓ Typical delivery in 1 to 3 weeks, depending on parts
  • ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
  • ✓ Installation, training and service available from our engineers (quoted separately)
  • ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
  • ✓ Leasing and finance companies available

Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

89 North LDI-NIR Laser Diode Illuminator 405/445/470/520/555/640/730 nm | 15030

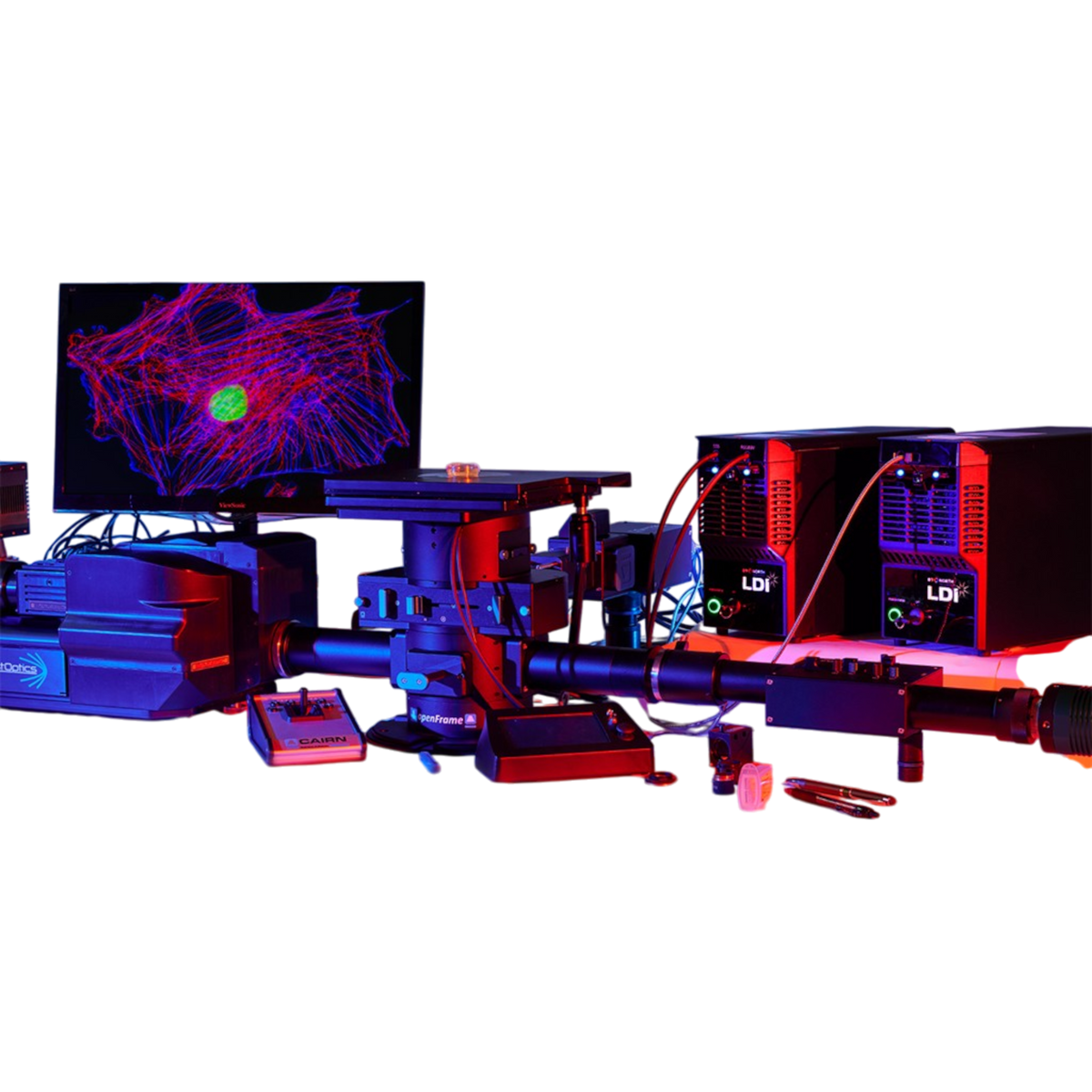

The 89 North LDI-NIR is a 7-line laser diode illuminator (405 nm, 445 nm, 470 nm, 520 nm, 555 nm, 640 nm, 730 nm) for widefield, spinning disk and live-cell fluorescence microscopy. Laser lines are fiber coupled through SMA905 outputs and controlled by TTL, analog or USB for fast, synchronized imaging.

Condition

New with Manufacturer Warranty (2 years)

Included Items

  • Laser diode illuminator
  • External power supply and power cord
  • USB cable
  • LDI control software

Output fiber is not included; see Optional Accessories below.

Key Features

  • Laser lines: 405 nm, 445 nm, 470 nm, 520 nm, 555 nm, 640 nm, 730 nm

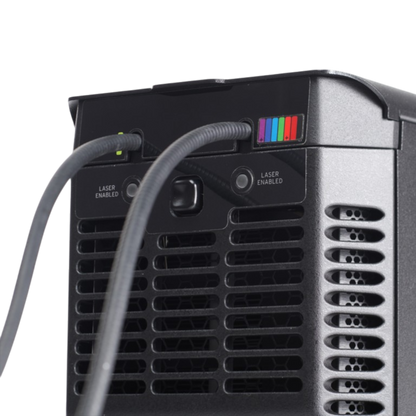

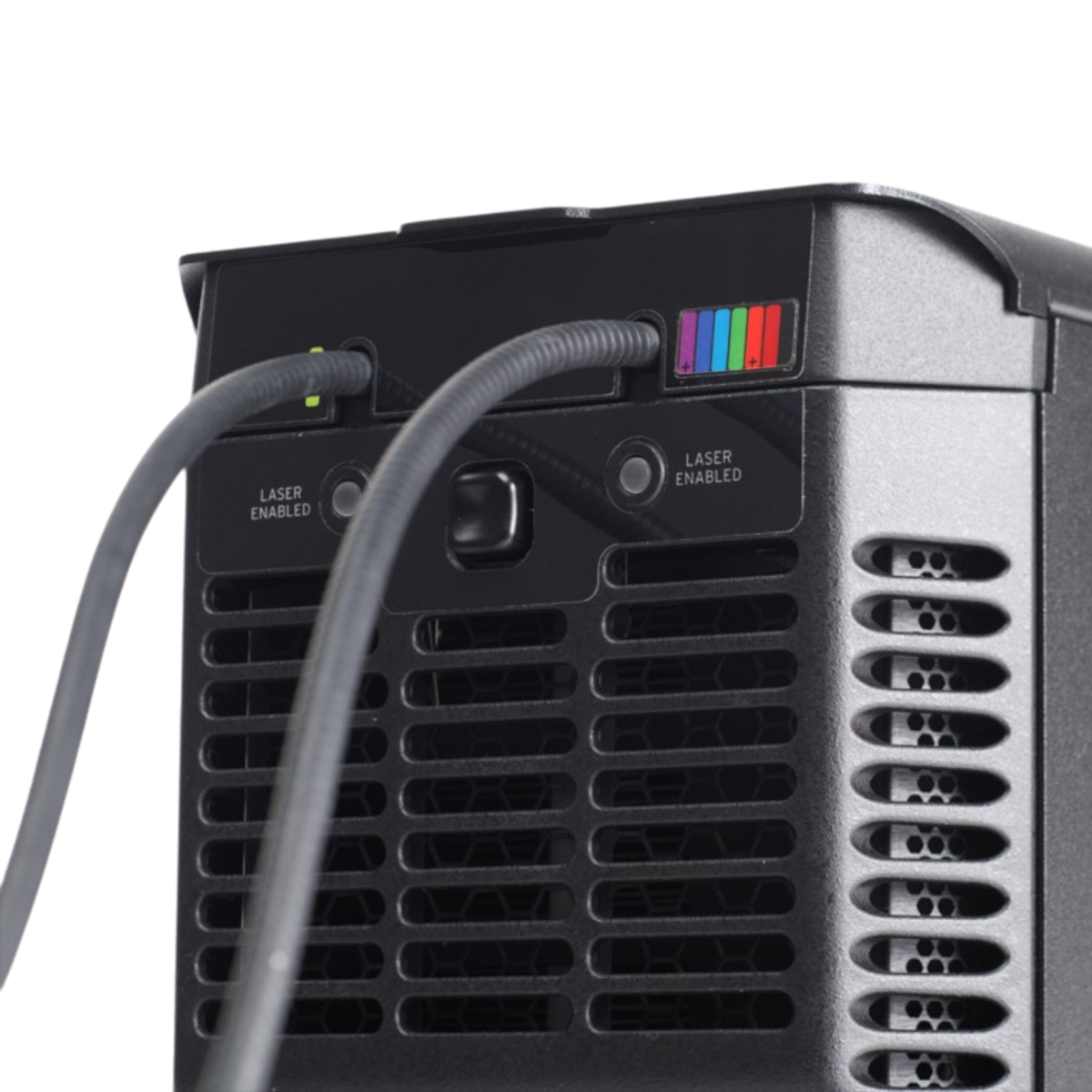

  • Fiber-coupled output: SMA905 fiber connections in an interlocked fiber access area

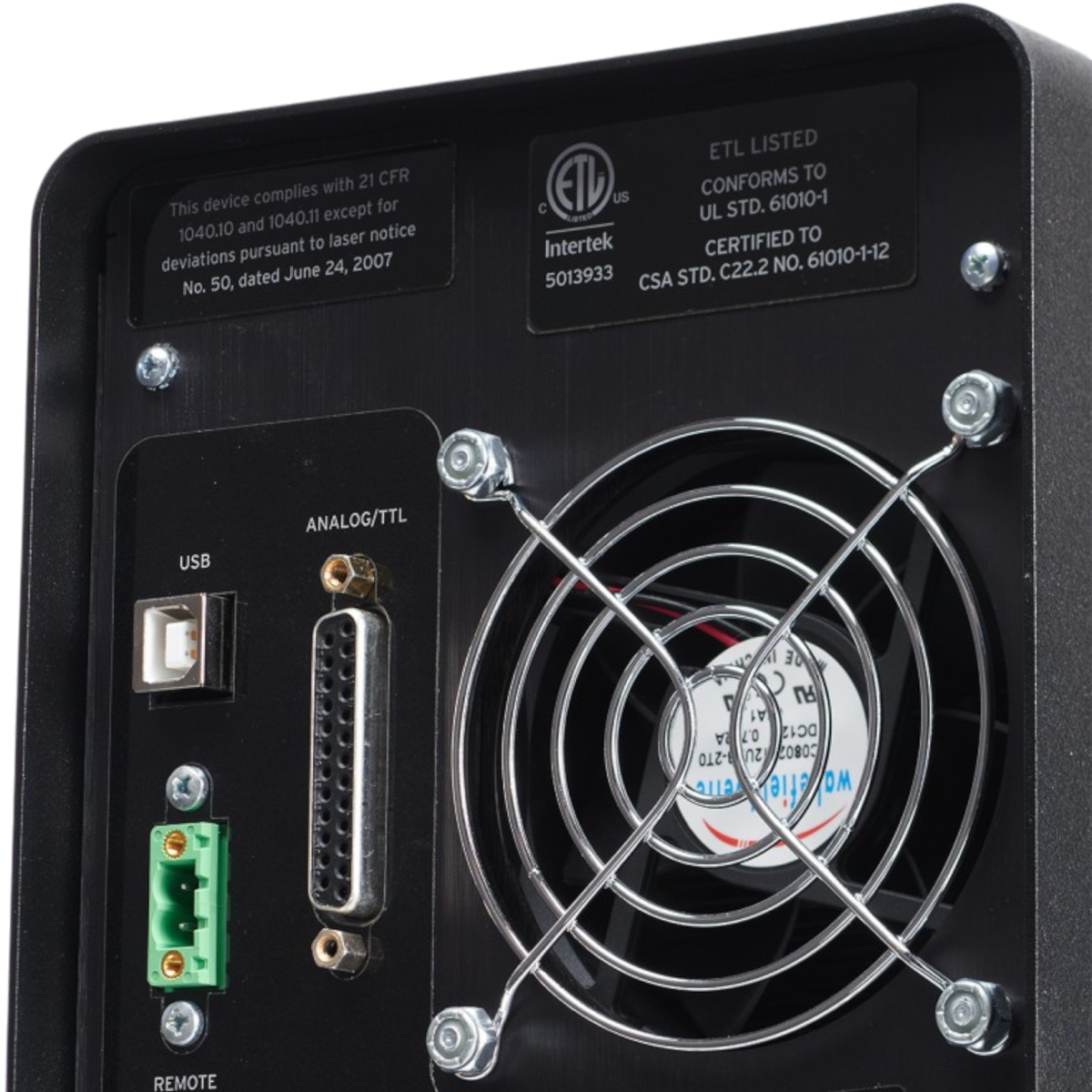

  • Control: TTL (>2.3 V), analog (0 to 5 V) and USB-DSP (virtual COM port, SDK available on request)
  • LDI software: graphical user interface for intensity and shutter control, plus serial command set for acquisition software

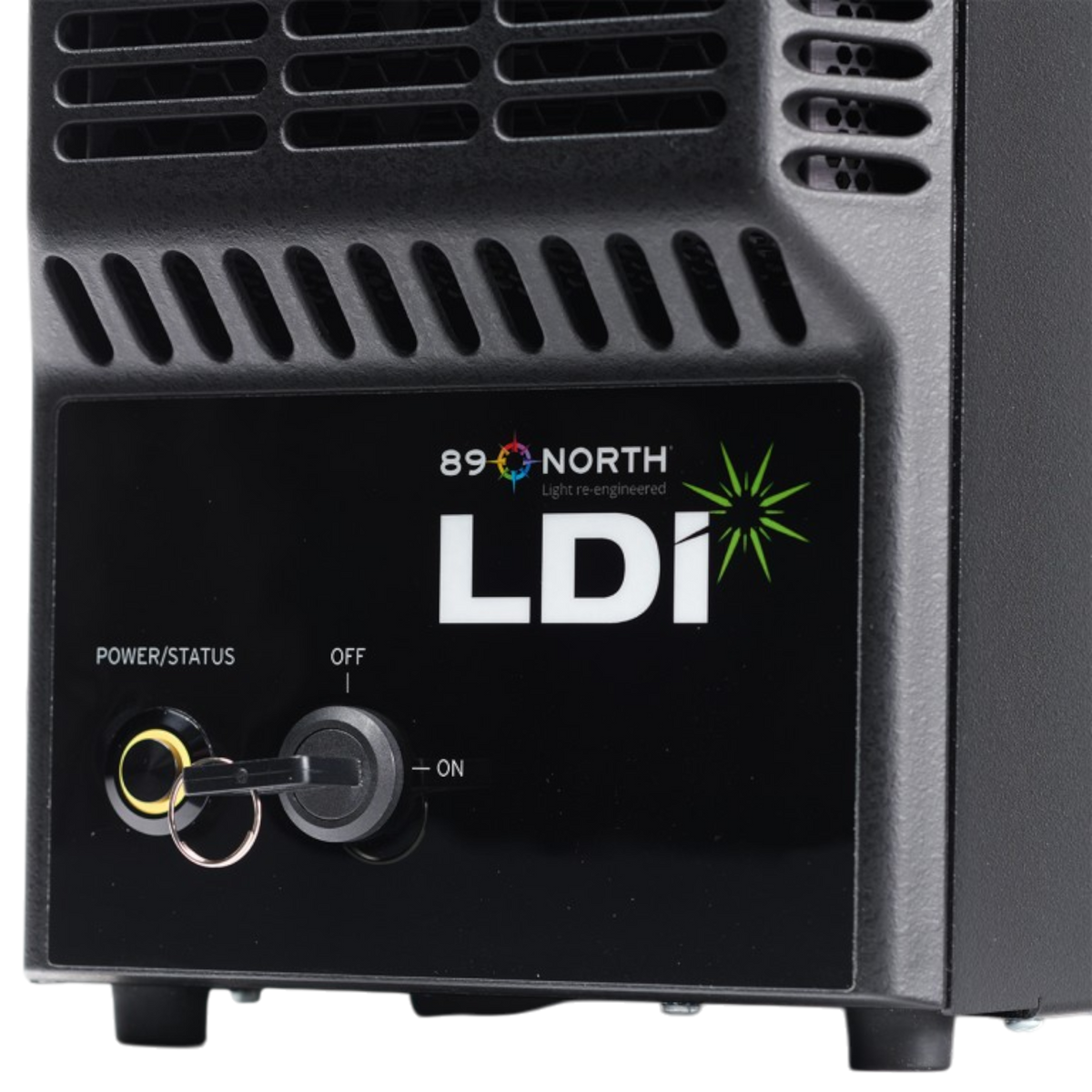

  • Safety: interlocked fiber access cover, remote interlock and key switch
  • Maintenance-free: ships fully aligned and needs no routine alignment or cleaning

Applications

  • Widefield multicolor fluorescence imaging
  • Spinning disk confocal microscopy
  • Live-cell and time-lapse imaging
  • FRAP, photoactivation and photoconversion
  • TIRF, structured illumination and PALM/STORM
  • Optogenetics and calcium imaging

Optional Accessories (Not Included in Price)

  • Output fiber: 400 µm, 0.39 NA SMA905 fiber (1 m or 2 m) and bifurcated, trifurcated or quadfurcated fiber bundles
  • LLG Adapter Assembly (03-3619) for liquid light guide output
  • LDI Breakout Box for external analog intensity and TTL shutter control
  • Fiber bend control box for metal-clad fibers
  • Microscope coupling optics and integration with your stand
  • Installation and training (quoted separately)

Specifications

Manufacturer 89 North (Oxxius)
Model LDI-NIR
Part number 15030
Source type Laser diodes
Laser lines 405 nm, 445 nm, 470 nm, 520 nm, 555 nm, 640 nm, 730 nm
Output SMA905 fiber outputs
Control TTL (>2.3 V), analog (0 to 5 V), USB-DSP
Weight approx. 9 lb
Laser class Class 4
Warranty 2 years (manufacturer)

Additional discounts may apply. Contact us for a quote.

Additional Details

  • Manufacturer: 89 North
  • Model: LDI-NIR Laser Diode Illuminator 405/445/470/520/555/640/730
  • Catalog Number: 89N-15030
  • Serial Number: N/A
  • Condition: New
