89 North LDI-VBGR SF Laser Diode Illuminator 405/470/555/640: Single 100um f/o output Microscope Illuminator
89 North LDI-VBGR SF Laser Diode Illuminator 405/470/555/640: Single 100um f/o output Microscope Illuminator
Couldn't load pickup availability
- ✓ New, with the full manufacturer warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
89 North LDI-VBGR SF Laser Diode Illuminator 405/470/555/640 nm | 15040
The 89 North LDI-VBGR SF combines four laser lines (405 nm, 470 nm, 555 nm, 640 nm) into a single 100 µm optical fiber output. The small-core single fiber makes it well suited to spinning disk confocal, TIRF and other applications that need high power density.
Condition
New with Manufacturer Warranty (2 years)
Included Items
- Laser diode illuminator
- External power supply and power cord
- USB cable
- LDI control software
Output fiber is not included; see Optional Accessories below.
Key Features
- Laser lines: 405 nm, 470 nm, 555 nm, 640 nm

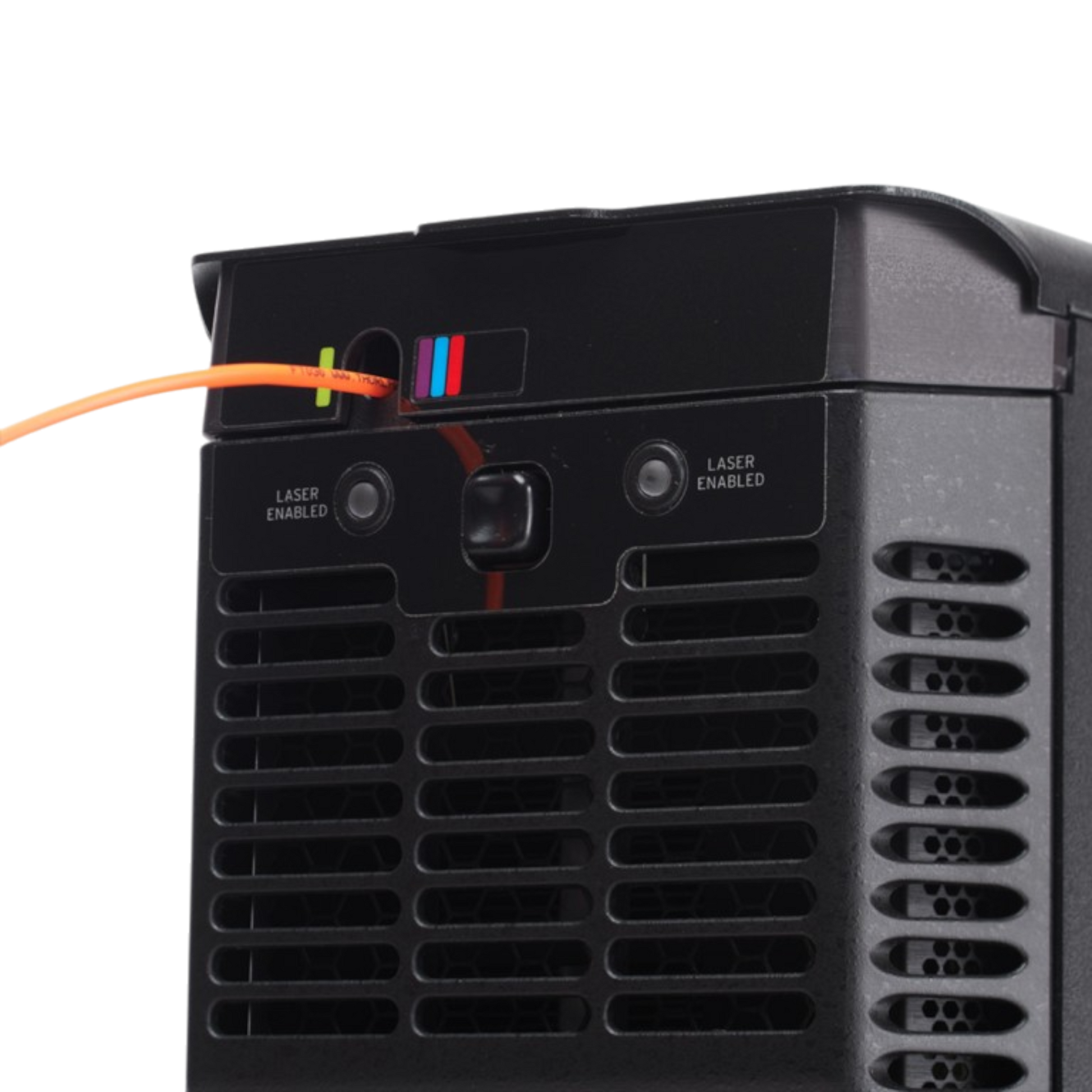

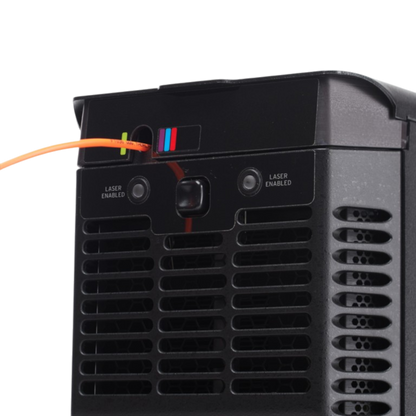

- Single 100 µm fiber output: all lines delivered through one small-core fiber

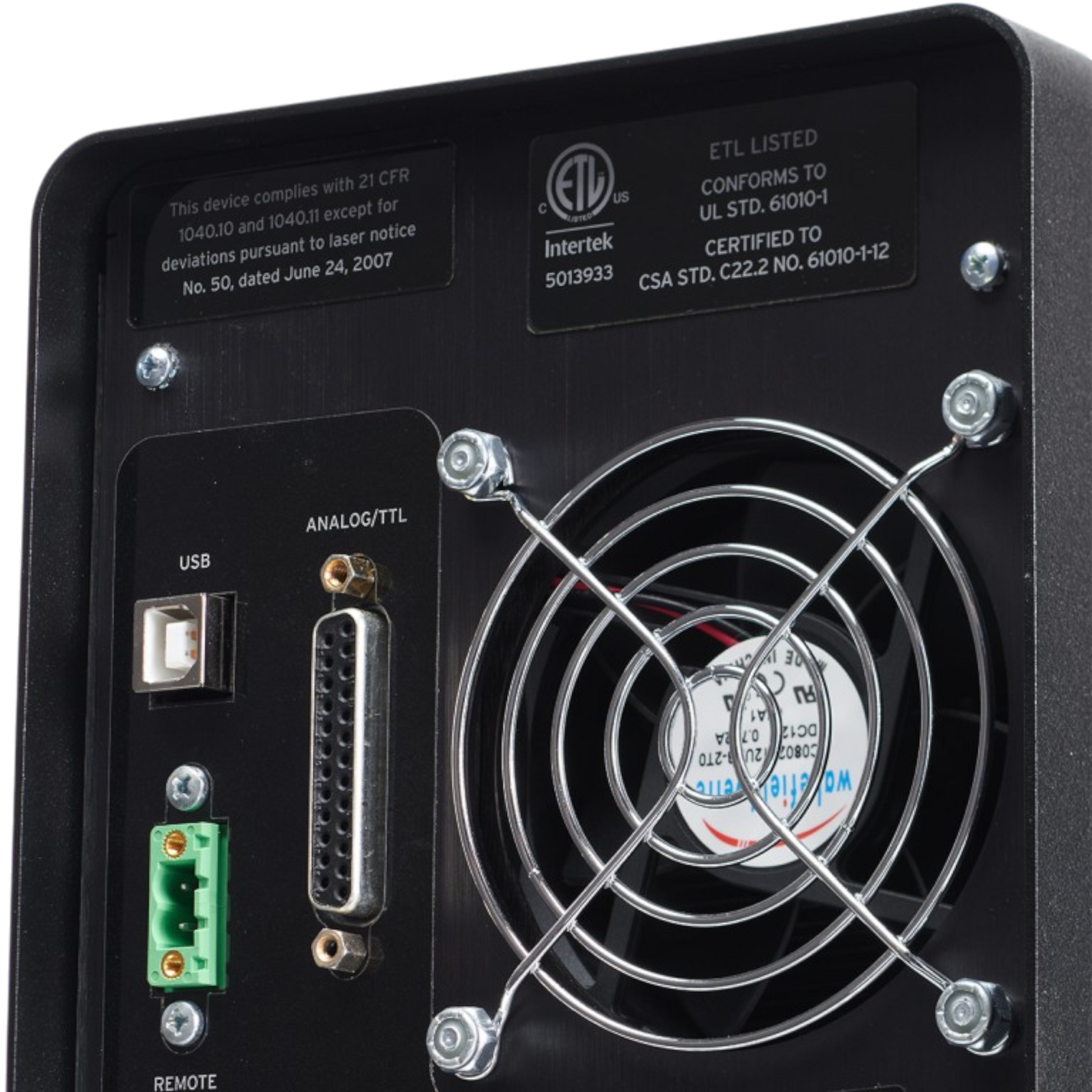

- Control: TTL (>2.3 V), analog (0 to 5 V) and USB-DSP (virtual COM port, SDK available on request)
- LDI software: graphical user interface for intensity and shutter control, plus serial command set for acquisition software

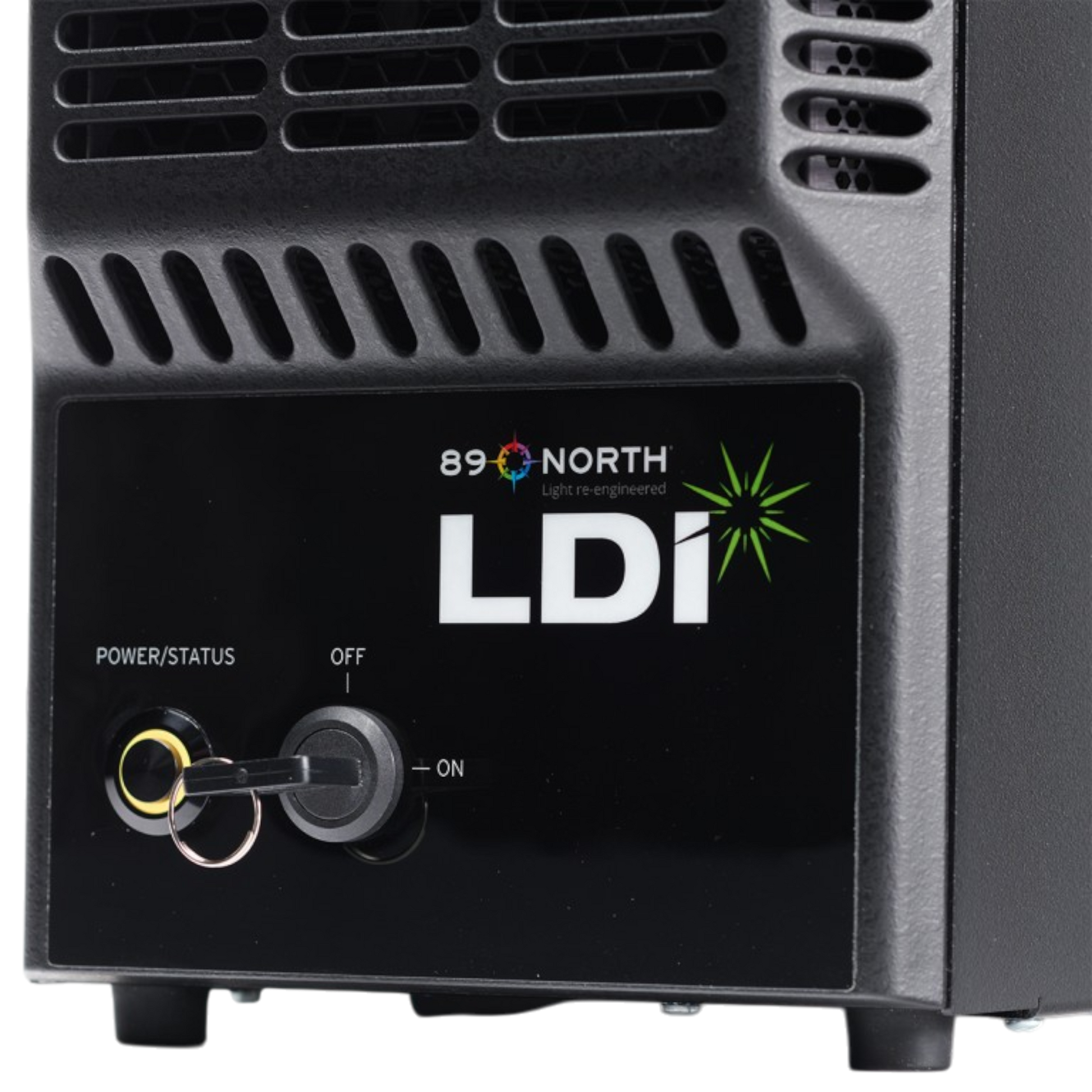

- Safety: interlocked fiber access cover, remote interlock and key switch
- Maintenance-free: ships fully aligned and needs no routine alignment or cleaning
Applications

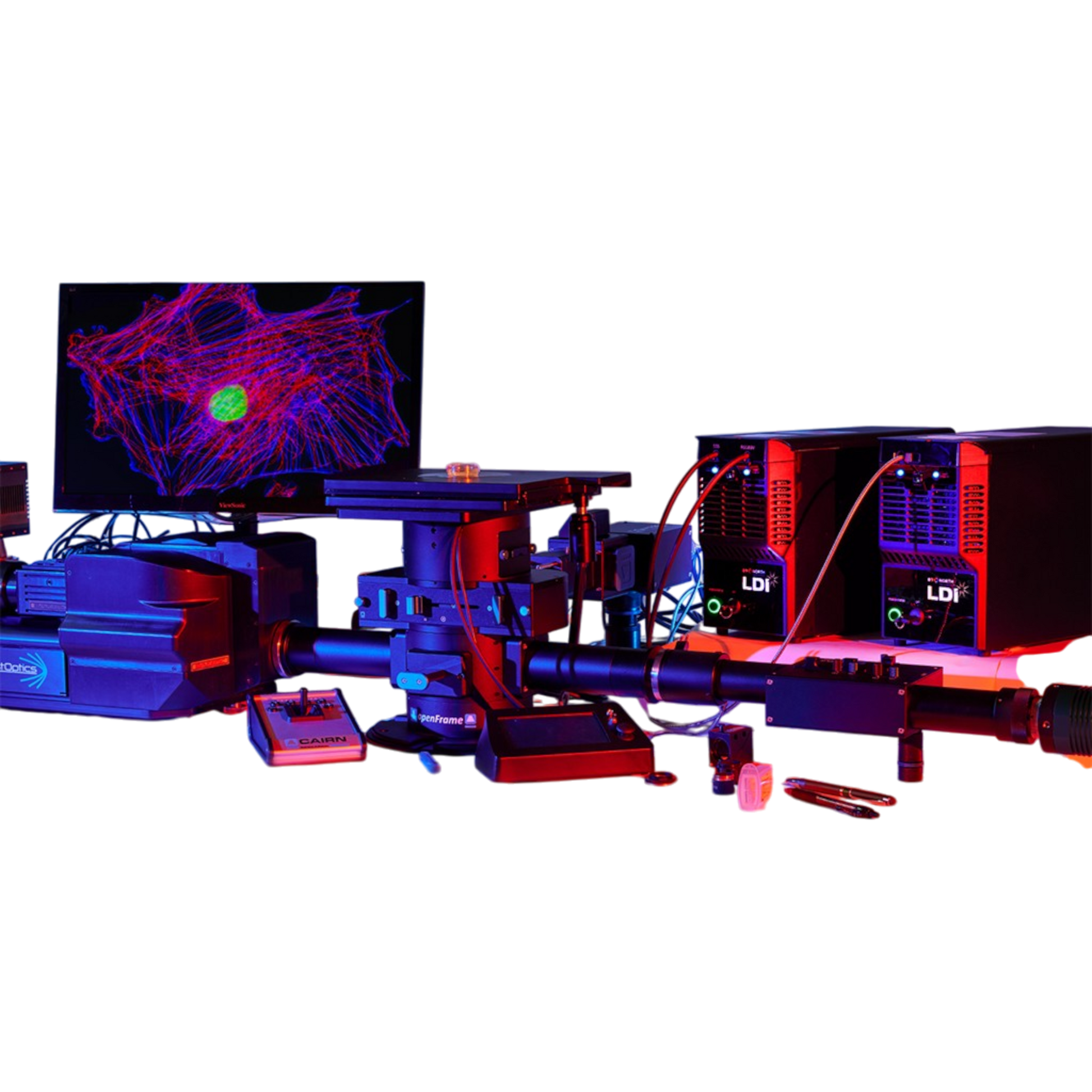

- Widefield multicolor fluorescence imaging
- Spinning disk confocal microscopy
- Live-cell and time-lapse imaging
- FRAP, photoactivation and photoconversion
- TIRF, structured illumination and PALM/STORM
- Optogenetics and calcium imaging
Optional Accessories (Not Included in Price)
- Output fiber: 400 µm, 0.39 NA SMA905 fiber (1 m or 2 m) and bifurcated, trifurcated or quadfurcated fiber bundles
- LLG Adapter Assembly (03-3619) for liquid light guide output
- LDI Breakout Box for external analog intensity and TTL shutter control
- Fiber bend control box for metal-clad fibers
- Microscope coupling optics and integration with your stand
- Installation and training (quoted separately)
Specifications
| Manufacturer | 89 North (Oxxius) |
| Model | LDI-VBGR SF |
| Part number | 15040 |
| Source type | Laser diodes |
| Laser lines | 405 nm, 470 nm, 555 nm, 640 nm |
| Output | Single 100 um optical fiber |
| Control | TTL (>2.3 V), analog (0 to 5 V), USB-DSP |
| Weight | approx. 9 lb |
| Laser class | Class 4 |
| Warranty | 2 years (manufacturer) |
Additional discounts may apply. Contact us for a quote.
Additional Details
Additional Details
- Manufacturer: 89 North
- Model: LDI-VBGR SF 405/470/555/640: Single 100um f/o output
- Catalog Number: 89N-15040
- Serial Number: N/A
- Condition: New
