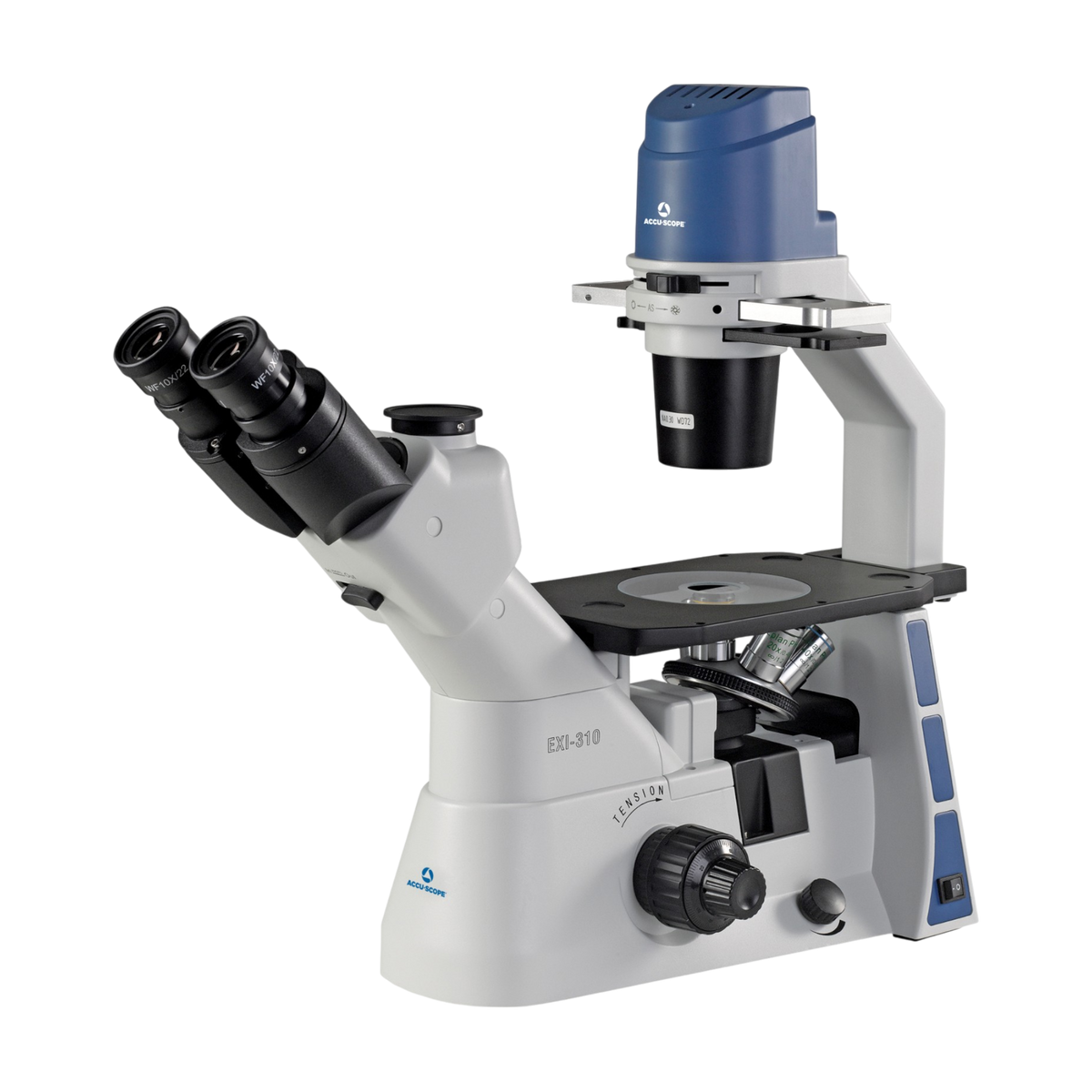

Accu-Scope EXI-310-PH Trinocular with Plan Phase Objectives Microscope

ACCU-SCOPE EXI-310-PH Trinocular with Plan Phase Objectives Microscope | EXI-310-PH

The ACCU-SCOPE Trinocular with Plan Phase Objectives Microscope (EXI-310-PH) is a new microscope system from the ACCU-SCOPE EXI-310 series. It ships configured as listed below, with the manufacturer's full warranty.

Condition

New with Manufacturer Warranty

Included Items

• Trinocular viewing head, inclined 45°, light distribution binocular 100% or binocular/trinocular tube 80%/20%
• WF10x/22mm eyepieces with roll down eyeguards
• Side facing quintuple nosepiece
• LWD Infinity Plan 4x objective, N.A. 0.10, W.D. 22mm (310-3173-PL)
• LWD Infinity Plan Phase 10x objective, N.A. 0.25, W.D. 7.94mm (310-3174-PH)
• LWD Infinity Plan Phase 20x objective, N.A. 0.40, W.D. 7.66mm (310-3177-PH)
• Fixed plain stage, 160 x 250mm with glass insert plate
• ELWD condenser, N.A. 0.3, Working Distance = 72mm
• Phase slider with 4x/10x, 20x/40x phase annuli, and open position
• Green 550nm interference filter
• Phase centering telescope
• Variable 5 watt LED illuminator
• Dust cover, power cord, Universal power supply 100 - 240v

Compatible Objectives

• LWD Infinity Plan 10x objective, N.A. 0.25, W.D. 7.94mm (310-3174-PL)
• LWD Infinity Plan 20x objective, N.A. 0.40, W.D. 7.66mm (310-3177-PL)
• LWD Infinity Plan 40x objective, N.A. 0.60, W.D. 3.71mm (310-3175-PL)
• LWD Infinity Plan 60x objective, N.A. 0.70, W.D. 2.50mm (310-3178-PL)
• LWD Infinity Plan Achromat 2x objective, N.A. 0.06, W.D. 5.1mm (310-3172-PL)
• LWD Infinity Plan Phase 4x objective, N.A. 0.10, W.D. 22mm (310-3173-PH)
• LWD Infinity Plan Phase 40x objective, N.A. 0.60, W.D. 3.71mm (310-3175-PH)
• LWD Infinity Plan Fluor Phase 20x objective, N.A. 0.45, W.D. 5.91mm (310-3177-FLPH)
• LWD Infinity Plan Fluor Phase 40x objective, N.A. 0.65, W.D. 1.61mm (310-3175-FLPH)
• LWD Infinity Plan Fluor 4x objective, N.A. 0.13, W.D. 18.52mm (310-3173-FL)
• LWD Infinity Plan Fluor 10x objective, N.A. 0.30, W.D. 7.11mm (310-3174-FL)
• LWD Infinity Plan Fluor 20x objective, N.A. 0.45, W.D. 5.91mm (310-3177-FL)
• LWD Infinity Plan Fluor 40x objective, N.A. 0.65, W.D. 1.61mm (310-3175-FL)
• LWD Infinity Plan Fluor 60x objective, N.A. 0.75, W.D. 1.04mm (310-3178-FL)

Compatible Accessories

Camera Adapters & Photo Tubes

• 00-2010-35: 0.35x c-mount adapter for 1/3" chip sensors, adjustable focus
• 00-2010-50: 0.50x c-mount adapter for 1/2" chip sensors, adjustable focus
• 00-2010-65: 0.65x c-mount adapter for 2/3" chip sensors, adjustable focus
• 00-2010-1: 1.0x c-mount adapter, adjustable focus
• 00-2010-P: Photo tube, 23.2mm I.D.

Condensers & Contrast

• 310-PHS3: Pre-centered phase slider with 4x/10x and 20x/40x annuli, and brightfield/filter slot
• 25-3226: Phase centering telescope, 30mm O.D.

Stages & Holders

• 310-3213: Attachable mechanical stage, right hand coaxial control, 120 x 78mm range, with (1) auxiliary stage plate
• 310-TH: Terasaki holder / Ø65mm petri dish holder
• 310-35PD: Ø35mm petri dish holder (requires 310-TH)
• 310-54SGH: Ø54mm petri dish holder and glass slide holder
• 410-UH: Universal holder for Terasaki plate, glass slide, Ø35 to 65mm dish and hemocytometer

Filters & Fluorescence

• 350-3240-G: 45mm green filter, IF550nm
• 310-3231: Fluorescence attachment with field iris diaphragm, all mounting hardware, ND25 filter sliders, light blockers and UV shield

Applications

• Cell and tissue culture observation
• Live cell imaging
• Life science research laboratories

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
