Accu-Scope EXI-410-FL Binocular with Fluorescence Attachment Microscope

ACCU-SCOPE EXI-410-FL Binocular with Fluorescence Attachment Microscope | EXI-410-FL

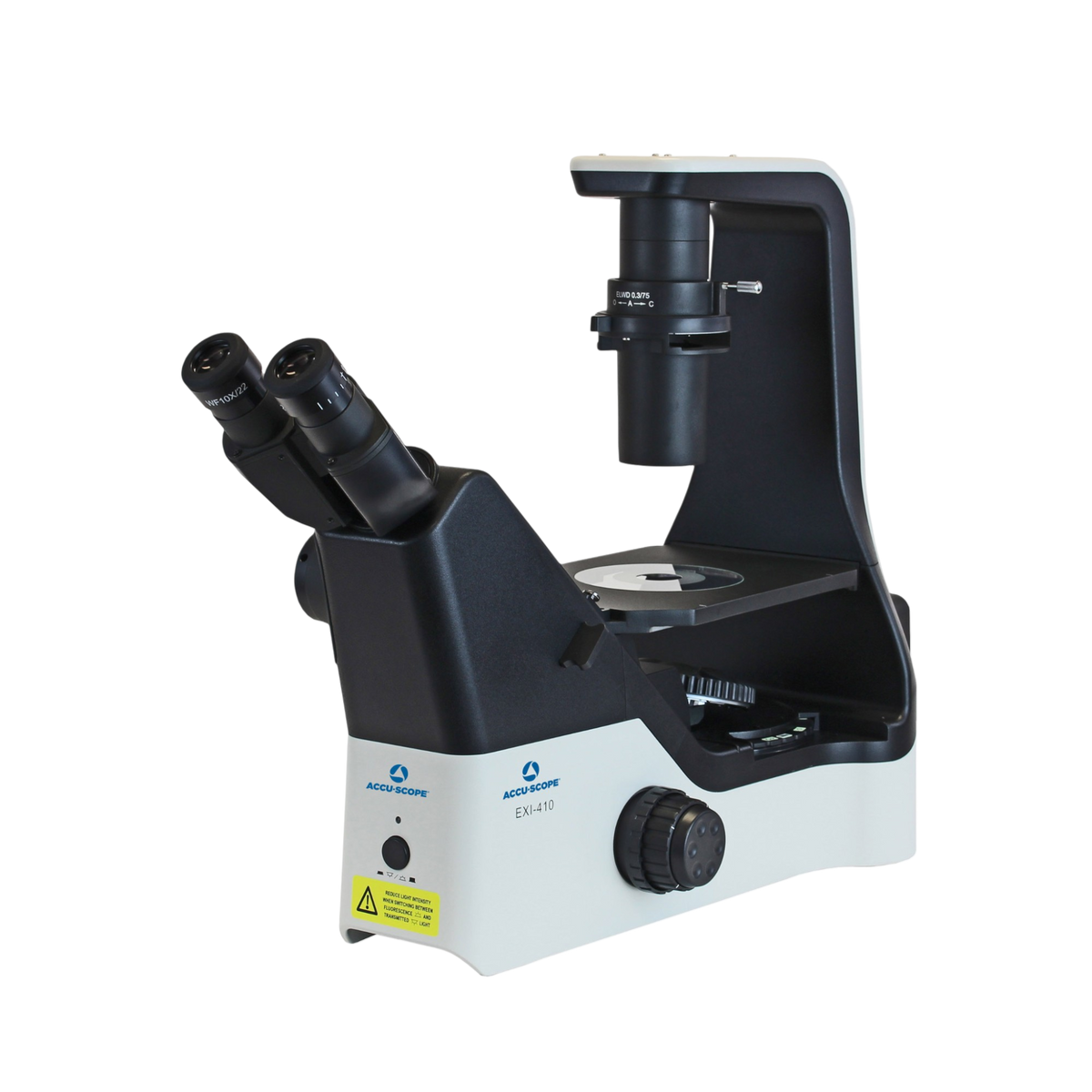

The ACCU-SCOPE Binocular with Fluorescence Attachment Microscope (EXI-410-FL) is a new microscope system from the ACCU-SCOPE EXI-410 series. It ships configured as listed below, with the manufacturer's full warranty.

Condition

New with Manufacturer Warranty

Included Items

• Binocular viewing head, inclined 45°, attachable side mounted camera port, Eyepiece/Camera Port: 100/0 or 0/100
• WF10x/22mm eyepieces with eye cushions
• Rear facing quintuple nosepiece
• Objectives not included: objectives, filter sets, LED episcopic units and contrast sliders must be ordered separately (see Compatible Objectives and Compatible Accessories below)
• Epi-fluorescence illumination configurable with up to 3 different fluorescence LED units.
• Epi-fluorescence filter turret with 3 filter cube positions
• Contrast shield for enhanced fluorescence illumination
• Fixed plain stage, 160 x 250mm with glass insert plate
• ELWD condenser, N.A. 0.3, Working Distance = 75mm
• Variable LED diascopic illuminator
• Dust cover, power cord, Universal power supply 100 - 240v

Compatible Objectives

• LWD Infinity Plan 4x objective, N.A. 0.10, W.D. 29.3mm (410-3173-PL)
• LWD Infinity Plan Phase 10x objective, N.A. 0.25, W.D. 9.5mm (410-3174-PH)
• LWD Infinity Plan Phase 20x objective, N.A. 0.40, W.D. 12mm (410-3177-PH)
• LWD Infinity Plan Phase 40x objective, N.A. 0.60, W.D. 2.3mm (410-3175-PH)
• LWD Infinity Plan S-APO Phase 4x objective, N.A. 0.13, W.D. 16.5mm (410-3173-PHSA)
• LWD Infinity Plan S-APO Phase 10x objective, N.A. 0.30, W.D. 7.4mm (410-3174-PHSA)
• LWD Infinity Plan S-APO Phase 20x objective, N.A. 0.45, W.D. 8.0mm (410-3177-PHSA)
• LWD Infinity Plan S-APO Phase 40x objective, N.A. 0.60, W.D. 3.3mm (410-3175-PHSA)
• LWD Infinity Plan S-APO Fluor 4x objective, N.A. 0.13, W.D. 17.0mm (410-3173-FL)
• LWD Infinity Plan S-APO Fluor 10x objective, N.A. 0.30, W.D. 7.4mm (410-3174-FL)
• LWD Infinity Plan S-APO Fluor 20x objective, N.A. 0.45, W.D. 8.0mm (410-3177-FL)
• LWD Infinity Plan S-APO Fluor 40x objective, N.A. 0.60, W.D. 3.3mm (410-3175-FL)

Compatible Accessories

Camera Adapters & Photo Tubes

• 410-2010-35: 0.35x c-mount adapter for 1/3" chip sensors, adjustable focus
• 410-2010-50: 0.50x c-mount adapter for 1/2" chip sensors, adjustable focus
• 410-2010-75: 0.75x c-mount adapter for 2/3" chip sensors, adjustable focus
• 410-2010-1: 1.0x c-mount adapter, adjustable focus
• 410-MM: Monitor mount for Excelis camera screen to microscope frame (requires AU-HD-PS)
• AU-HD-PS: Auxiliary power supply for Excelis HDS camera and monitor, required with 410-MM and AU-600-HDS on EXI-410

Eyepieces & Reticles

• 500-3113: WF10x/22mm focusable eyepiece with diopter adjustment and eye cushion (each), accepts a 26.5mm reticle

Condensers & Contrast

• 410-PHS3: Pre-centered phase slider with 10x/20x and 40x annuli, brightfield and filter slot
• 410-PHS4: Pre-centered phase slider with 4x, 10x/20x and 40x annuli, brightfield
• 410-3227-C: Emboss contrast slider
• 410-3255: Contrast shield for enhanced fluorescence illumination

Stages & Holders

• 410-3213: Attachable mechanical stage, right hand coaxial control, 128 x 80mm range, with (1) auxiliary stage plate
• 410-UH: Universal holder for Terasaki plate, glass slide, Ø35 to 65mm dish and hemocytometer
• 410-TH: Terasaki holder / Ø65mm petri dish holder
• 410-35PD: Ø35mm petri dish holder (requires 410-TH)
• 410-54SGH: Ø54mm petri dish holder, hemocytometer and glass slide holder
• 410-65PD: Ø65mm petri dish holder and glass slide holder
• 410-90PD: Ø90mm petri dish holder
• 410-WC: Well clamper

LED Fluorescence Units

• 410-365-LED: 365nm LED light unit (DAPI)
• 410-395-LED: 395nm LED light unit (DAPI)
• 410-405-LED: 405nm LED light unit (DAPI)
• 410-470-LED: 470nm LED light unit (FITC/GFP)
• 410-485-LED: 485nm LED light unit (YFP)
• 410-525-LED: 525nm LED light unit (TRITC)
• 410-540-LED: 540nm LED light unit (DsRed, TRITC)
• 410-560-LED: 560nm LED light unit (Texas Red)
• 410-590-LED: 590nm LED light unit (Texas Red)
• 410-640-LED: 640nm LED light unit (Cy5)

Filters & Fluorescence

• 350-3240-G: 45mm green filter, IF550nm
• 410-39365: DAPI, Hoechst filter set (EX 350/50x, BS 400DC, EM 460/50m)
• 410-39395: DAPI, Hoechst filter set (EX 390/40x, BS 415DC, EM 460/50m)
• 410-39470: FITC/GFP filter set (EX 470/40x, BS 505DC, EM 535/50m)
• 410-39525: TRITC, Cy3, mOrange, Alexa 532 filter set (EX 525/40x, BS 560DC, EM 605/55m)
• 410-39560: tdTomato, DsRed, Alexa 568 filter set (EX 560/40x, BS 600DC, EM 630/60m)
• 410-39580: Texas Red, mCherry, Alexa 594 filter set (EX 580/40x, BS 600DC, EM 650/75m)
• 410-19001: Aqua longpass filter set (EX AT420/40x, DM AT455DC, EM AT465lp)
• 410-19011: Coumarin, Pacific Blue filter set (EX AT405/30x, DM AT440DC, EM AT450lp)
• 410-49028: DAPI filter set, ultra high performance (EX 395/25x, BS T425lpxr, EM ET460/50m)
• 410-49002: GFP, FITC filter set, ultra high performance (EX AT480/30x, BS AT505DC, EM AT535/40m)
• 410-49005: DsRed, TRITC, Cy3 filter set, ultra high performance (EX ET545/30x, BS T570lp, EM ET620/60m)
• 410-49006: Cy5 filter set, ultra high performance (EX ET620/60x, BS T660lpxr, EM ET700/75m)
• 410-49008: Texas Red filter set, ultra high performance (EX AT560/40x, BS T585lpxr, EM AT630/75m)
• 410-49023: YFP, Alexa Fluor 514, ZsEosin filter set, ultra high performance (EX ET500/40x, BS T525lpxr, EM ET560/50m)

Applications

• Cell and tissue culture observation
• Live cell imaging
• Life science research laboratories

Specifications

Manufacturer	ACCU-SCOPE
Series	EXI-410
Catalog Number	EXI-410-FL
Warranty	ACCU-SCOPE 5-year limited

Objectives, filter sets, LED Episcopic components and contrast sliders not included - must be ordered separately.

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.

Additional discounts may apply. Contact us for a quote.
