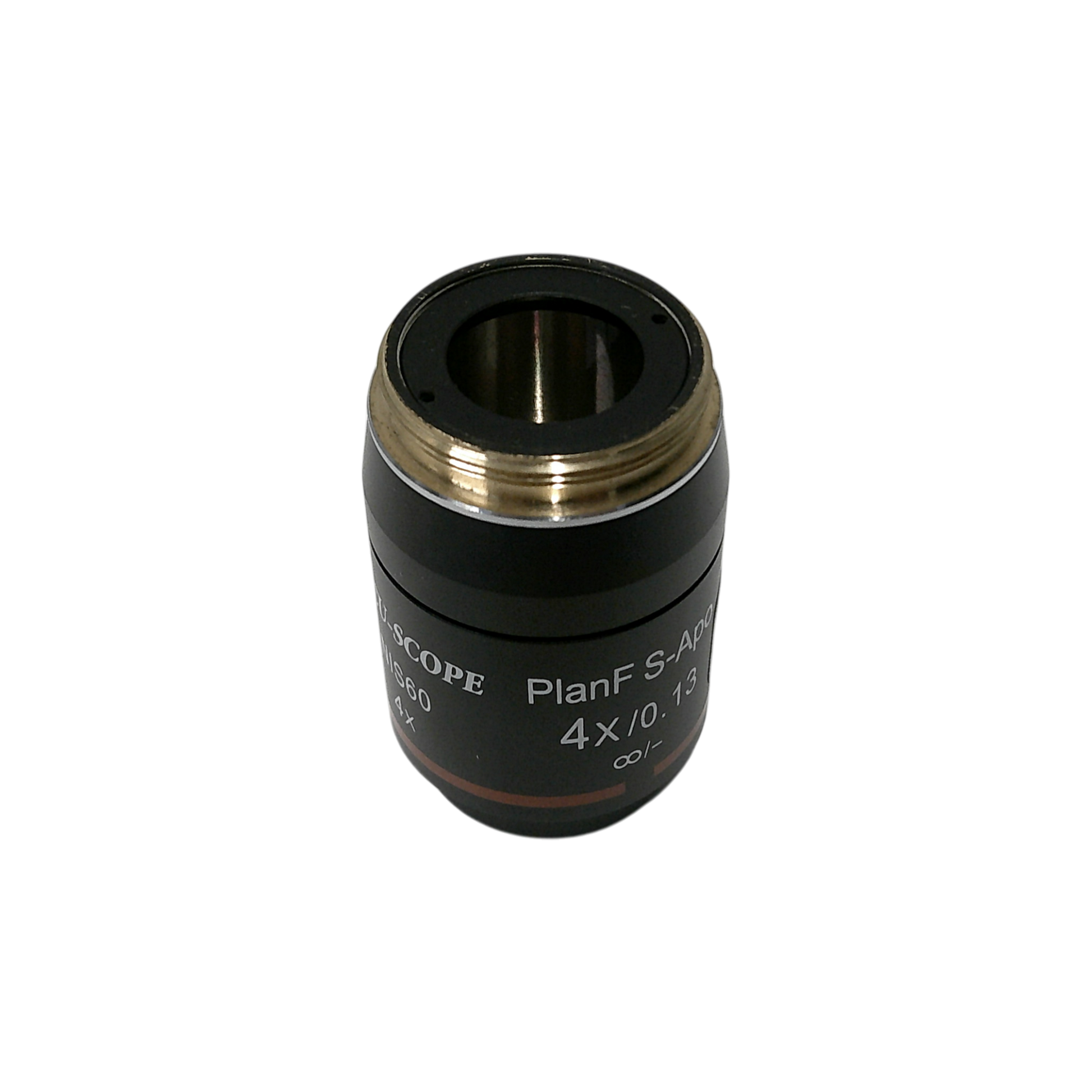

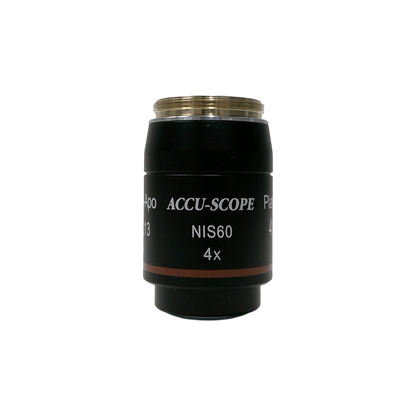

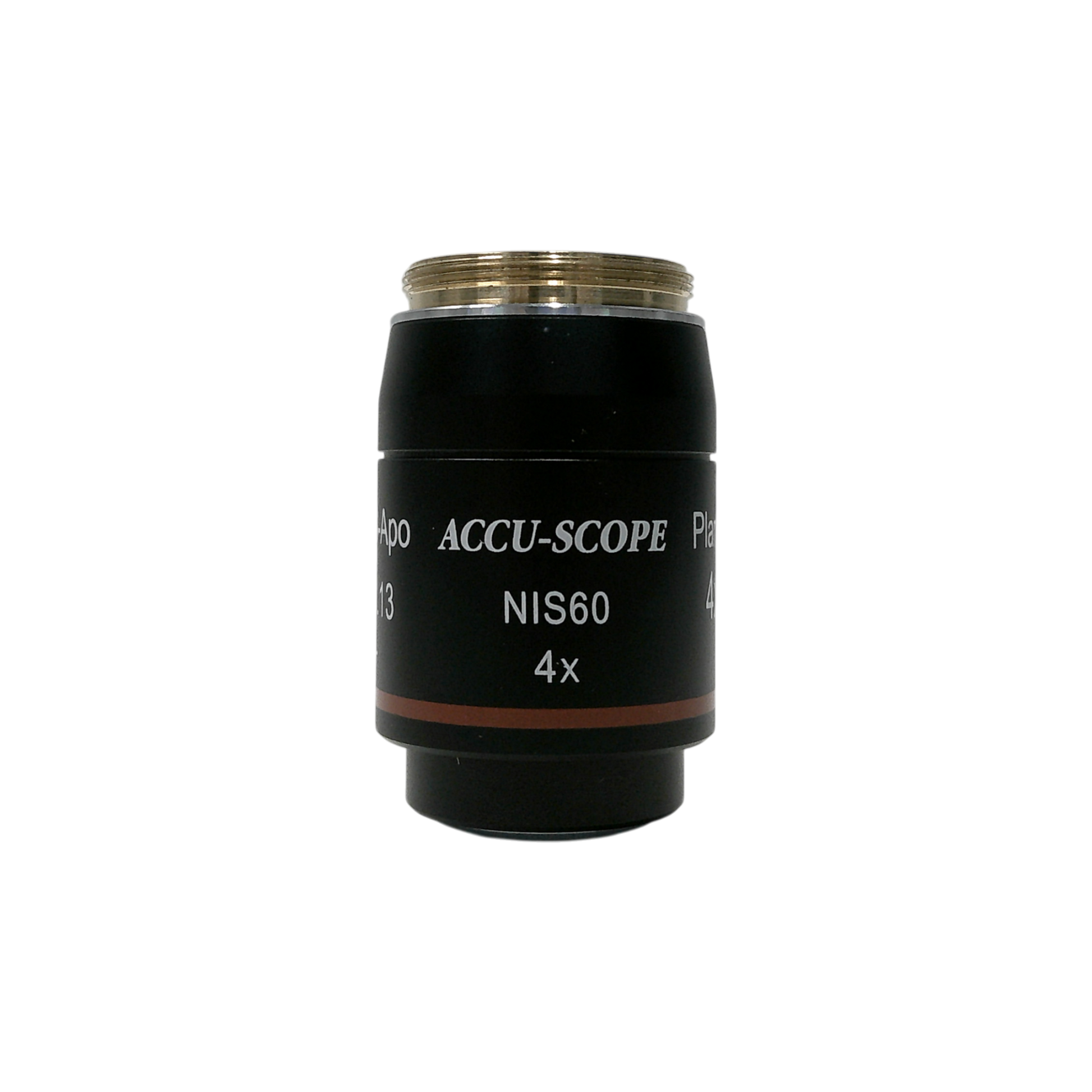

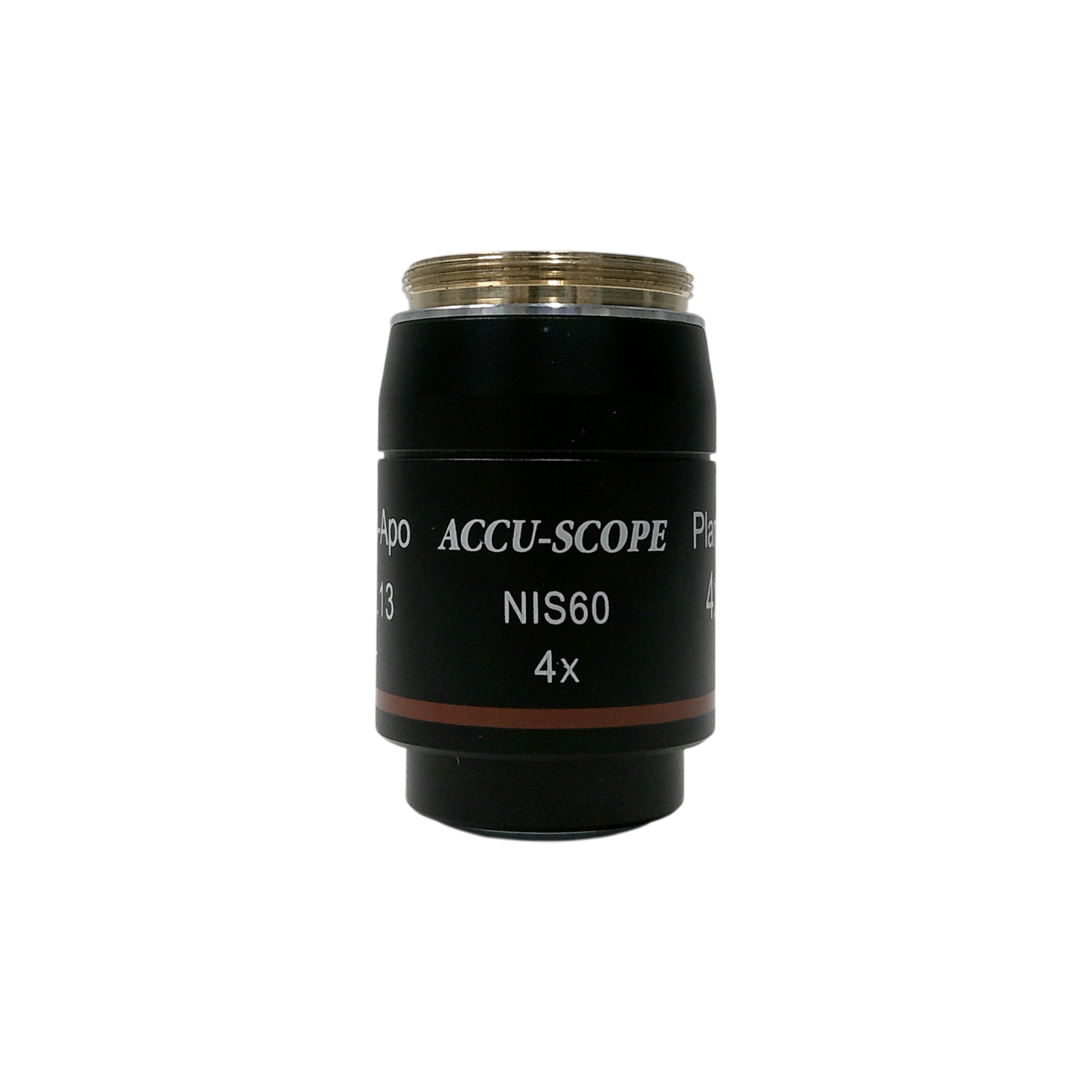

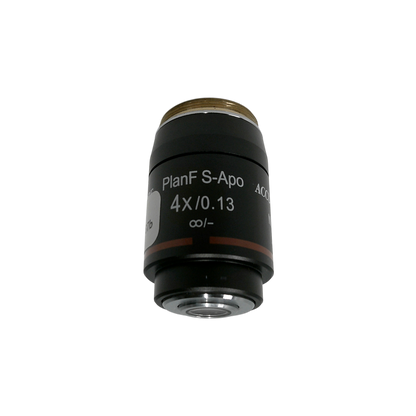

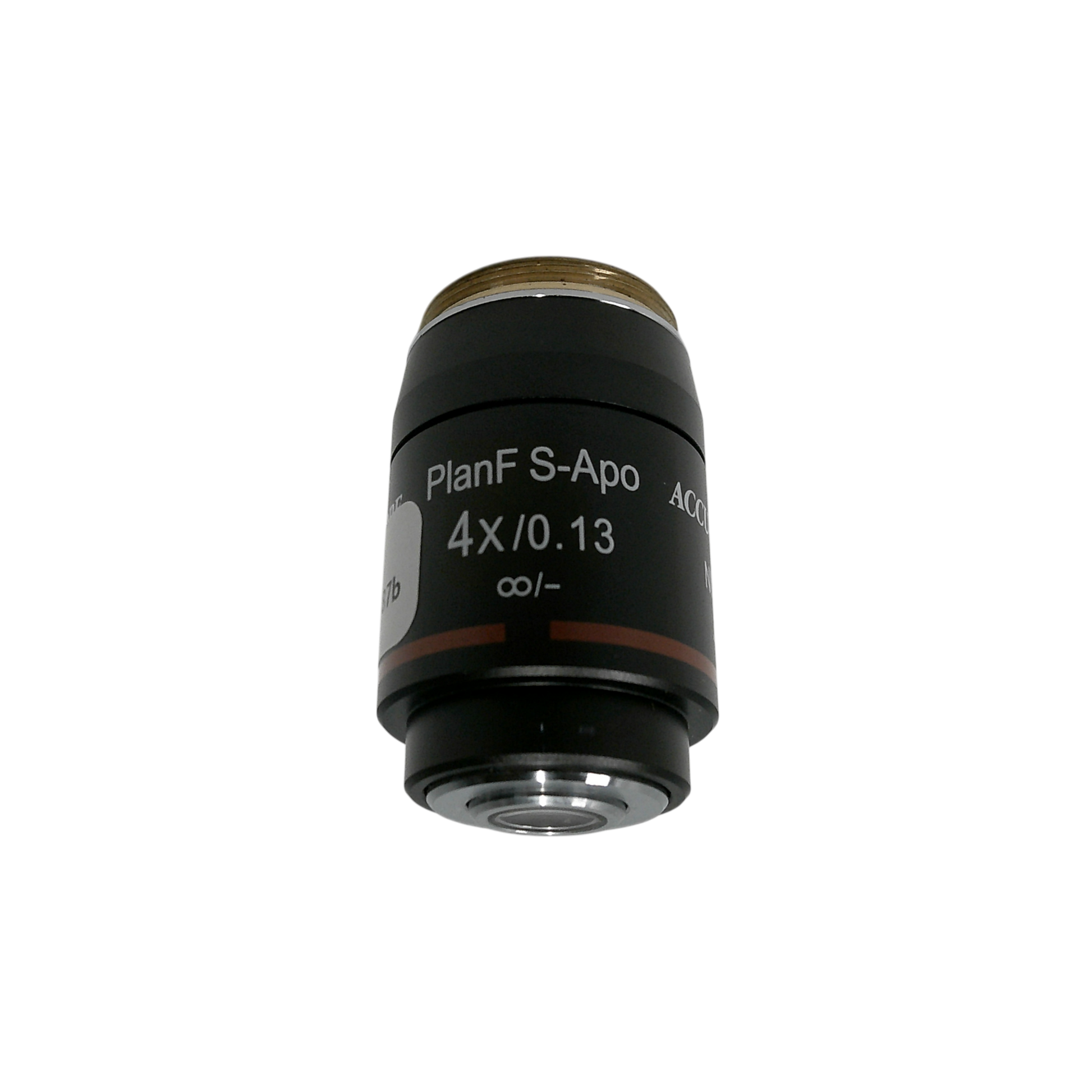

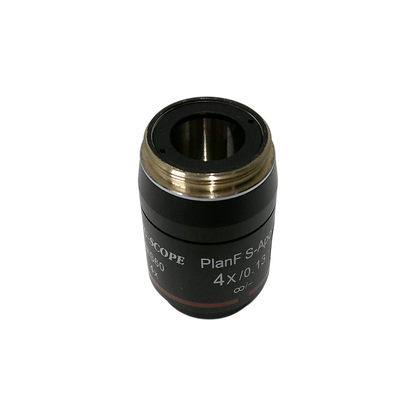

Accu-Scope PlanF S-Apo 4x/0.13 NIS60 M25 Thread Size Microscope Objective
Accu-Scope PlanF S-Apo 4x/0.13 NIS60 M25 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Accu-Scope PlanF S-Apo 4x/0.13 NIS60 M25 Thread Size (Used)
The Accu-Scope PlanF S-Apo 4x/0.13 is a high-quality super apochromatic (S-Apo) objective designed for fluorescence, brightfield, and high-precision microscopy applications. With a numerical aperture (NA) of 0.13, this objective delivers excellent chromatic aberration correction, superior contrast, and flat-field imaging. The NIS60 optical system and M25 thread size ensure compatibility with Accu-Scope and Nikon Eclipse series microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Accu-Scope PlanF S-Apo 4x/0.13 Objective
Key Features
- 4x magnification for wide-field, low-magnification imaging
- Super Apochromatic (S-Apo) optics for superior color correction and high contrast
- Numerical aperture (NA) of 0.13 for enhanced light transmission
- Flat field correction for sharp images across the entire field of view
- NIS60 optical system for enhanced imaging performance
- M25 thread size for compatibility with Accu-Scope and Nikon Eclipse series microscopes
Applications
- Fluorescence microscopy
- Brightfield microscopy
- Whole-slide imaging
- Low-magnification pathology and histology imaging
- Biological and clinical research
Specifications
| Specification | Details |
|---|---|
| Magnification | 4x |
| Numerical Aperture (NA) | 0.13 |
| Working Distance | ~17.2 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Super Apochromatic (S-Apo) – High Contrast, Chromatic Aberration Correction |
| Optical System | NIS60 |
| Thread Size | M25 (25mm thread diameter) |
| Parfocal Distance | 60 mm |
| Compatible Microscopes | Accu-Scope, Nikon Eclipse series, and other NIS60 M25-compatible models |
| Special Features | High transmission coatings for fluorescence and low-magnification imaging |
Additional Details
Additional Details
- Manufacturer: Accu-Scope
- Model: PlanF S-Apo 4x/0.13 NIS60 M25 Thread Size
- Catalog Number: 12387b
- Serial Number: N/A
- Condition: Seller Refurbished
