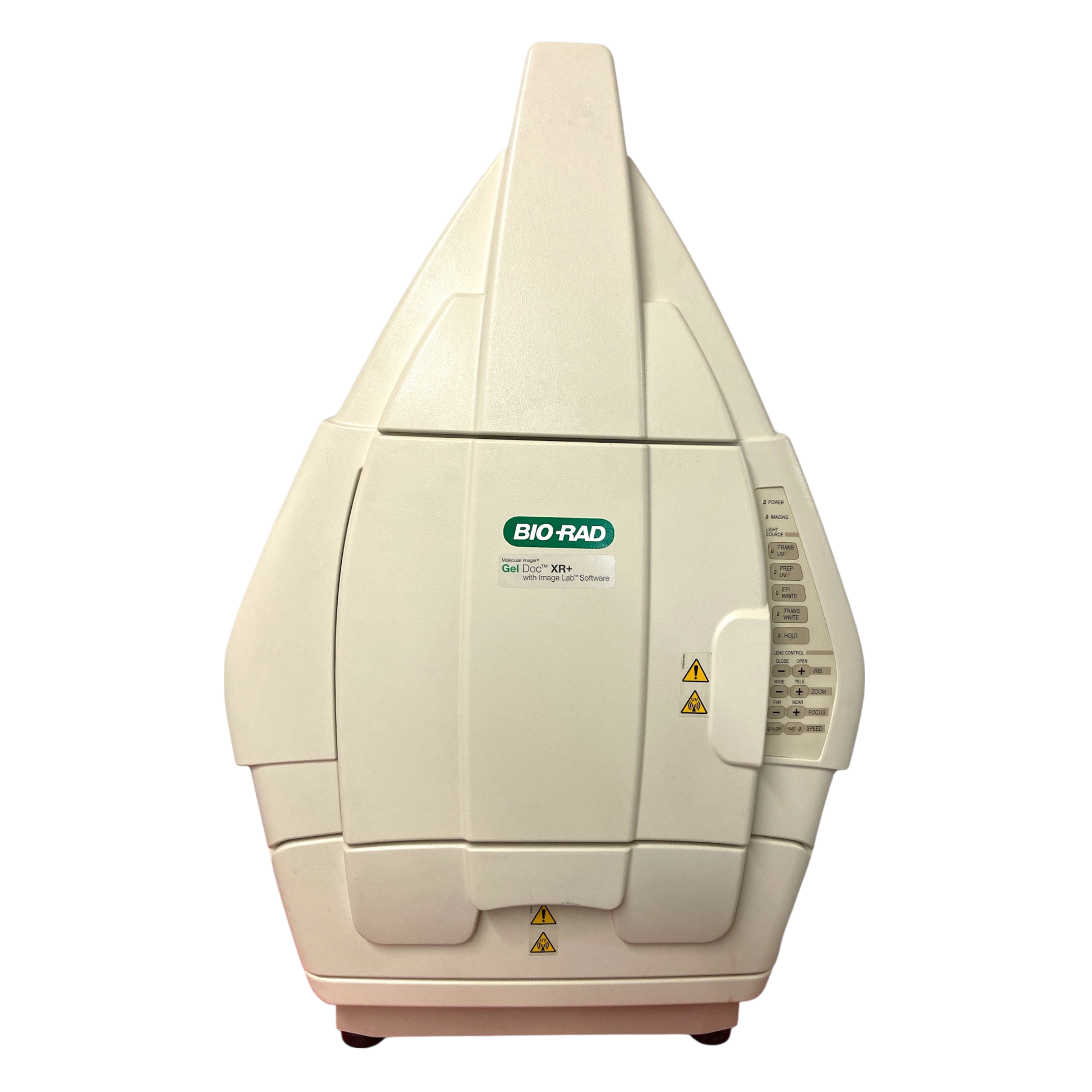

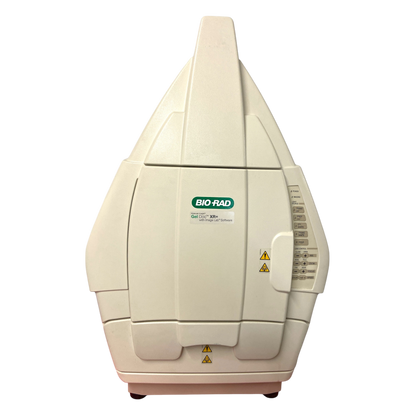

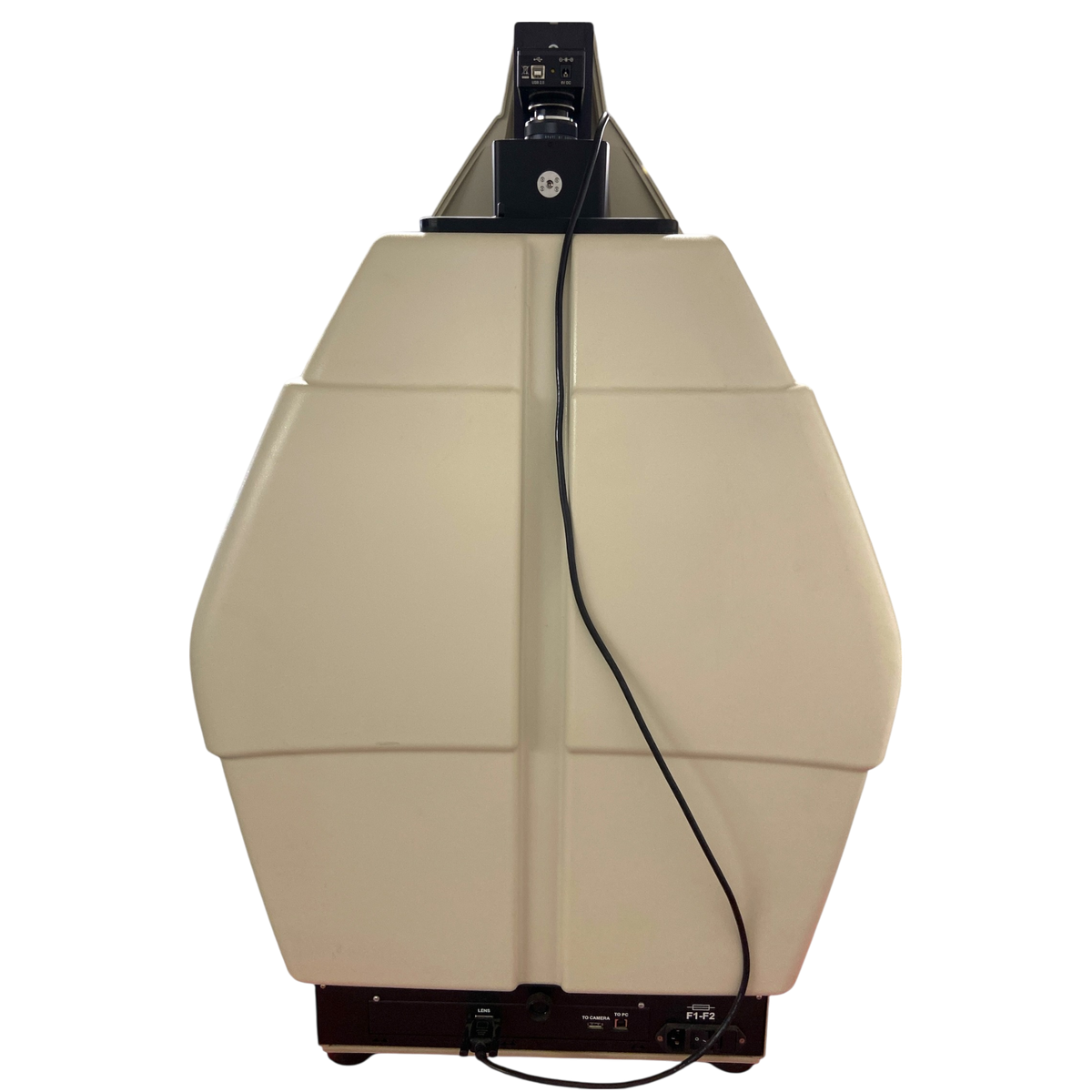

Bio-Rad GelDoc XR+ Imager

Bio-Rad GelDoc XR+ Imager

The Gel Doc XR+ System is based on CCD high-resolution, high-sensitivity detection technology and modular options to accommodate a wide range of samples and support multiple detection methods including fluorescence and colorimetric detection. The Gel Doc XR+ System is controlled by Image Lab Software to optimize imager performance for fast, integrated, and automated image capture and analysis of various samples.

The system accommodates a wide array of samples, from large handcast polyacrylamide gels to small ReadyAgarose Gels and various blots. The system is an ideal accompaniment to PCR, purification, and electrophoresis systems, enabling image analysis and documentation of restriction digests, amplified nucleic acids, genetic fingerprinting, RFLPs, and protein purification and characterization.

Features and Benefits of the Gel Doc XR+ System

  • Gel and blot imaging and analysis are quick and accurate
  • Automated, hands-off routines; no training is required
  • Save and recall all the steps in the workflow for repeatable and reproducible results
  • Optimize the system at setup for image data that is always accurate, reproducible, and free of imaging artifacts
  • Wide range of applications with special accessories to preserve sample integrity for downstream research while ensuring user safety
  • Comprehensive, automated quantitative analysis of protein and DNA samples in seconds
  • Customize and organize data in reports
  • Obtain publication-quality results quickly
  • The Gel Doc XR+ System optimizes reproducibility and reliability of experimental data, enabling quantitative comparisons between different experiments. Using proprietary algorithms, this imaging system is calibrated at setup to ensure:



Includes:

  • Chemidoc XR+ Imaging System
  • Computer Loaded w/ Imagelab Software
  • Monitor, Keyboard, Mouse

Applications:

  • Chemiluminescence: No
  • Gel Documentation: Yes
  • UV Fluorescence: Yes

Hardware Specifications:

  • Maximum sample size: 28 x 36 cm
  • Maximum image area: 19.4 x 26 cm
  • Excitation source: Epi-white light and trans-UV (302 nm) are standard (optional 365 nm lamp available); optional trans-white conversion screen and XcitaBlue™ UV/blue conversion screen available
  • Illumination control: 3 modes (trans-UV, trans white, epi-white)
  • Detector: CCD
  • Image resolution: 4 megapixels
  • Pixel size (H x V): 4.65 x 4.65 µm
  • Filter holder: 3 positions (2 for filters, 1 without filter)
  • Emission filters: 1 included (standard), 3 optional
  • Dynamic range: >3.0 orders of magnitude
  • Pixel density (gray levels): 4,096
  • Dynamic flat fielding: Application specific, for all applications
  • Instrument size (L x W x H): 36 x 60 x 96 cm
  • Instrument weight: 32 kg

Operating Ranges:

  • Operating voltage: 110/115/230 V AC nominal
  • Operating temperature: 10–28°C (21°C recommended)
  • Operating humidity: <70% noncondensing

Automation Capabilities:

  • Workflow automated selection: Application driven; user selected or recalled by a protocol
  • Workflow automated execution: Controlled by a protocol via application specific setup for image area, illumination source, filter, analysis, and reporting
  • Workflow reproducibility: 100% repeatability via recallable protocols; from image capture to quantitative analysis and reports
  • Autofocus (patent pending): Precalibrated focus for any zoom setting or sample height
  • Image flat fielding: Dynamic; precalibrated and optimized per application
  • Autoexposure: 2 user-defined modes (intense or faint bands)



Images are in focus at all times, regardless of zoom level or sample position

 Appropriate flat fielding correction is automatically and consistently applied to image data for every application

 Imaging artifacts are automatically corrected

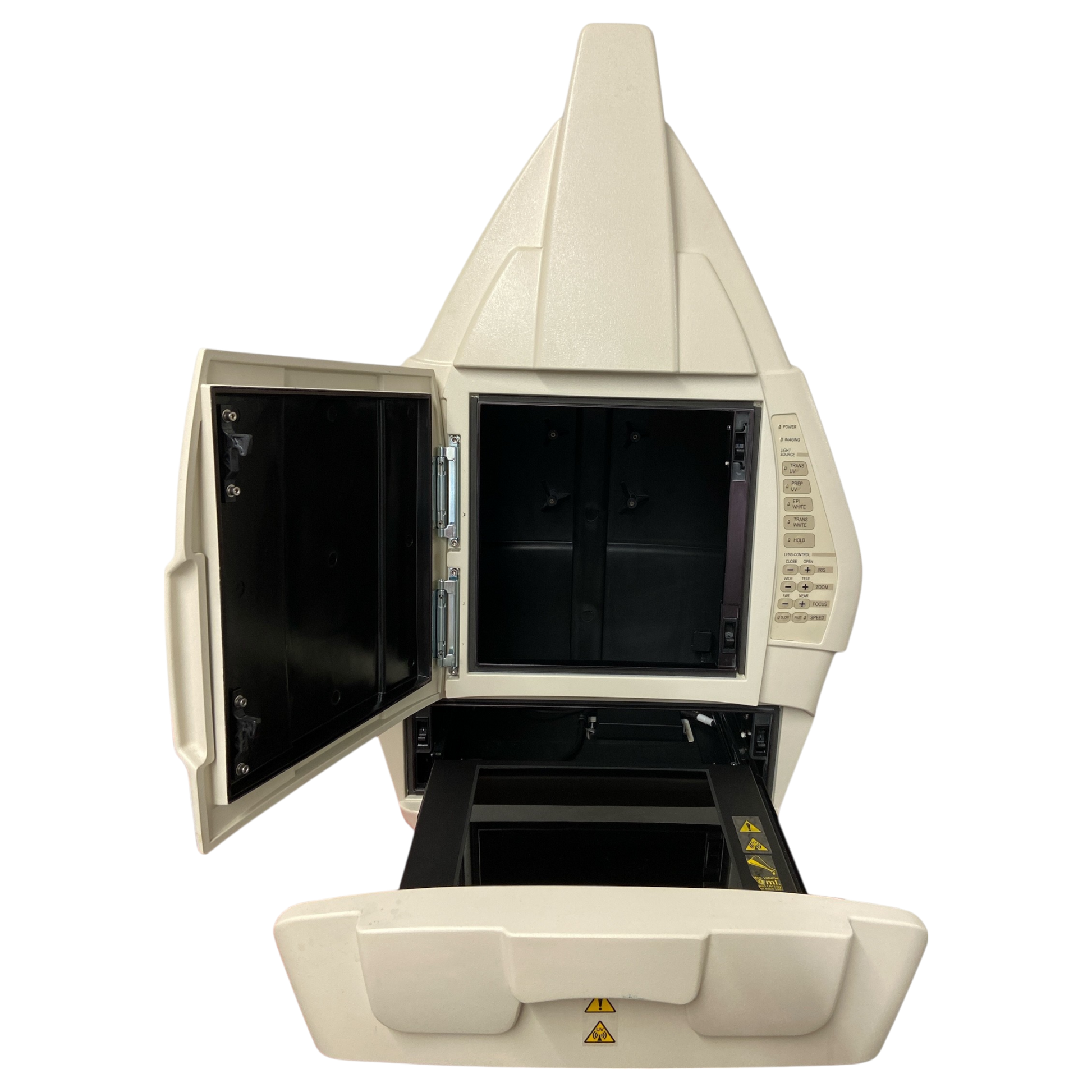

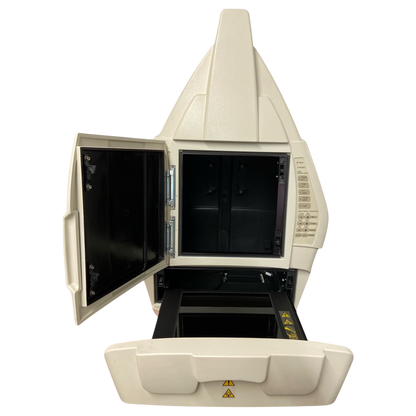

 The Gel Doc XR+ System enables quick and easy visualization, documentation, and analysis of nucleic acid and protein gels, blots, and macroarrays with a few clicks of the mouse. The system supports fluorescence and colorimetric detection methods. The Gel Doc XR+ System consists of a darkroom hood, CCD camera and software-controlled motorized lens, UV and white light illuminators, filter slider with standard filter, and UV-protection shield. The system enables you to:

Increase cloning efficiency and protein production by protecting DNA electrophoresis samples from UV exposure using the XcitaBlue conversion screen and blue light excitable stains such as GelGreen, SYBR Safe, and SYBR Green I

 Maintain standard operating procedures or criteria for sample performance as there is no loss in sensitivity compared to UV and ethidium bromide staining

 For imaging SYBR Safe DNA applications, you may use the UV transilluminator or the optional XcitaBlue kit. The XcitaBlue (UV to blue conversion screen) protects samples from UV damage and also allows you to externally visualize DNA samples without a UV shield

Additional Details

  • Manufacturer: Bio-Rad
  • Model: GelDoc XR+
  • Catalog Number: N/A

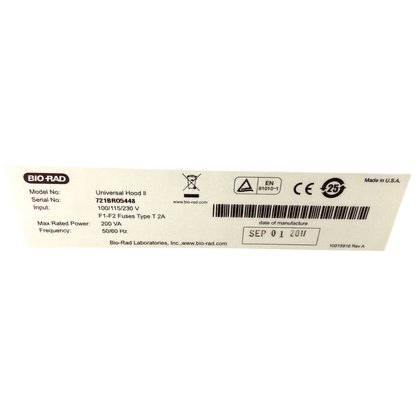

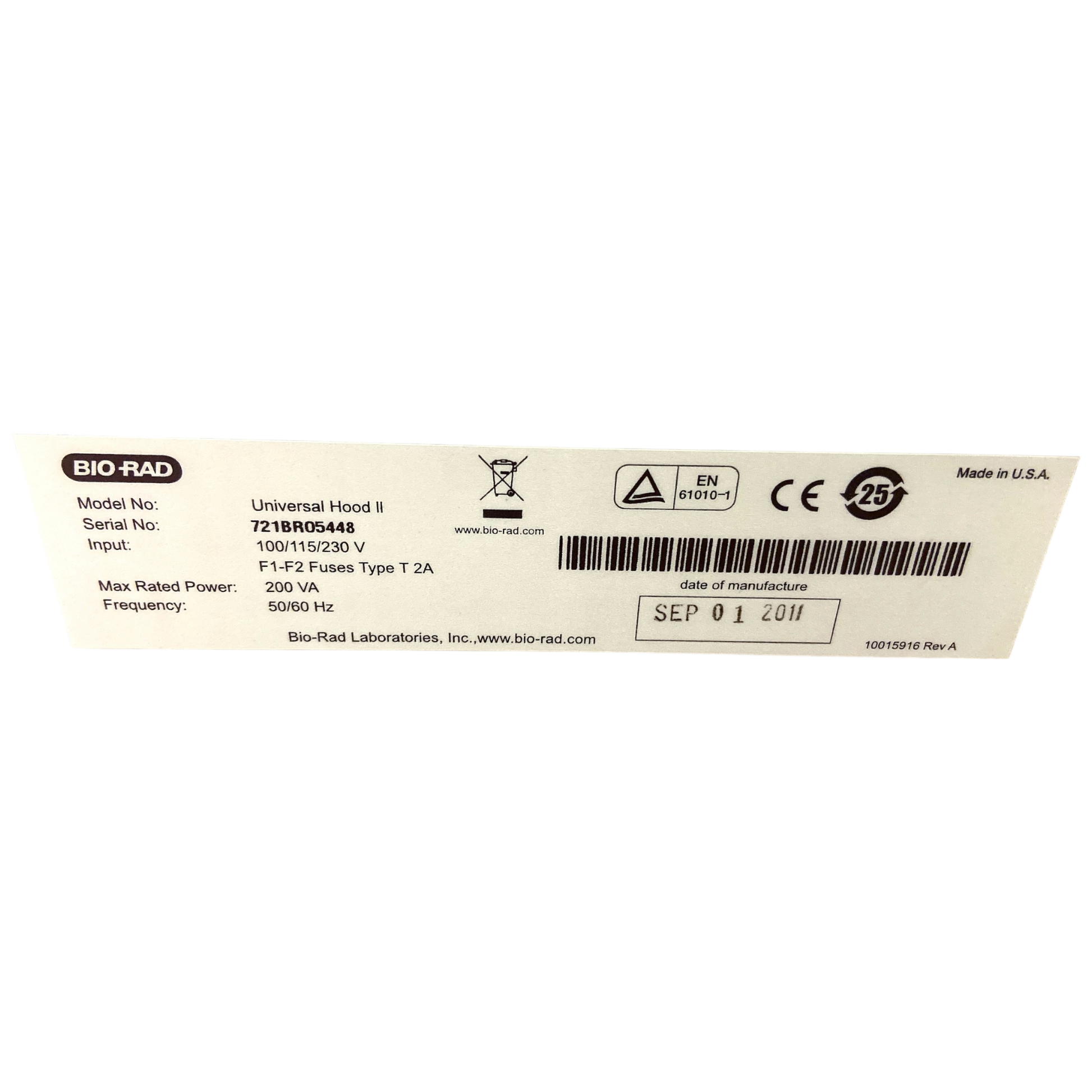

  • Serial Number: 721BR05448
  • Condition: Used
