SKU: PRODUCT ID:DeepSIMXlight
Crest Optics Deep SIM Super Resolution w/ X-light V3 Confocal Confocal.
Crest Optics Deep SIM Super Resolution w/ X-light V3 Confocal Confocal.
Couldn't load pickup availability

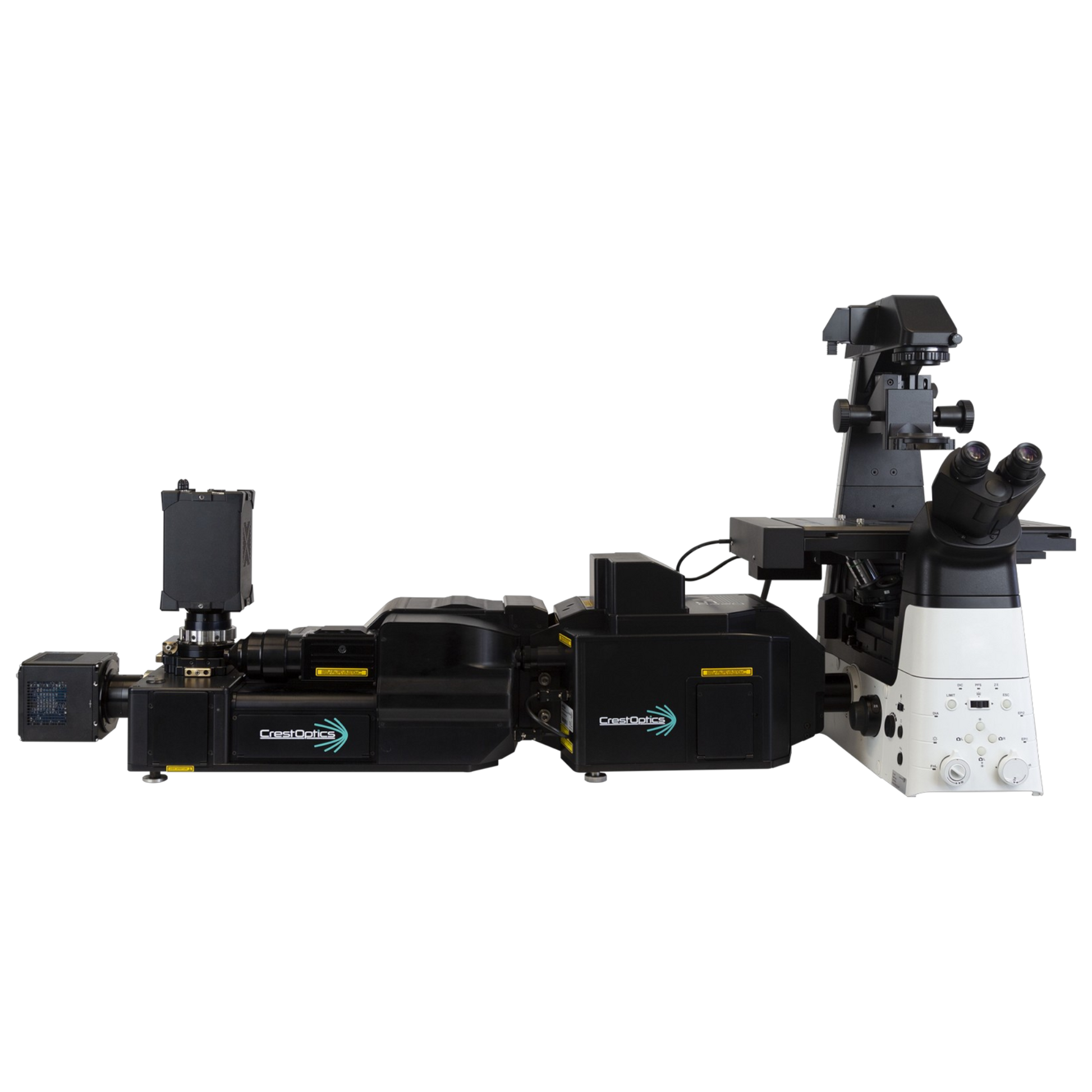

CrestOptics DeepSIM Super-Resolution with X-Light V3 Confocal System (S80002 + 800103-25HTE30)
The CrestOptics DeepSIM Super-Resolution system, combined with the X-Light V3 spinning disk confocal unit, offers a versatile imaging solution that integrates widefield, confocal, and super-resolution modalities. This system achieves lateral resolution down to ~100 nm and axial resolution of ~300 nm, enabling detailed visualization of subcellular structures in both live and fixed samples. Its high-speed imaging with minimal phototoxicity makes it ideal for demanding research applications.
Condition
New with Manufacturer Warranty
Included Items
- CrestOptics DeepSIM Super-Resolution Module (S80002)
- CrestOptics X-Light V3 Spinning Disk Confocal Unit (800103-25HTE30)
- Structured Illumination Optics
- Motorized Filter Wheels and Sliders
- Control and Acquisition Software
- Power Supply and Cables
- User Manual and Documentation
Key Features
- Multi-Modal Imaging: Combines widefield, spinning disk confocal, and structured illumination (SIM) in one system.
- Super-Resolution: Achieves ~100 nm lateral and ~300 nm axial resolution using DeepSIM technology.
- High-Speed Imaging: DeepSIM captures at 13 fps (1024x1024); X-Light V3 operates at 15,000 RPM for fast confocal scans.
- Large Field of View: Supports up to 25 mm diagonal FOV for high-throughput and large-area imaging.
- Dual-Camera Support: Enables simultaneous multichannel acquisition to streamline complex experiments.
- Broad Wavelength Support: Excitation 400–750 nm, emission 400–850 nm for compatibility with common fluorophores.
- Modular Integration: Compatible with major inverted research-grade microscopes.
- Software Control: Operates via μManager, VisiView®, and NIS Elements platforms.
Applications
- Live-Cell Imaging
- Super-Resolution Fluorescence Microscopy

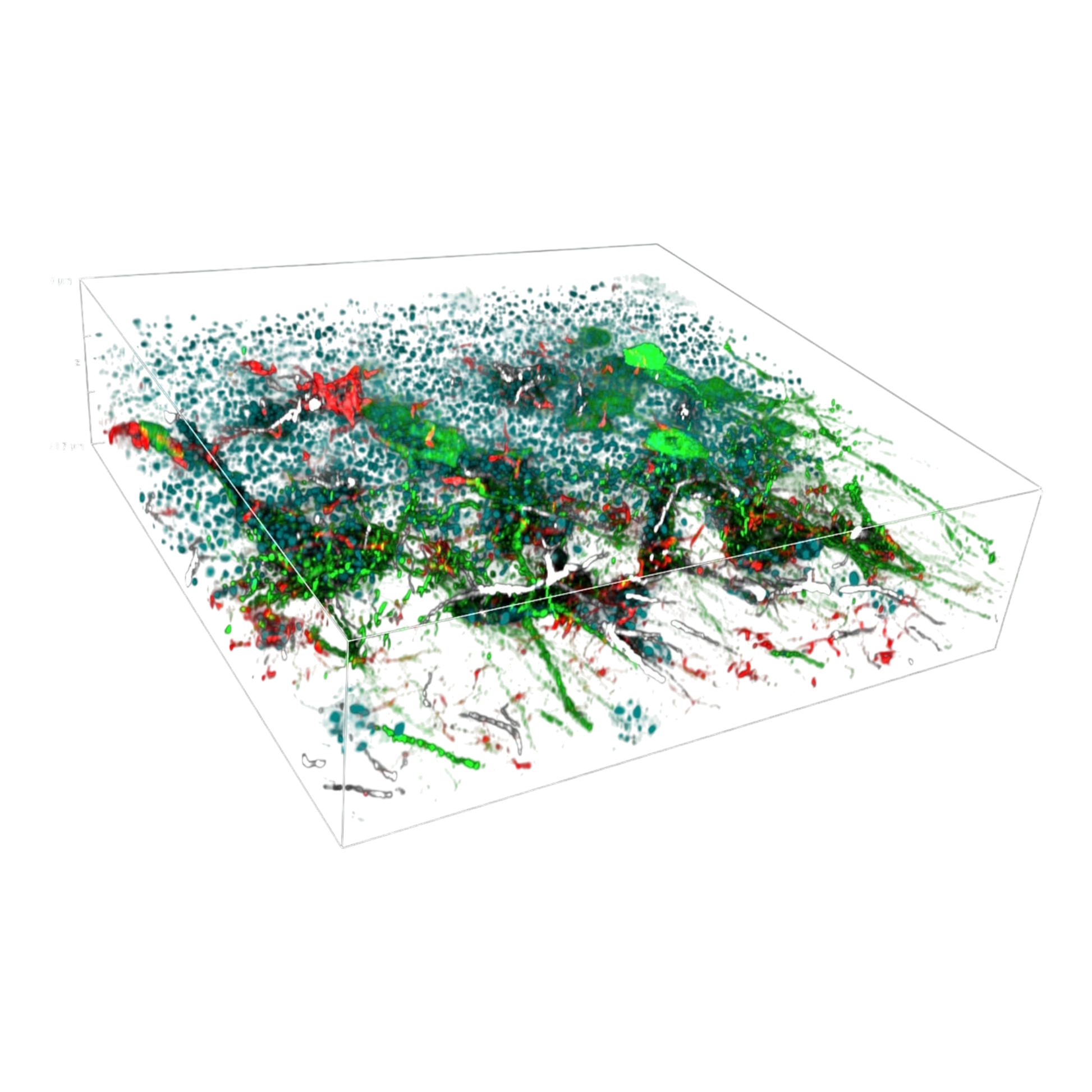

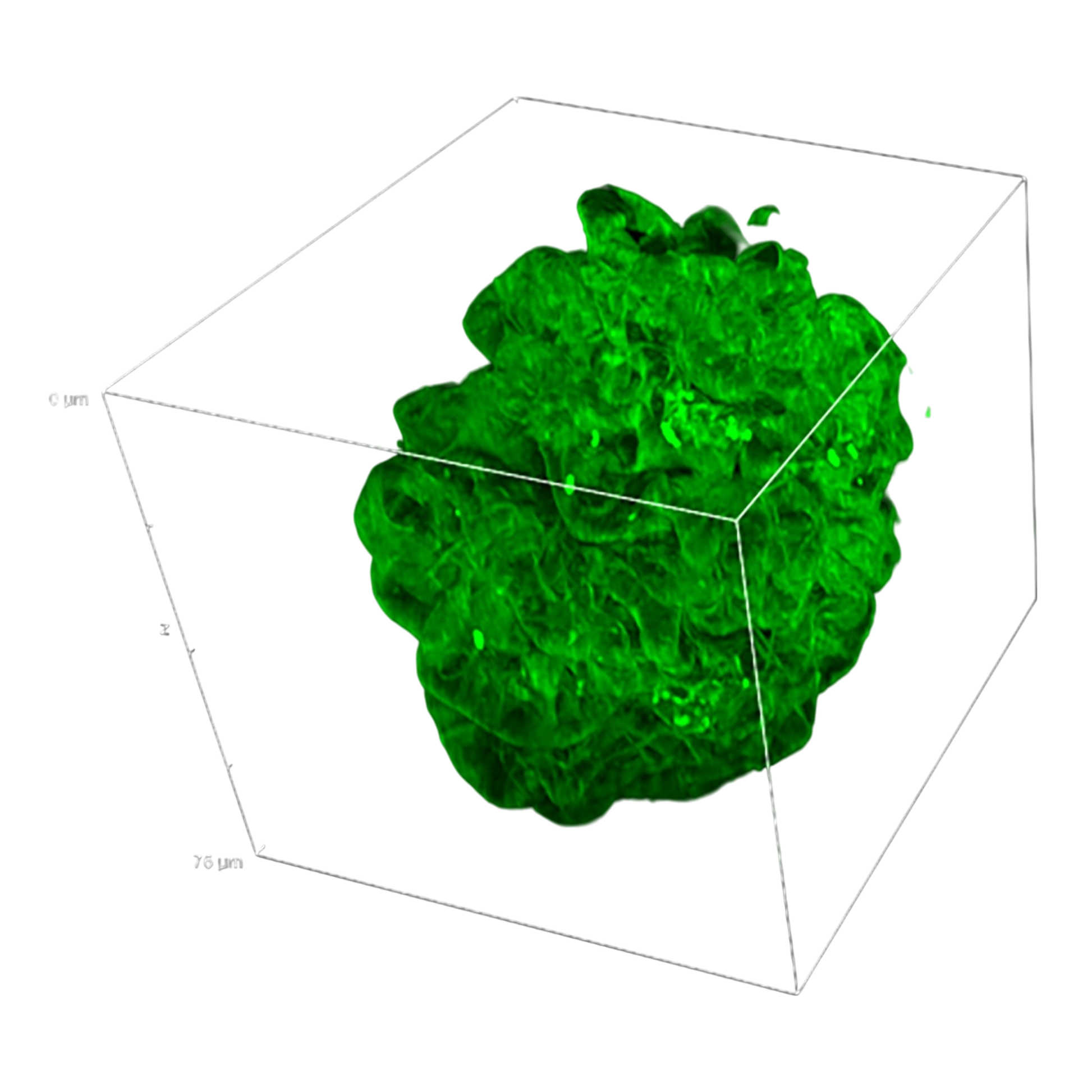

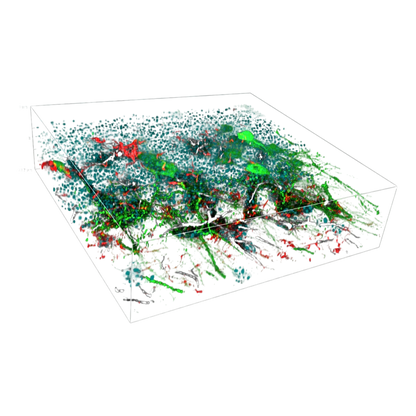

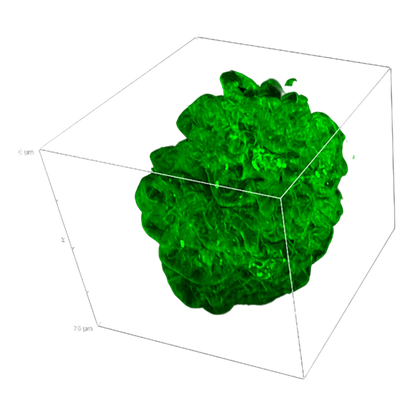

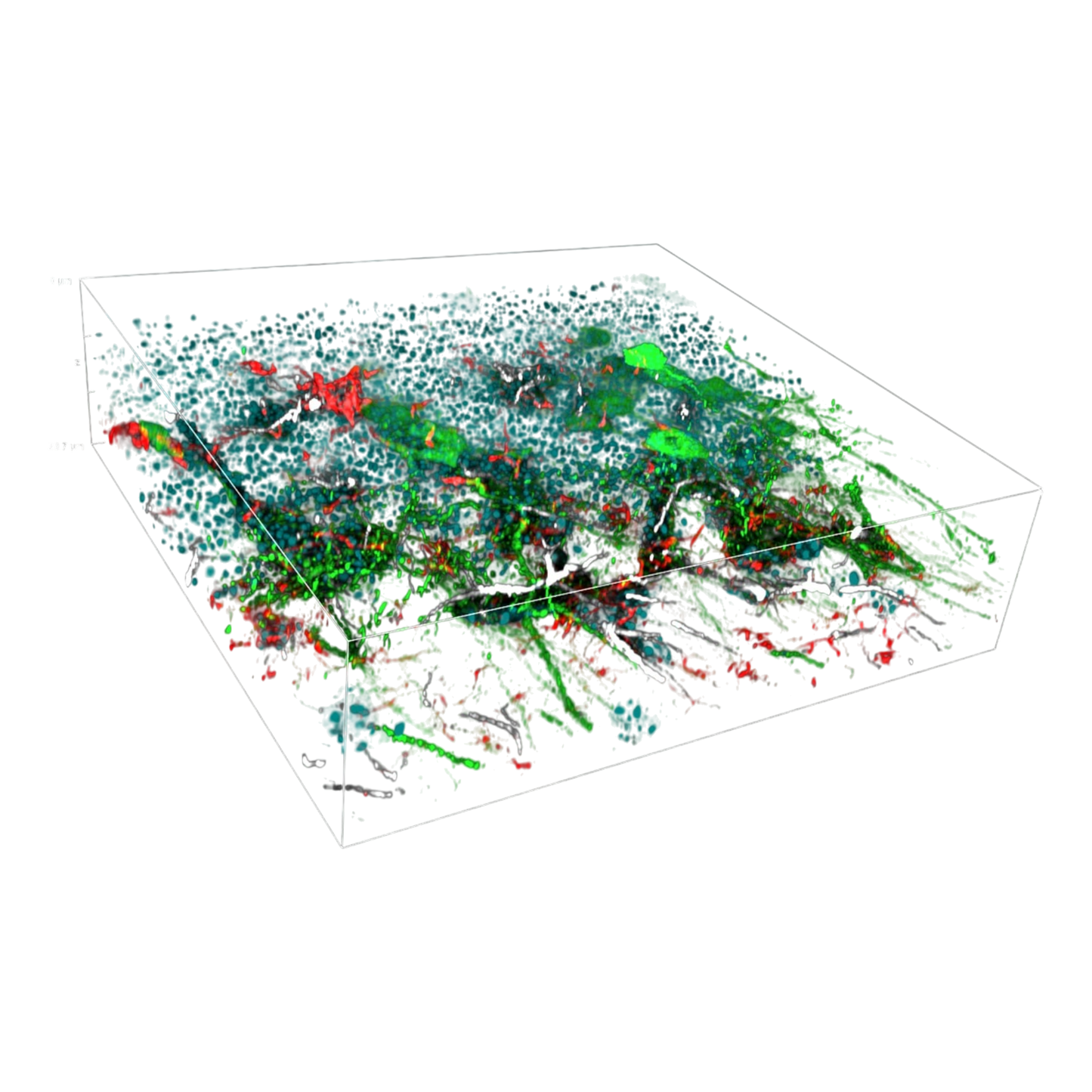

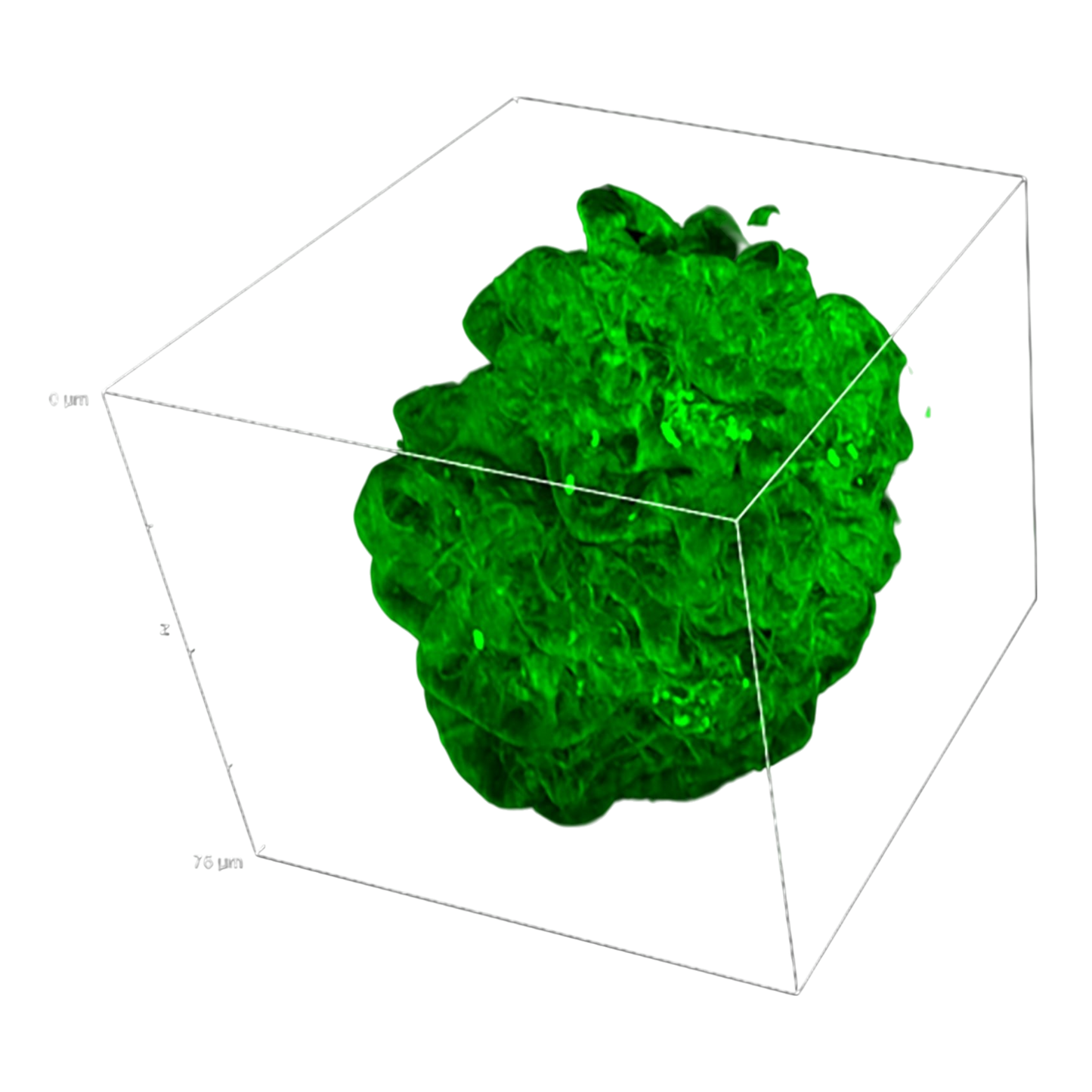

- 3D Tissue Imaging
- Neuroscience and Cell Biology
- Developmental Biology
- Drug Discovery and Pharmacology
- High-Throughput Screening
- Single-Molecule Imaging
Specifications
| Specification | Details |
|---|---|
| Imaging Techniques | Widefield, Spinning Disk Confocal, Structured Illumination Microscopy (SIM) |
| Lateral Resolution | ~100 nm |
| Axial Resolution | ~300 nm |
| Acquisition Speed | DeepSIM: 13 fps (1024x1024); X-Light V3: 15,000 RPM |
| Field of View | Up to 25 mm diagonal |
| Excitation Wavelength | 400–750 nm |
| Emission Wavelength | 400–850 nm |
| Objective Compatibility | 20X–100X magnification, high NA |
| Camera Compatibility | CCD, EMCCD, sCMOS |
| Filter Wheels | Motorized 4-position excitation, 3-position dichroic, 8-position emission |
| Software Compatibility | μManager, VisiView®, NIS Elements |
| Dimensions (W x L x H) | 356 x 435 x 290.5 mm |
| Weight | 20 kg |
| Operating Temperature | 23 ± 5°C |
| Operating Humidity | ≤70% RH (non-condensing) |
Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
Additional Details
Additional Details
- Manufacturer: Crest Optics
- Model: Deep SIM w/ X-Light Super Resolution
- Catalog Number: DeepSIMXlight
- Serial Number: N/A
- Condition: New
