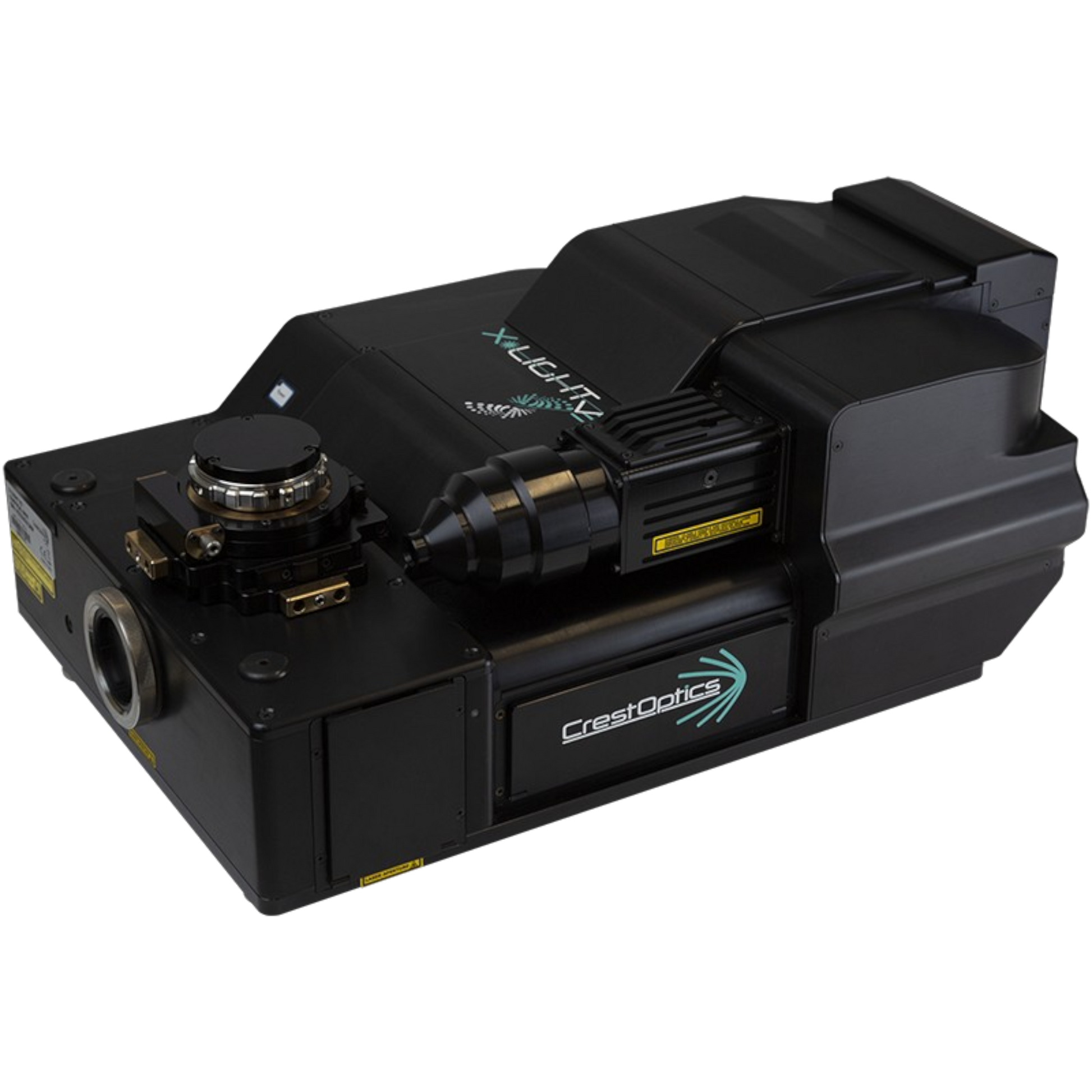

Crest Optics X-Light V3 Spinning Disk Confocal Confocal
Crest Optics X-Light V3 Spinning Disk Confocal Confocal

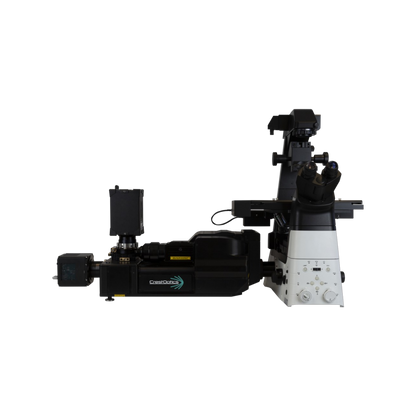

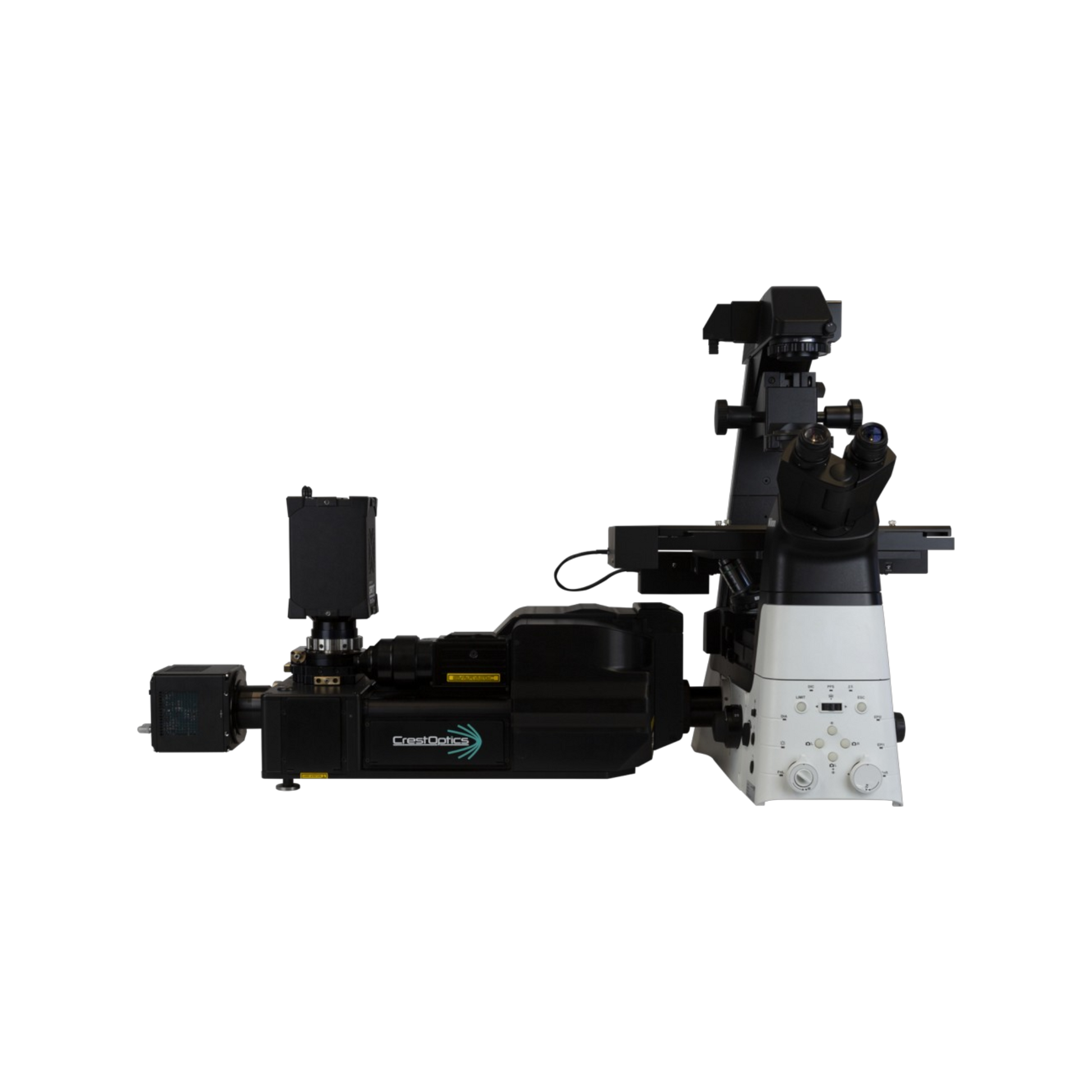

X-Light V3 is the next generation of X-Light spinning disk confocal series.
It relies on the cutting-edge technology, advanced optical design approach and engineering solutions developed by CrestOptics to meet the very high-end specifications required by most of the modern fluorescence microscopy applications.
The spinning disk design together with the careful design of the optical layout enhances sensitivity and image clarity.
The first confocal unit which allows dual camera imaging at the full field of view of 25mm on both cameras.
Technical Features:
- Spectral range (confocal/widefield): 400-750nm
- Fully automated experiments

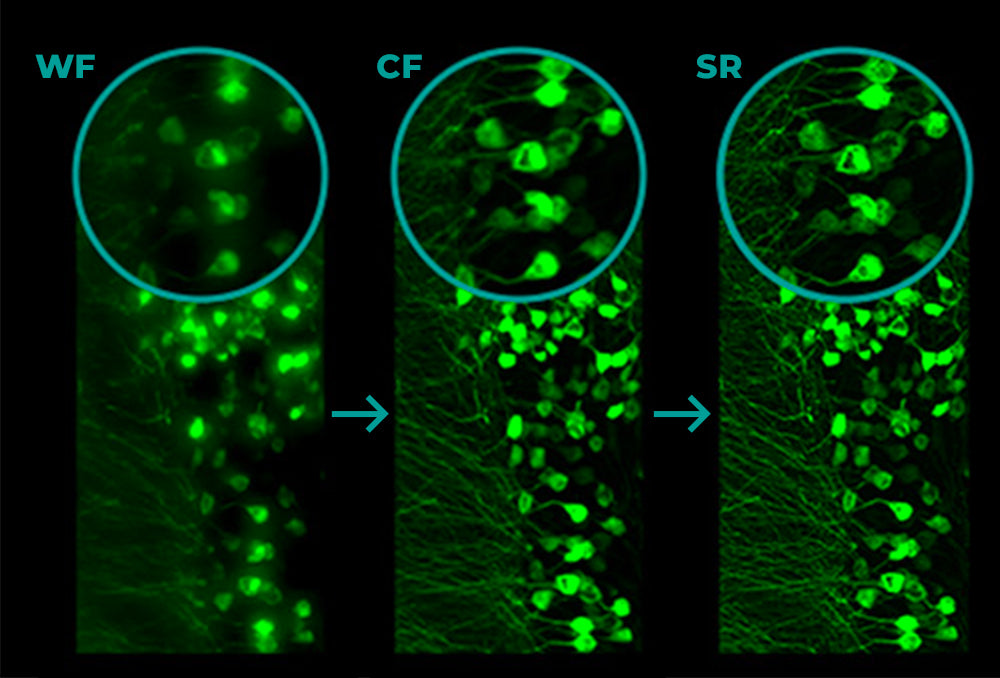

- Software controlled bypass mode: widefield to confocal
- The fastest spinning disk in the market: 15.000 rpm rotation speed, up to kHz range
- Choose your disk: 50um pinholes in two different versions based on different pinole spacing
- Choose your disk: unique continuous spiral disk makes it faster for high-speed applications
- User inspired: customize pinhole size and geometry on request
- Exchangeable, synchronized and sealed: the disk box is one of the most versatile features of the new V3. Dust protection and synchronization signals out to the camera make it reliable and faster.
- Lateral Resolution (FWHM): ~230 nm (High NA 1.4) diffraction limited
- Axial Resolution (FWHM): ~600 nm (High NA 1.4)
- High Confocal Quality: this advanced new series brings in a redesigned optical layout optimized to enhance sensitivity and signal-to-noise ratio in any dim and bright conditions
- Ultra-large field of view imaging: maximum 25 mm
- Dual-camera view: simultaneous dual-camera view up to 25 mm each camera
- Software controlled filter cubes: 3 positions for simultaneous dual-color imaging
- Illumination uniformity: microlenses based for high uniformity across the full field of view
- Illumination FOV: different options to match different camera sizes and enhance efficiency
- Illumination shaping: preserve your sample. Motorized aperture to cut illumination in the region surrounding the region of interest
- Software controlled filter wheels: 4-positions automated cleanup filter wheel, 3-positions automated dichroic filter wheel, 8-positions automated emission filter wheel
Additional Details
Additional Details
- Manufacturer: Crest Optics
- Model Name: X-Light V3 Spinning Disk Confocal
- Model Number:
- Product ID: Crest V3
