Excelitas X-Cite TETREM (365nm) w/ SD, 1.5m LLG Microscope Illuminator

Excelitas X-Cite TETREM XT640L 385 nm with smartDIAL and 1.5m LLG | 010-00607R – Fully Equipped 4-Channel LED Fluorescence Illuminator

The Excelitas X-Cite TETREM XT640L (385 nm) is a high-performance, multi-channel LED illumination system equipped with four independently controlled LED channels—385, 475, 555, and 635 nm—covering a broad excitation range from DAPI to Cy5. This configuration includes the intuitive smartDIAL™ controller for tactile, real-time LED control and a 1.5-meter Liquid Light Guide (LLG), delivering uniform and efficient light to your microscope system. Ideal for multicolor imaging, core facilities, and microscope retrofits, this bundle offers full hardware control, precision, and convenience out of the box.

Condition

New with Manufacturer Warranty

Included Items

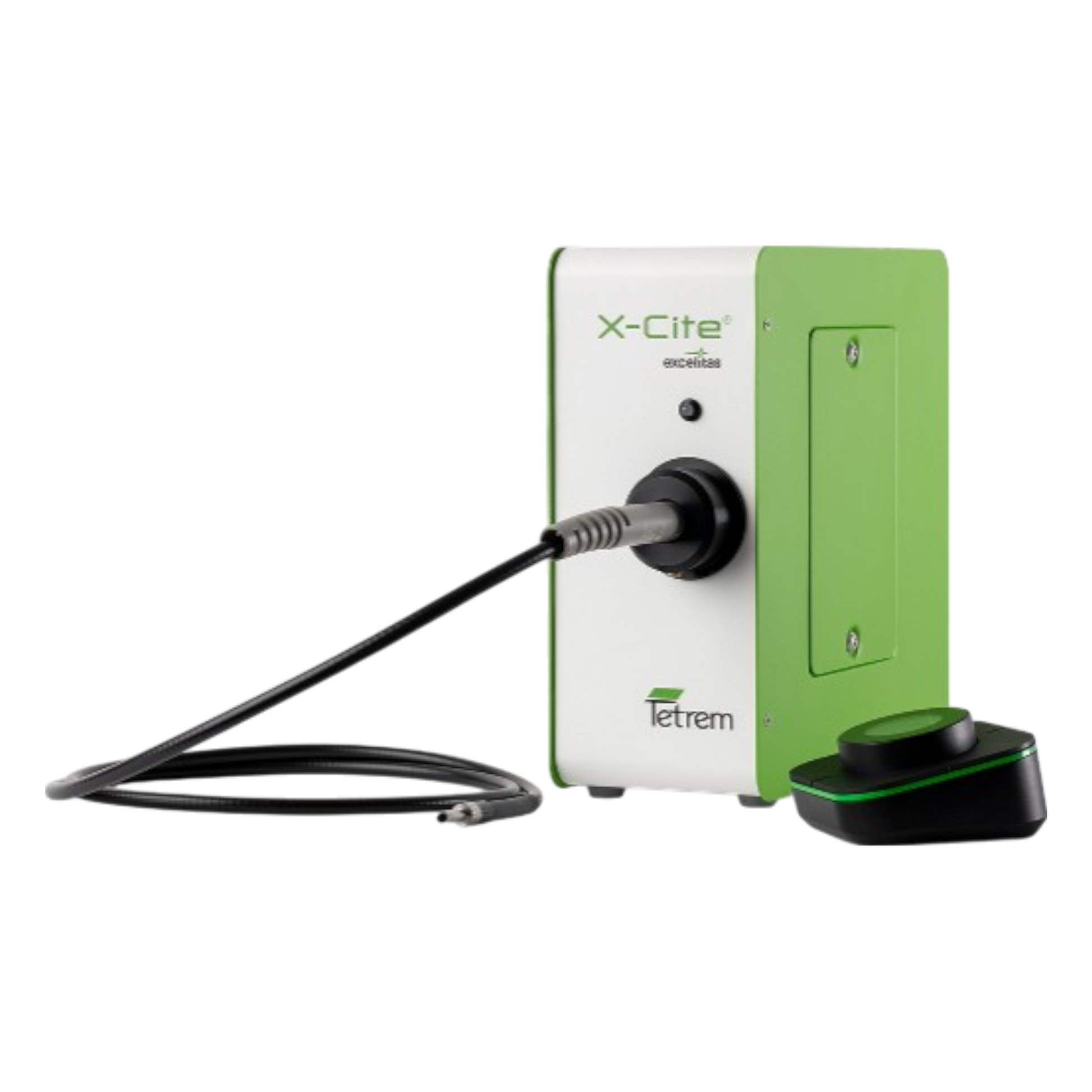

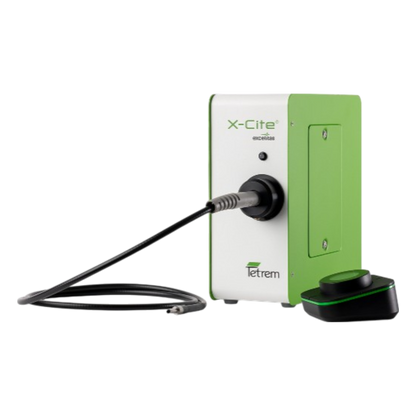

• X-Cite TETREM XT640L (385 nm) Main Unit

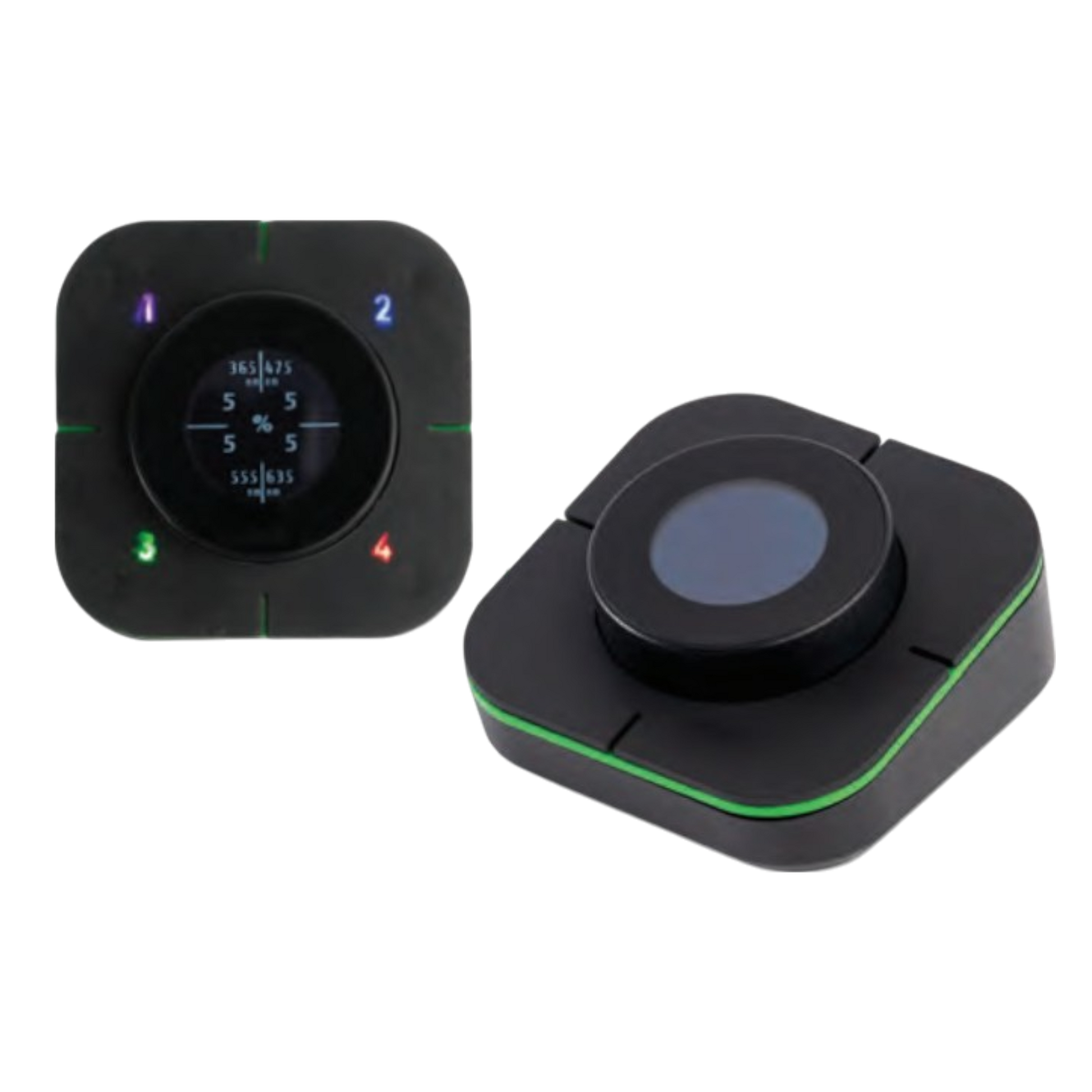

• smartDIAL™ Manual Control Pod
• 1.5m Liquid Light Guide (3mm core)
• External Power Supply (100–240V AC input)
• USB and RS232 Interface Cables

Key Features

• Four Wavelengths: 385 nm, 475 nm, 555 nm, 635 nm—ideal for DAPI, FITC, TRITC/mCherry, Cy5
• Independent Channel Control: Minimize cross-talk, tailor excitation for multiband or single filter sets
• smartDIAL™ Control: Real-time ON/OFF and brightness adjustments with illuminated status indicators
• High-Speed Switching: TTL-compatible for sub-millisecond timing precision
• Flexible Control Options: USB, RS-232, TTL, Analog input; SDK available
• Quiet and Compact: Passively cooled with no fan, perfect for sensitive imaging environments
• No Bulbs, No Maintenance: LED-based system with up to 25,000-hour lifespan

Applications

• Advanced fluorescence microscopy
• Multichannel time-lapse imaging
• Live-cell and fixed-cell fluorescence
• Core imaging facilities and microscope retrofits
• High-content screening systems

Specifications

Includes full spectral support for standard filters: 377/50, 470/40, 545/25, 560/40, 620/60, 710/70.
