Excelitas X-Cite TETREM (365nm) w/smartDIAL (SD) Microscope Illuminator.

Excelitas X-Cite TETREM XT640L 385 nm with smartDIAL | 010-00604R – 4-Channel LED Fluorescence Illuminator with Manual Control

The Excelitas X-Cite TETREM XT640L (385 nm) delivers powerful, multichannel LED illumination optimized for fluorescence imaging across the visible and near-UV spectrum. This configuration includes the smartDIAL™ manual controller, allowing precise tactile control of all four LED channels—385, 475, 555, and 635 nm. Ideal for labs looking to integrate flexible manual control without needing full automation, this system supports excitation of common fluorophores such as DAPI, FITC, TRITC/mCherry, and Cy5.

Condition

New with Manufacturer Warranty

Included Items

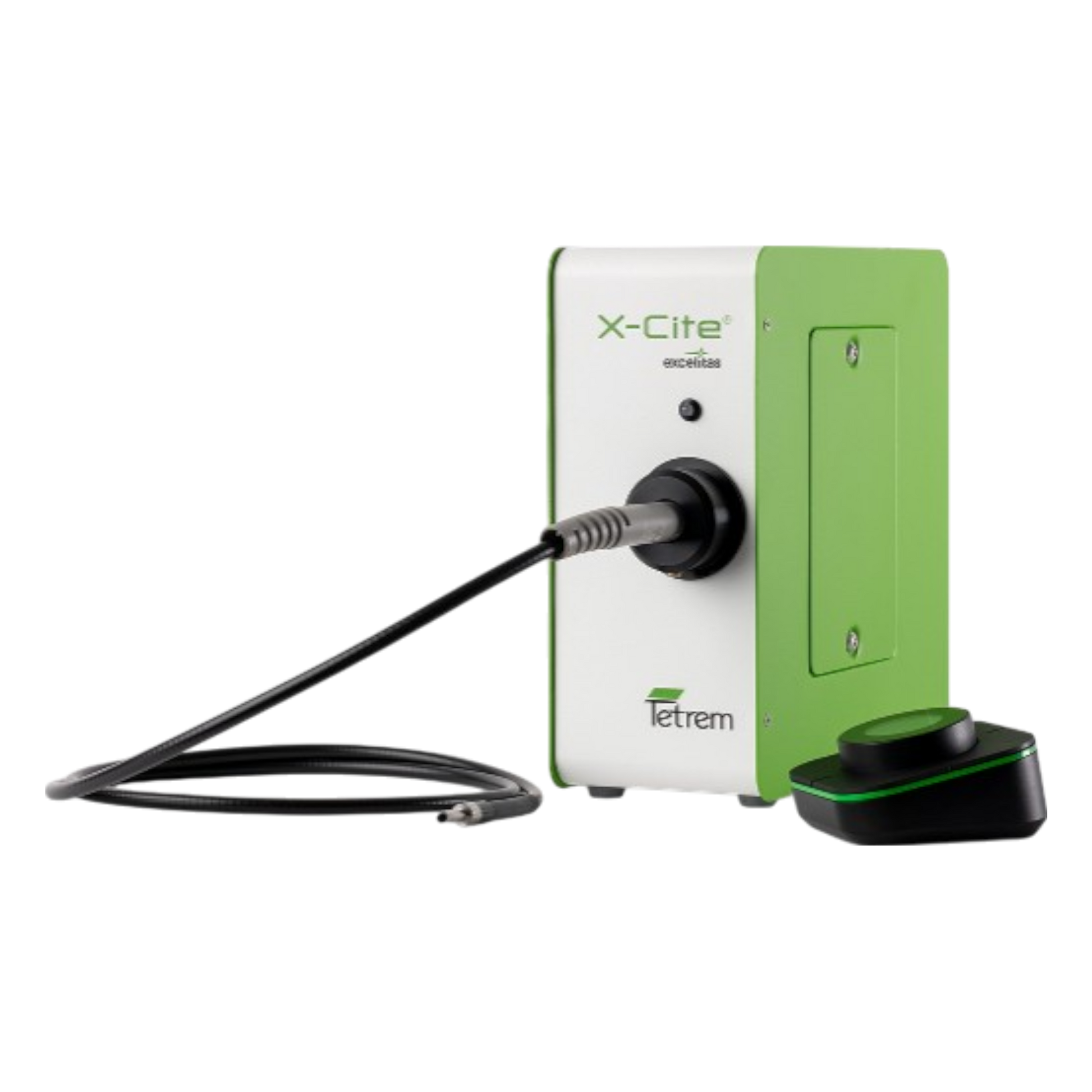

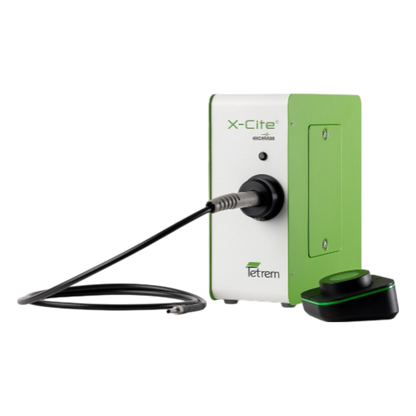

• X-Cite TETREM XT640L (385 nm) Main Unit

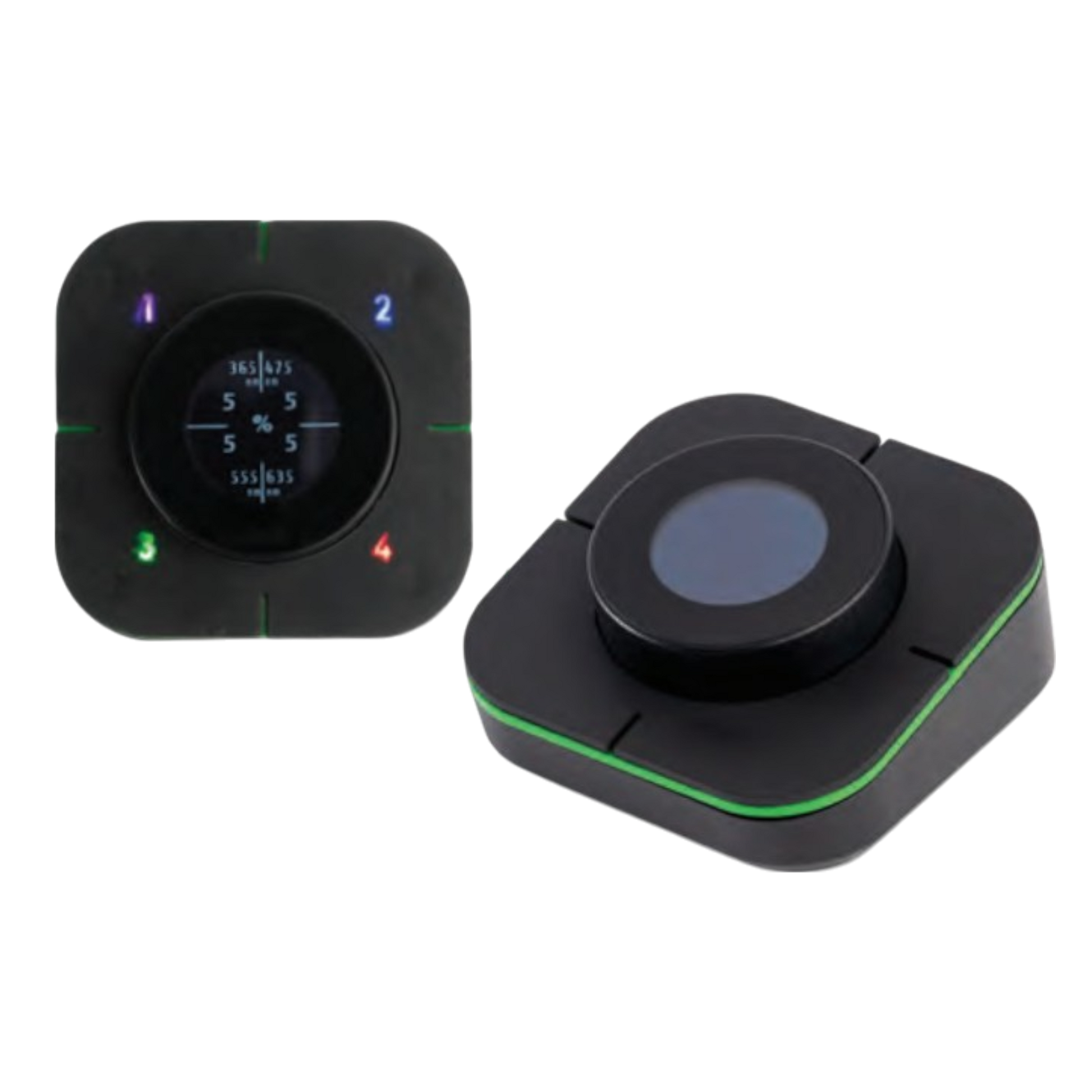

• smartDIAL™ Manual Control Pod
• External Power Supply (100–240V AC input)
• USB and RS232 Interface Cables

Liquid Light Guide and microscope adapter not included.

Key Features

• Four Peak Wavelengths: 385, 475, 555, and 635 nm for broad fluorophore coverage
• smartDIAL™ Controller: Tactile ON/OFF and intensity control with OLED feedback and user profiles
• Manual or Remote Operation: TTL, USB, RS-232, and analog compatible
• Fast Switching: TTL trigger-ready for time-sensitive acquisition (100 µs)
• Compact and Quiet: Fan-free passive cooling for stable, silent operation
• Low Maintenance: Long-life LEDs with no bulb changes, alignment, or shutter required

Applications

• DAPI to Cy5 multichannel fluorescence microscopy
• Core imaging facilities and shared systems
• Manual-control preference environments
• Microscope system upgrades from traditional lamps
• Time-lapse and real-time experimental imaging

Specifications

Recommended filter sets: 377/50, 470/40, 545/25, 560/40, 620/60, 710/70.
