Excelitas X-Cite TETREM (385nm) w/ SD, 1.5m LLG, adaptor Microscope Illuminator

Excelitas X-Cite TETREM XT640S 365 nm with smartDIAL, 1.5m LLG, and Microscope Adapter | 010-00610R – Complete 4-Channel LED Fluorescence System

The Excelitas X-Cite TETREM XT640S (365 nm) is a fully integrated 4-channel LED light source built for fluorescence imaging across DAPI to Cy5. This configuration includes the smartDIAL™ manual control pod, a 1.5-meter Liquid Light Guide, and a microscope coupling adapter—everything needed for plug-and-play integration with your microscope. The system delivers fast, stable illumination with peak wavelengths at 365, 475, 555, and 635 nm, ideal for both routine and advanced multichannel imaging.

Condition

New with Manufacturer Warranty

Included Items

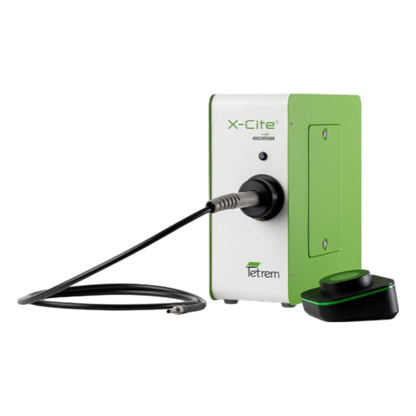

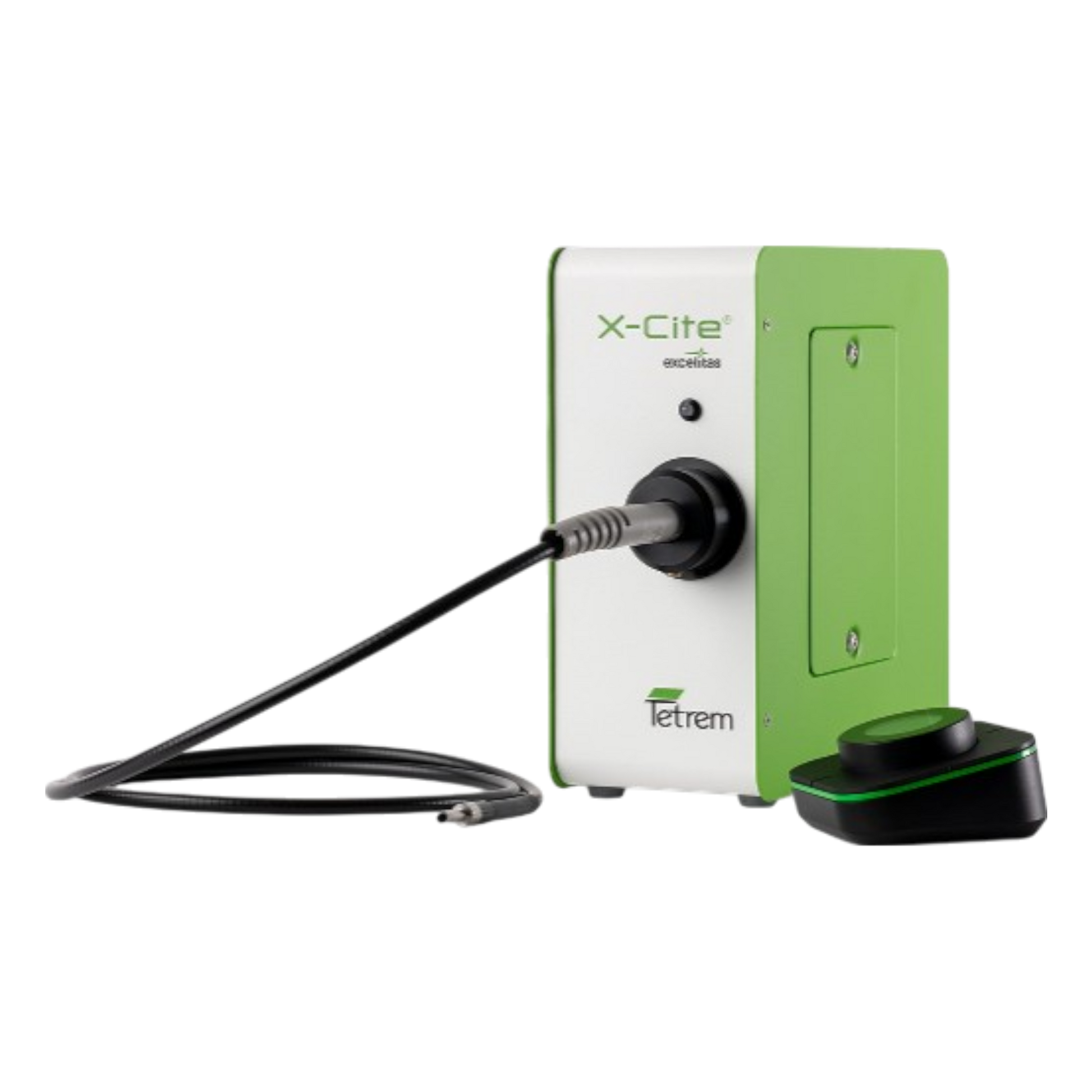

• X-Cite TETREM XT640S (365 nm) Main Unit

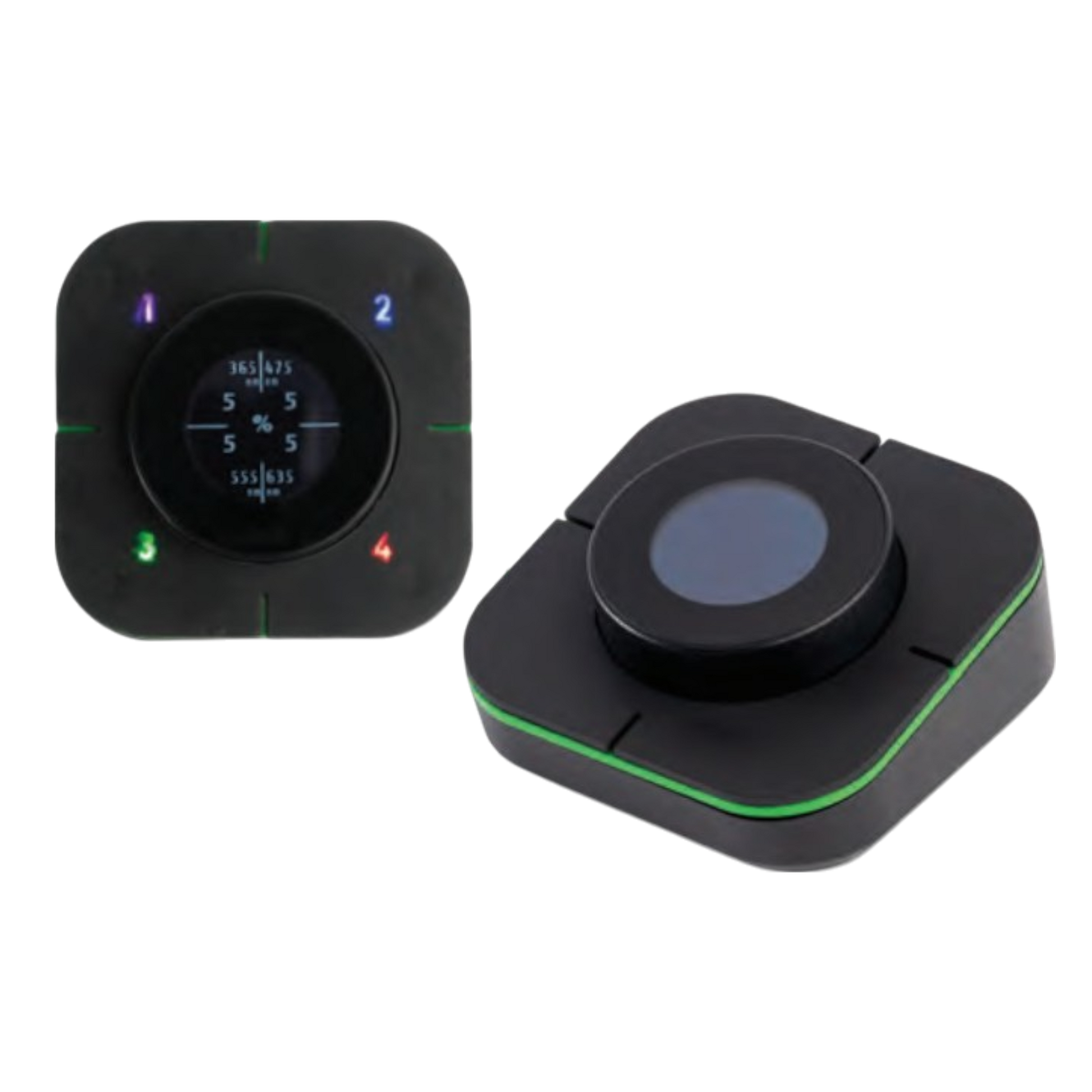

• smartDIAL™ Manual Control Pod
• 1.5m Liquid Light Guide (3mm core)
• Microscope Coupling Adapter
• External Power Supply (100–240V AC input)
• USB and RS232 Interface Cables

Key Features

• LED Peaks: 365, 475, 555, and 635 nm—covering fluorophores from DAPI to Cy5
• smartDIAL™ Manual Control: Easy LED channel access with visual feedback and customizable profiles
• TTL and USB Control: Sub-millisecond switching for automated and time-resolved imaging
• Microscope-Ready: Adapter included for fast optical path integration
• Low Maintenance: Long-life LEDs, no bulbs or shutters required
• Compact & Quiet: Passive cooling, no fans or noise

Applications

• Multichannel fluorescence microscopy
• Live-cell imaging with DAPI, FITC, TRITC, Cy5
• Microscope retrofits and LED conversions
• Imaging cores and automation platforms
• Time-lapse and high-speed acquisition setups

Specifications

Supports standard filter sets: 377/50, 470/40, 545/25, 560/40, 620/60, 710/70.
