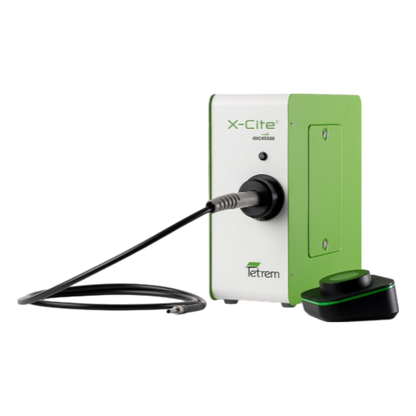

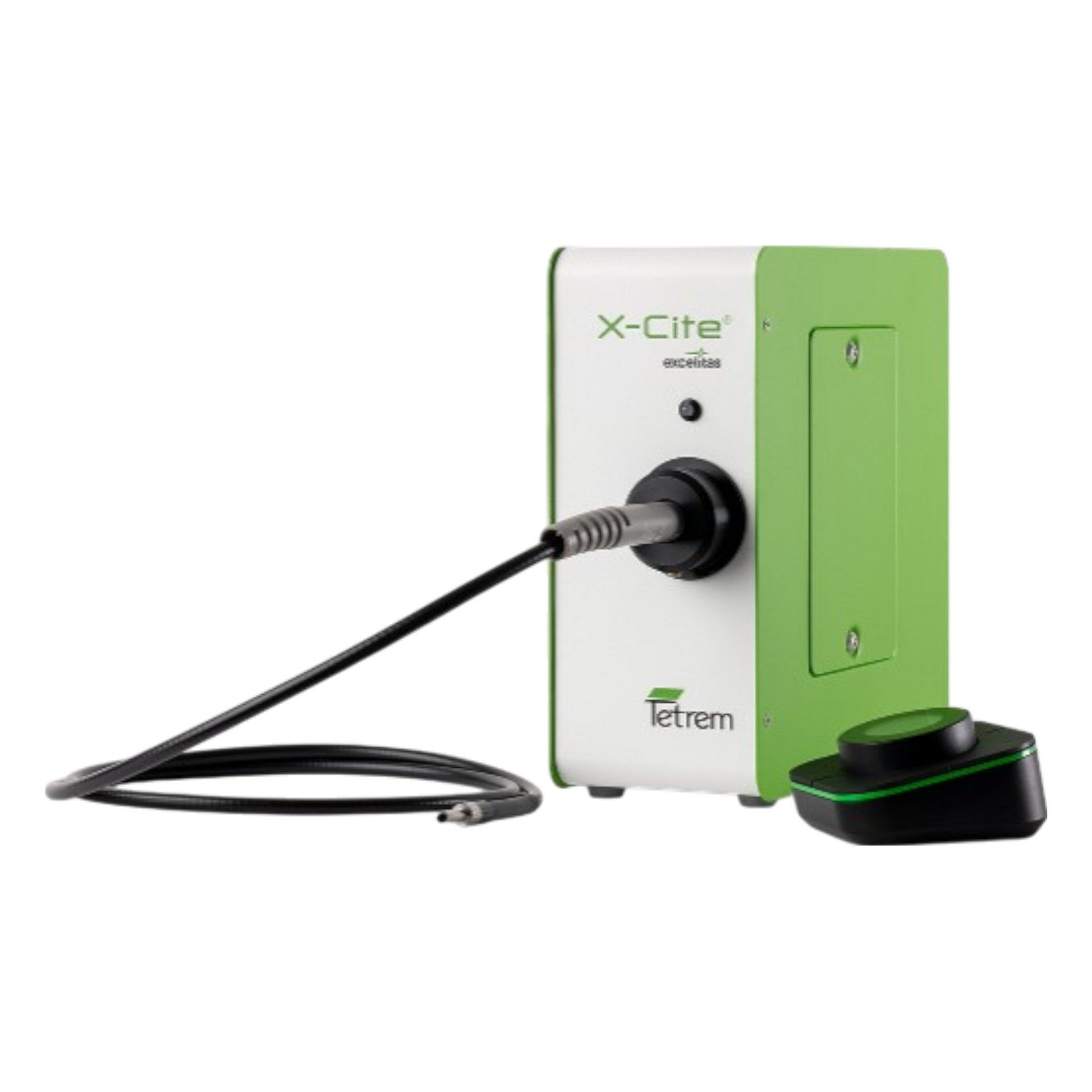

Excelitas X-Cite TETREM (385nm) w/ SD, 1.5m LLG Microscope Illuminator

Excelitas X-Cite TETREM XT640S 365 nm with smartDIAL and 1.5m LLG | 010-00612R – Fully Equipped 4-Channel LED Fluorescence Illuminator

The Excelitas X-Cite TETREM XT640S (365 nm) is a high-performance, 4-channel LED illumination system engineered for fluorescence imaging across a wide spectral range. With peak wavelengths at 365, 475, 555, and 635 nm, this configuration is optimized for DAPI, FITC, TRITC/mCherry, and Cy5 excitation. Included in this package is the intuitive smartDIAL™ controller, providing tactile LED channel control, and a 1.5-meter Liquid Light Guide (LLG) for efficient light delivery. This complete system is ideal for labs requiring real-time control, high-speed switching, and minimal maintenance.

Condition

New with Manufacturer Warranty

Included Items

• X-Cite TETREM XT640S (365 nm) Main Unit
• smartDIAL™ Manual Control Pod
• 1.5m Liquid Light Guide (3mm core)
• External Power Supply (100–240V AC input)
• USB and RS232 Interface Cables

Key Features

• LED Channels: 365, 475, 555, and 635 nm for broad fluorophore compatibility

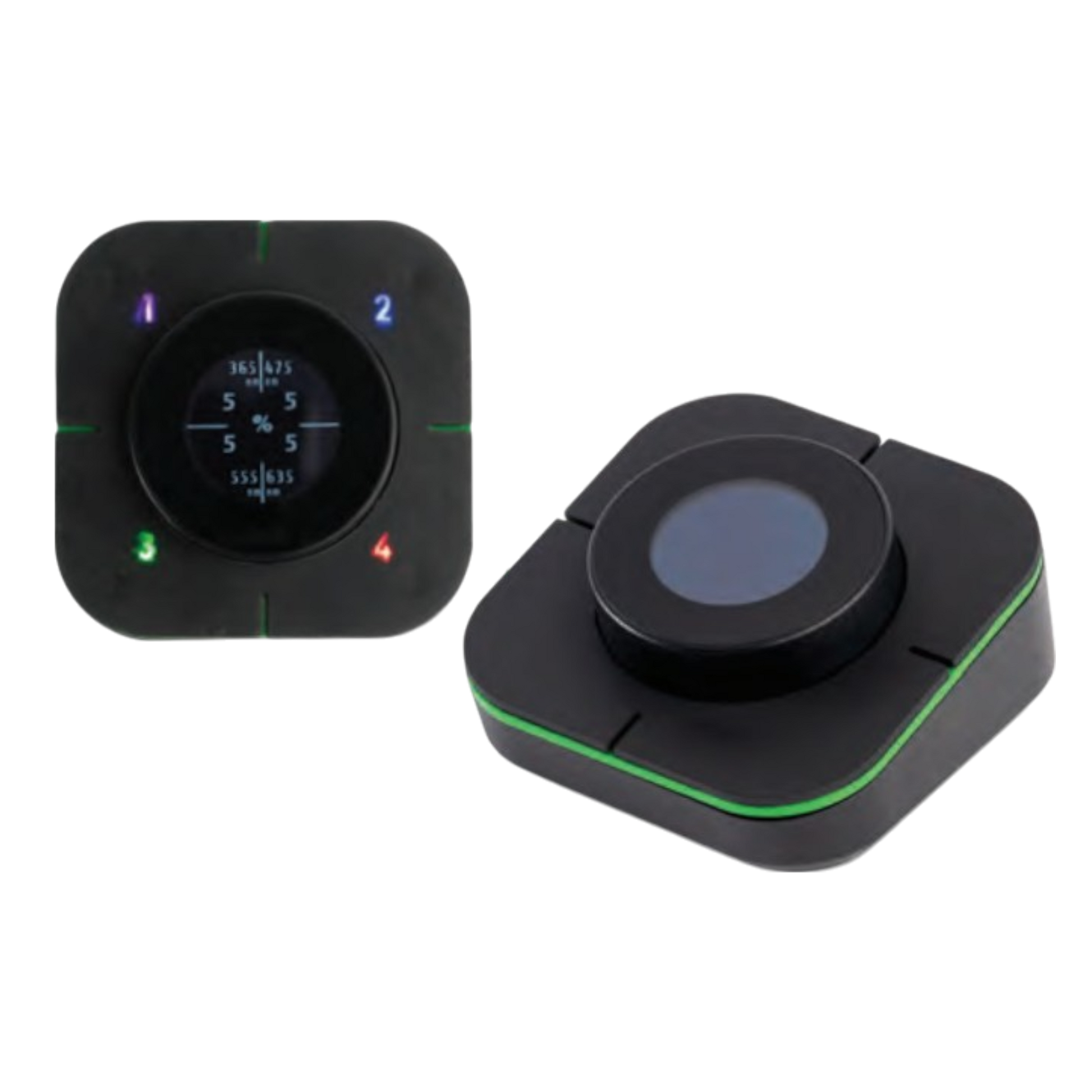

• smartDIAL™ Control: Fast ON/OFF, real-time brightness adjustments, OLED display
• High-Speed TTL Switching: Sub-millisecond response ideal for time-sensitive imaging
• Flexible Software Integration: USB, RS-232, TTL, analog, and SDK for automation
• Uniform Output via 3mm LLG: Efficient light delivery across the visible and UV spectrum
• Maintenance-Free: No bulbs to replace, long LED lifespan
• Compact and Silent: Passive cooling design with no fan

Applications

• Multichannel fluorescence microscopy
• Core imaging facilities and shared labs
• Live-cell and fixed-sample imaging
• Automated or high-speed image acquisition systems
• Upgrades to mercury or metal halide-based systems

Specifications

Compatible with common filter sets: 377/50, 470/40, 545/25, 560/40, 620/60, 710/70.
