SKU: PRODUCT ID:EXC-010-00611R

Excelitas X-Cite TETREM (385nm) w/ SD, 3m LLG, adaptor Microscope Illuminator

Excelitas X-Cite TETREM (385nm) w/ SD, 3m LLG, adaptor Microscope Illuminator

Regular price $7,110.00 USD
Regular price Sale price $7,110.00 USD
Sale Sold out

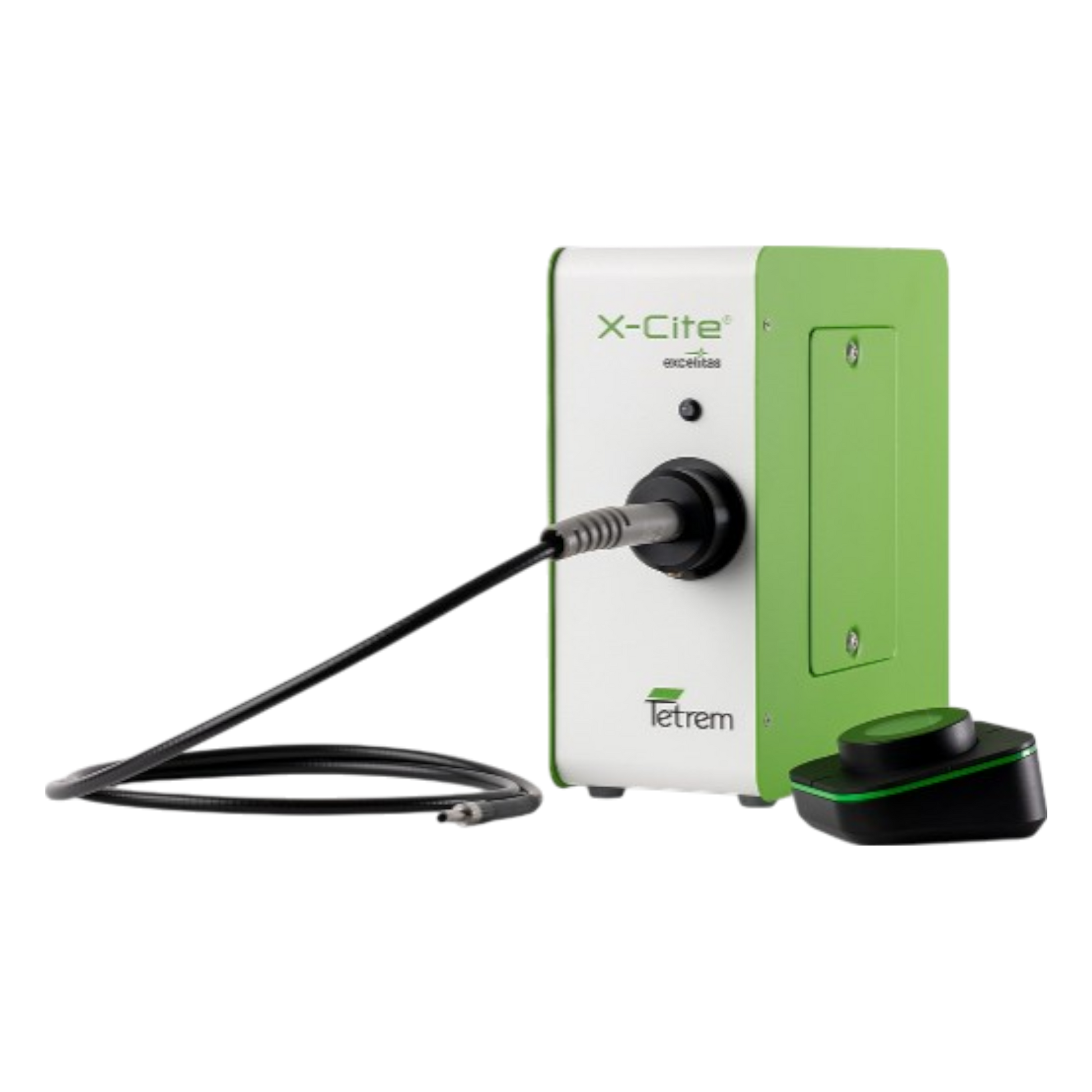

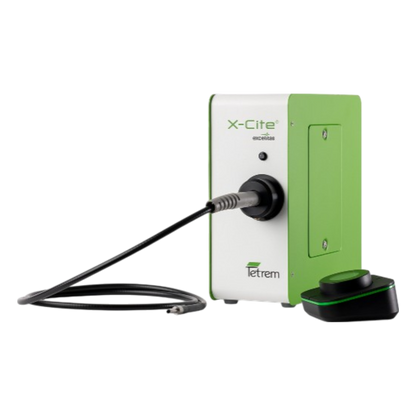

Excelitas X-Cite TETREM XT640S 365 nm with smartDIAL, 3m LLG, and Microscope Adapter | 010-00611R – Fully Integrated Extended-Reach LED Illumination System

The Excelitas X-Cite TETREM XT640S (365 nm) delivers high-efficiency multichannel LED fluorescence illumination for advanced microscopy applications. This configuration includes a 3-meter Liquid Light Guide for remote or flexible positioning, the tactile smartDIAL™ manual controller, and a microscope adapter for direct integration into your optical path. Supporting peak wavelengths at 365, 475, 555, and 635 nm, this system is ideal for DAPI through Cy5 imaging. Built for speed, simplicity, and longevity, it’s a complete plug-and-play solution.

Condition

New with Manufacturer Warranty

Included Items

  • X-Cite TETREM XT640S (365 nm) Main Unit
  • smartDIAL™ Manual Control Pod
  • 3m Liquid Light Guide (3mm core)
  • Microscope Coupling Adapter
  • External Power Supply (100–240V AC input)
  • USB and RS232 Interface Cables

Key Features

  • 365 nm UV Excitation: Optimized for DAPI and UV-excited fluorophores
  • Additional Peaks: 475, 555, 635 nm for FITC, TRITC/mCherry, and Cy5
  • 3m Liquid Light Guide: Allows flexible placement or remote setup

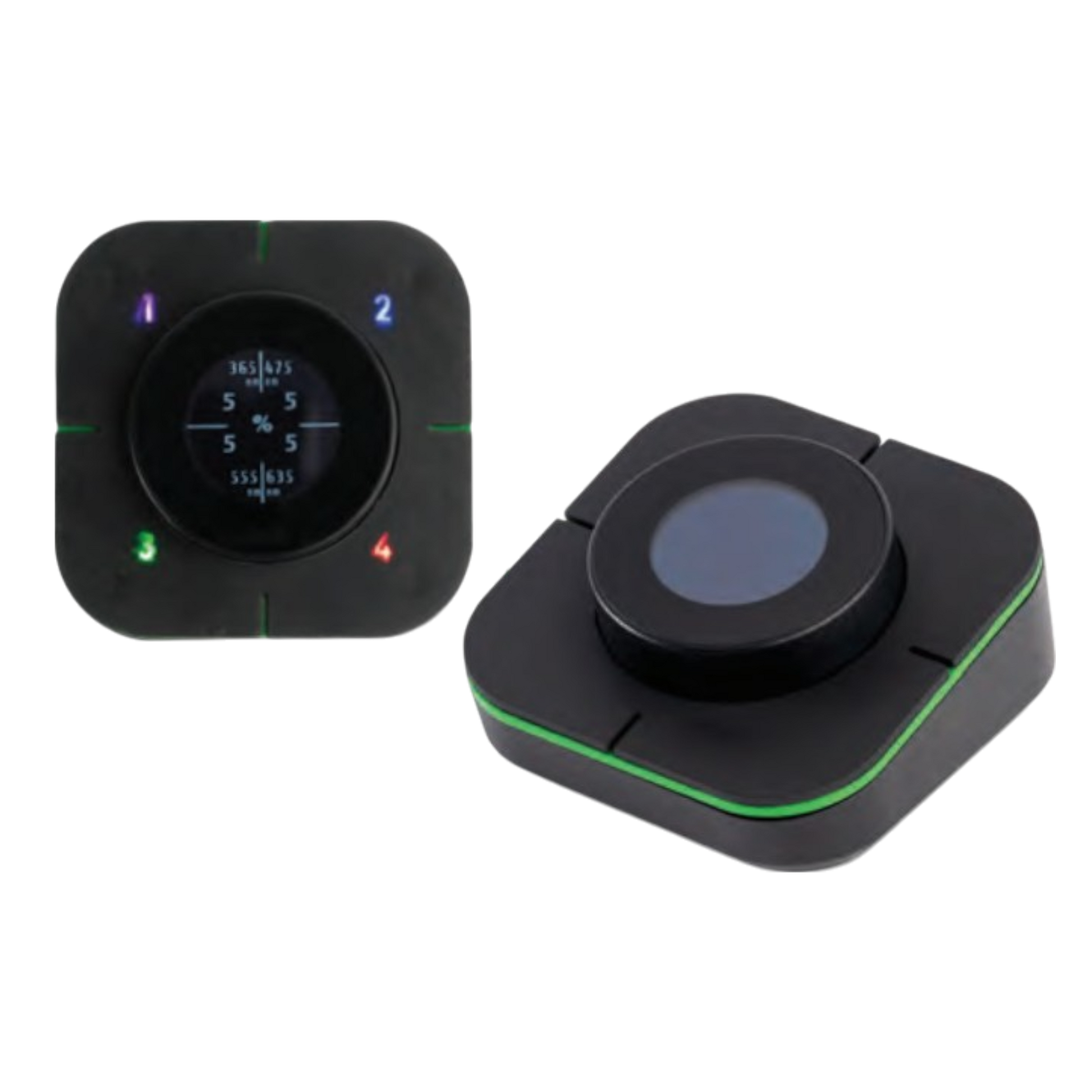

  • smartDIAL™ Control: Channel-specific ON/OFF, intensity, OLED display, and customizable profiles
  • Microscope-Ready: Coupling adapter included for fast optical integration
  • Rapid Switching: TTL control supports 100 µs response time
  • No Maintenance: LED longevity, no bulbs or shutters, silent fan-less cooling

Applications

  • Multichannel fluorescence microscopy
  • DAPI, FITC, TRITC, and Cy5 imaging
  • Microscope LED retrofits
  • Remote-mount or enclosed illumination setups
  • Time-lapse or automation-compatible imaging platforms

Specifications

Feature Specification
Model XT640S (365 nm UV)
Catalog Number 010-00611R
Wavelength Range 360–660 nm
LED Peak Wavelengths (nm) 365, 475, 555, 635
Output Port 3mm Liquid Light Guide (3m included)
Control Interfaces smartDIAL™, USB, RS-232, TTL, Analog
LED ON/OFF Response Time 100 µs (TTL), 1 ms (USB)
Dimensions (W x H x D) 95 x 230 x 212 mm (3.7" x 9.1" x 8.4")
Weight 3.0 kg (6.6 lbs)
Certifications CE, UKCA, KC, RoHS
Warranty 3 Years or 25,000 hours on LEDs

Compatible with standard fluorescence filter sets: 377/50, 470/40, 545/25, 560/40, 620/60, 710/70.

Additional Details

  • Manufacturer: Excelitas
  • Model: X-Cite TETREM w/ SD, 3m LLG, adaptor
  • Catalog Number: EXC-010-00611R
  • Serial Number: N/A
  • Condition: New
