SKU: PRODUCT ID:EXC-010-00322R

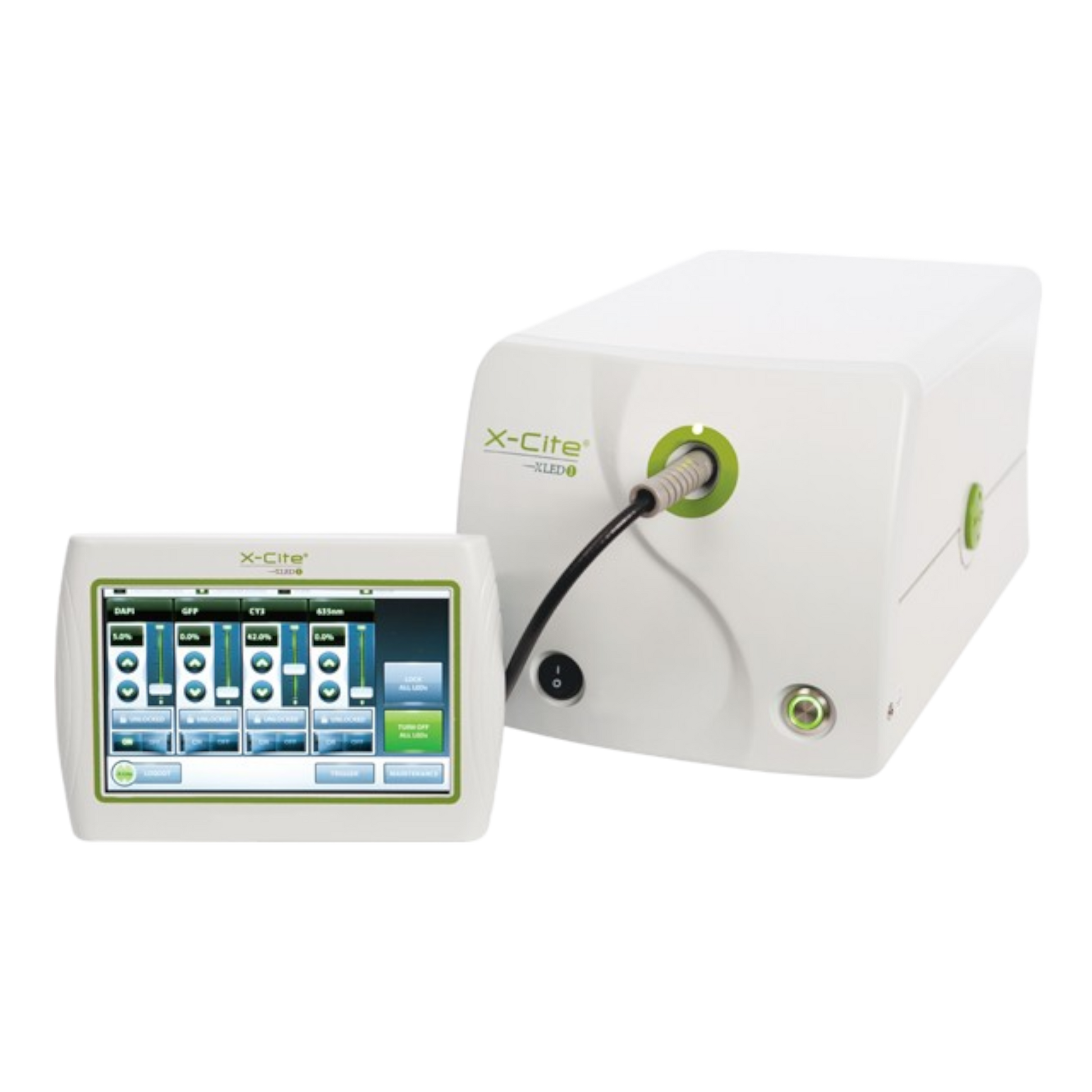

Excelitas X-Cite XLED1 LED Fluorescence Illuminator EXC-010-00322R Microscope Illuminator

Excelitas X-Cite XLED1 LED Fluorescence Illuminator EXC-010-00322R Microscope Illuminator

Excelitas X-Cite XLED1 LED Fluorescence Illuminator CN: EXC-010-00322R

The Excelitas X-Cite XLED1 is a state-of-the-art LED fluorescence illuminator designed for advanced microscopy applications. With fast-switching LEDs and precise intensity control, it delivers exceptional performance for multi-wavelength fluorescence imaging. Its compact and modular design makes it an ideal choice for researchers seeking reliability, flexibility, and reproducibility in their imaging experiments.

Condition

  • New with Manufacturer Warranty

Key Features

  • Multi-Wavelength LED Illumination: Modular design supports multiple wavelengths, covering a broad spectrum for fluorescence imaging.
  • Fast Switching and Synchronization: Achieves rapid transitions between wavelengths for high-speed imaging applications.
  • Precise Intensity Control: Manual, TTL, and USB options for real-time adjustment and integration into automated systems.
  • Compact and Modular Design: Allows customization and easy integration into existing setups.
  • High Stability and Low Maintenance: Provides consistent light output and eliminates the need for frequent bulb replacements.

Applications

  • Multi-wavelength fluorescence microscopy.
  • High-speed imaging for live cell studies.
  • Advanced research in optical and material sciences.
  • Clinical and diagnostic imaging.

Channels and Wavelengths (Example Configuration)

Channel Wavelength (nm) Application
1 365 nm DAPI
2 475 nm FITC
3 555 nm TRITC
4 635 nm Cy5

Specifications

Specification Details
Catalog Number EXC-010-00322R
Type LED Fluorescence Illuminator
Wavelength Range UV to far-red (customizable modules)
Control Options Manual, TTL, USB
Power Requirements 100-240 VAC, 50/60 Hz
Dimensions 25 cm x 22 cm x 15 cm (approx.)
Weight Approx. 4.5 kg
Compatibility Most fluorescence microscopes
Condition New

Additional Details

  • Manufacturer: Excelitas
  • Model: X-Cite XLED1 LED Fluorescence Illuminator
  • Catalog Number: EXC-010-00322R
  • Serial Number: N/A
  • Condition: New
