PRODUCT ID:HAM-C12741-03-KIT

Hamamatsu IR Camera uncooled .33MP USB Monochrome inGaAs Microscope Camera

Hamamatsu IR Camera uncooled .33MP USB Monochrome inGaAs Microscope Camera

$25,000.00 USD
$25,000.00 USD
Sale Sold out
Shipping calculated at checkout.

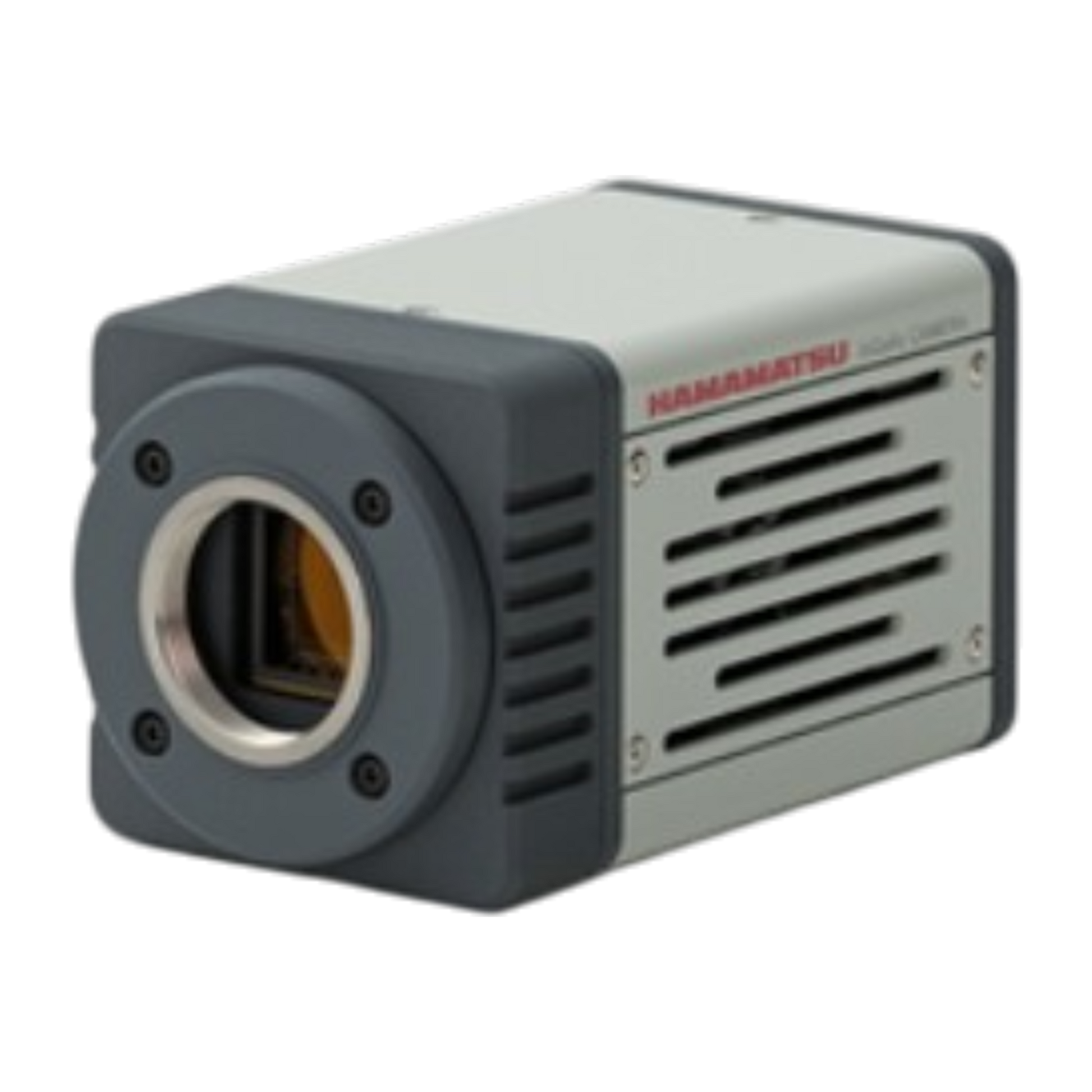

Hamamatsu C12741-03-KIT InGaAs Camera – Uncooled 0.33MP Monochrome USB Infrared Microscope Camera

The Hamamatsu C12741-03-KIT is a compact, uncooled InGaAs infrared camera ideal for general-purpose near-infrared (NIR) imaging. With 640 × 512 resolution and USB 3.0 connectivity, this camera is optimized for shortwave infrared (SWIR) applications in inspection, scientific imaging, and beam profiling. Its small form factor and plug-and-play functionality make it an excellent choice for systems where cooling is not required.

Condition

New with Manufacturer Warranty

Key Features

  • 640 × 512 pixel InGaAs sensor
  • Spectral response from 950 nm to 1700 nm
  • Uncooled operation for compact integration
  • USB 3.0 interface for high-speed data transfer
  • Rolling shutter readout
  • Lightweight and portable
  • Ideal for real-time SWIR imaging applications

Applications

  • Laser alignment and profiling
  • Silicon wafer and solar cell inspection
  • NIR fluorescence imaging
  • Material sorting and inspection
  • Optical component characterization
  • Surveillance and research imaging

Specifications

Specification Value
Model C12741-03-KIT
Sensor Type Monochrome InGaAs
Resolution 640 × 512
Pixel Size 20 µm × 20 µm
Spectral Response Range 950 nm – 1700 nm
Cooling Uncooled
Shutter Type Rolling shutter
Interface USB 3.0
Bit Depth 14-bit
Frame Rate Up to ~100 fps
Lens Mount C-mount
Dynamic Range 71 dB (typical)
Operating Temperature 0 °C to +40 °C
Dimensions Approx. 100 mm × 100 mm × 100 mm
Weight Approx. 800 g

Additional Details

  • Manufacturer: Hamamatsu
  • Model:
  • Catalog Number: HAM-C12741-03-KIT
  • Serial Number:
  • Condition: New
