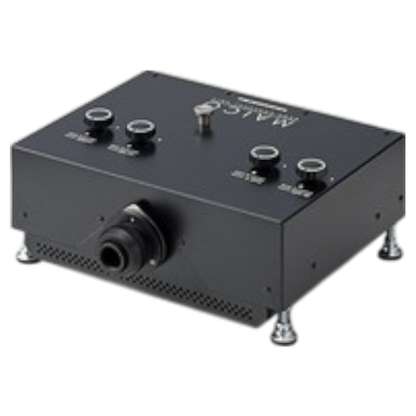

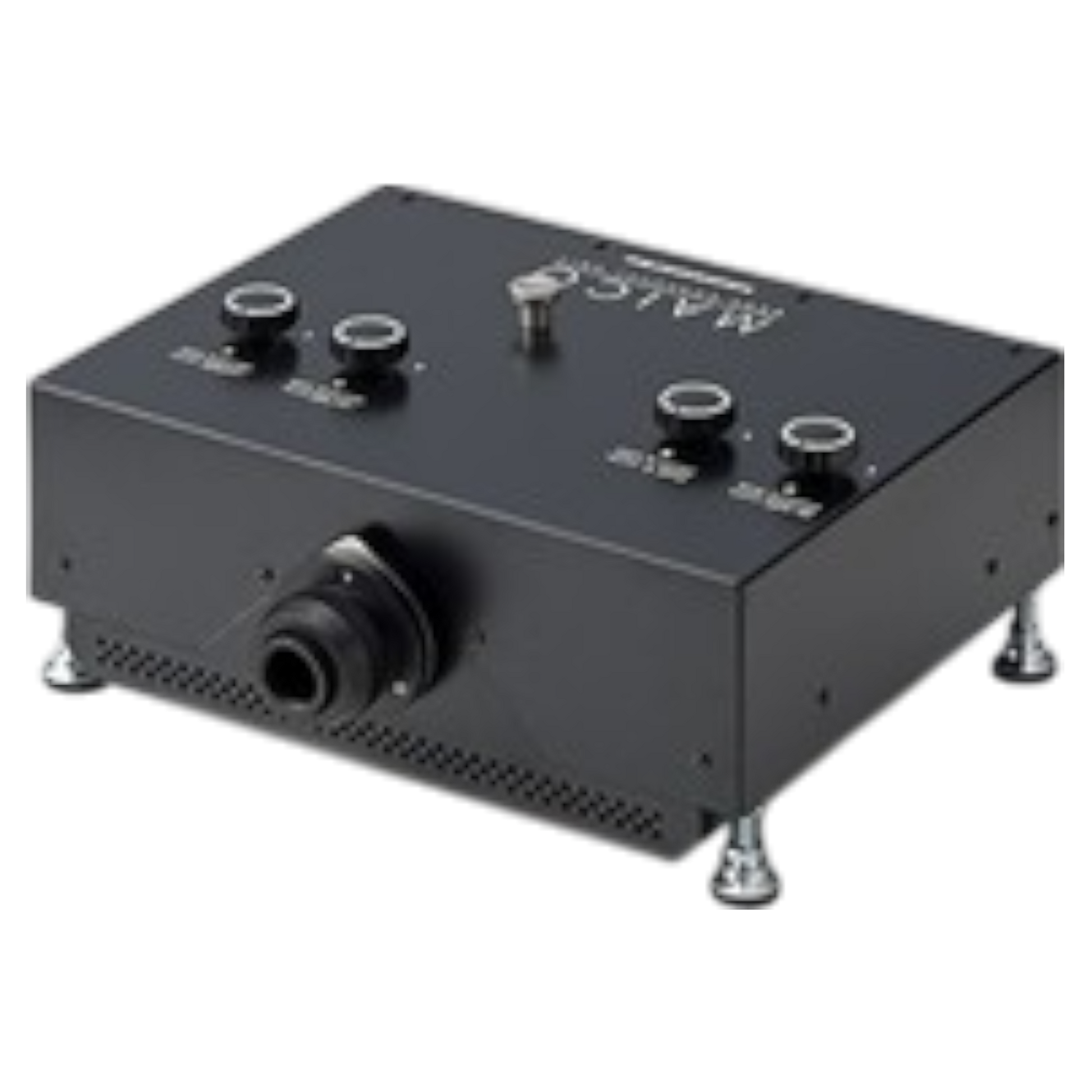

Hamamatsu Maico MEMS Confocal Unit (Model C15890 Series)

The Hamamatsu Maico MEMS Confocal Unit (Model C15890 Series) is a compact, high-speed confocal imaging system designed for advanced fluorescence microscopy, live-cell imaging, and high-throughput screening. Featuring Micro-Electro-Mechanical Systems (MEMS) technology, the Maico MEMS Confocal Unit offers fast frame rates, high spatial resolution, and multi-channel fluorescence imaging, making it an ideal solution for precision optical sectioning in biomedical and life sciences research.

The system is available in three versions based on excitation laser wavelength:

• C15890-405N – Excitation at 405 nm
• C15890-488N – Excitation at 488 nm
• C15890-488S – Excitation at 488 nm, optimized for sensitivity

With a compact design, USB 3.0 connectivity, and multi-channel simultaneous imaging capabilities, the Maico MEMS Confocal Unit is a cost-effective, high-performance alternative to traditional confocal microscopy systems.

Condition

New with Manufacturer Warranty

Included Items

• Hamamatsu Maico MEMS Confocal Unit (Model C15890 Series)
• High-Sensitivity PMT or GaAsP PMT Detector – Optimized for low-light fluorescence imaging
• Excitation Laser Module – Available at 405 nm or 488 nm depending on model
• Pinhole Adjustment System – Manual selection for optimized confocality
• USB 3.0 Connectivity – High-speed data acquisition and transfer
• C-Mount Lens Adapter – Allows seamless integration with compatible microscope systems
• Power Supply and Accessories

Key Features

• Compact & Cost-Effective Confocal Imaging – Small footprint with high-end imaging capabilities
• Fast Frame Rate Acquisition – Up to 76 frames per second at 240 scanning lines
• Multi-Channel Fluorescence Detection – Enables simultaneous or sequential multi-wavelength imaging
• High-Sensitivity PMT & GaAsP PMT Detectors – Provides low-noise, high-signal fluorescence imaging
• Adjustable Pinhole Selection – Three manual pinhole sizes for each wavelength to optimize optical sectioning
• High-Resolution Imaging – Maximum 1280 x 960 pixels effective resolution
• Compatible with Wide Range of Objective Lenses – Supports magnifications from 20X to 100X
• USB 3.0 Interface – High-speed data transfer for fast image processing
• C-Mount Compatibility – Easily integrates with existing optical systems
• Minimal Photobleaching – Reduces sample damage while maintaining high contrast

Applications

• Live-Cell Fluorescence Imaging
• High-Speed Optical Sectioning & 3D Imaging
• Single-Molecule Fluorescence Microscopy
• High-Throughput Screening & Drug Discovery
• Oncology & Cancer Research
• Neuroscience & Cellular Imaging
• Biomedical Imaging & Clinical Diagnostics
• Developmental Biology & Regenerative Medicine

Technical Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
