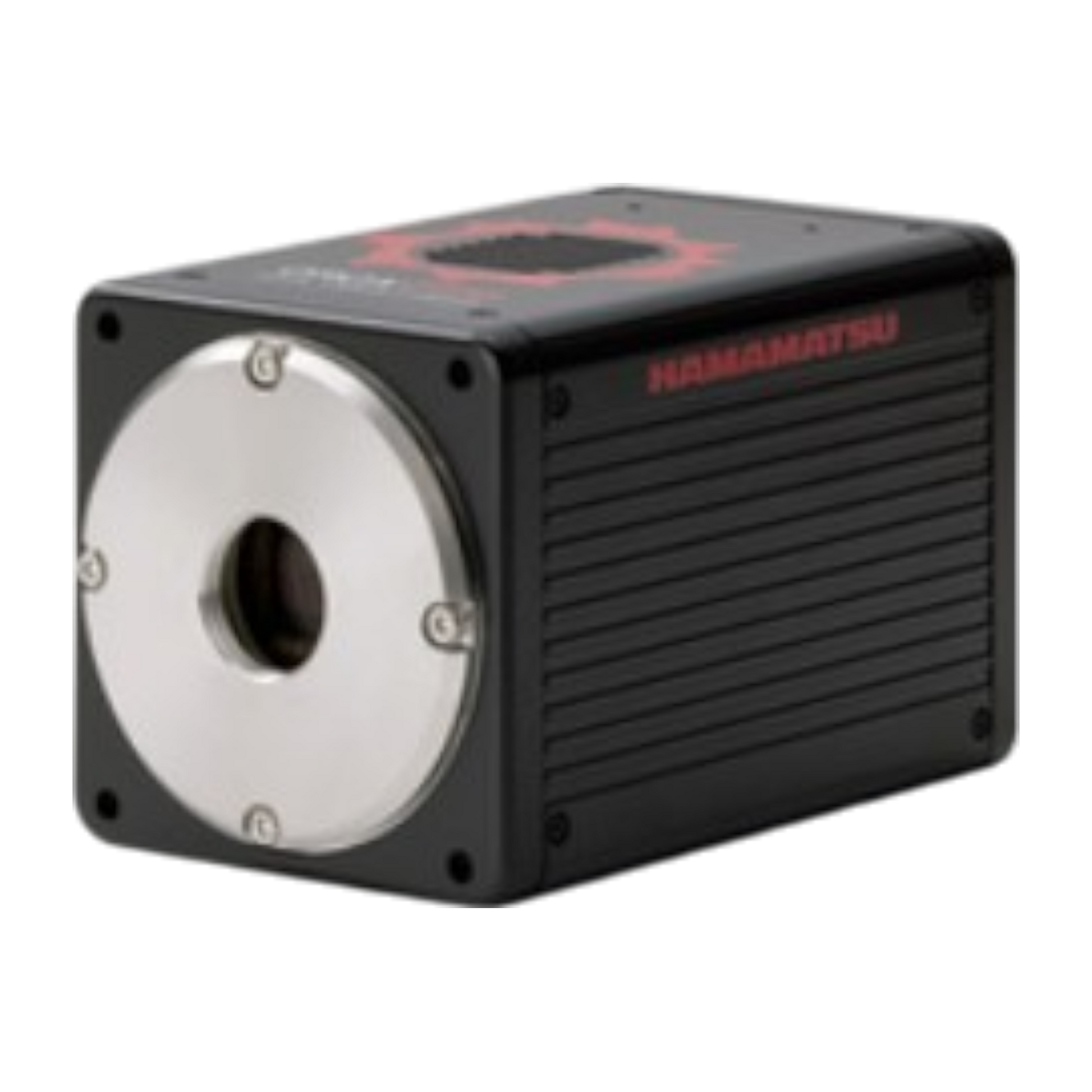

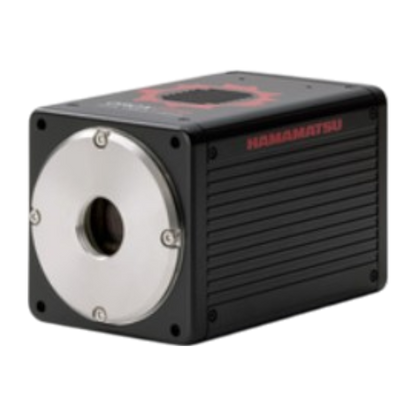

Hamamatsu ORCA-Fire 10.5MP Monochrome sCMOS Microscope Camera.

Hamamatsu ORCA-Fire 10.5MP Monochrome sCMOS Microscope Camera.

Regular price $29,800.00 USD
Regular price Sale price $29,800.00 USD
Sale Sold out

Hamamatsu ORCA-Fire 10.5MP Monochrome sCMOS CN: ORCA-Fire-KIT

Overview

The Hamamatsu ORCA-Fire 10.5MP Monochrome sCMOS camera (ORCA-Fire-KIT) delivers high-speed imaging, low noise, and exceptional quantum efficiency for scientific applications. Designed as a cost-effective alternative to the ORCA-Quest, it features back-thinned sCMOS technology, achieving 90% peak quantum efficiency (QE) and 1 e- rms read noise. With the ability to run at 115 fps full-frame using CoaXPress and innovative light sheet readout modes, this camera is ideal for fast, quantitative imaging.

Condition

New with Manufacturer Warranty

Included Items

  • Hamamatsu ORCA-Fire 10.5MP Monochrome sCMOS Camera
  • USB 3.0 Card & Cable (for up to 16 fps full-frame)
  • Power Supply
  • Attached Baseplate
  • 3-meter Trigger Cable
  • HCImage Live Software for PCs

Key Features

  • 10.5 Megapixel Resolution: 4432 x 2368 pixel array with 4.6 µm pixel size for high-detail imaging.
  • High-Speed Performance: Up to 115 fps full-frame (CoaXPress) and 16 fps via USB 3.0.
  • Low Read Noise: 1 e- rms for enhanced signal-to-noise ratio.
  • Back-Thinned sCMOS Sensor: Provides superior sensitivity with 90% peak QE.
  • Flexible Readout Modes: Multiple modes, including lightsheet and BT emulation mode.
  • USB 3.0 & CoaXPress Connectivity: Dual interface options for easy integration and high-speed data transfer.
  • Compact and Versatile Design: Optimized for microscopy, fluorescence imaging, and super-resolution applications.

Applications

  • High-speed live-cell imaging
  • Light-sheet microscopy
  • Super-resolution imaging
  • High-speed fluorescence imaging
  • Voltage-sensitive dye imaging
  • Low-light quantitative imaging

Specifications

Specification Details
Model ORCA-Fire-KIT
Sensor Type Back-thinned sCMOS
Resolution 10.5 Megapixels (4432 x 2368)
Pixel Size 4.6 µm x 4.6 µm
Peak QE 90%
Read Noise 1 e- rms
Frame Rate 16 fps (USB 3.0), 115 fps (CoaXPress)
Full Well Capacity 20,000 electrons
Connectivity USB 3.0, CoaXPress
Cooling Air Cooling
Light Sheet Mode Yes
Mount C-Mount
Triggering Options Hardware and Software Triggering
Included Software HCImage Live

Additional Details

  • Manufacturer: Hamamatsu
  • Model: ORCA-Fire 10.5MP Monochrome sCMOS
  • Catalog Number: HAM-ORCA-Fire-KIT
  • Serial Number: N/A
  • Condition: New
