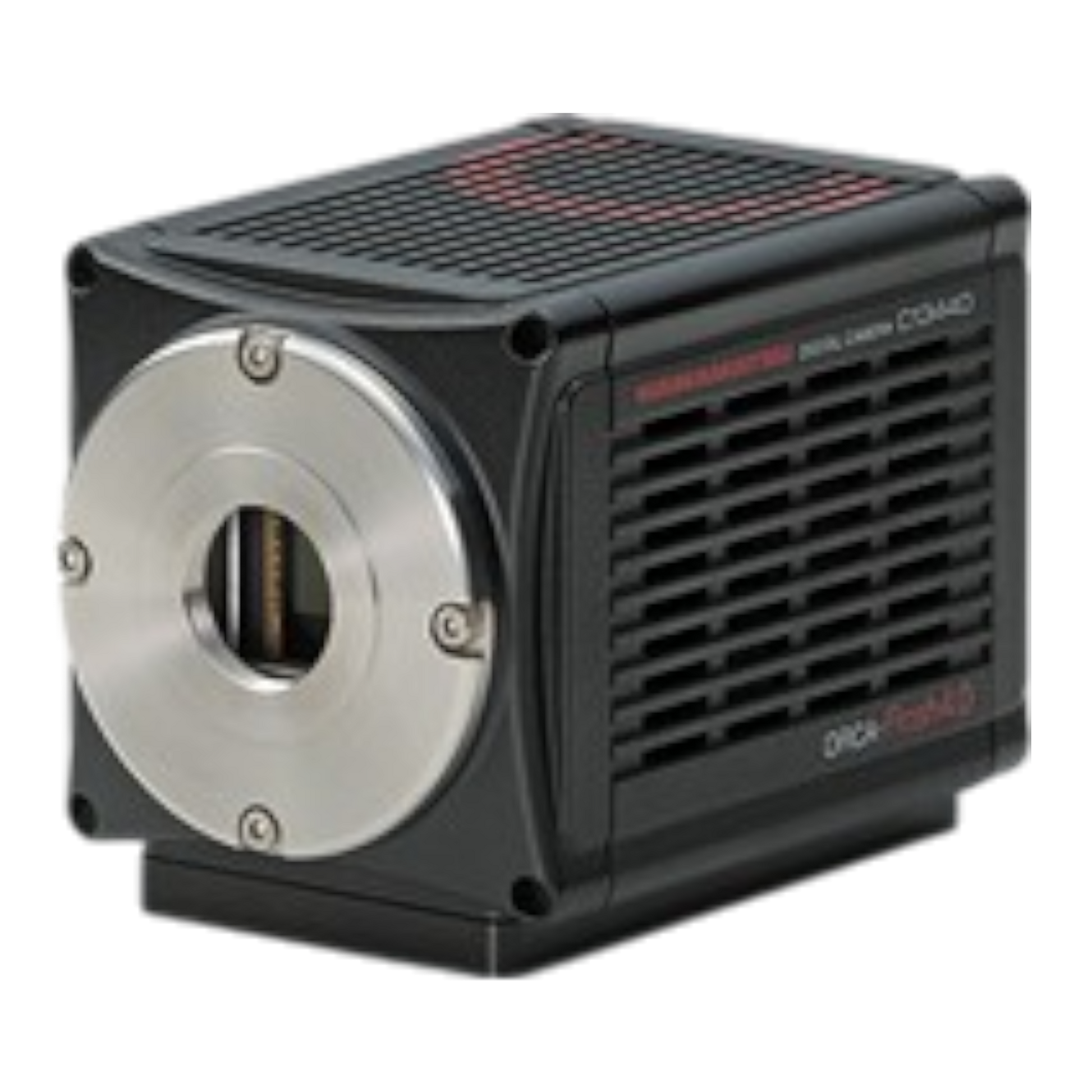

Hamamatsu ORCA-Flash4.0 V3 4.2MP Monochrome F-Mount sCMOS Microscope Camera

Hamamatsu ORCA-Flash4.0 V3 4.2MP Monochrome sCMOS CN: C13440-20CU01

The Hamamatsu ORCA-Flash4.0 V3 4.2MP Monochrome sCMOS camera is a high-performance imaging solution designed for scientific research, fluorescence microscopy, and live-cell imaging applications. This version of the ORCA-Flash4.0 V3 features an F-mount lens compatibility, allowing for greater flexibility in imaging setups. With 82% peak quantum efficiency (QE), low read noise, and high-speed frame rates, this camera is ideal for low-light imaging, quantitative measurements, and time-sensitive experiments.

Condition

• New with Manufacturer Warranty

Included Items

• Hamamatsu ORCA-Flash4.0 V3 4.2MP Monochrome sCMOS Camera (F-Mount Version)
• USB 3.0 Card (for up to 40 fps full-frame acquisition)
• USB 3.0 A/Micro-B Cable
• Power Supply
• One 3-Meter Trigger Cable
• HCImage Live Software for PCs
• Attached Mounting Baseplate

Key Features

• 4.2 Megapixel Scientific Monochrome sCMOS Sensor – High-resolution imaging with a 2048 x 2048 pixel array
• 82% Peak Quantum Efficiency (QE) – Maximizes light detection for low-light fluorescence microscopy
• Fast Frame Rates – Up to 40 fps full-frame (USB 3.0); up to 100 fps with optional Camera Link board
• Low Read Noise – Ensures high sensitivity and quantitative accuracy for scientific imaging
• Patented Lightsheet Readout Mode – Optimized for light-sheet microscopy applications
• Multiple Triggering Options – Supports external synchronization for time-sensitive experiments
• F-Mount Compatibility – Expands lens selection options for custom imaging configurations

Applications

• Fluorescence Microscopy
• Live-Cell Imaging & Time-Lapse Studies
• Light-Sheet Microscopy
• Voltage-Sensitive Dye Imaging
• Single Molecule Tracking
• High-Speed Quantitative Imaging

🔹 Optional Accessories:

• Firebird CamLink Board for 100 fps Full-Frame Acquisition
• Additional Trigger Cables for Multi-Camera Synchronization

🔹 Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
