Hamamatsu ORCA-Fusion BT 5.3MP Monochrome sCMOS Microscope Camera
Hamamatsu ORCA-Fusion BT 5.3MP Monochrome sCMOS Microscope Camera
Couldn't load pickup availability
- ✓ New, with the full manufacturer warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Hamamatsu ORCA-Fusion BT 5.3MP Monochrome sCMOS Microscope Camera | ORCA-Fusion-BT-KIT

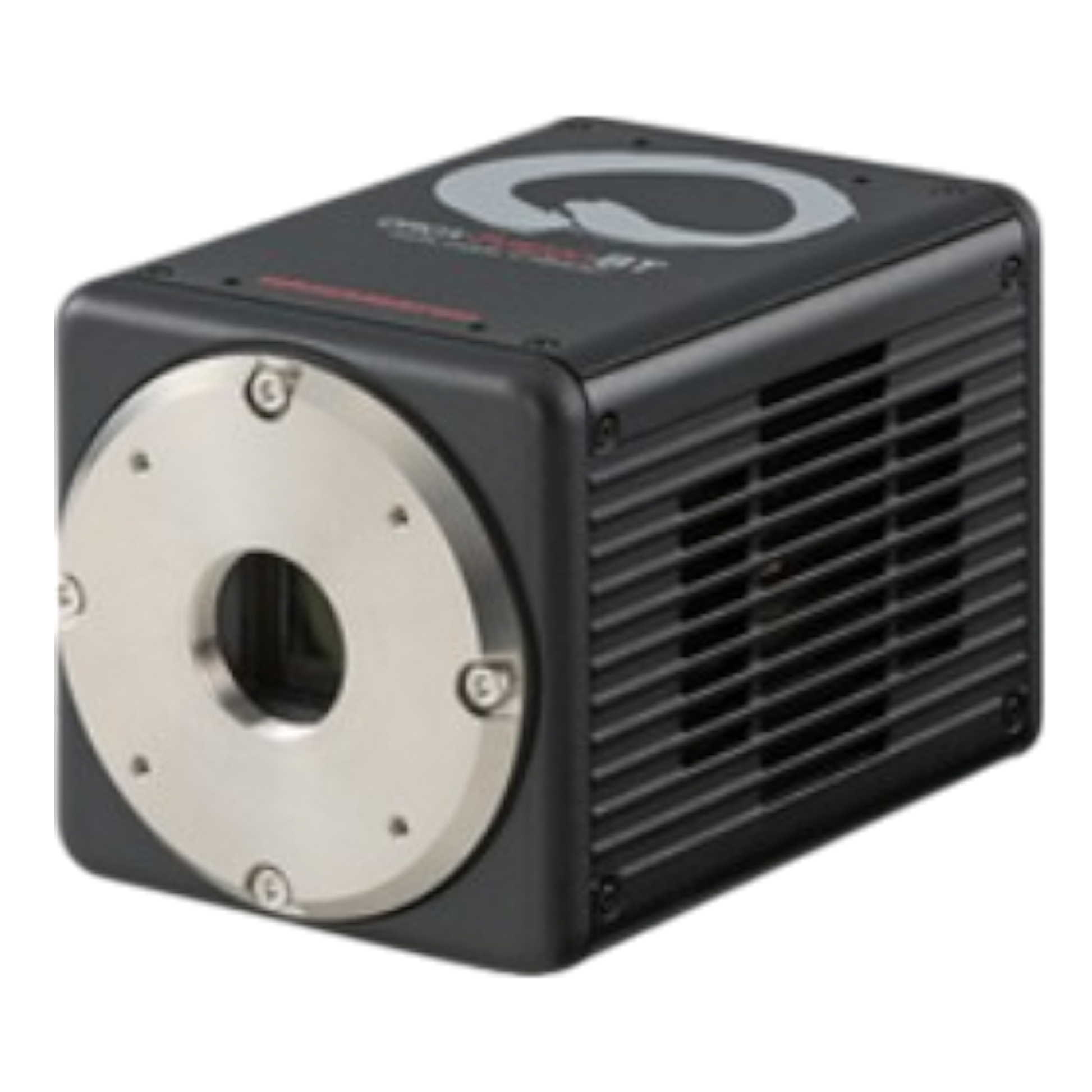

The Hamamatsu ORCA-Fusion BT is a back-thinned Gen-III sCMOS camera with 95% peak QE and 0.7 e- rms read noise on a 5.3MP, 6.5 µm pixel sensor. It outperforms Gen II back-thinned sCMOS and EMCCDs in photon-limited work while keeping the light dose on live samples low.
Condition
New with Manufacturer Warranty
Included Items
- ORCA-Fusion BT camera (C15440-20UP)
- Mounting baseplate
- USB 3.0 PCIe card (CAMRA-3206-000)
- USB 3.0 A to B cable, 5 m (CAMRA-4209-000)
- Power supply (A16980-02)
- 3 m SMA to BNC trigger cable (CAMRA-4303-000)
- HCImage Live software for PC
Key Features
- Back-thinned Gen-III sCMOS with 95% peak QE
- 0.7 e- rms read noise in ultra-quiet mode
- CCD-like read noise uniformity across the sensor
- Three readout modes to balance speed and noise
- Patented lightsheet readout at 2x the speed of the ORCA-Flash
Applications
- Live cell and fluorescence imaging
- Light sheet microscopy
- Single molecule and super resolution imaging
- Low light quantitative imaging
Specifications
| Manufacturer | Hamamatsu |
| Model | ORCA-Fusion BT 5.3MP Monochrome sCMOS (C15440-20UP) |
| Part Number | ORCA-Fusion-BT-KIT |
| Sensor | Back-thinned Gen-III sCMOS |
| Resolution | 2304 x 2304 (5.3MP) |
| Pixel Size | 6.5 x 6.5 µm |
| Sensor Diagonal | 21.1 mm |
| Peak QE | 95% |
| Read Noise | 0.7 e- rms (ultra-quiet) |
| Readout Modes | Fast, standard, ultra-quiet; lightsheet |
| Frame Rate (full frame) | 30 fps USB 3.0; higher with CoaXPress |
| Cooling | Air or water |
| Interface | USB 3.0 and CoaXPress |
| Mount | C-mount |
CoaXPress kit (CAMRA-1014-000-KIT) sold separately for full speed.
Additional discounts may apply. Contact us for a quote.
Additional Details
Additional Details
- Manufacturer: Hamamatsu
- Model: ORCA-Fusion 5.3MP Monochrome sCMOS
- Catalog Number: HAM-ORCA-Fusion-BT-KIT
- Serial Number: N/A
- Condition: New
