Hamamatsu ORCA-Spark 2.3MP Monochrome CMOS Microscope Camera

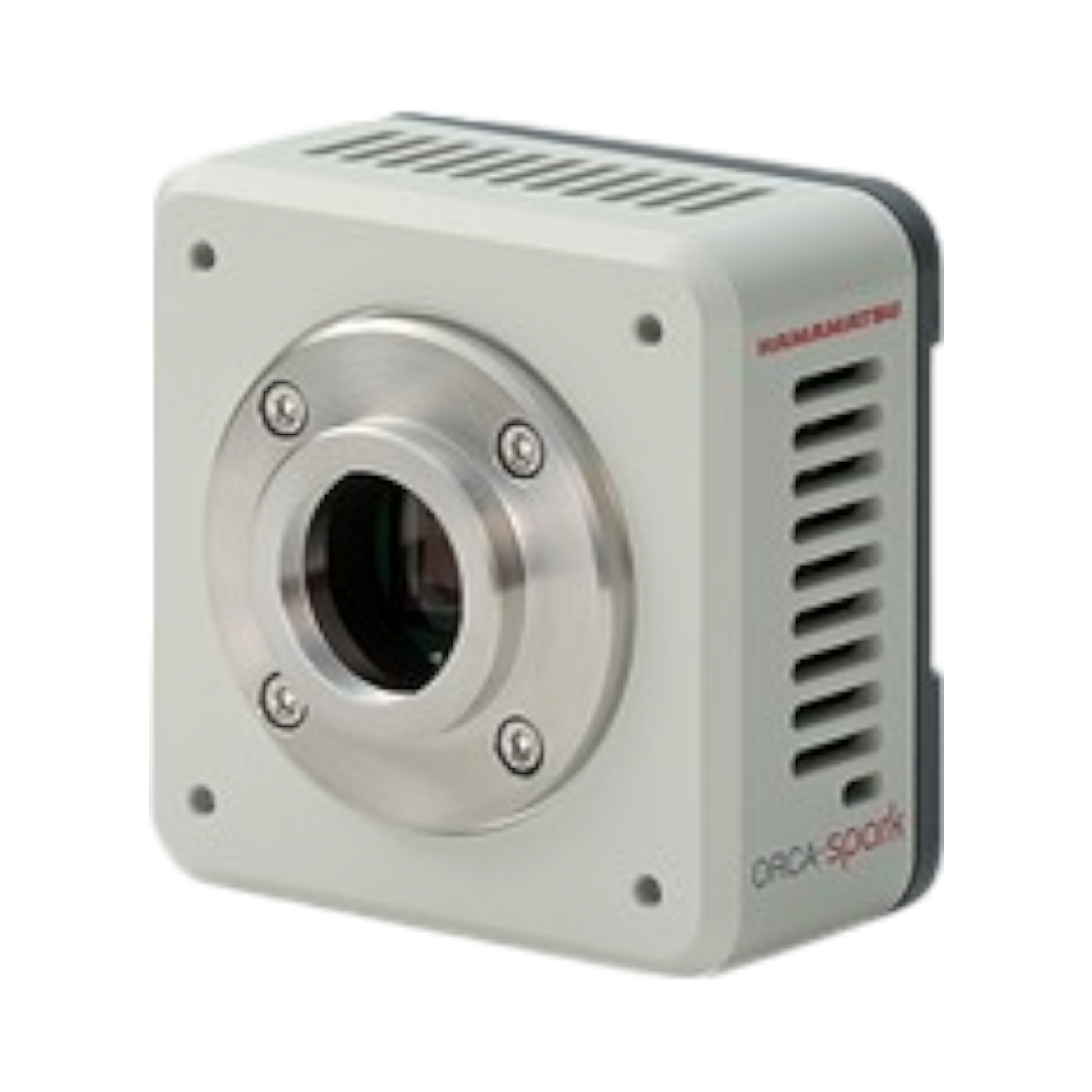

Hamamatsu ORCA-spark Digital CMOS Camera CN: C11440-36U-KIT

Overview

The Hamamatsu ORCA-spark Digital CMOS Camera (C11440-36U-KIT) is a high-sensitivity imaging device designed to deliver exceptional performance for a variety of applications, including low-light-level imaging, microscope observation, and X-ray scintillator readout. With its advanced CMOS sensor, this camera provides high-resolution imaging with outstanding signal-to-noise performance.

Condition

✔ New with Manufacturer Warranty

Included Items

• Hamamatsu ORCA-spark Digital CMOS Camera (C11440-36U)
• USB 3.0 Cable
• Power Supply
• Trigger Cable
• HCImage Live Software for PCs

Key Features

• 2.3 Megapixel CMOS Sensor: Provides high-resolution imaging with an effective pixel array of 1920 (H) × 1200 (V).
• High-Speed Readout: Achieves approximately 65 frames per second at full resolution, ideal for capturing fast-moving subjects.
• Low Readout Noise: Delivers readout noise levels as low as 6.6 electrons, ensuring high signal-to-noise ratio even in low-light conditions.
• Wide Dynamic Range: Offers a dynamic range of 5000:1, allowing for the capture of both bright and dim details within the same image.
• Global Shutter: Utilizes a global shutter mechanism to eliminate motion artifacts, ensuring accurate imaging of moving objects.
• USB 3.0 Interface: Ensures fast data transfer and easy integration with existing systems.

Applications

• Low-Light-Level Imaging
• Microscope Observation
• X-ray Scintillator Readout

Specifications
