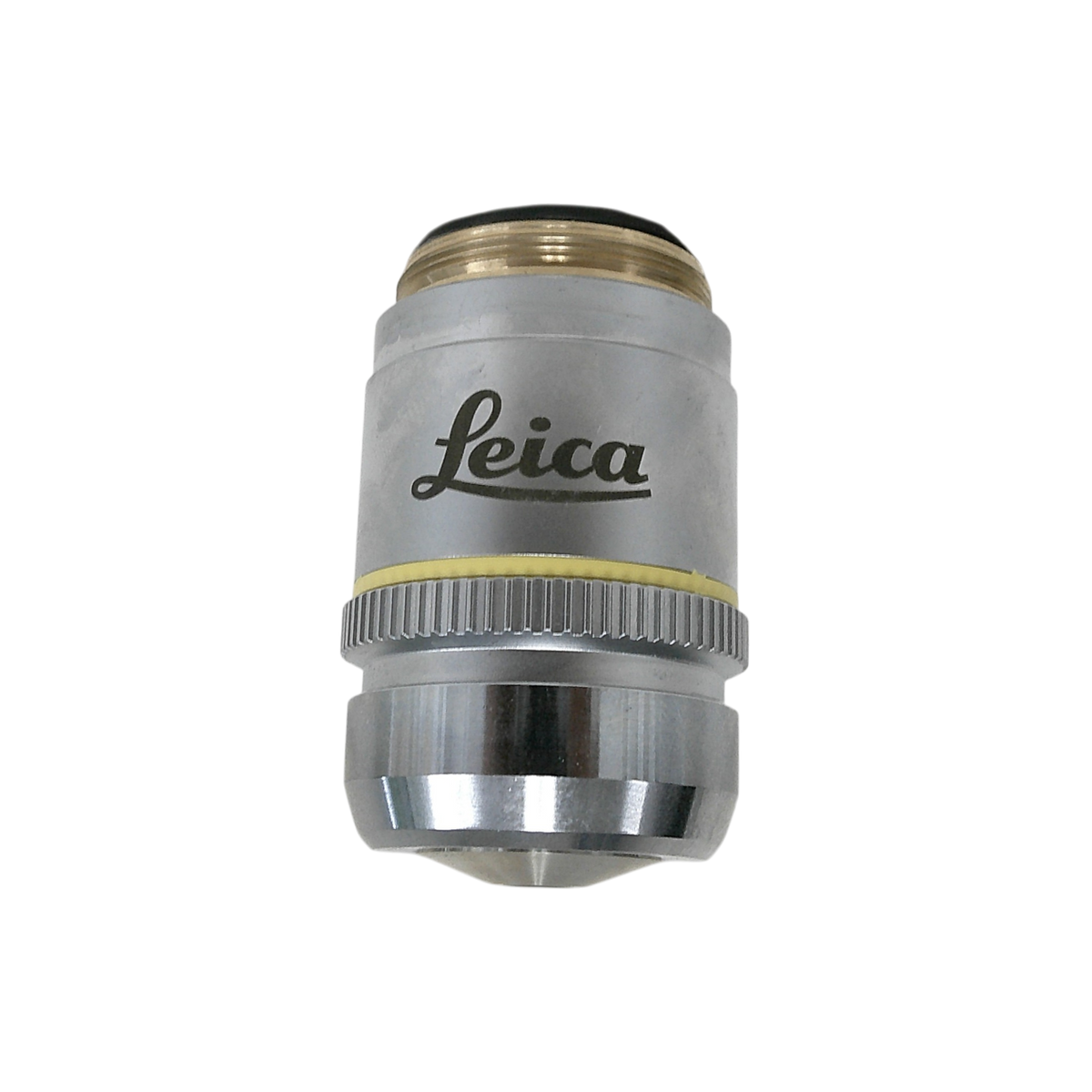

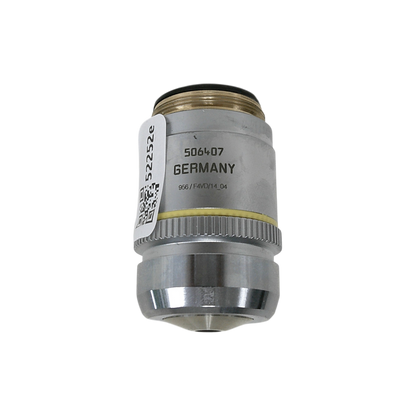

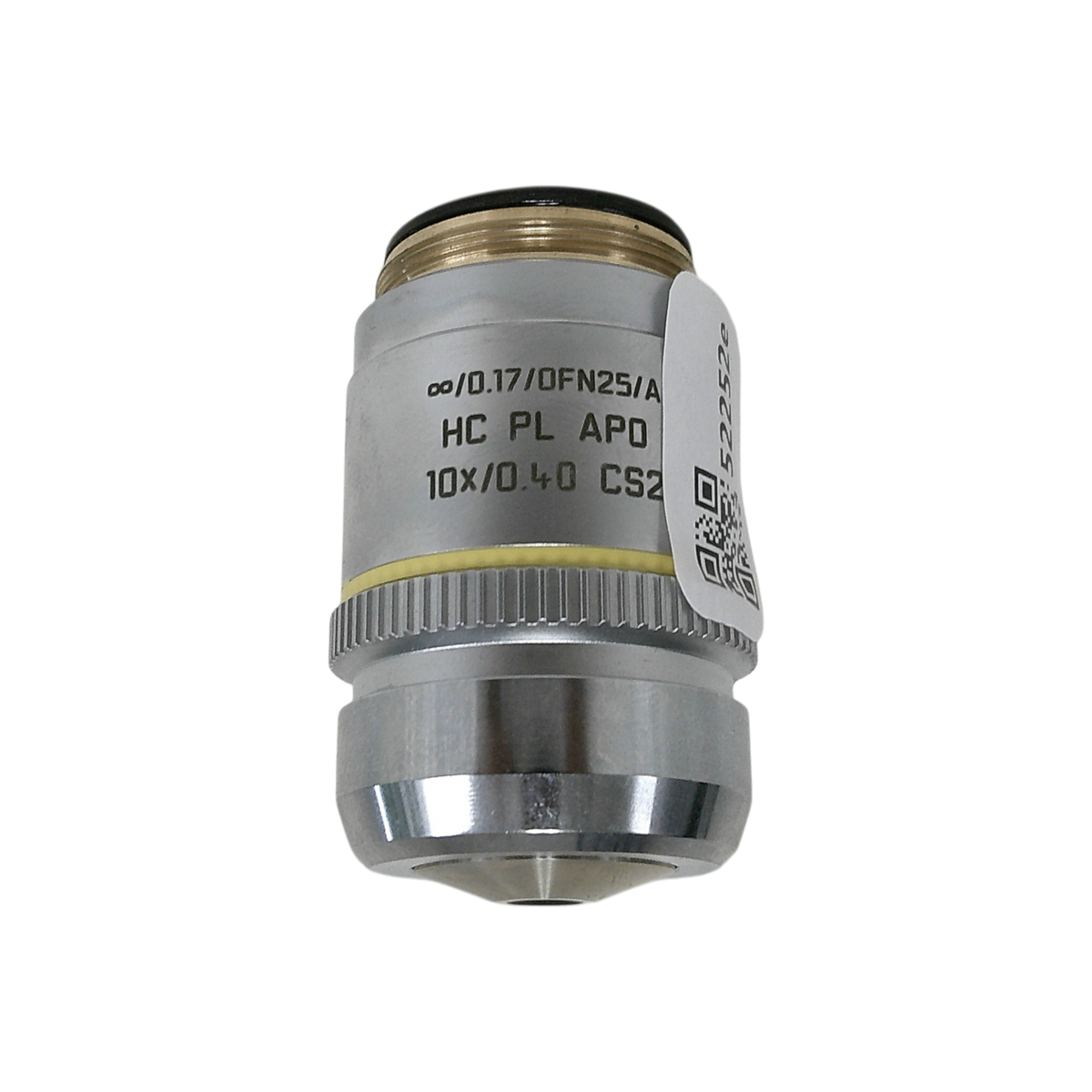

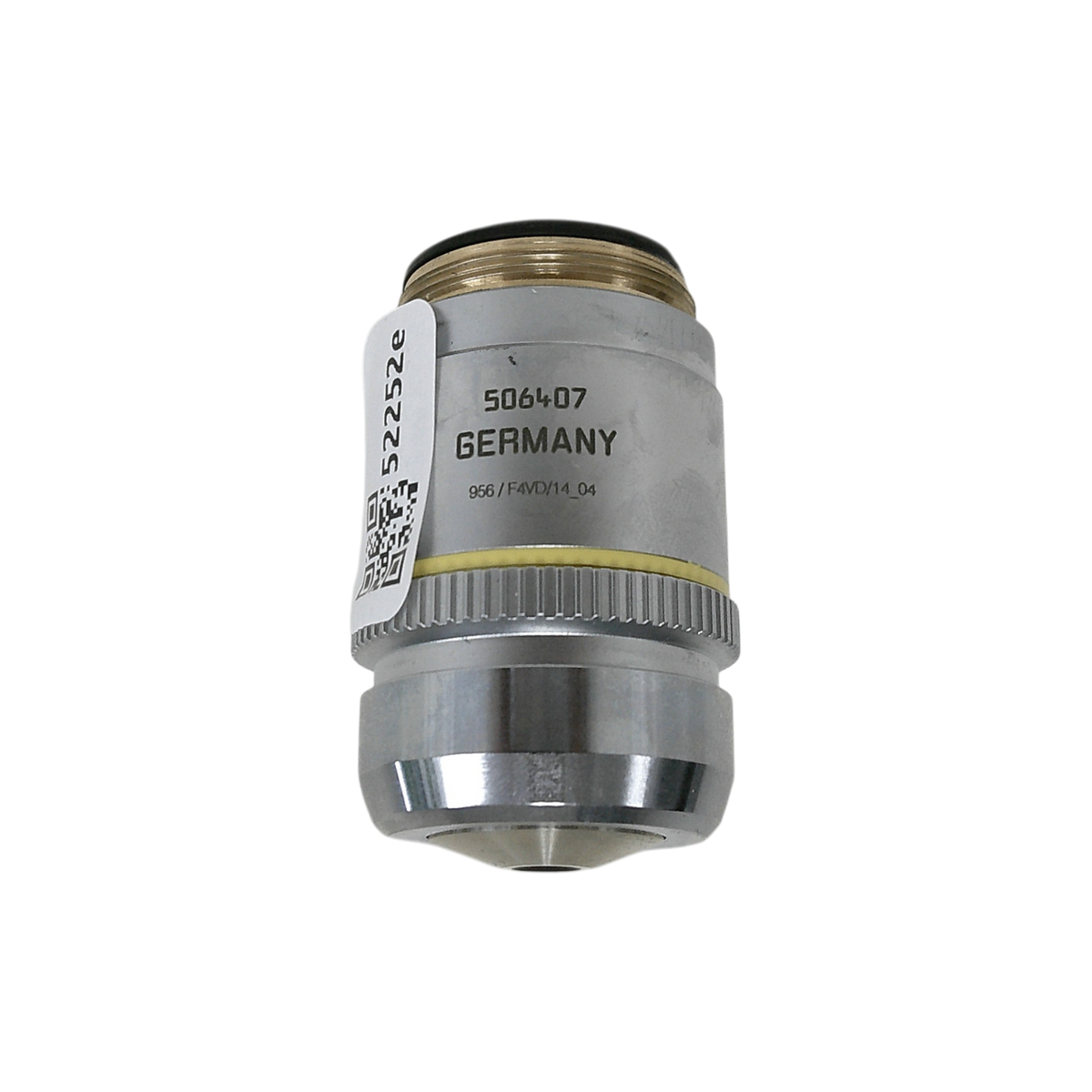

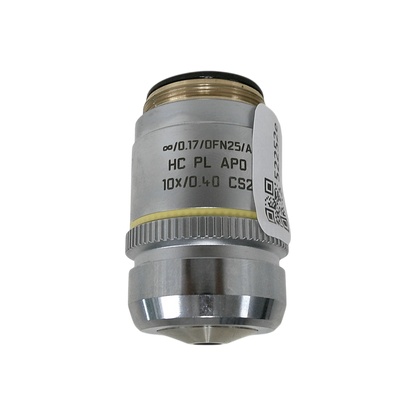

Leica HC PL Apo 10x/0.40 CS2 M25 Thread Size Microscope Objective

Leica HC PL APO 10x/0.40 CS2 M25 Microscope Objective – 506407

The Leica HC PL APO 10x/0.40 CS2 is a high-performance plan apochromatic microscope objective designed for fluorescence and transmitted-light imaging. Featuring 10x magnification, a 0.40 numerical aperture, Leica’s HC PL APO optical correction, and an M25 mounting thread, this dry objective provides excellent resolution, color correction, and flat-field performance for research microscopy.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Key Features

• 10x magnification
• 0.40 numerical aperture
• Leica HC PL APO plan apochromatic optical design
• CS2 optical series
• Dry / air objective
• Infinity-corrected optical system
• Excellent chromatic and spherical aberration correction
• Plan correction for a flat image field
• High light-gathering capability for a 10x objective
• M25 objective mounting thread
• Suitable for fluorescence and transmitted-light microscopy
• Designed for compatible Leica research microscope platforms

Applications

• Fluorescence microscopy
• Confocal microscopy
• Brightfield microscopy
• Cell and tissue imaging
• Immunofluorescence
• Histology and pathology research
• Specimen overview and navigation
• Large-area imaging
• Quantitative microscopy
• Biomedical and life science research

Specifications
