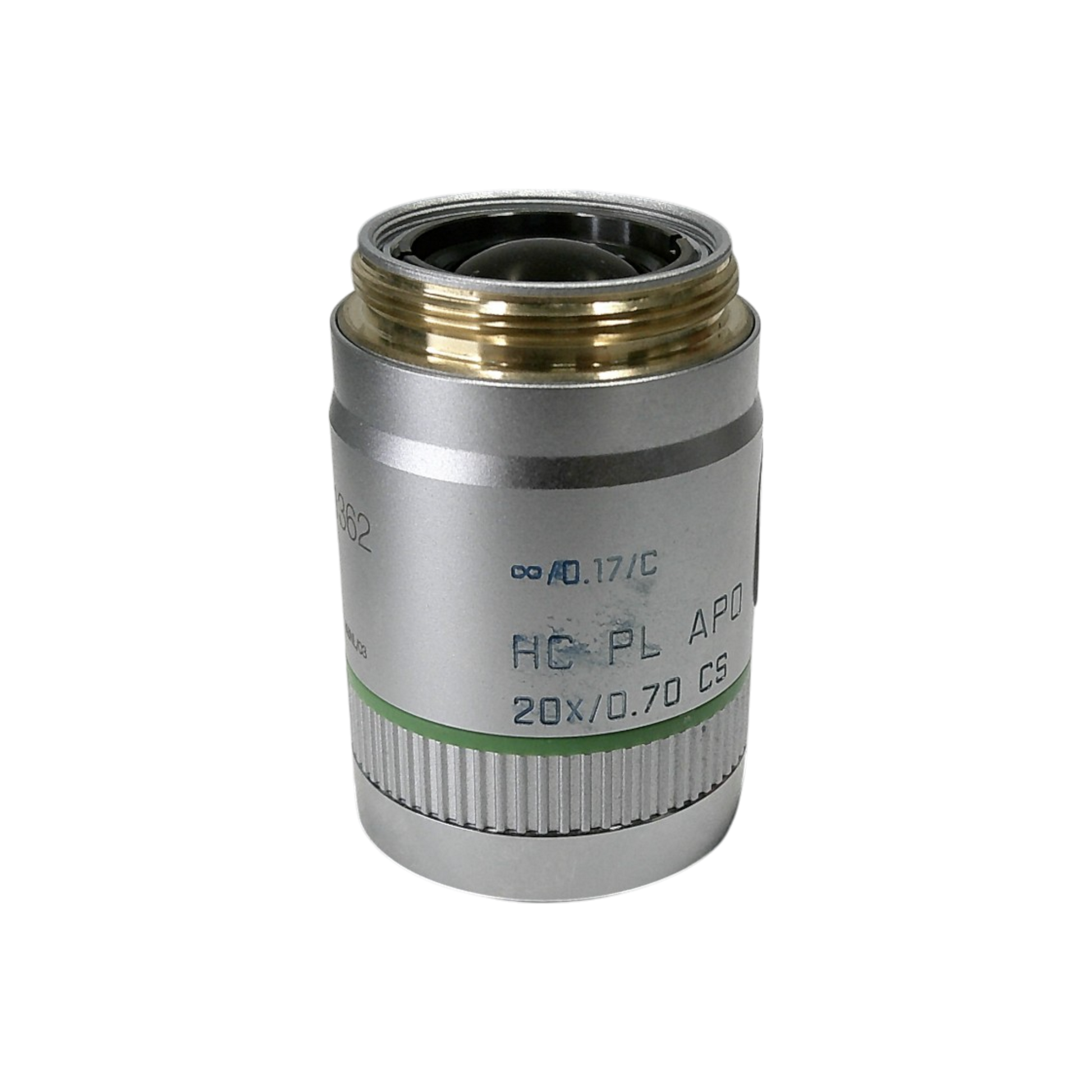

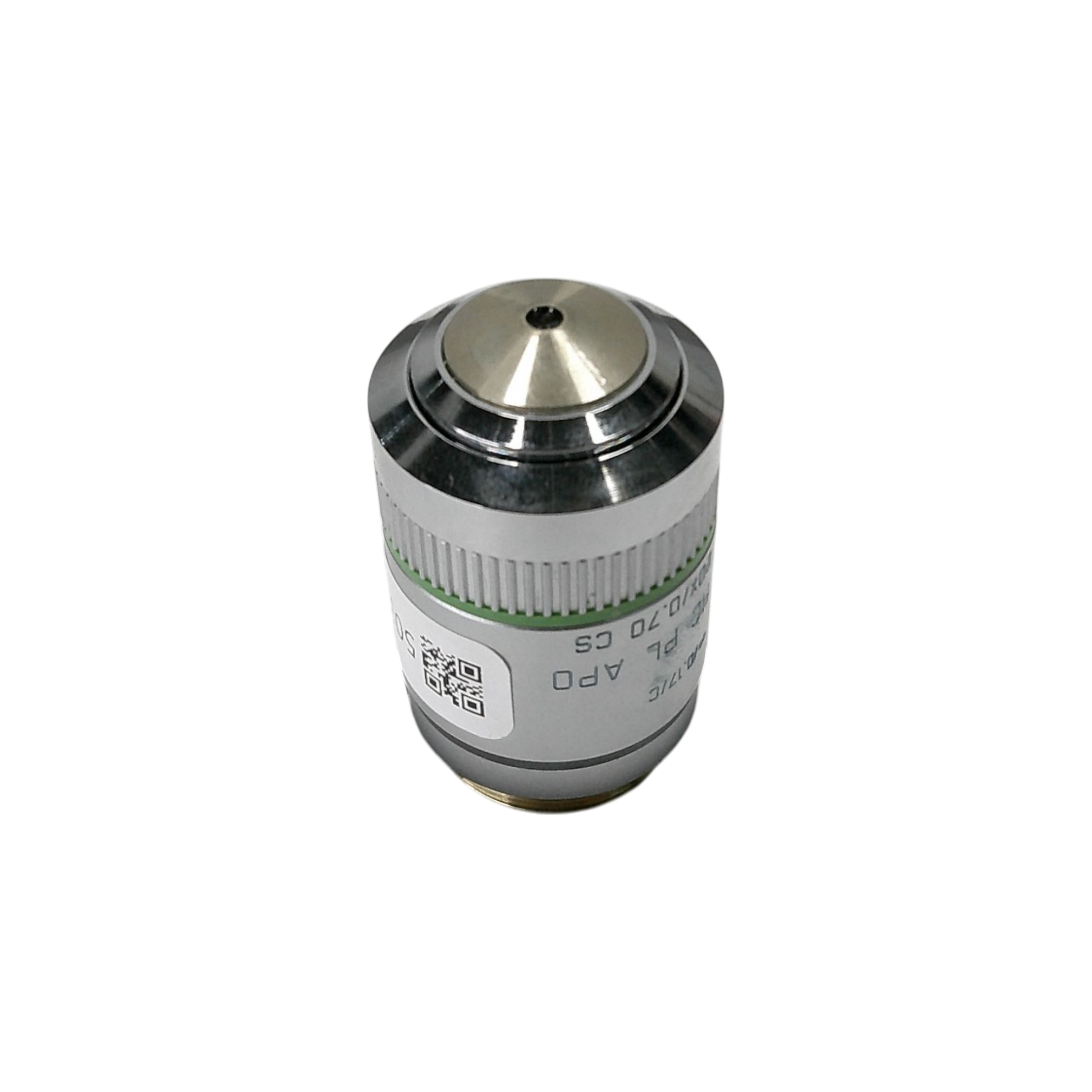

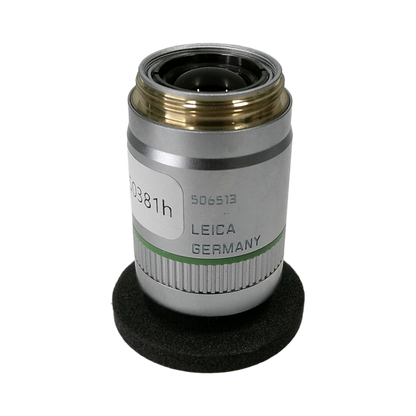

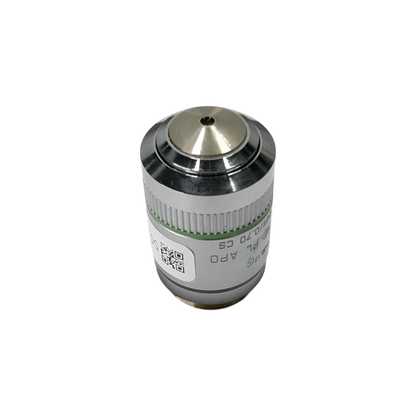

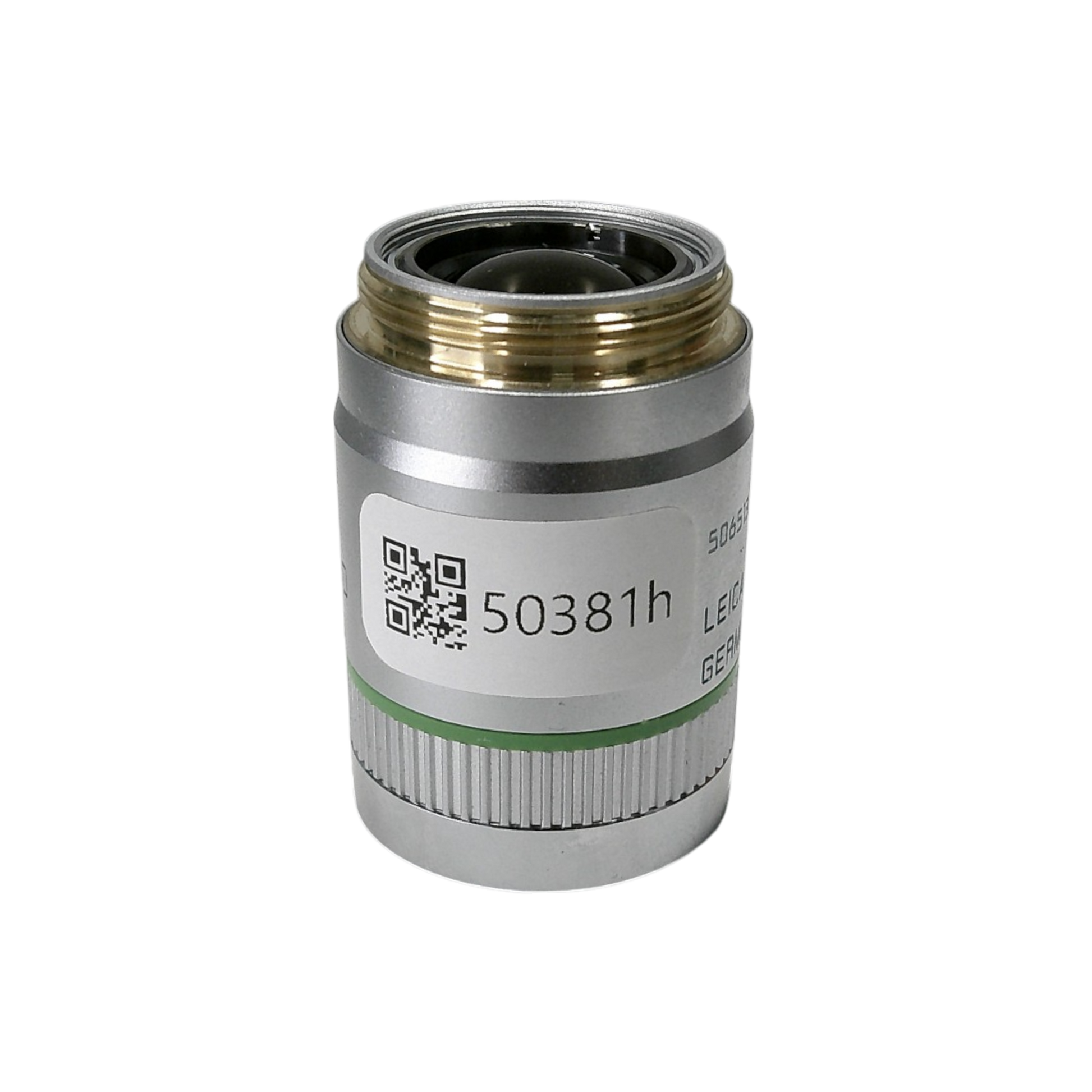

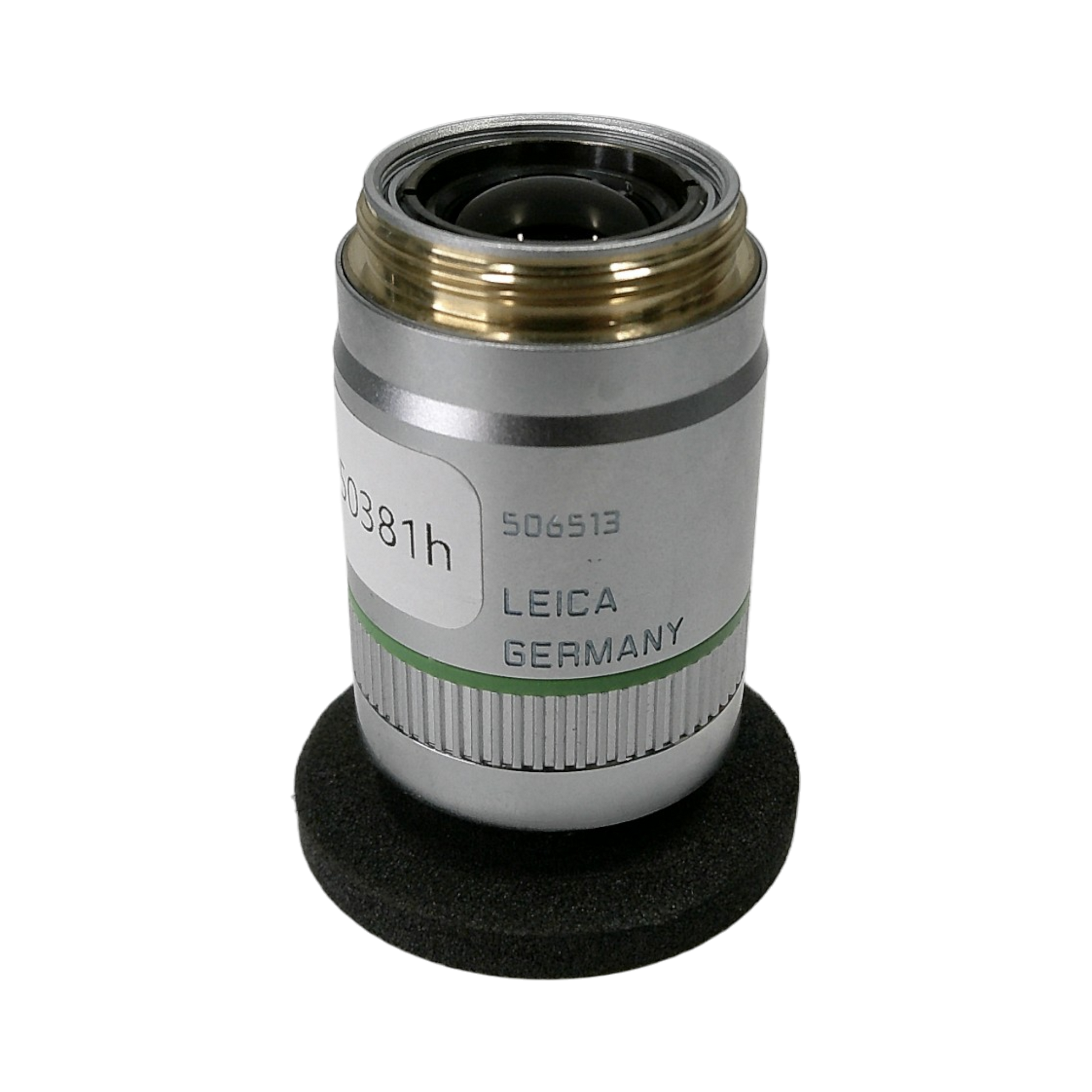

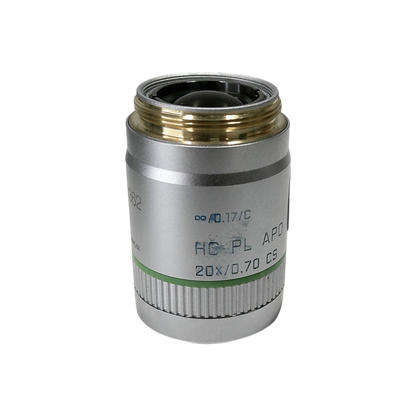

Leica HC PL APO 20x/0.70 CS M25 Thread Size Microscope Objective

Leica HC PL APO 20x/0.70 CS Objective – 506513

The Leica HC PL APO 20x/0.70 CS Objective provides outstanding optical clarity and correction for intermediate magnification applications. With a high numerical aperture of 0.70 and Plan Apochromatic design, it delivers exceptional resolution and chromatic fidelity, ideal for fluorescence, confocal, and transmitted light microscopy. This objective is optimized for Leica CS microscope systems with a modern M25 thread mount.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications).

Key Features

• 20x Magnification with 0.70 Numerical Aperture (NA)
• Dry objective – no immersion medium required
• Plan Apochromatic correction for superior chromatic and spherical correction
• Optimized for Leica CS microscope platforms
• Ideal for fluorescence and transmitted light imaging
• M25 thread size for easy mounting on modern systems

Applications

• Multichannel fluorescence imaging
• Live cell and fixed tissue imaging
• Confocal microscopy
• High-contrast transmitted light microscopy
